Quickie Q700 F

Front-wheel powered wheelchair

Enjoy the ultimate driving experience with the Q700 F, Quickie’s most advanced front-wheel drive powered wheelchair! Featuring Spirit Level technology, the advanced Sedeo Ergo biomechanical seating system and innovative controls or the supremely comfortable – and suitable for all – Sedeo Pro seating system and innovative controls.

Read more Read less
Gallery
Functional
Benefits
Spirit level technology not enough?
Discover a whole new level of suspension on the Q700 F and R. These models incorporate added suspension on the front castor arms to dampen bumps and jolts – both big and small, giving you the most comfortable ride in the Quickie Q-series and on the market. This ‘all-round’ suspension also allows the castor arms to articulate independently for maximum traction and stability, so you can drive with peace of mind, knowing your powerchair is providing the market-leading ride.

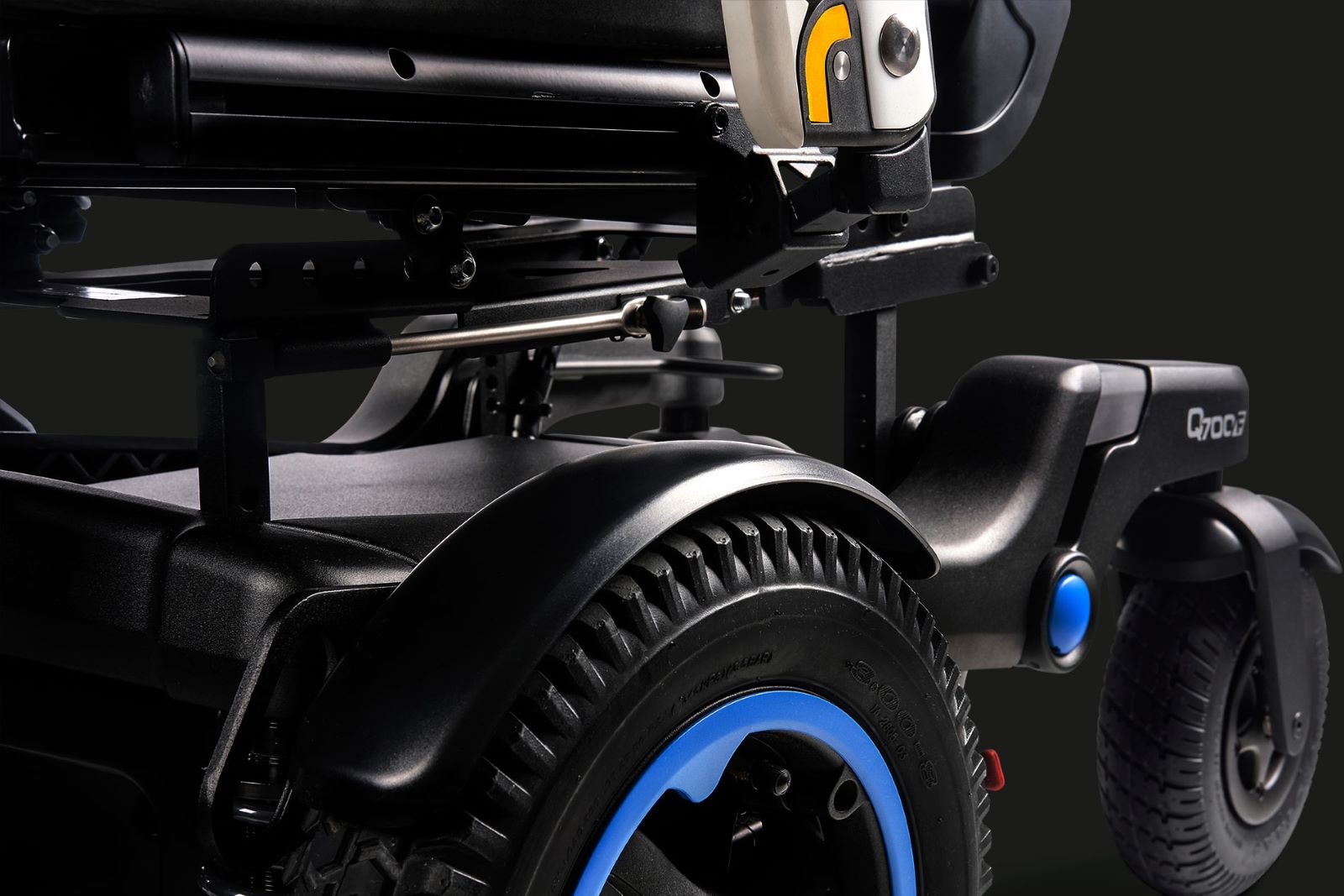

Maximum traction thanks to the unique Spirit Level technology
Prefer a firmer sportier ride, or a soft and comfortable one? Whatever your preference you can fine tune the Q700 F to suit you. With both drive wheels connected by a pivot bar, that absorbs the natural pull to one side when travelling across cambers and round corners at speed. Plus, adjustable springs mean you can ensure you keep maximum traction all the time whatever your driving style.
Maximum freedom

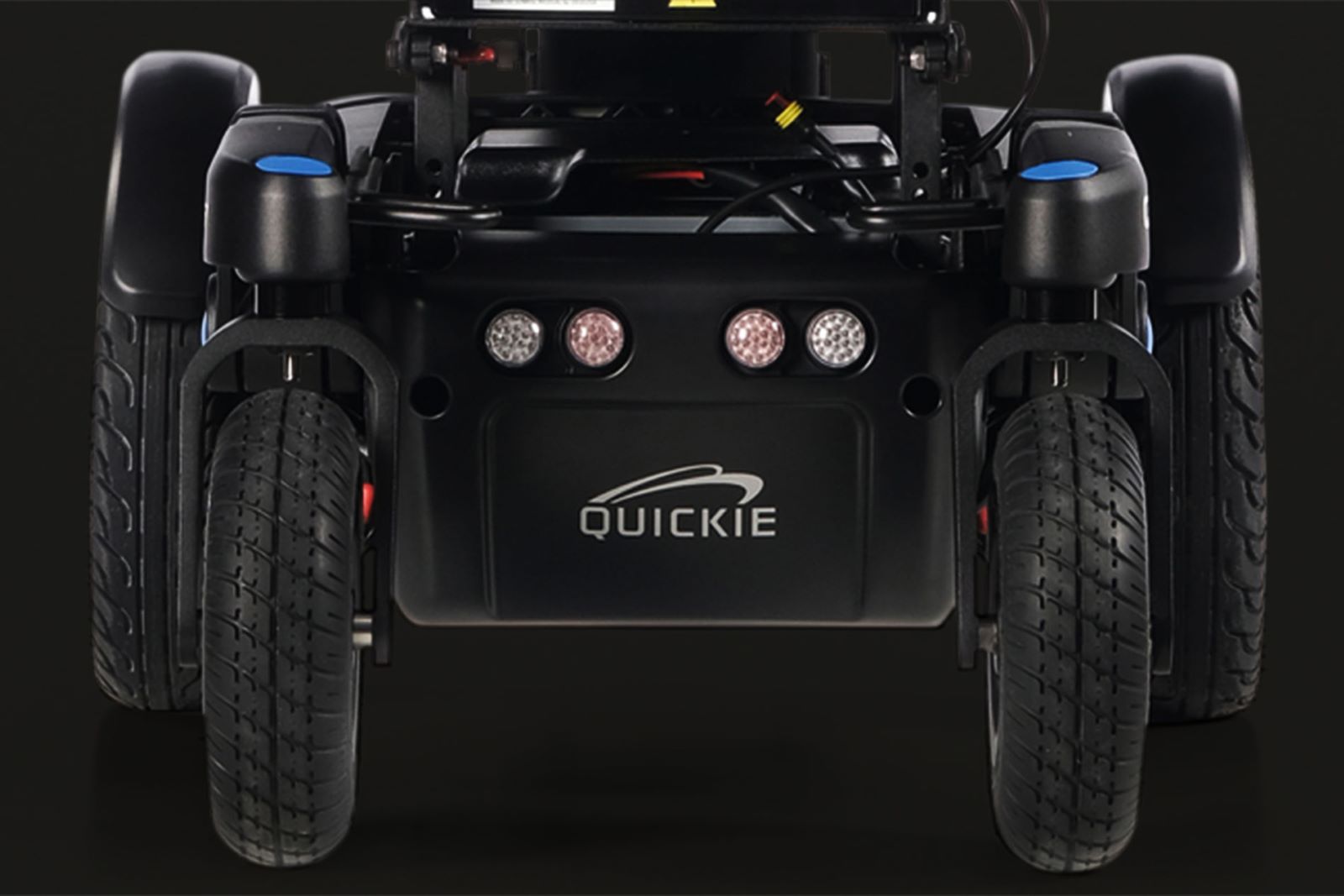

With large wheels, powerful high torque 4-pole motors powering speeds of 6kph high torque or 10kph standard and a choice of 60 Ah or 72 Ah batteries to maximise your range, you can always travel in confidence with the Quickie Q700 F.
Resources
Quickie Q-Series Power Wheelchairs Range Brochure 2.75 MB Comparison Chart (NZ) - Powered Wheelchair 0.56 MB Comparison Chart (NZ) - Q-Series Powered Wheelchairs 0.75 MB
Specifiactions
Q700 F
Drive Configuration Front-Wheel Drive
Overall Base Width 63cm 24.8″
Overall Base Length
(not including footrests)		 88cm 34.6″
Turning Circle
Turning radius (QMFM) vs diameter (QUP)		 73.5cm 28.9″
Ground Clearance 7.5cm 2.9″
Seat to Floor Heights 41.5cm 16.3″
Max Speed 8,10kph
Range 40km
Drive Wheel Size 35.5cm 14″
Castor Wheel Size 22.8 & 25.4cm 9″ & 10″
Seat Frame Options Sedeo Ergo/Sedeo Pro
Third Party Seating Yes with Special Mounting
Seating Sizes 40.6 – 50.8cm (W)
40.6 – 55.8 (D)		 16″ – 20″ (W)
16″ – 22″ (D)
Lift 30cm 11.8″
Tilt 50°
Power Recline 90° – 150°
Power Leg Elevate Yes/Swing Away or PCM
Manual Recline 90° – 130°
Electronics R-Net
Specialty Controls Yes
Suspension All Wheels
Motors 4 Pole
Battery Size 60Ah/72Ah
Chair Weight 140/165kg
Max. User Weight 160kg
Transit Tested Yes

Read more Read less
Sedeo
&nbsp&nbsp&nbspSeating

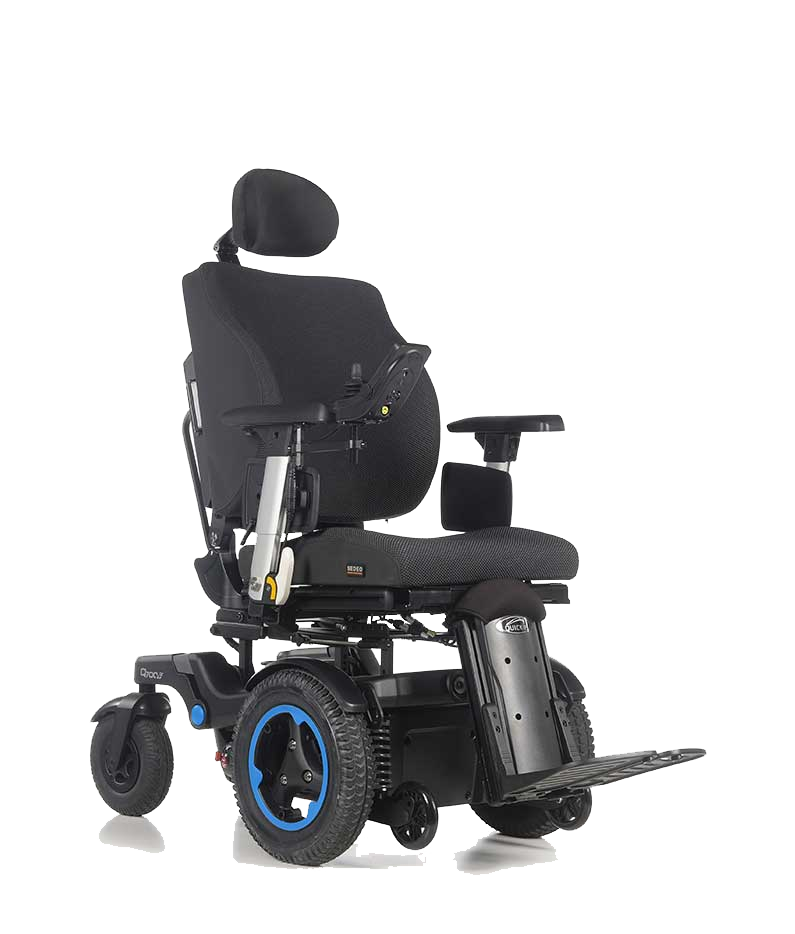

Sedeo Pro

High-end fully adjustable and configurable seating frame with a wide range of comfort cushions and positioning options. Aimed at meeting moderate to complex clinical needs. With a wide range of armrests, armpads, legrests, seat and back cushions, headrests and positioning accessories, Sedeo Pro offers great flexibility to adapt to the individual user needs.

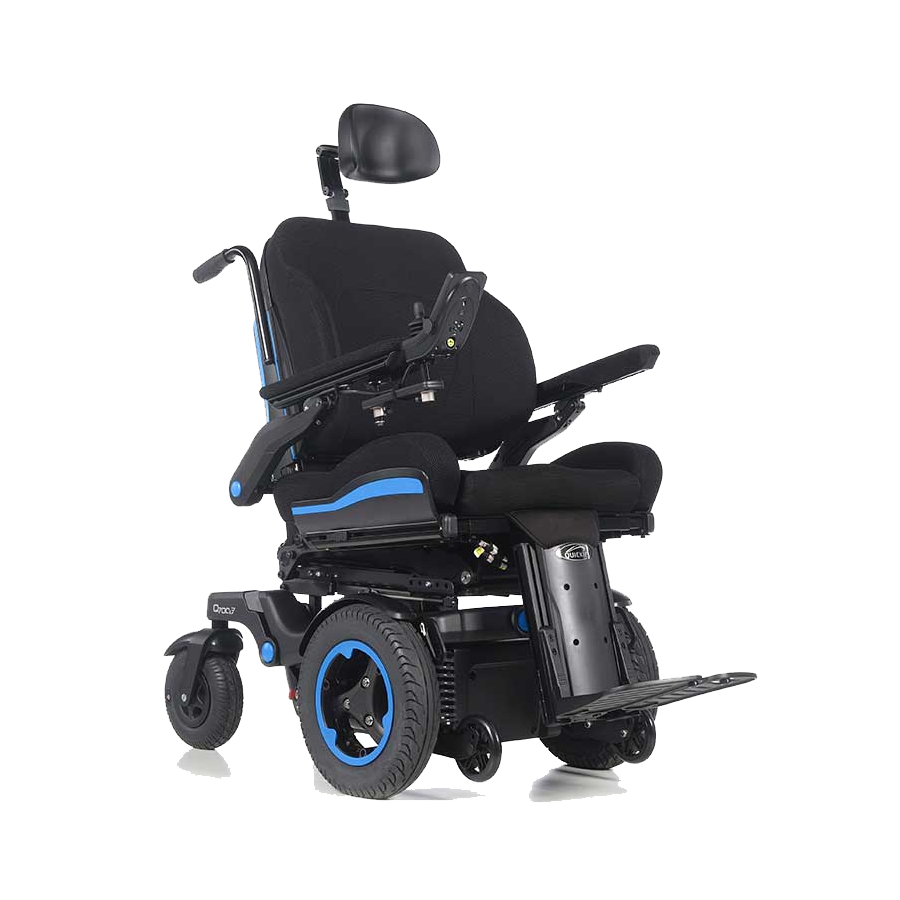

Sedeo Ergo

Sedeo Ergo is a high-end biomechanical seating system, with many programmable seating positions. This system covers the most demanding clinical needs with 180 mm antishear back movement, biometric repositioning function, infinitely adjustable seat and back, easy entry system, 90º knee angle in seated position and pressure relief reminders.
Read more Read less
