Drop Mount
Hardware

Easy drop-in hardware option for active and lightweight back supports.

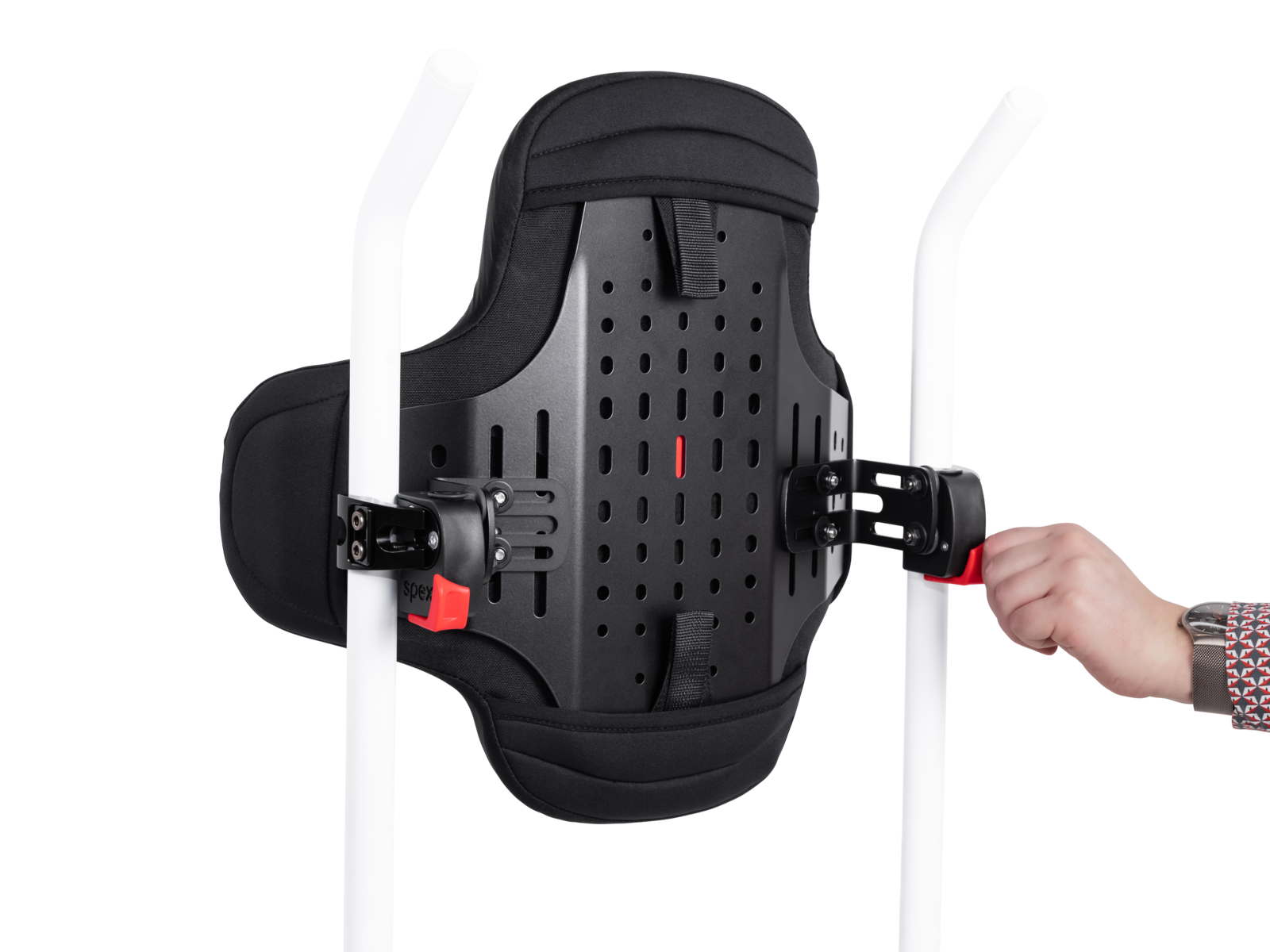

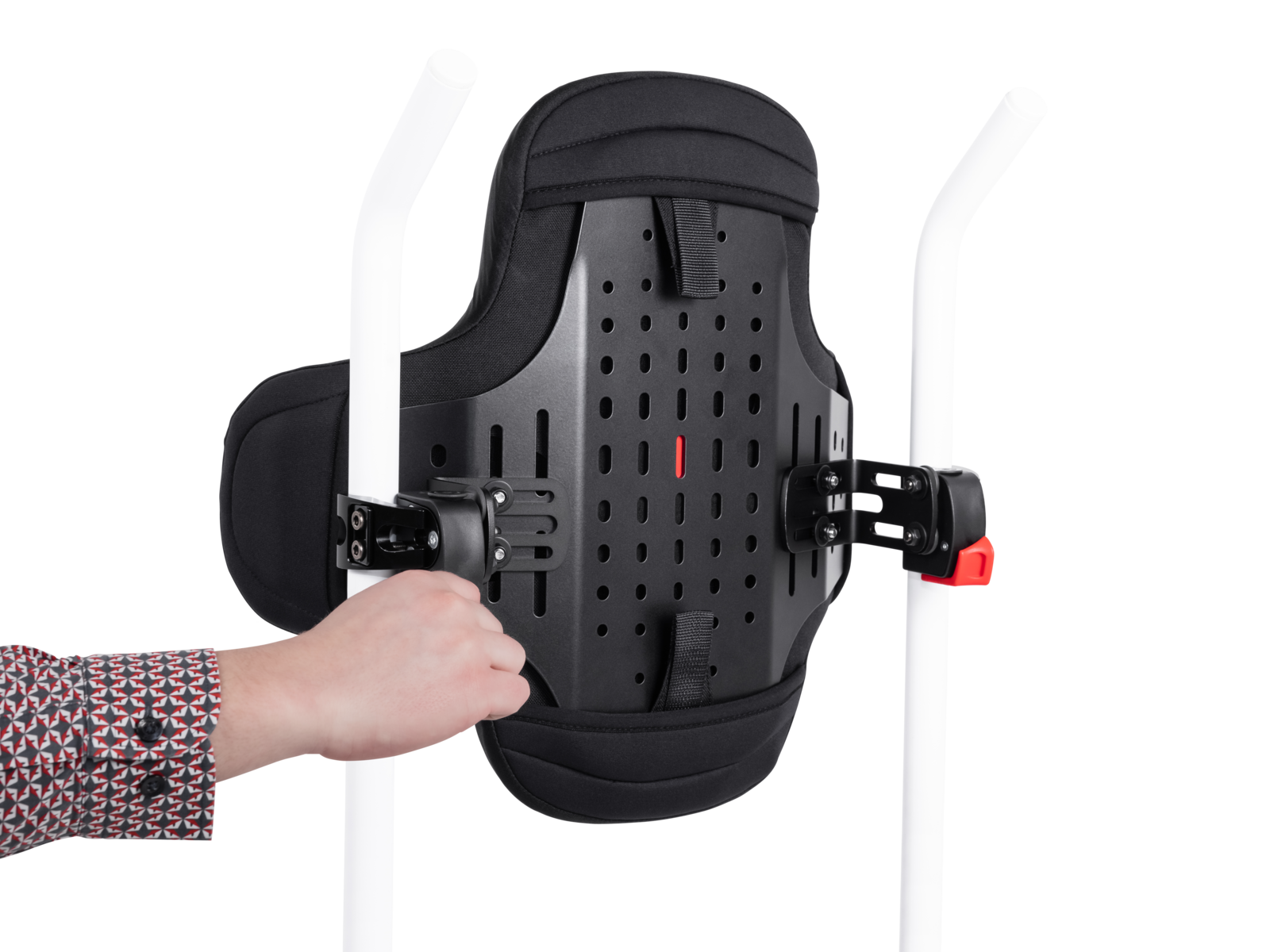

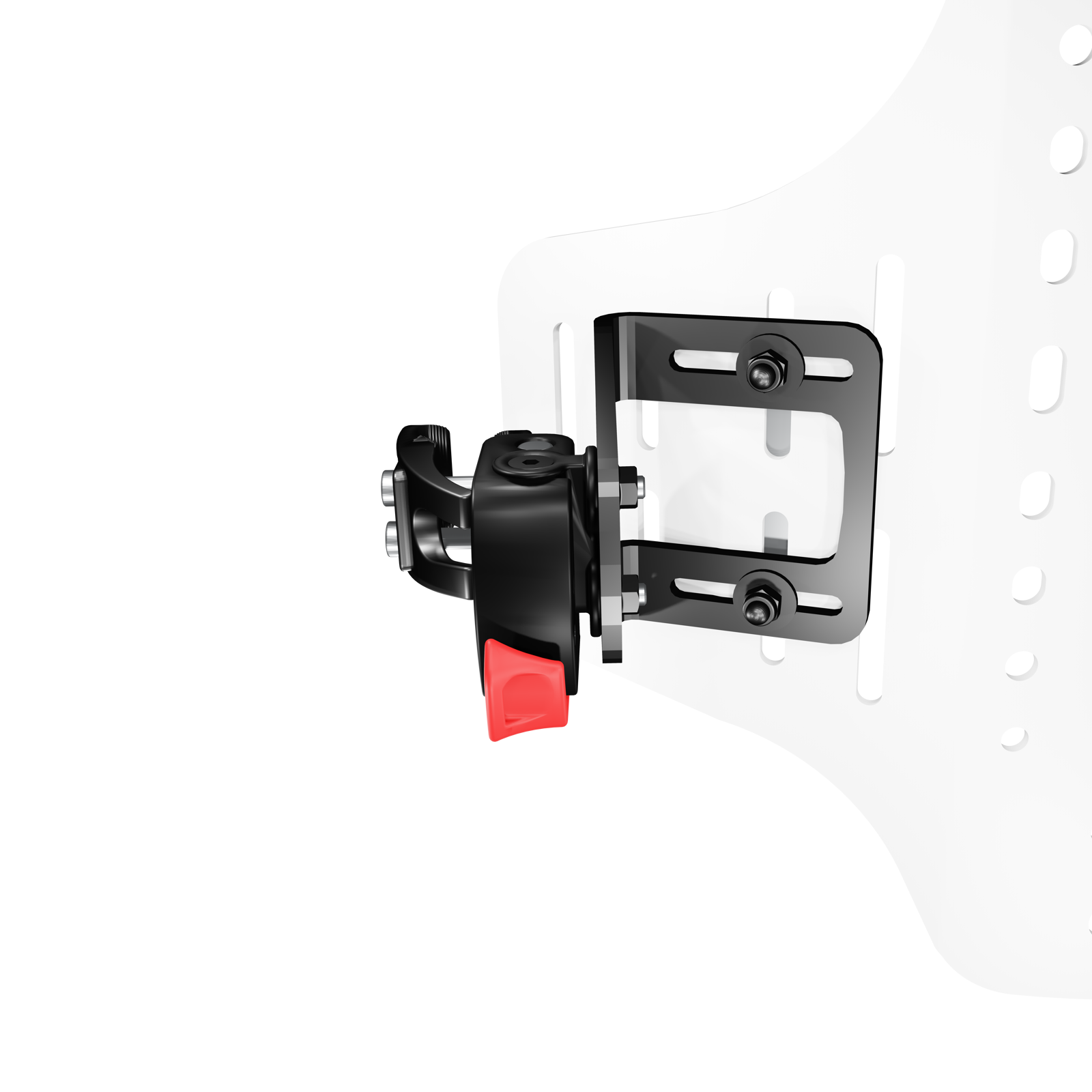

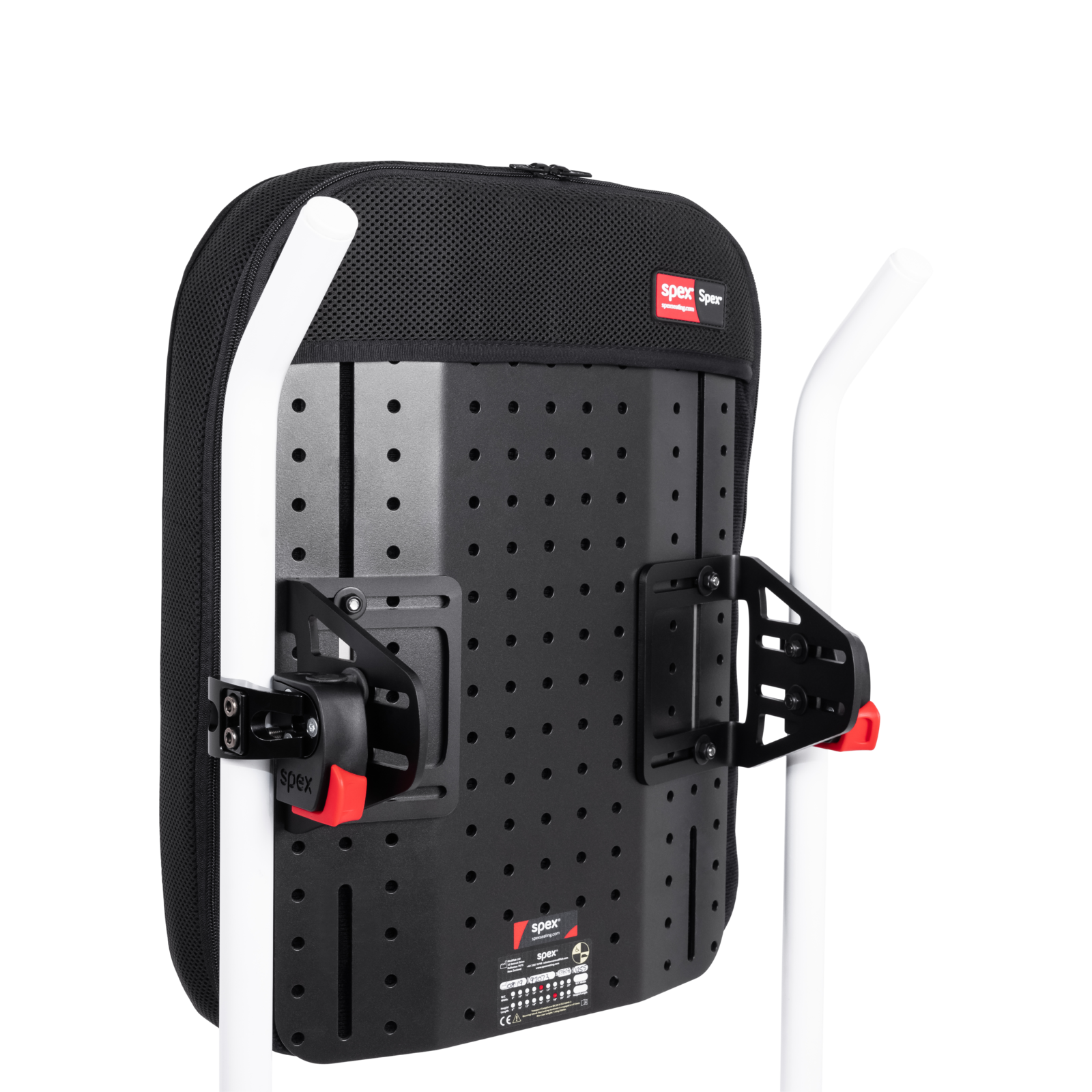

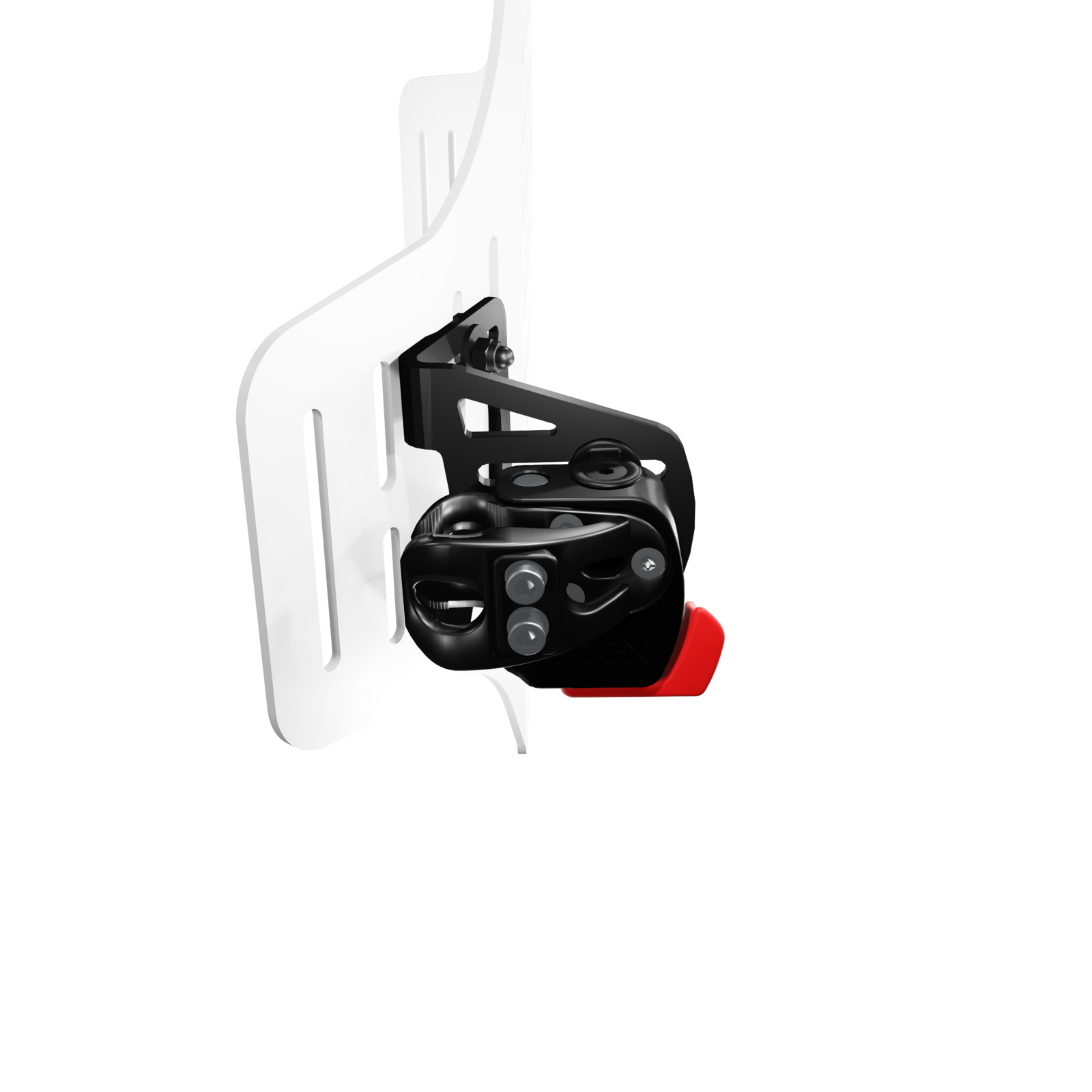

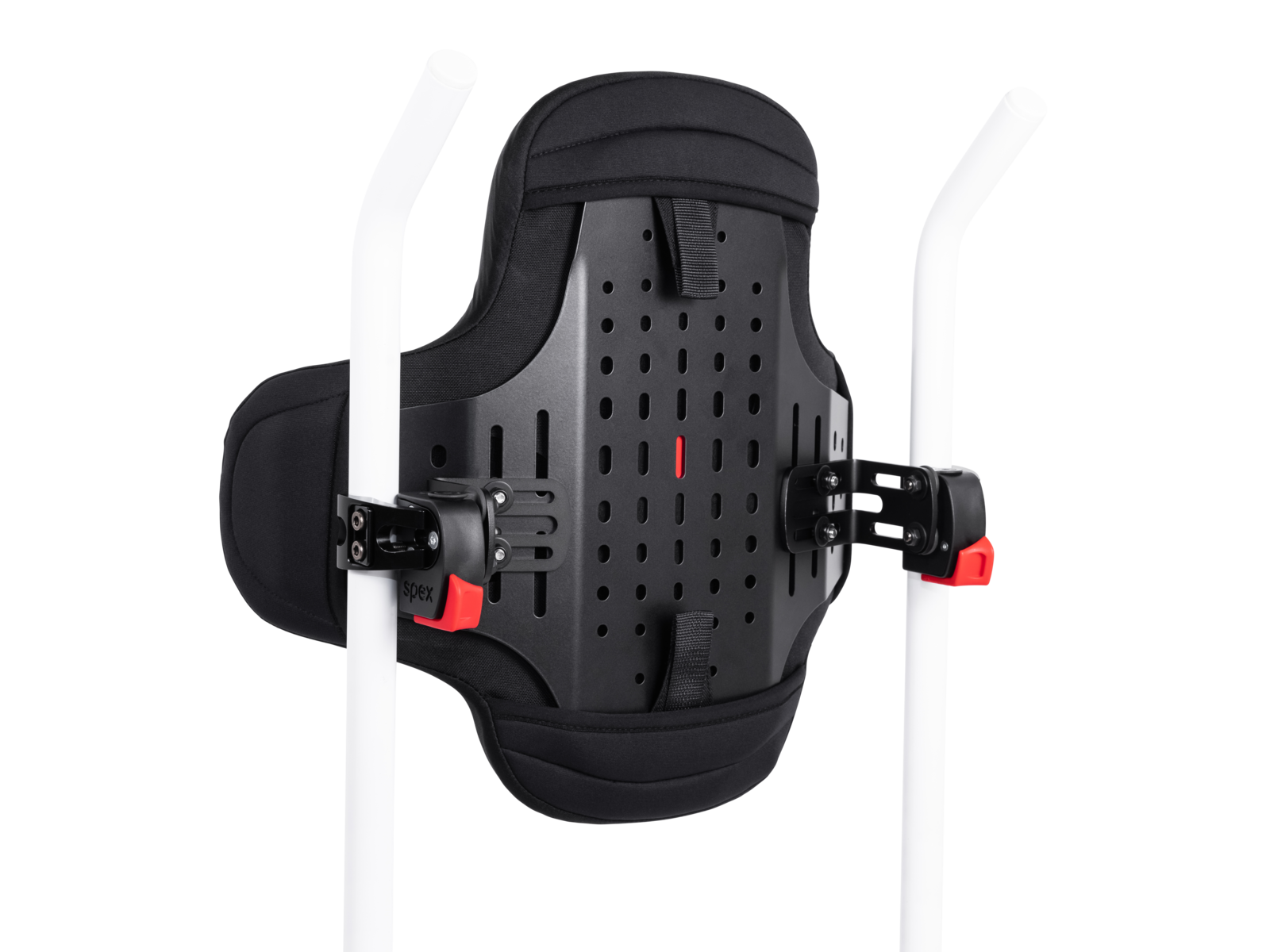

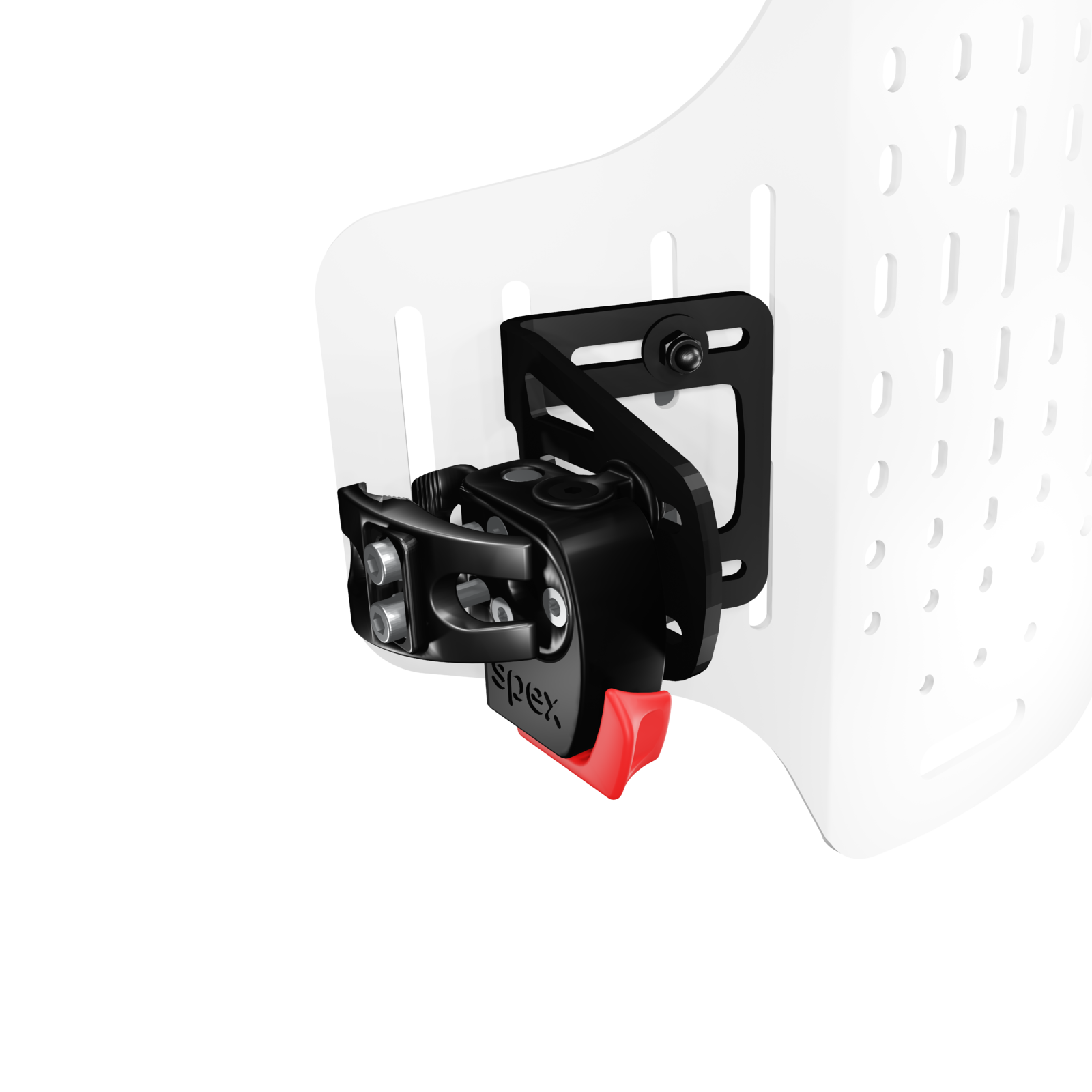

The lightweight Drop Mount hardware is simple to operate with a single combined clamp and mechanism unit. The release mechanism is simple to operate, and suitable for single-handed use, and those with limited hand function. The hardware gives plenty of adjustability and rigidity and can be used on a wide range of wheelchair frames.

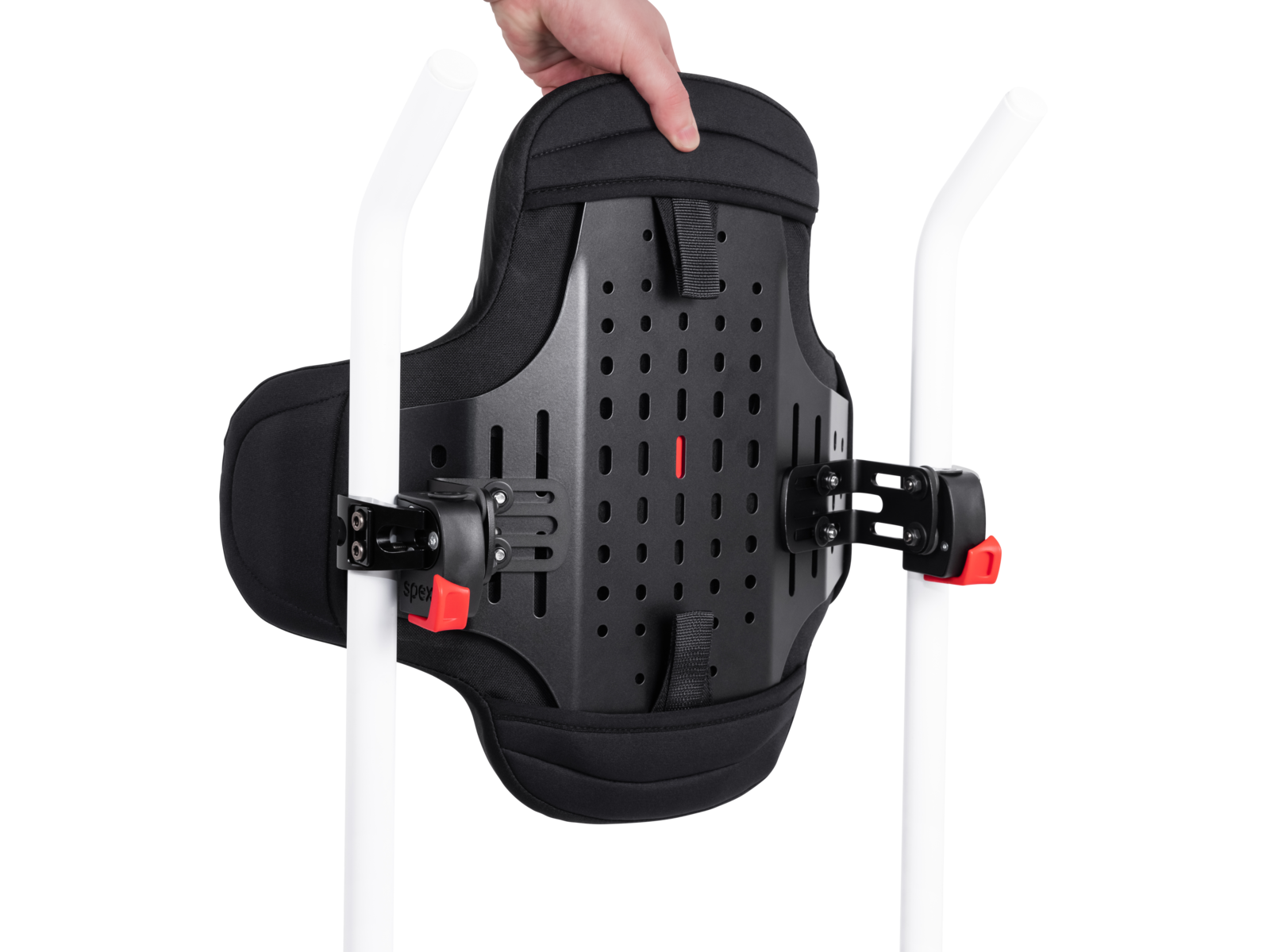

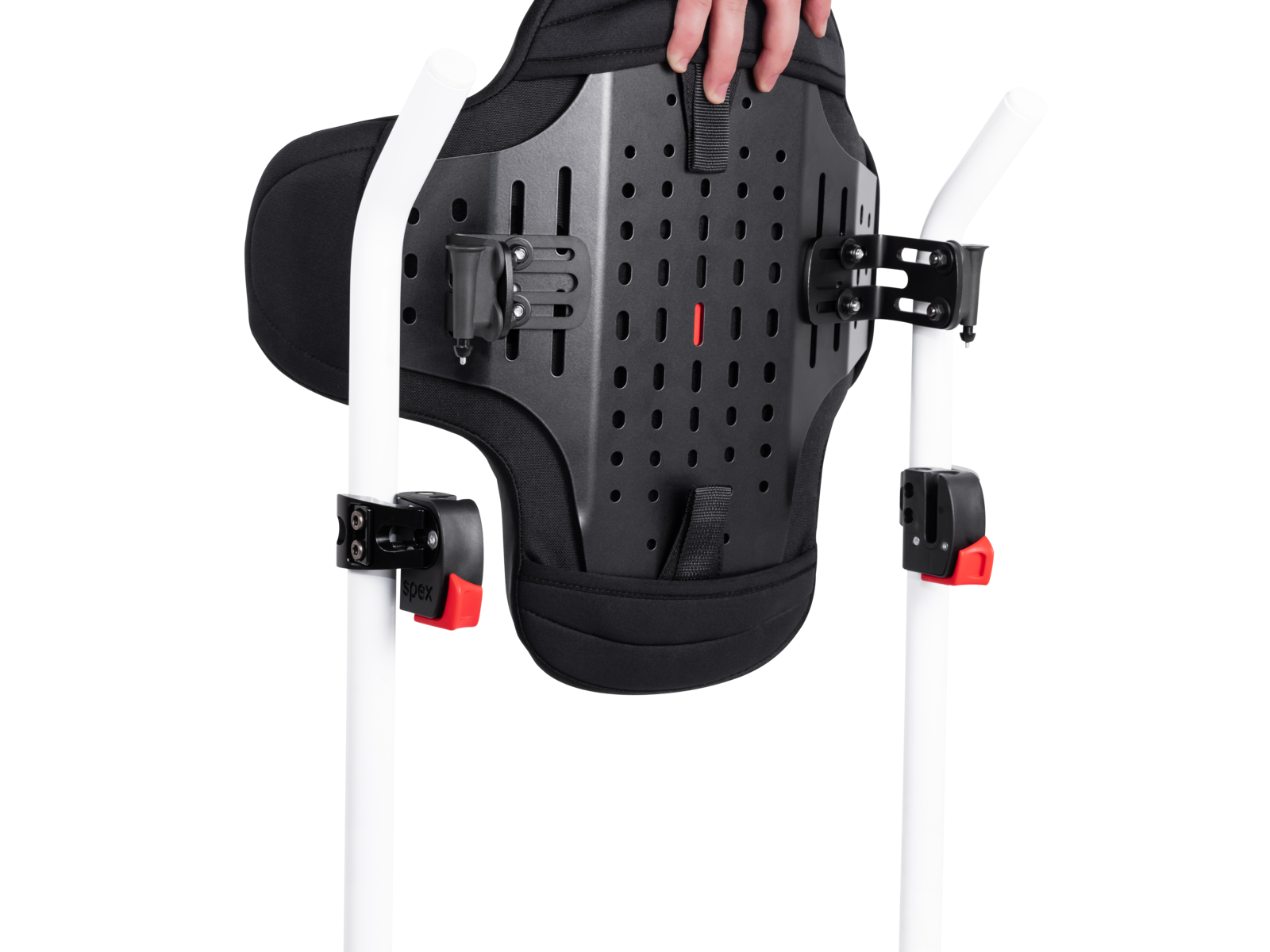

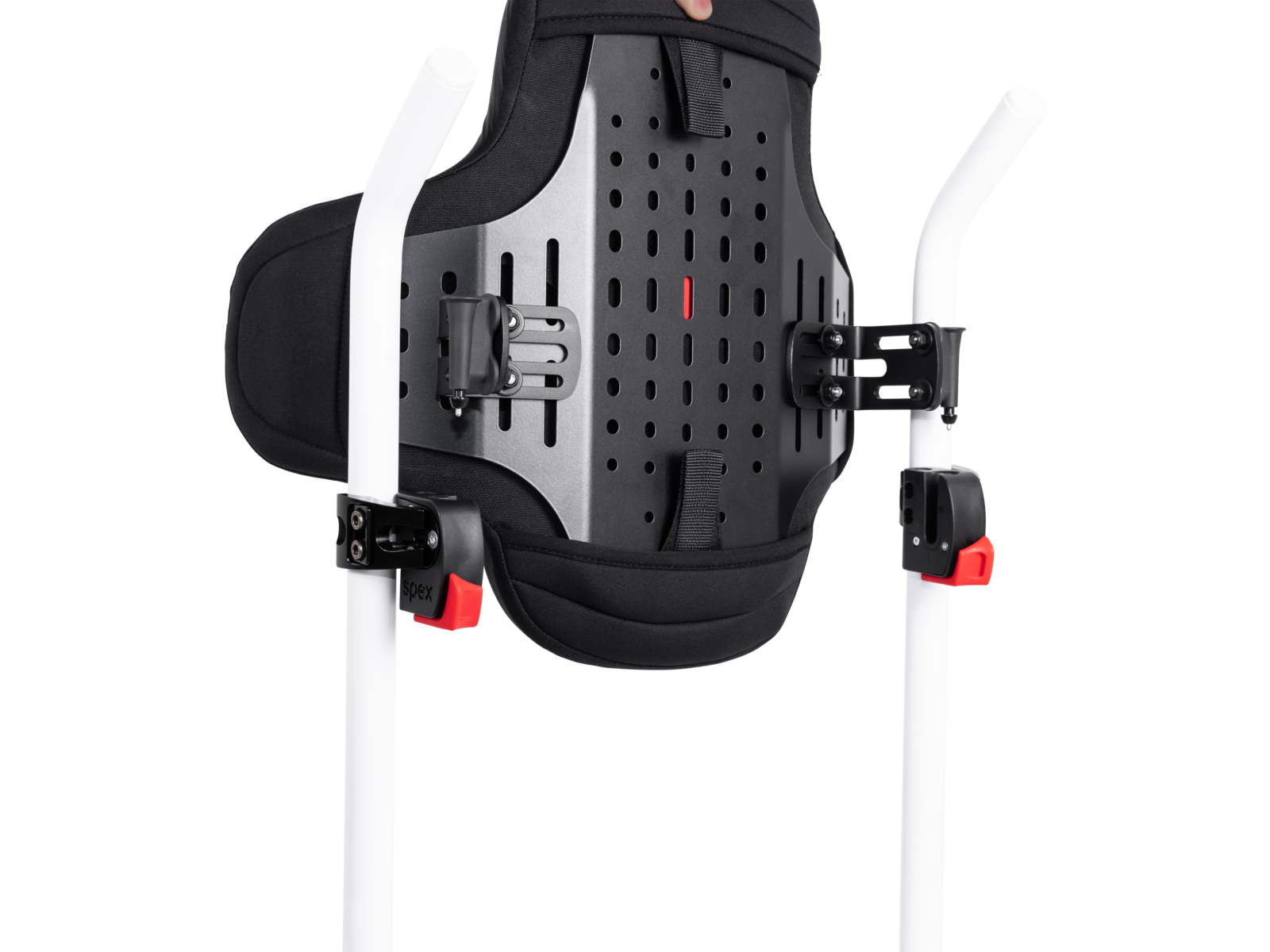

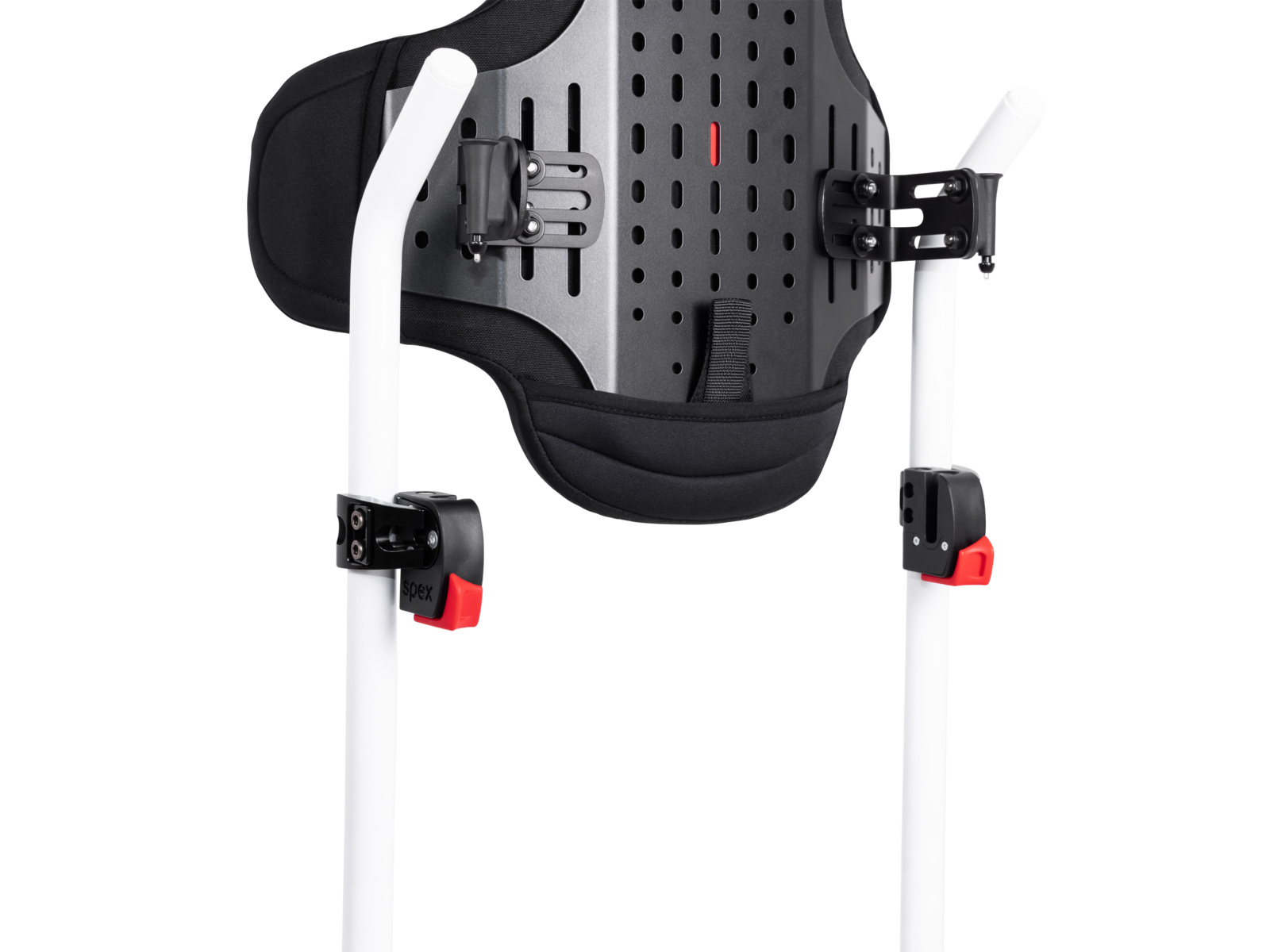

Vertical Drop-in and Lift-out Motion

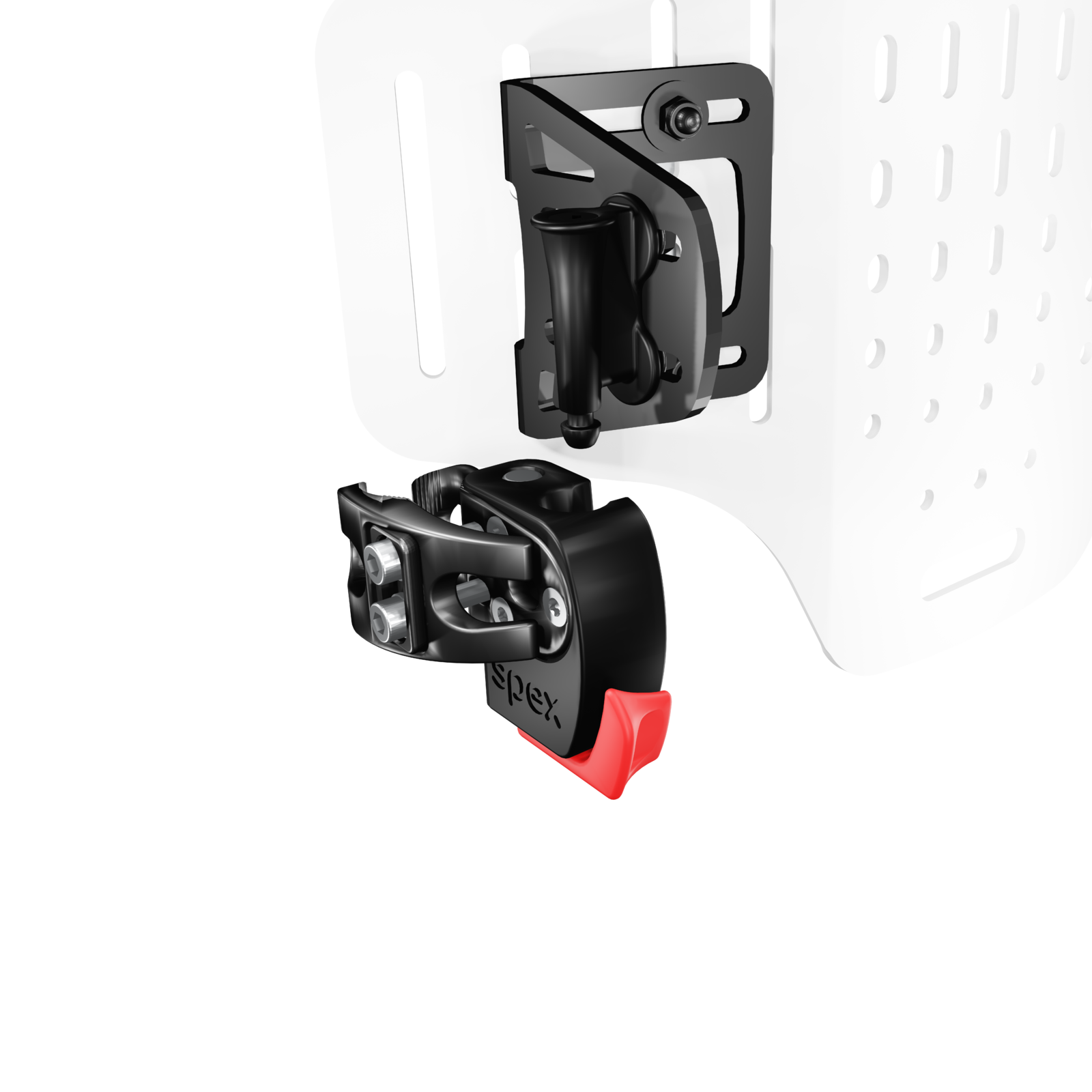

From installation through to adjustment the Drop Mount Hardware has been designed to be easily adjustable, easy to use, and easy to remove. Suited to those with limited hand function, the easy ‘drop-in’ installation is made possible by the lightweight quick-release mechanism.

Specifications
Measurements
Weight Capacity
Hardware Selection

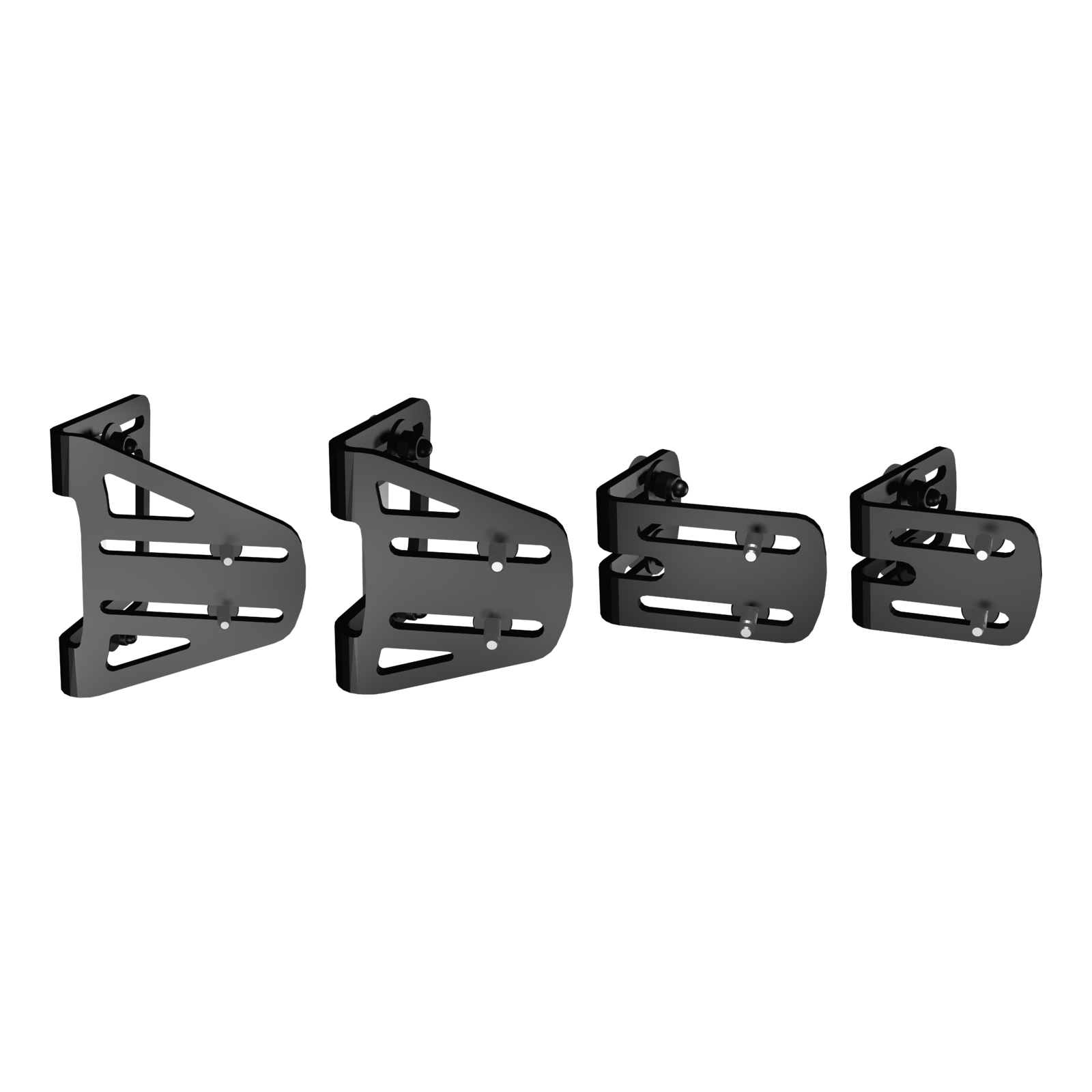

Size Paediatric Small Medium Large
Code 1259-1400-00P 1259-1400-00S 1259-1400-00M 1259-1400-00L
Width Adjustment 1″ 1.7″ 1.7″ 2.3″
Depth Adjustment 2″ 1.5″ 2″ 3″
Wheelchair Compatibility: when used with Zygo back supports +2″ to -2″ +2 to -2″ +2 to -2″ +2 to -2″
Wheelchair Compatibility: when used with other Spex back supports +2″ to -0″ +3″ to -0″ +3″ to -0″ +4″ to -2″
Weight 600g 600g 700g 800g

Maximum Occupant Weight: 136kg

Crash tested and transport certified to ISO 16840-4:2009
