Clinical
- By having arm supports in the correct position, bearing normal weight on the arm pads will provide better trunk alignment and support which improves posture
- Assist pelvic and trunk stability to reduce or redirect forces that lead to pressure sores
- Correct shoulder girdle stabilising
- In combination with tray table they assist to improve upper body stability essential to accomplishing tasks
Functional
- Spex hardware enables precise positioning of the arm support pads to ensure the user gains the correct positioning for function
- A variety of different hardware options allow specific functions tailored for the user
- Powered chair drive controllers can be easily installed
- Gain accurate width setting and infinite height setting for improved arm placement
Resources
User Manuals
Height Range
These measurements are taken from the top of the seatbase to the top of the support pad, including the 40mm thick support pad.
Min | Max | |
---|---|---|
Adult | 290mm | 365mm |
Paediatric | – | – |
Hardware Codes

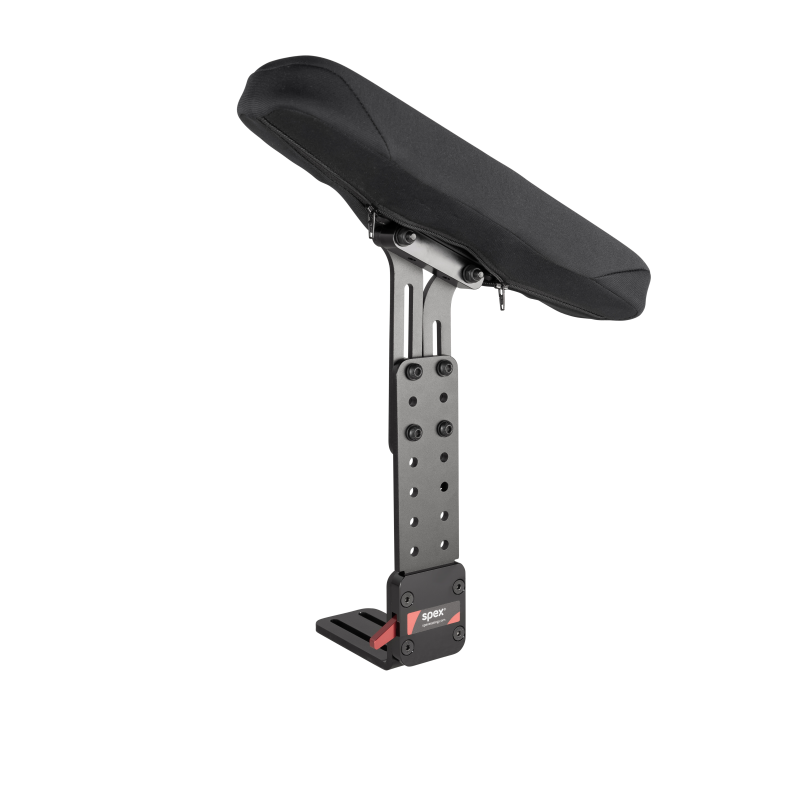

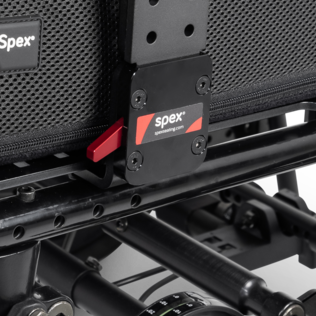

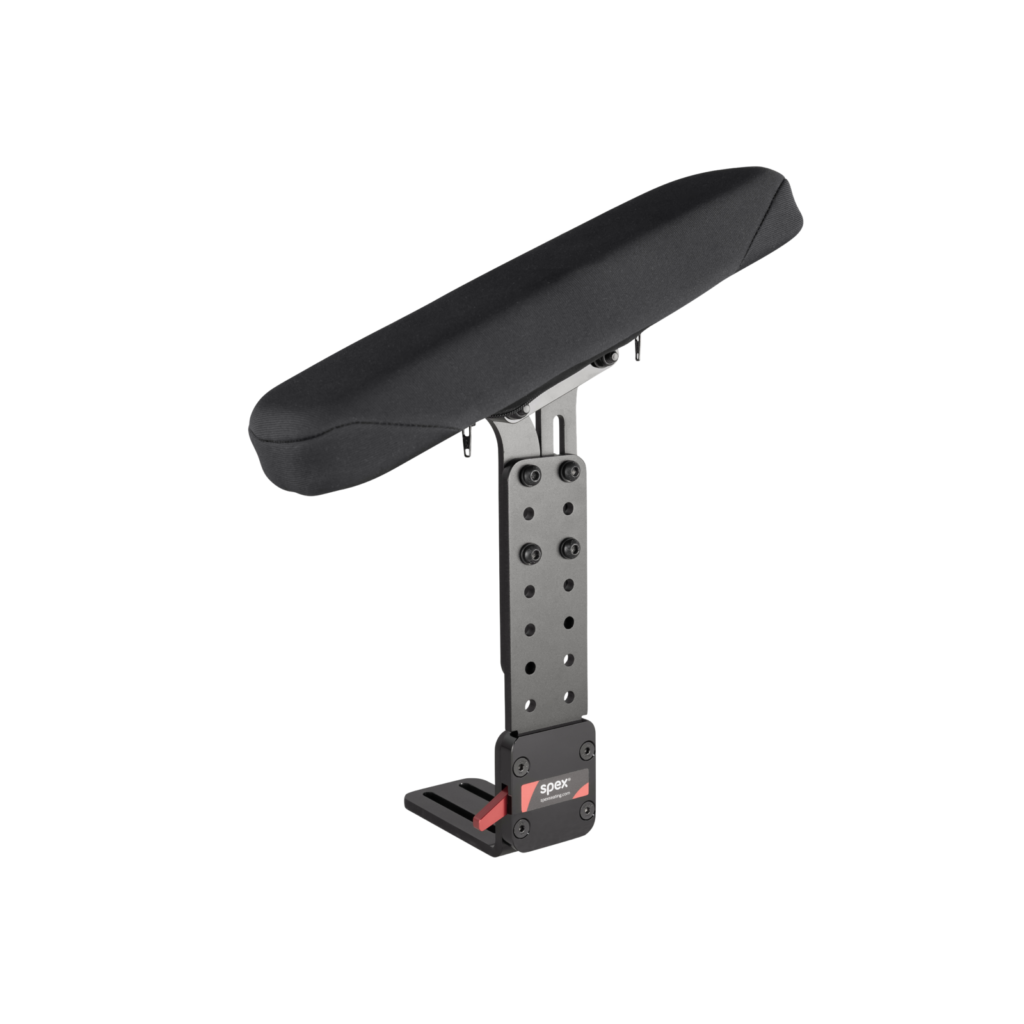

Angle-Adjust Arm Support: Seat Pan Codes (Horizontal mounting to the wheelchair seat pan)
Quick-Release Hardware | Swing-Down Hardware | |
---|---|---|
Angle-Adjust | 1156-0300-110 | 1156-0300-120 |

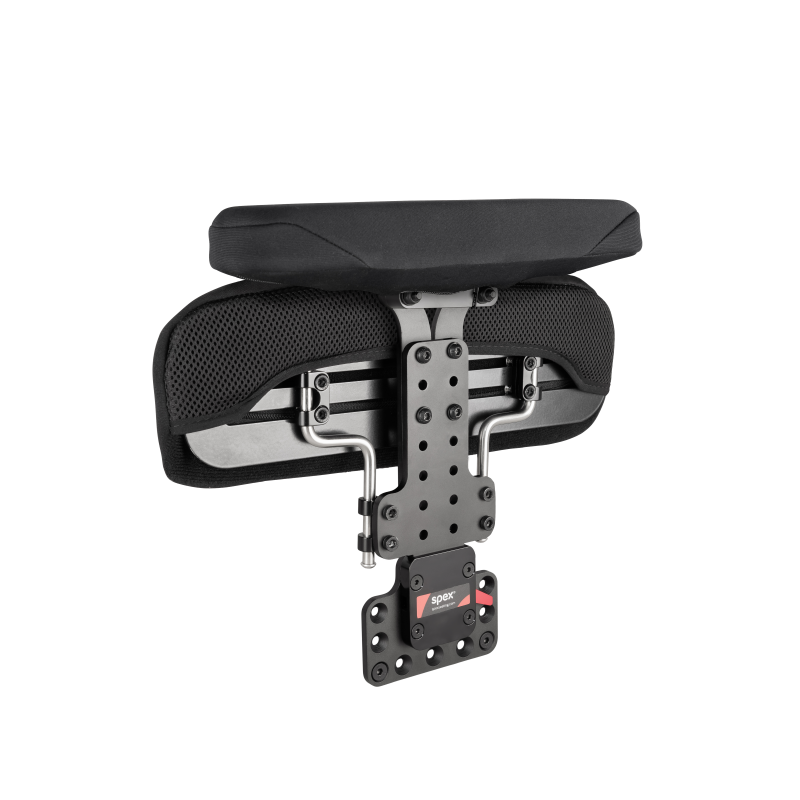

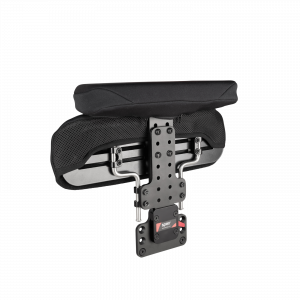

Angle-Adjust Arm Support: Seat Rail Hardware Options (Vertical mounting to the wheelchair seat rail)
Quick-Release Hardware | Swing-Down Hardware | |
---|---|---|
Angle-Adjust | 1156-0300-210 | 1156-0300-220 |

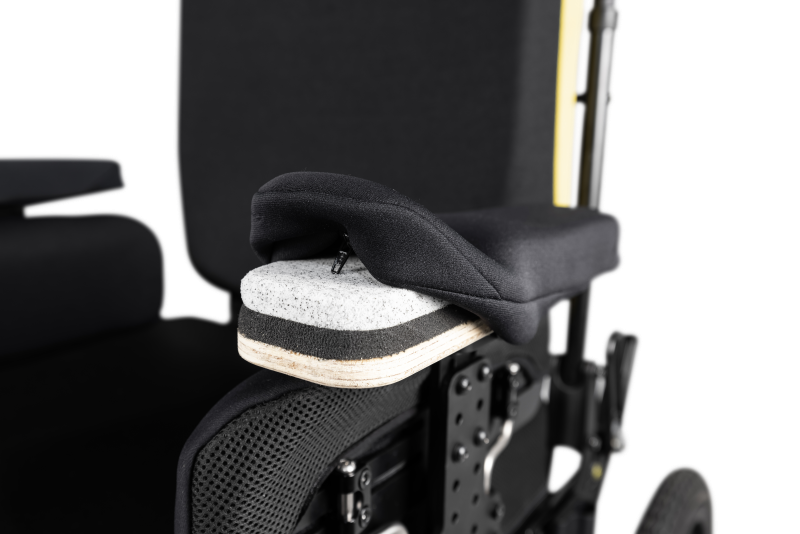

Comfi Arm Support Pad Codes
Arm Support Pads Only (please select Hardware also)
Code | SIze | Type | Width | Length | Thickness |
---|---|---|---|---|---|
1156-5811-410 | Small | Slim | 40mm | 250mm | 40mm |
1156-5812-410 | Medium | Slim | 50mm | 300mm | 40mm |
1156-5813-410 | Large | Slim | 60mm | 350mm | 40mm |
1156-5821-410 | Small | Wide | 70mm | 250mm | 40mm |
1156-5822-410 | Medium | Wide | 80mm | 300mm | 40mm |
1156-5823-410 | Large | Wide | 90mm | 350mm | 40mm |
