A superior adjustable lateral head control system with individualised ‘tuning’.

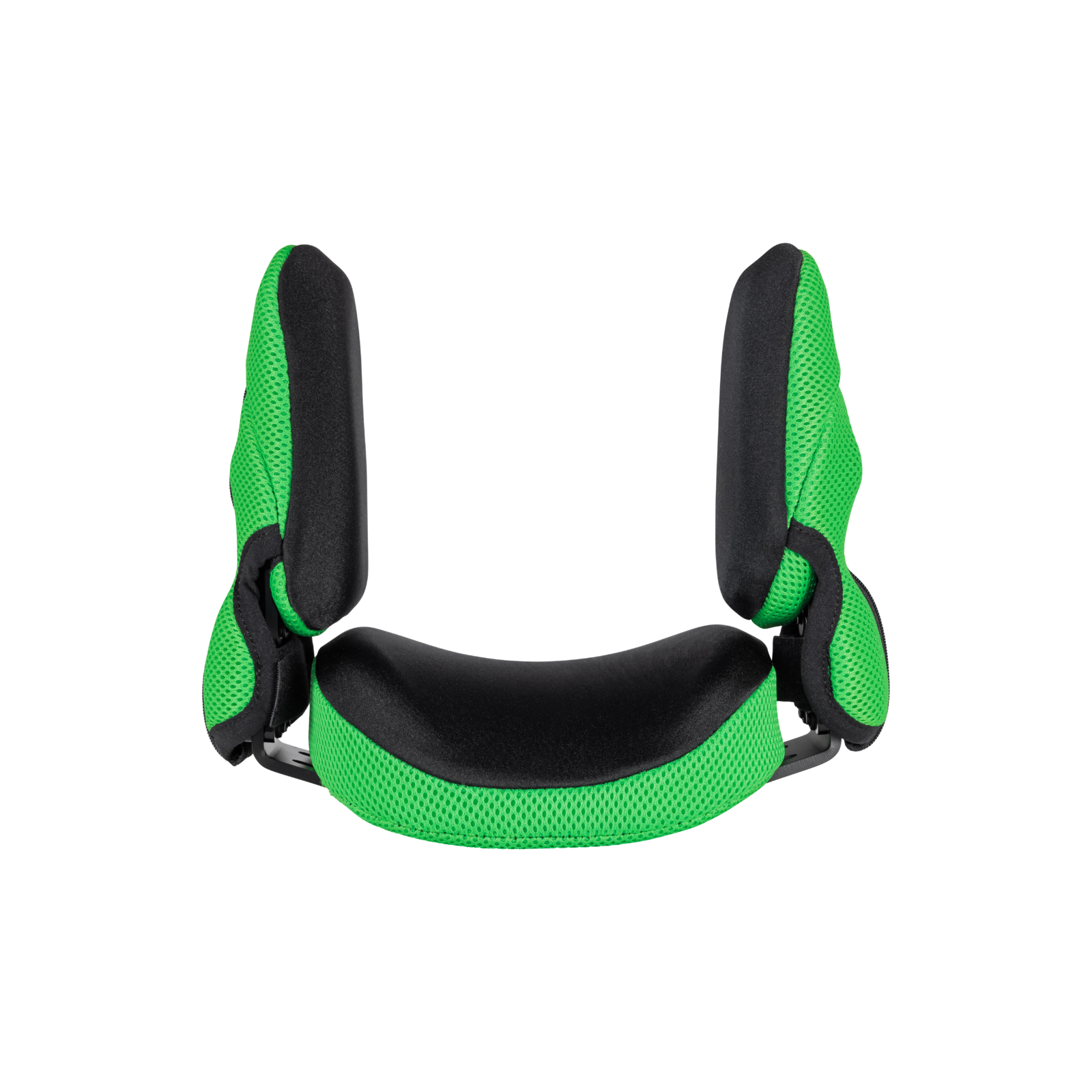

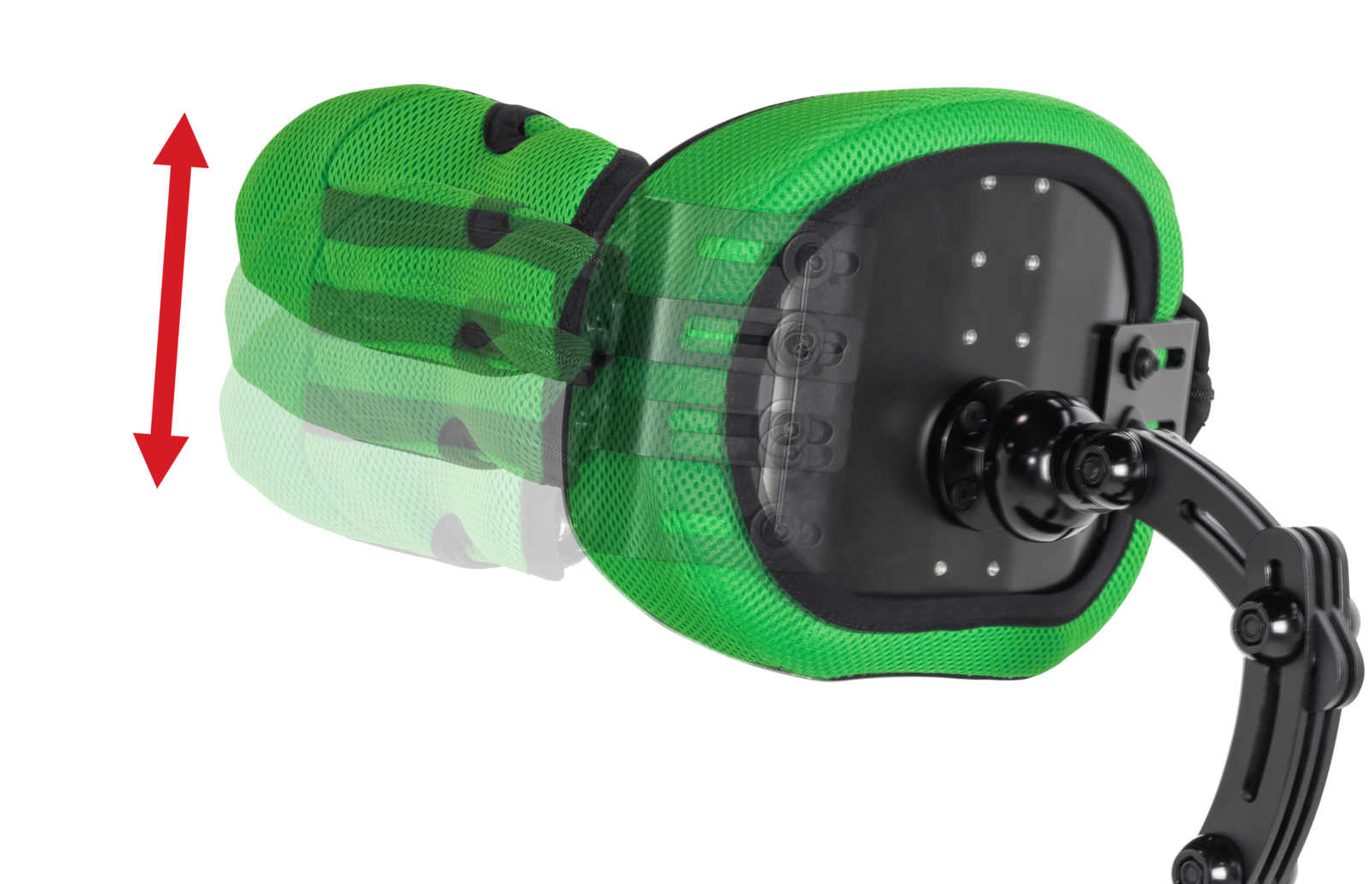

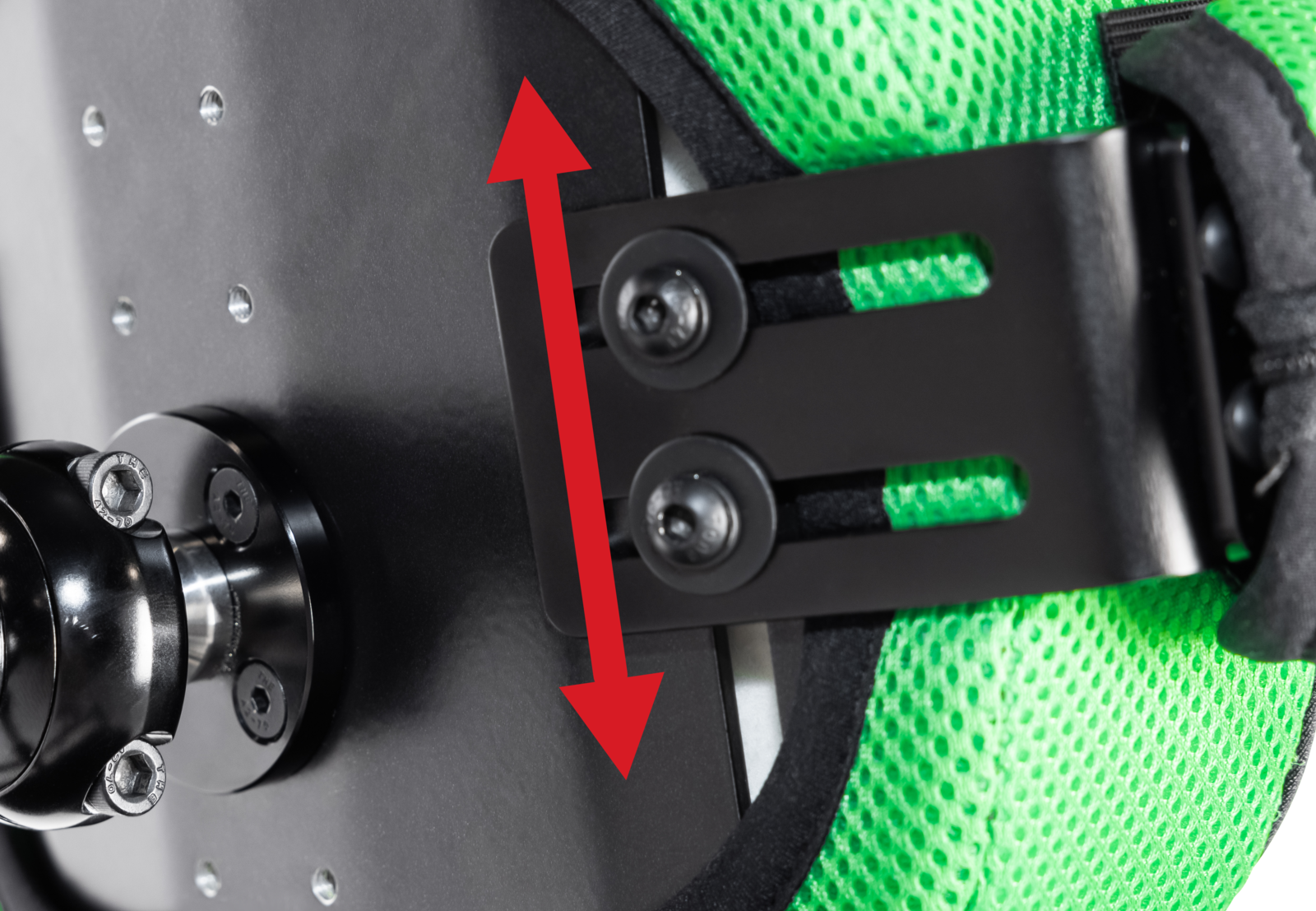

The Adjustable Lateral Head Support offers flexibility to adjust external lateral supports, enabling these to be placed in the optimal position for users with impaired control and tone.

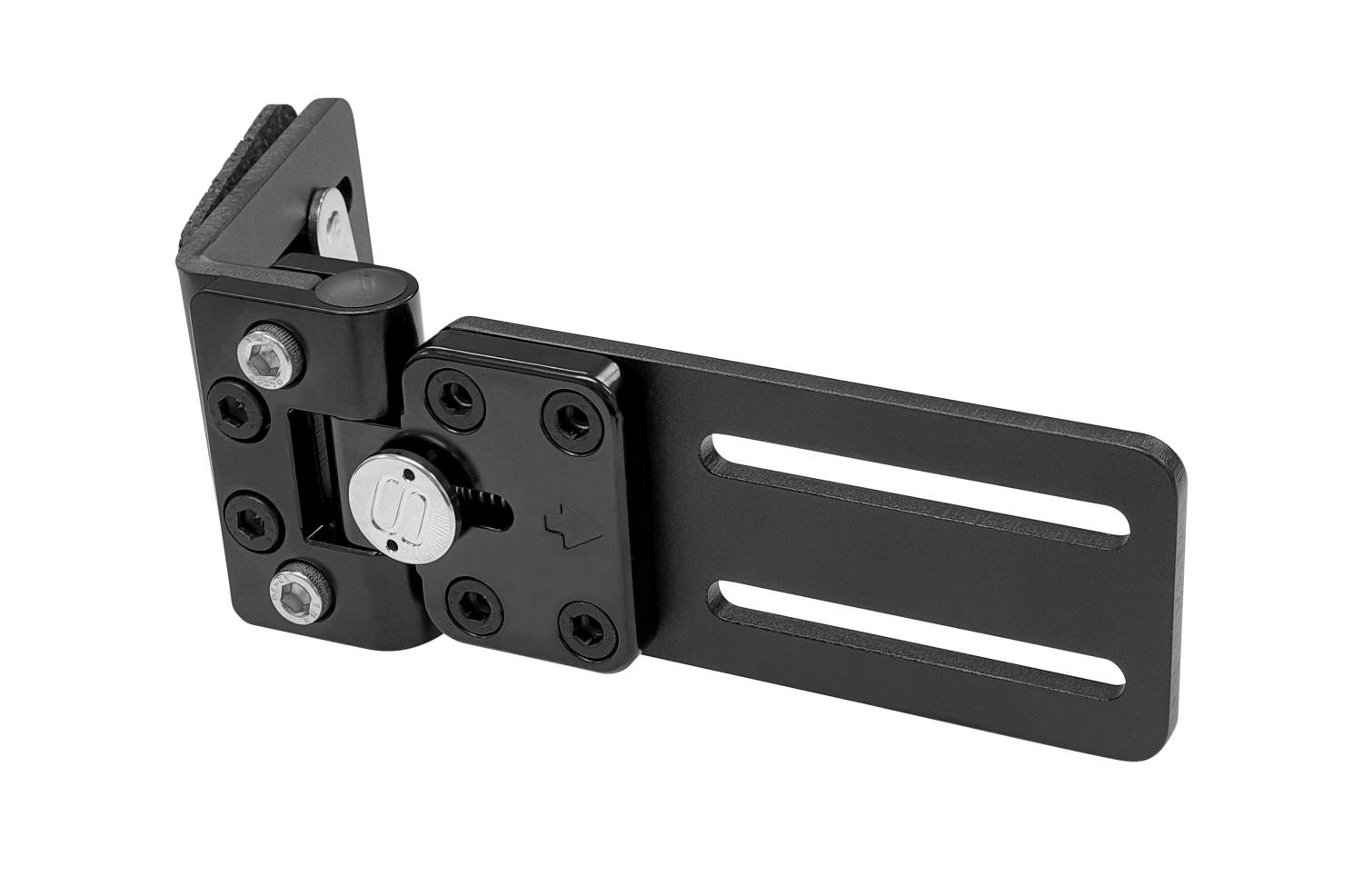

An upgrade to swing-away laterals is available to enable easier transfers if necessary.

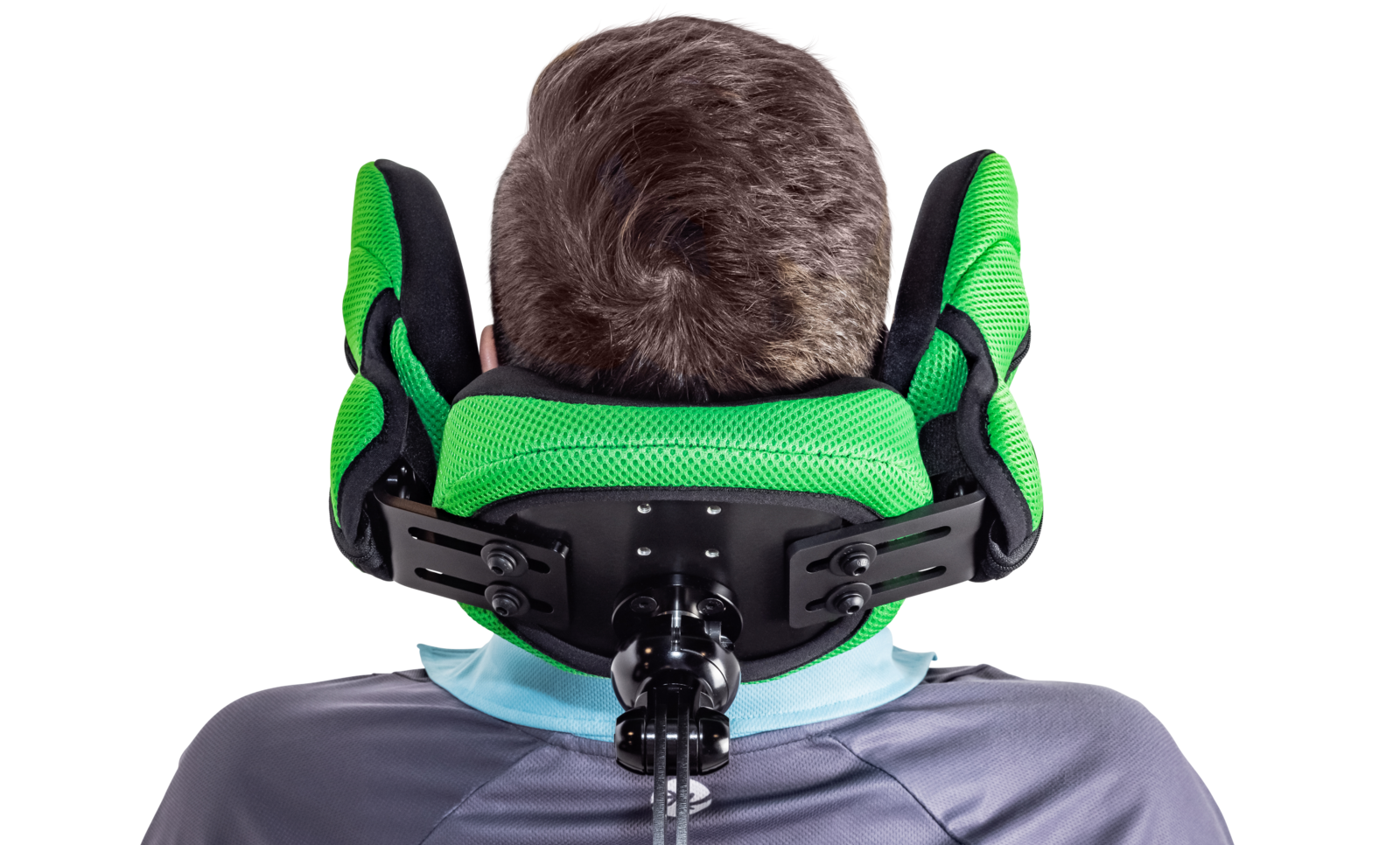

For even more support, you can install our Spex thoracic lateral pads onto the head pad to create an enhanced level of support required (Tip: the Spex curved pads work really well).

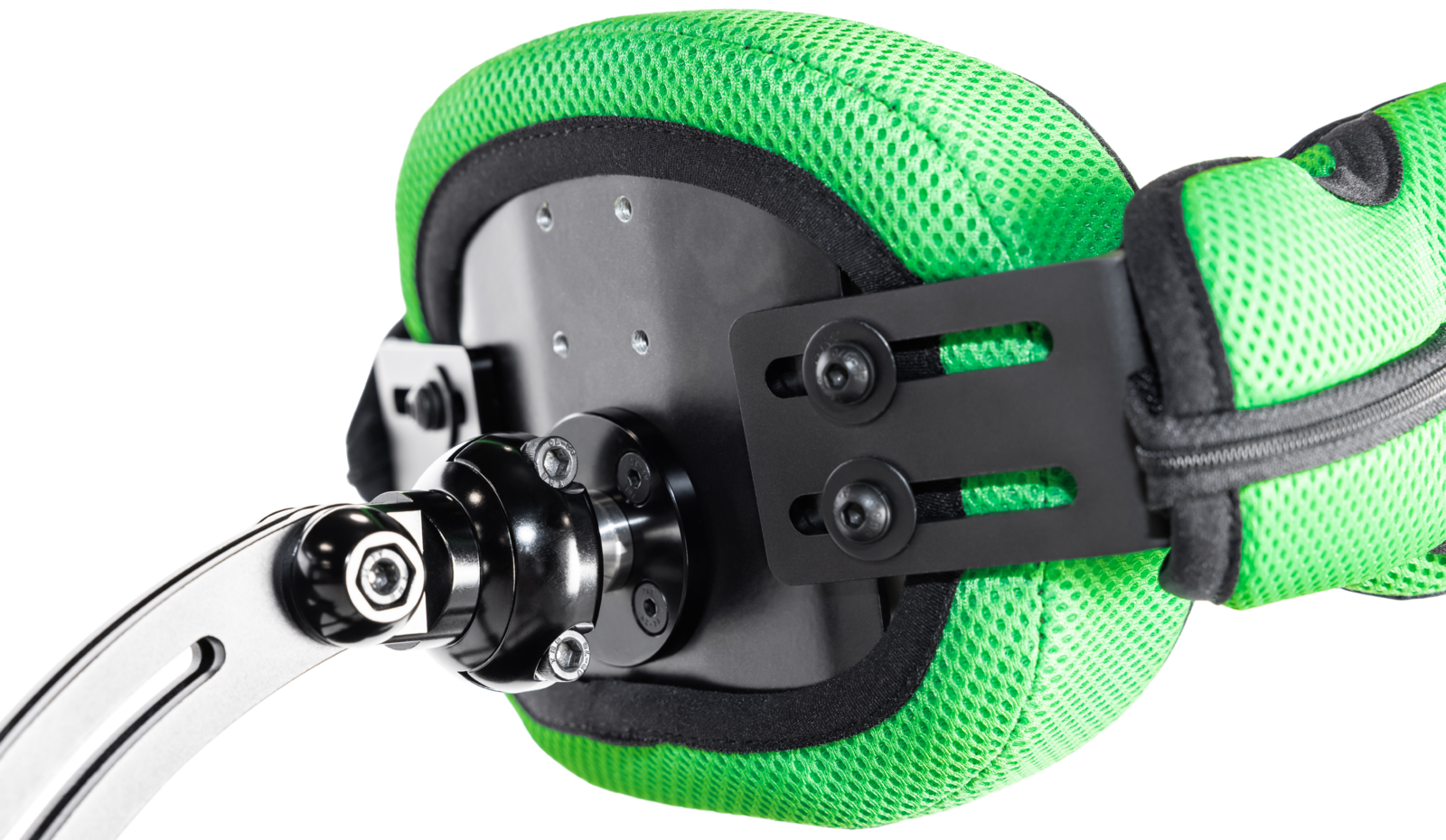

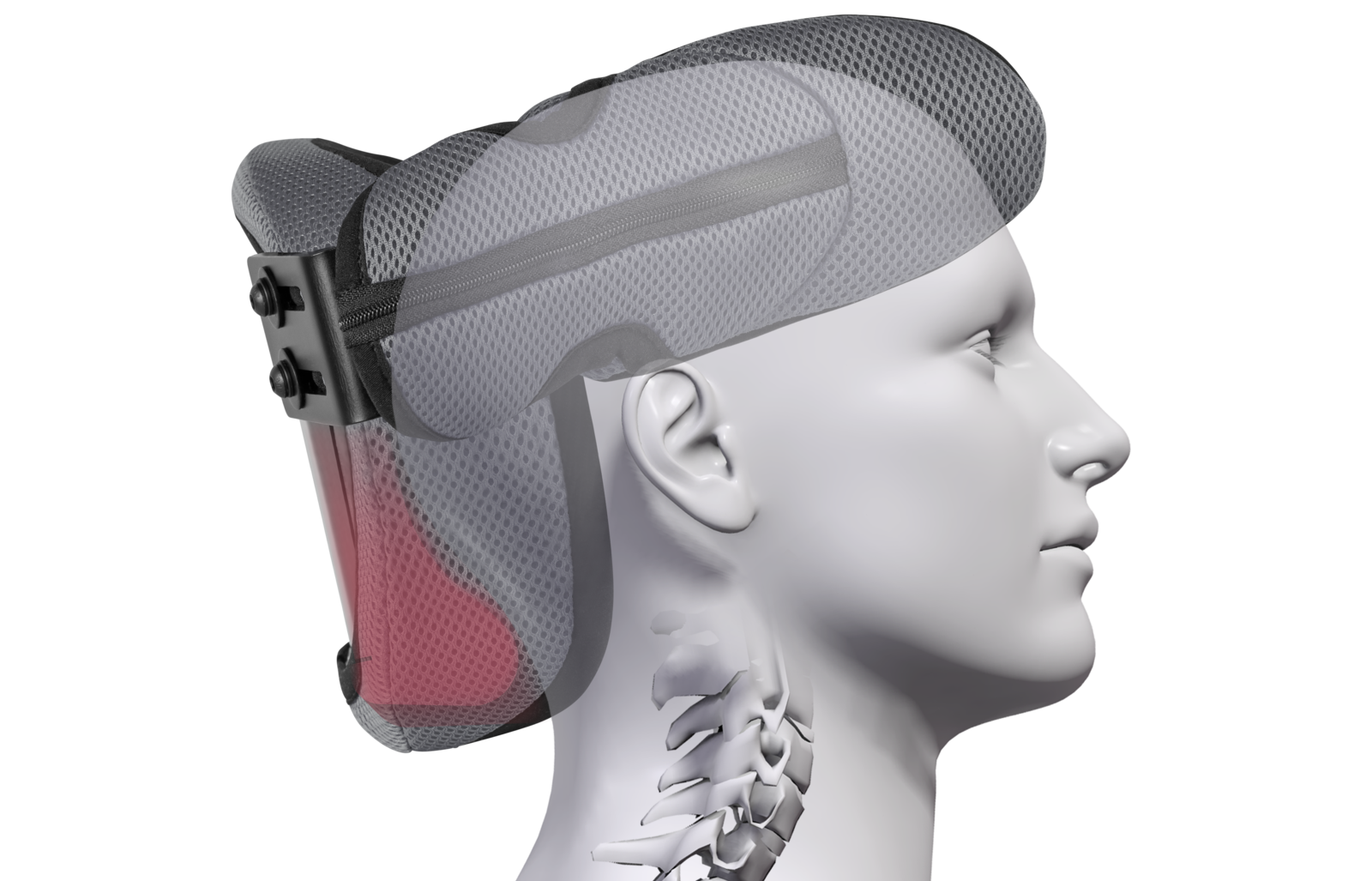

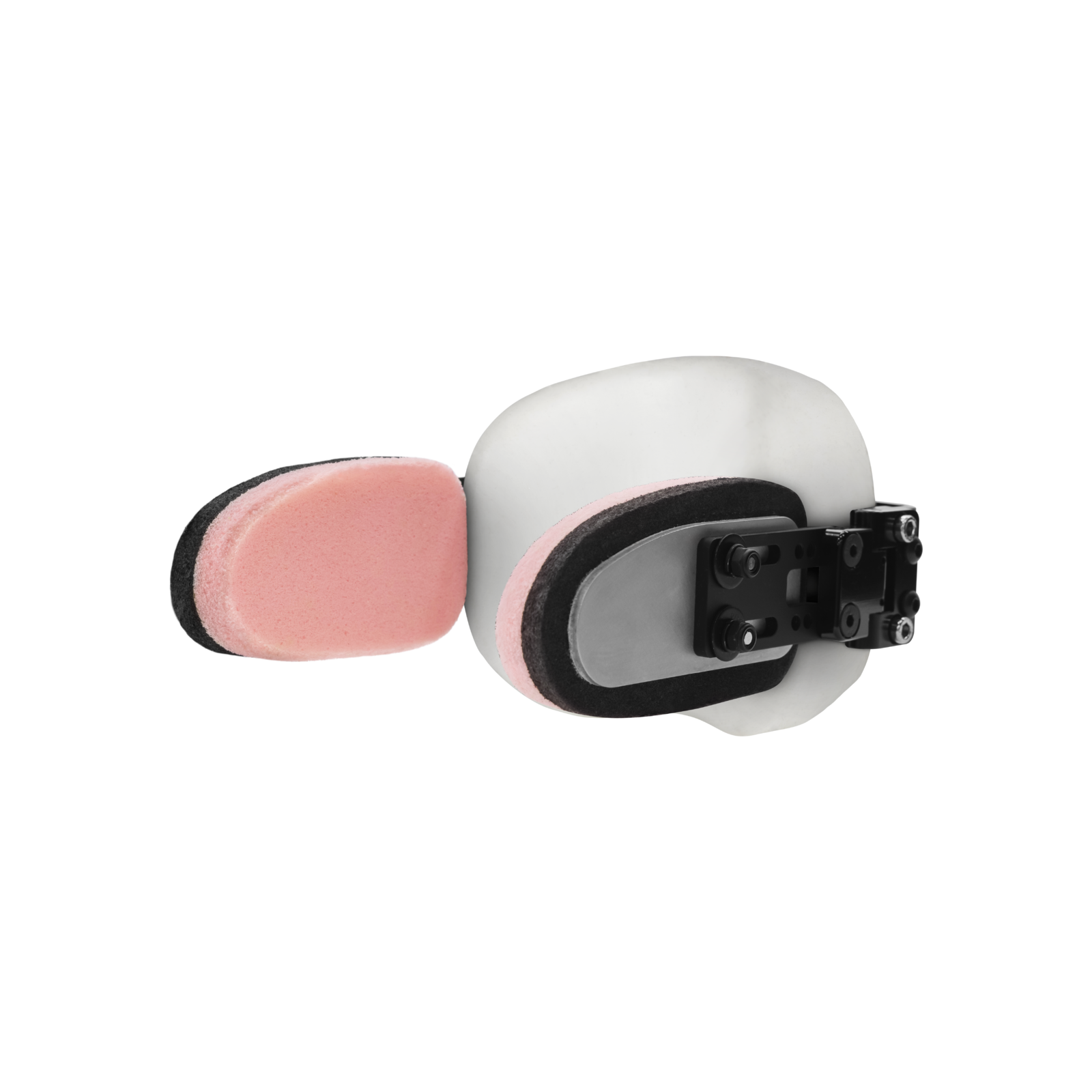

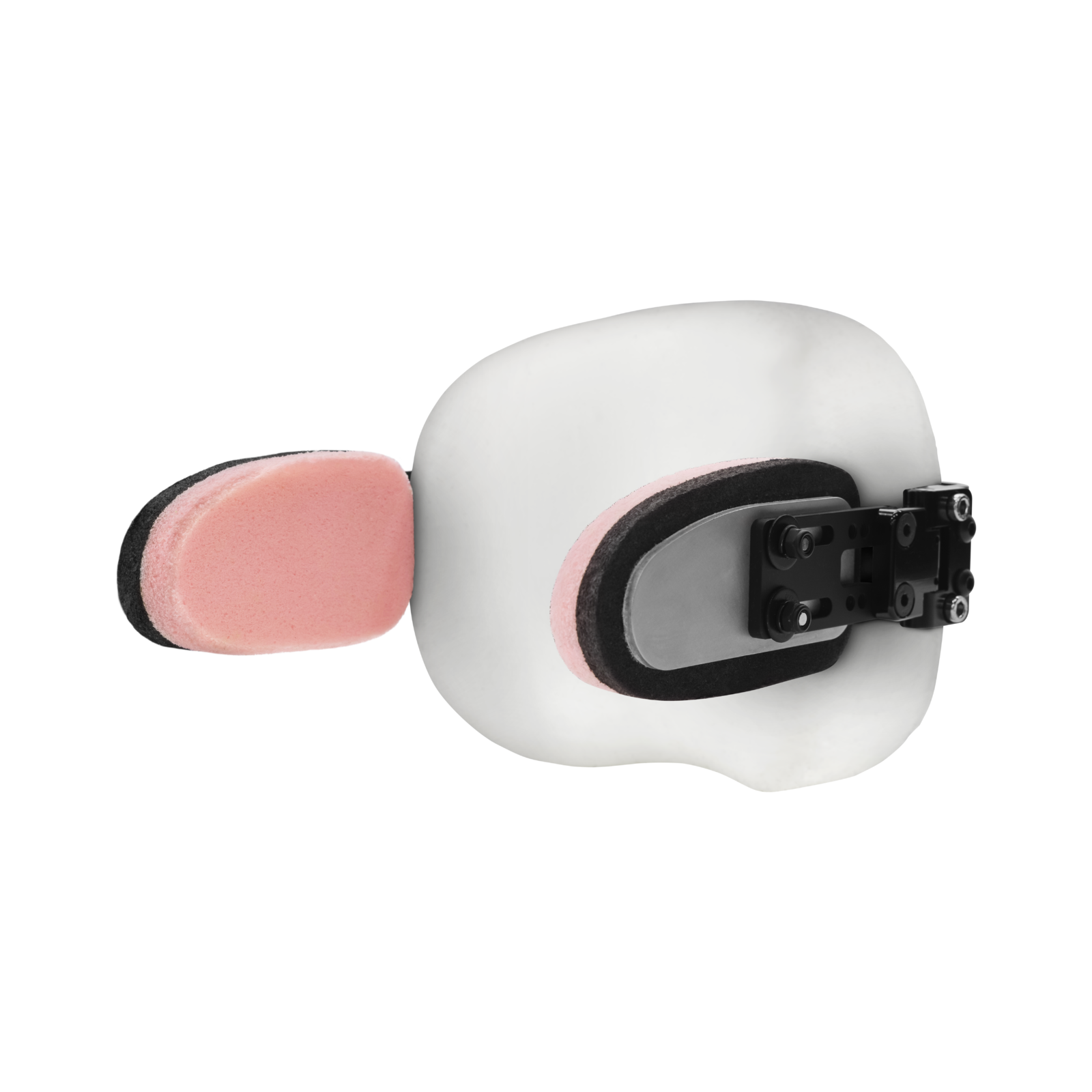

Spex Head Support pads are constructed from an internal aluminium shell covered by an injection moulded polyurethane foam to ensure smooth and comfortable support surface. The family of head support shapes have been geometrically and biomechanically designed to give greater support and stability for head positioning for wheelchair users. Along with the versatile Spex Stylo hardware, it’s possible to accommodate an extensive range of head positioning requirements.

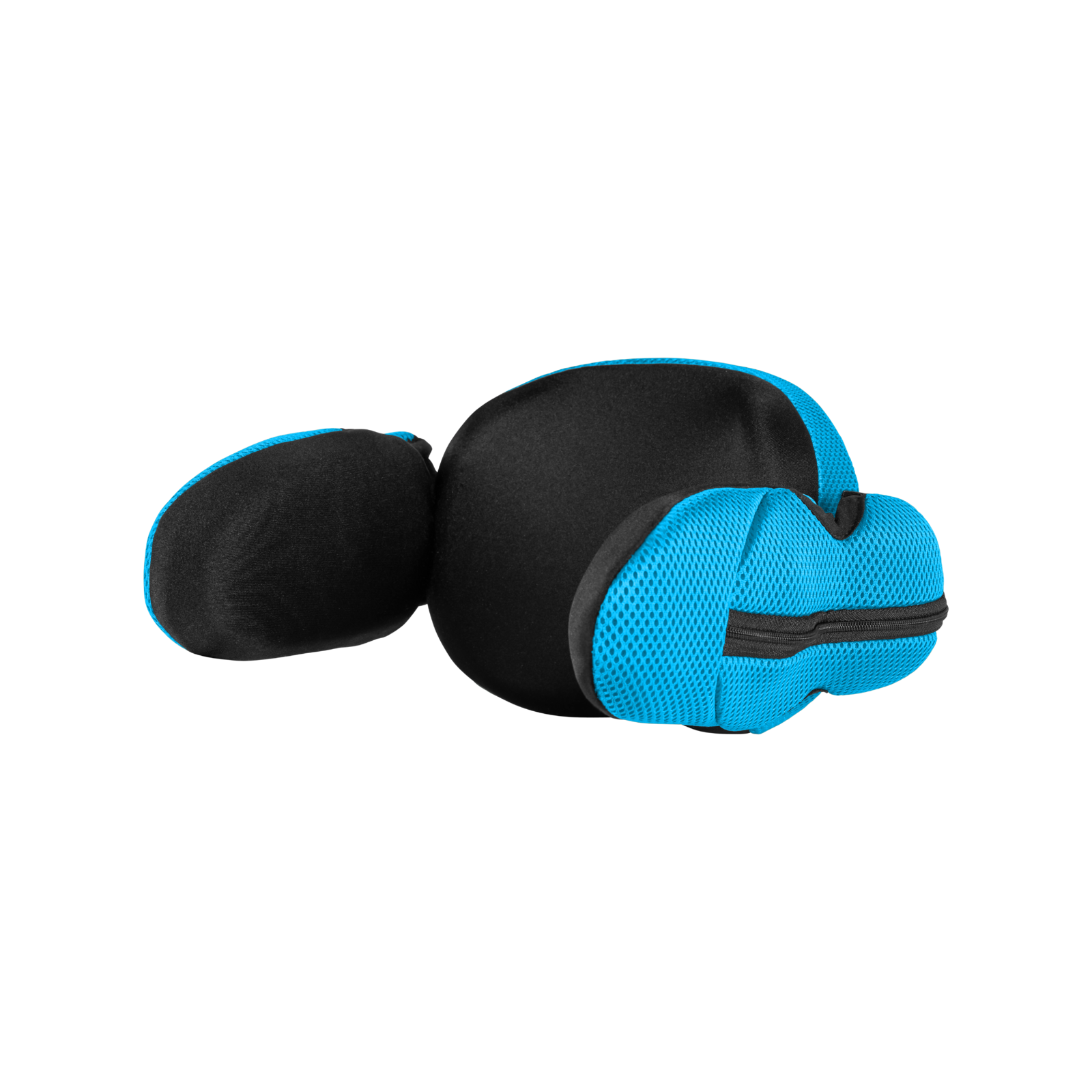

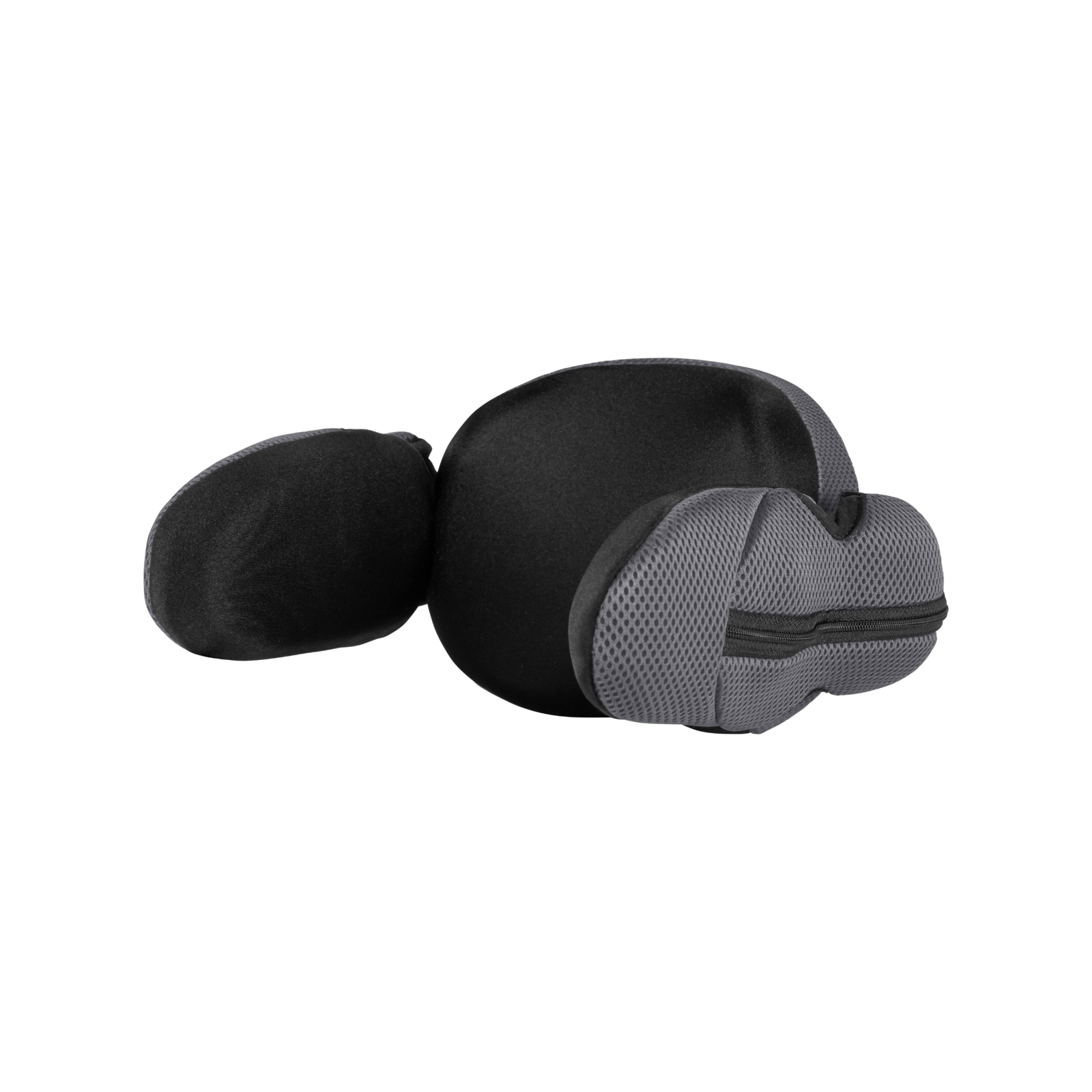

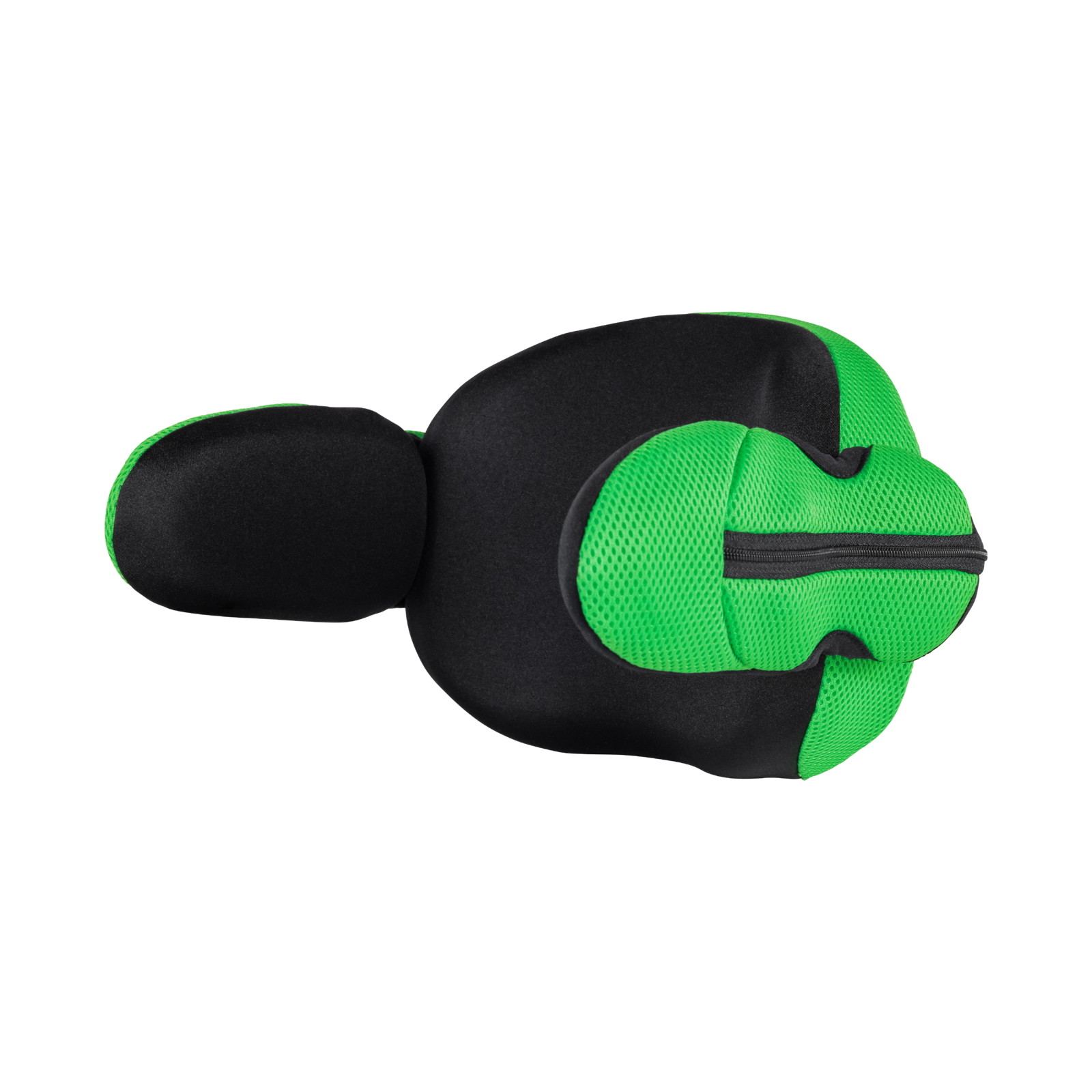

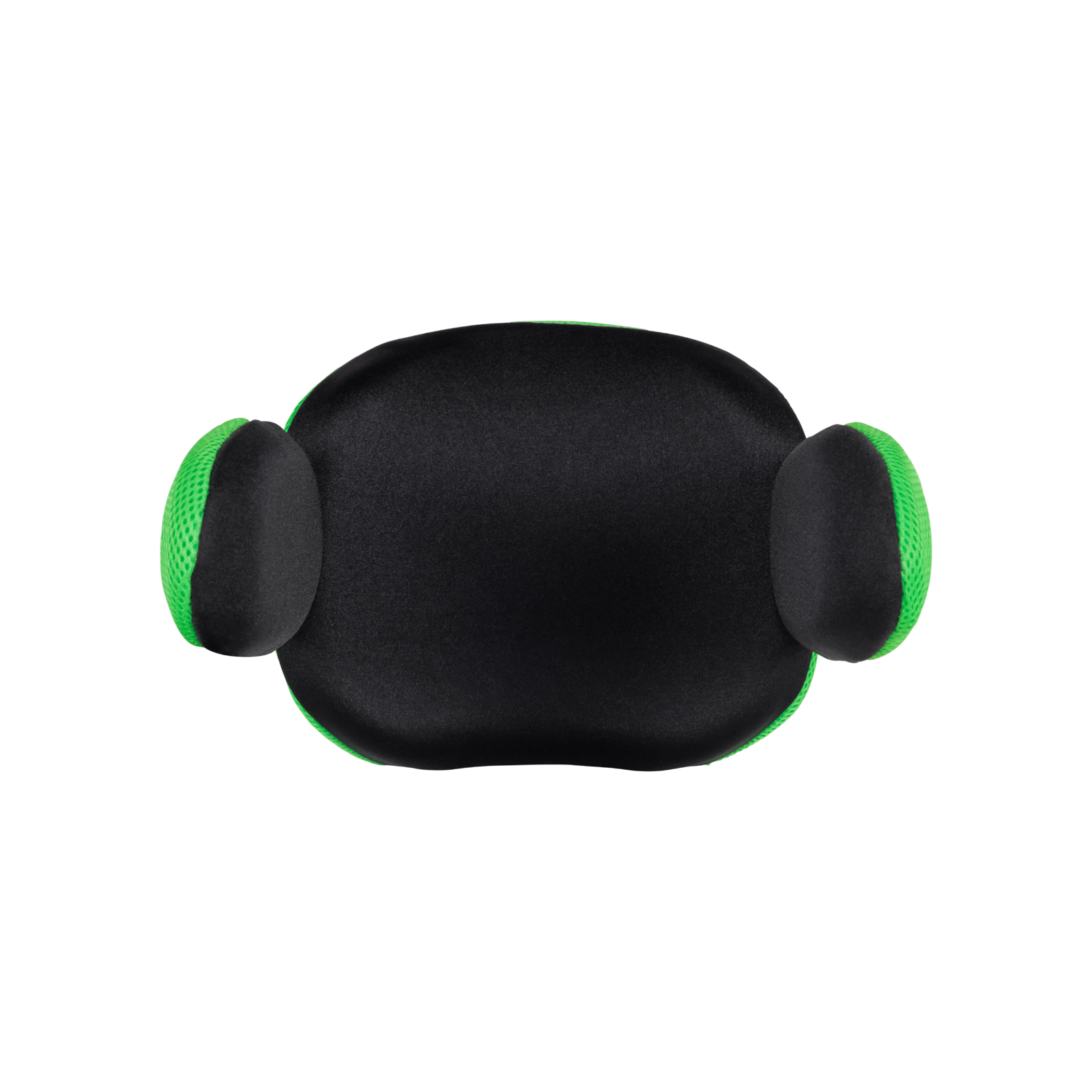

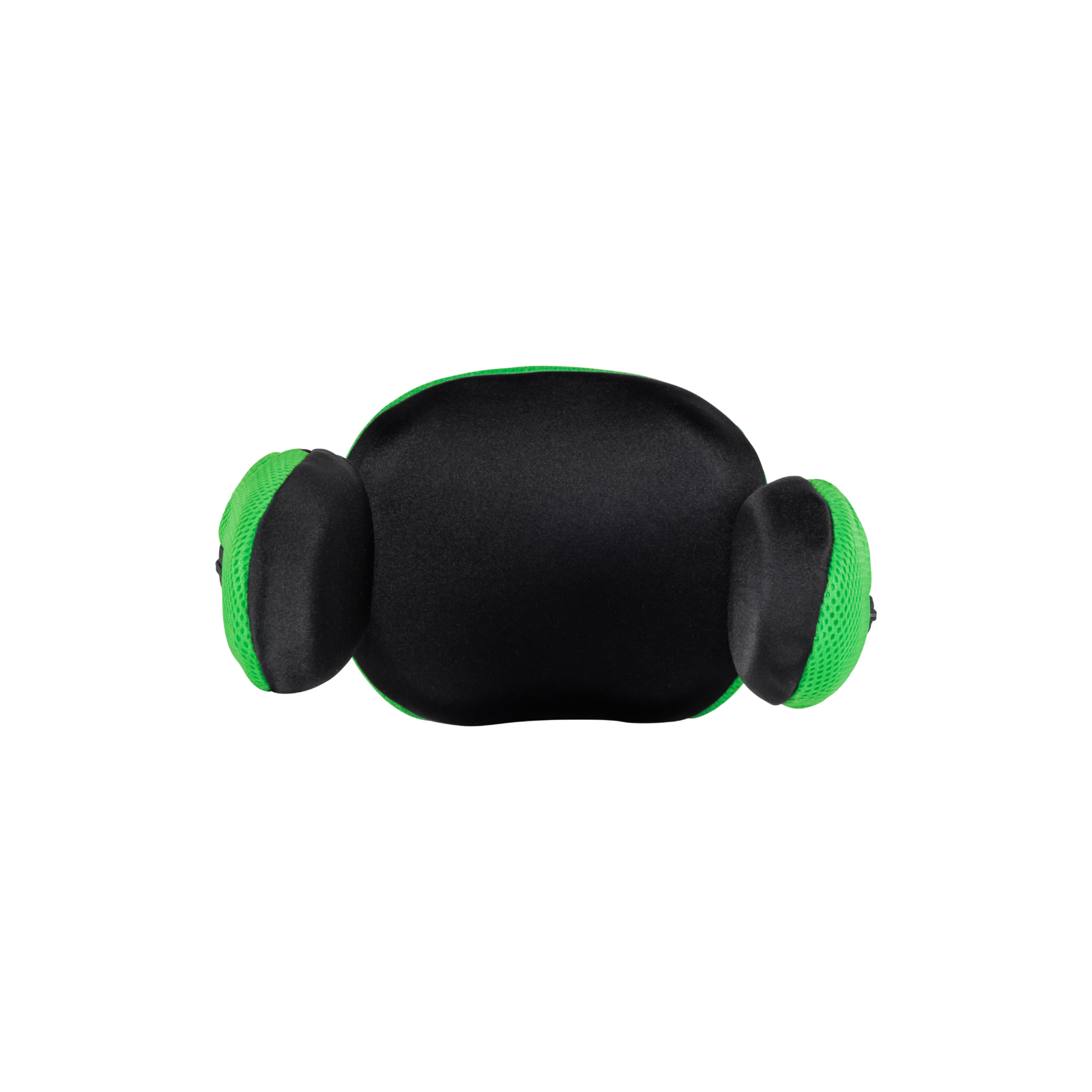

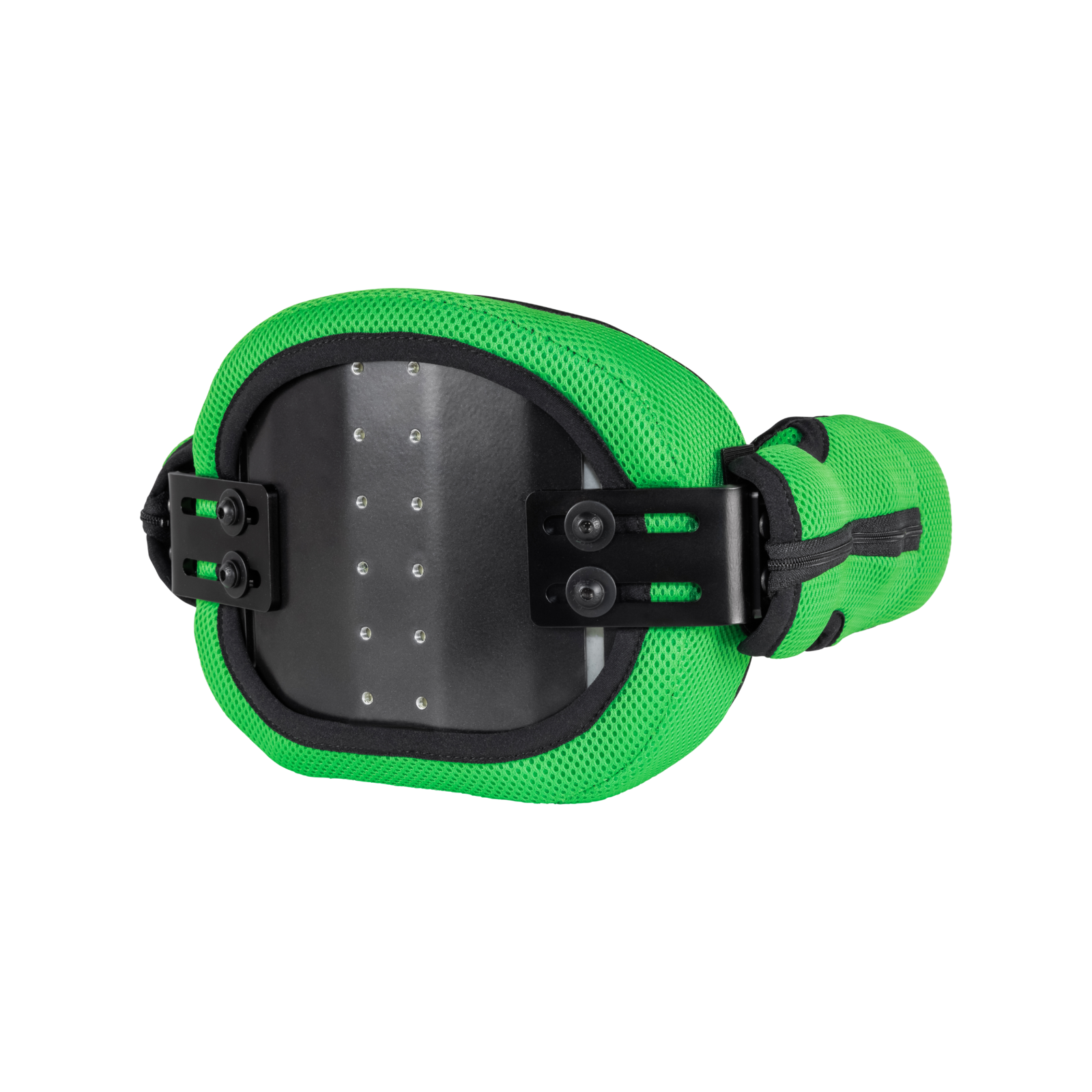

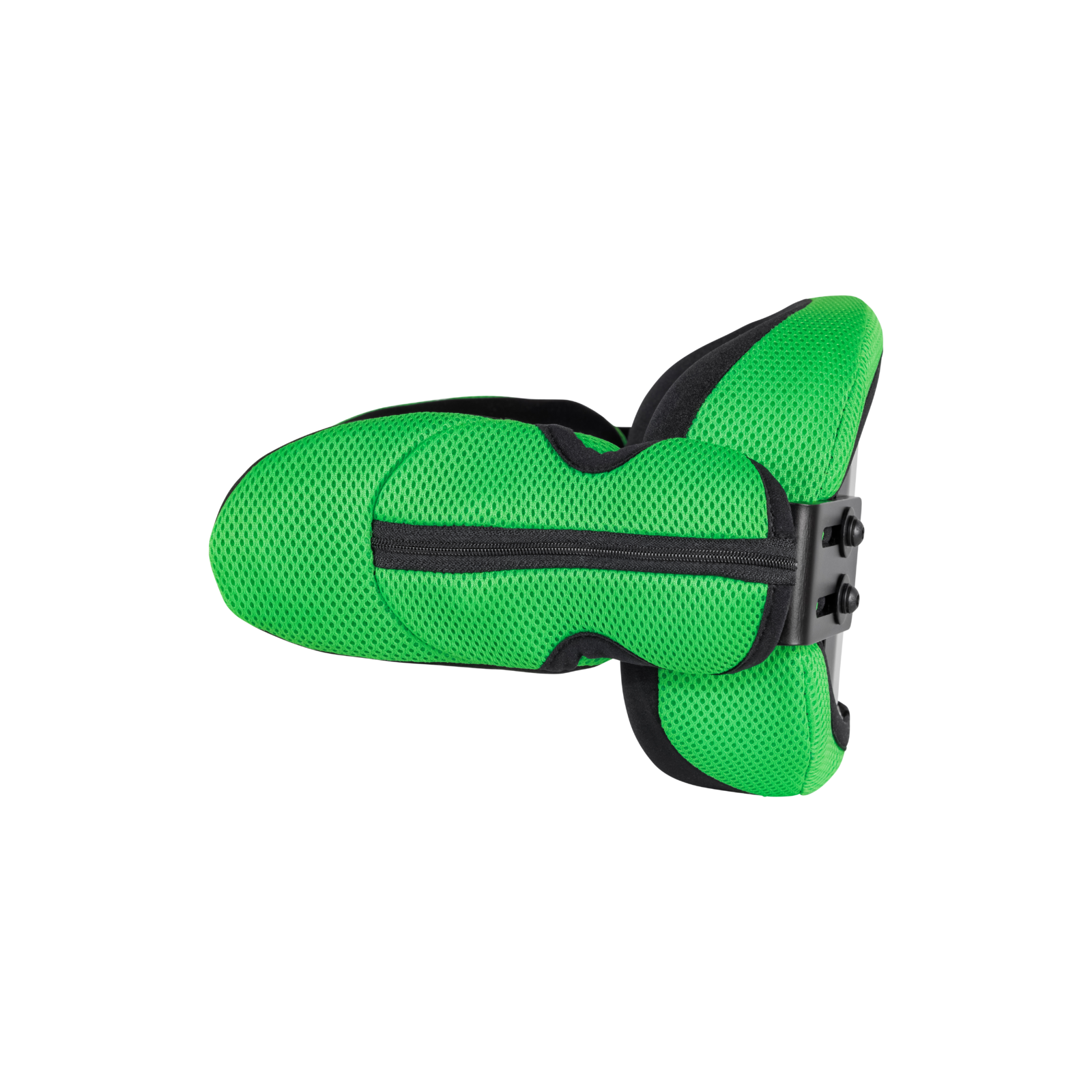

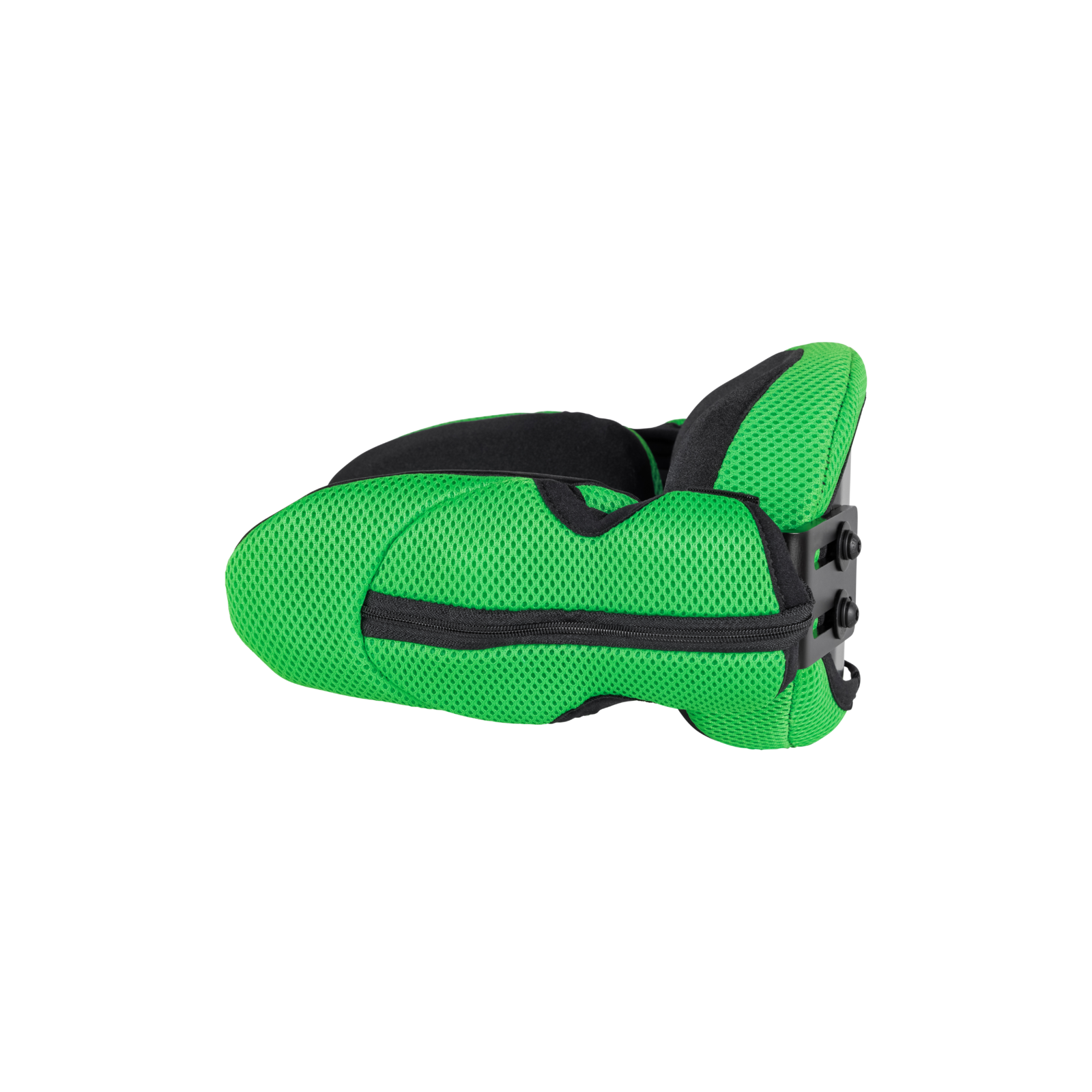

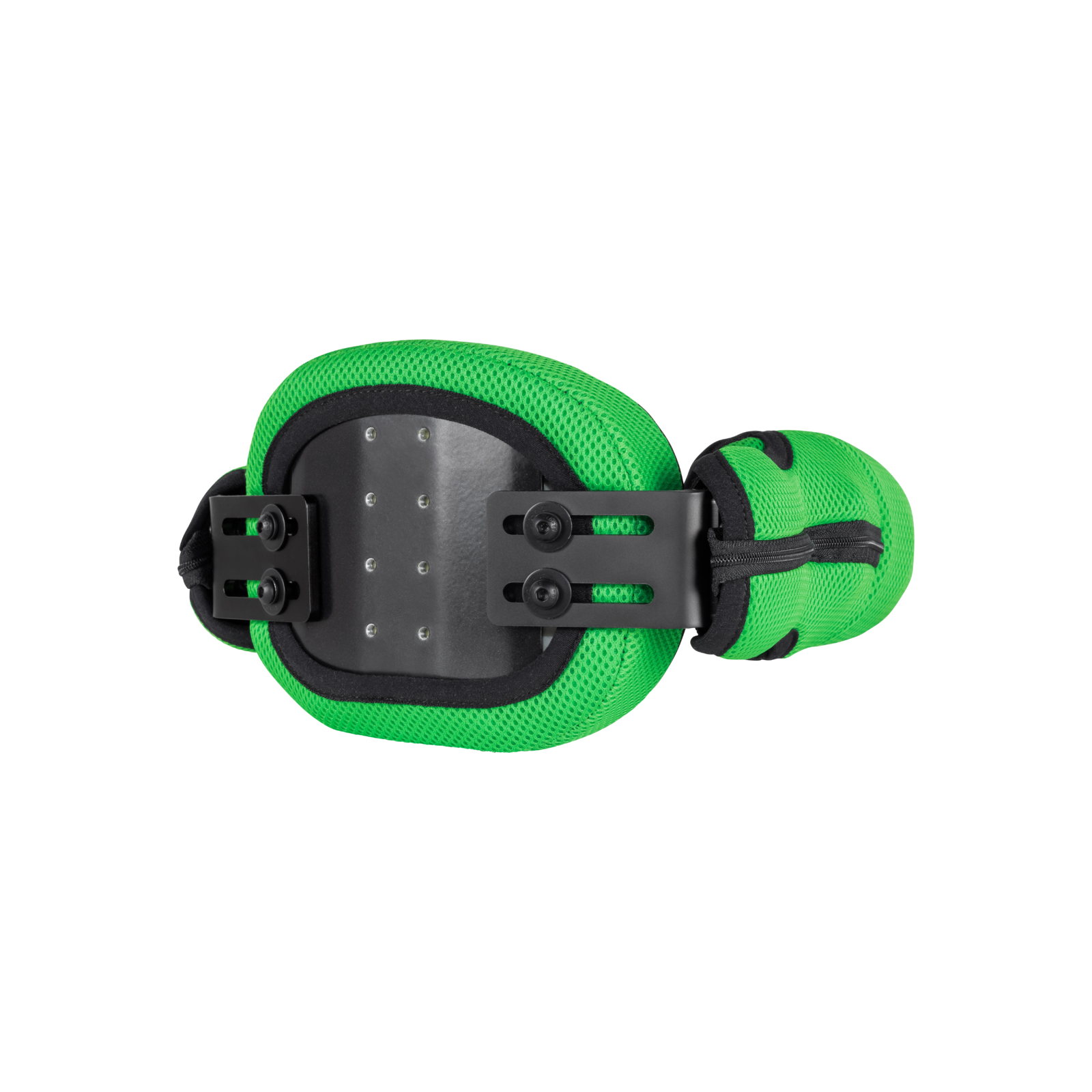

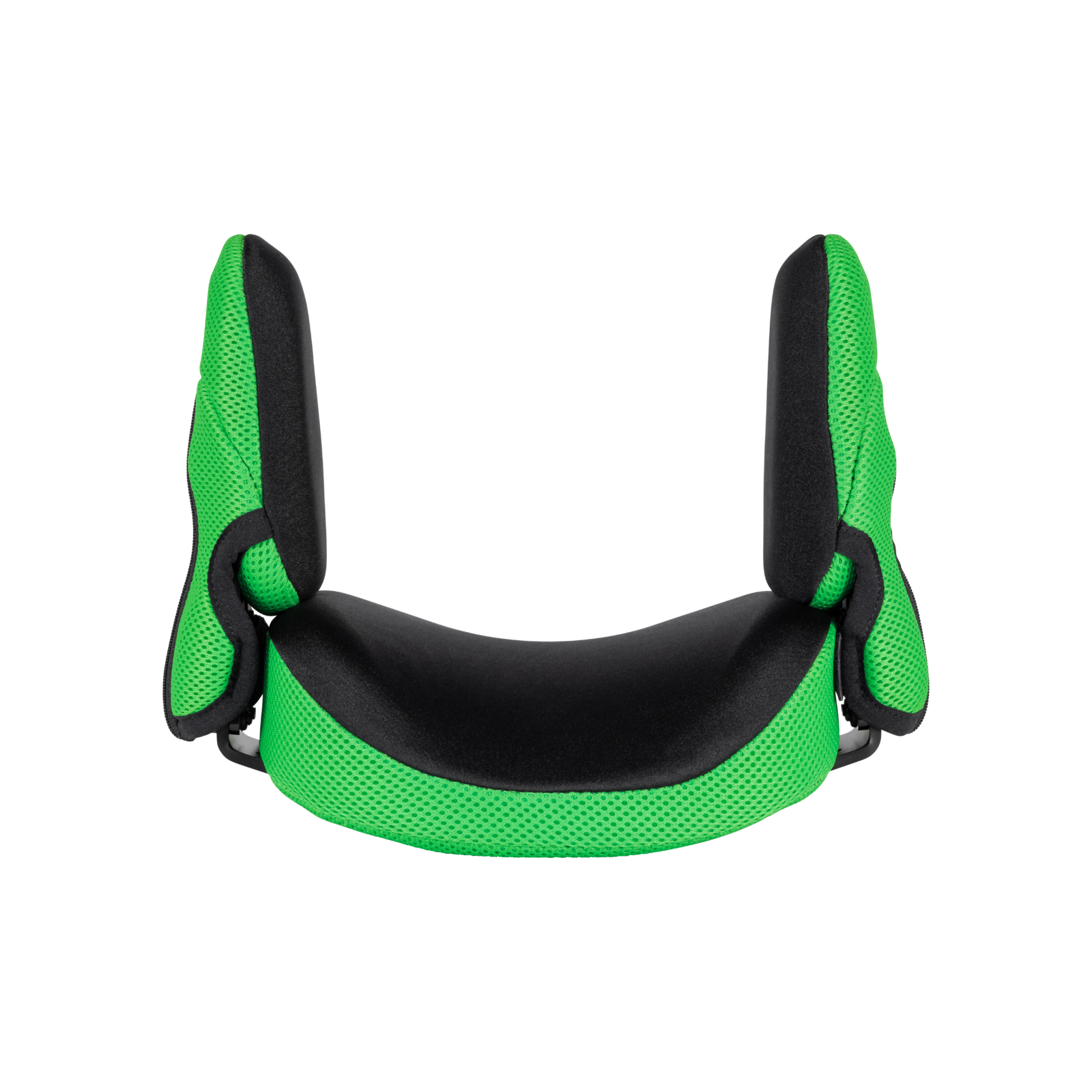

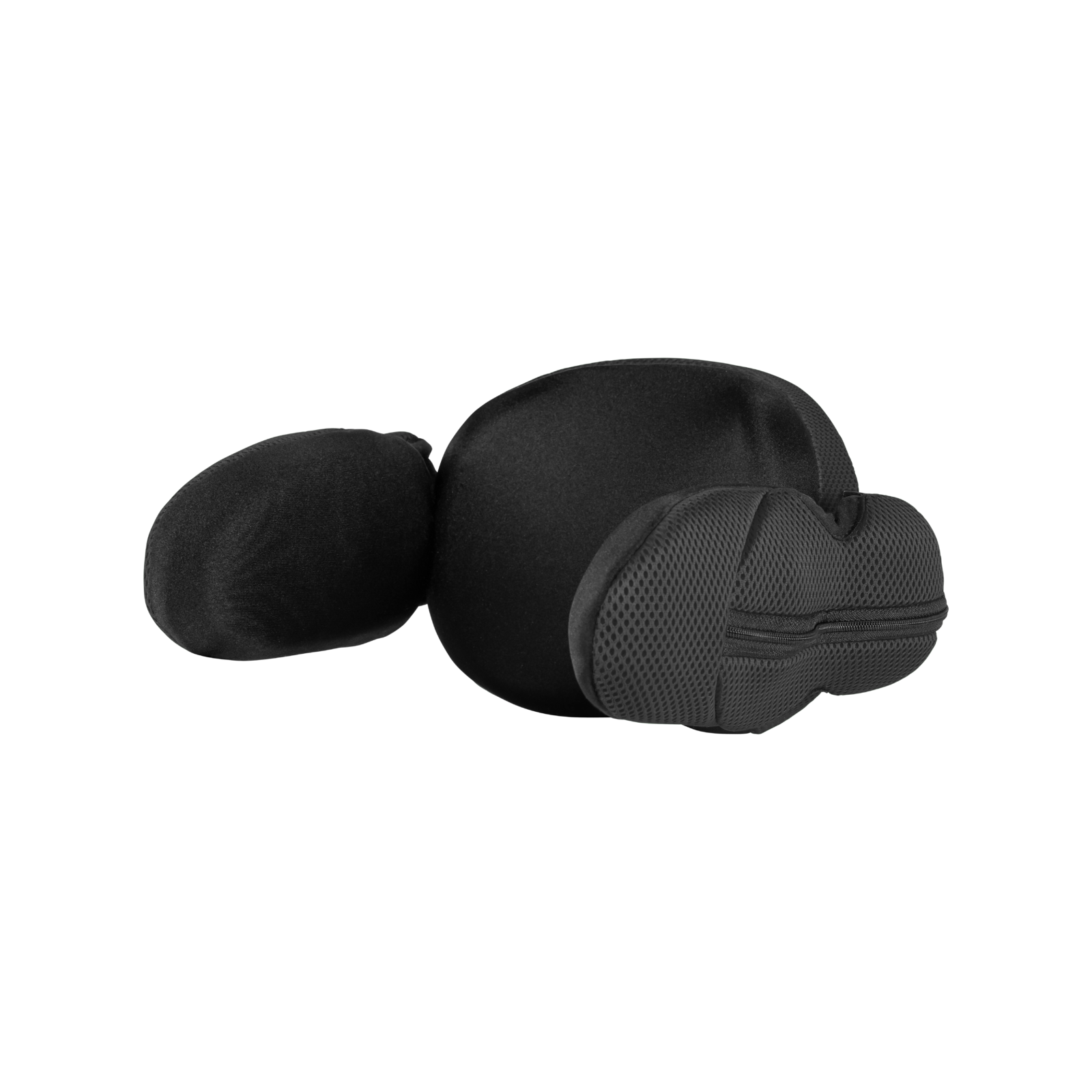

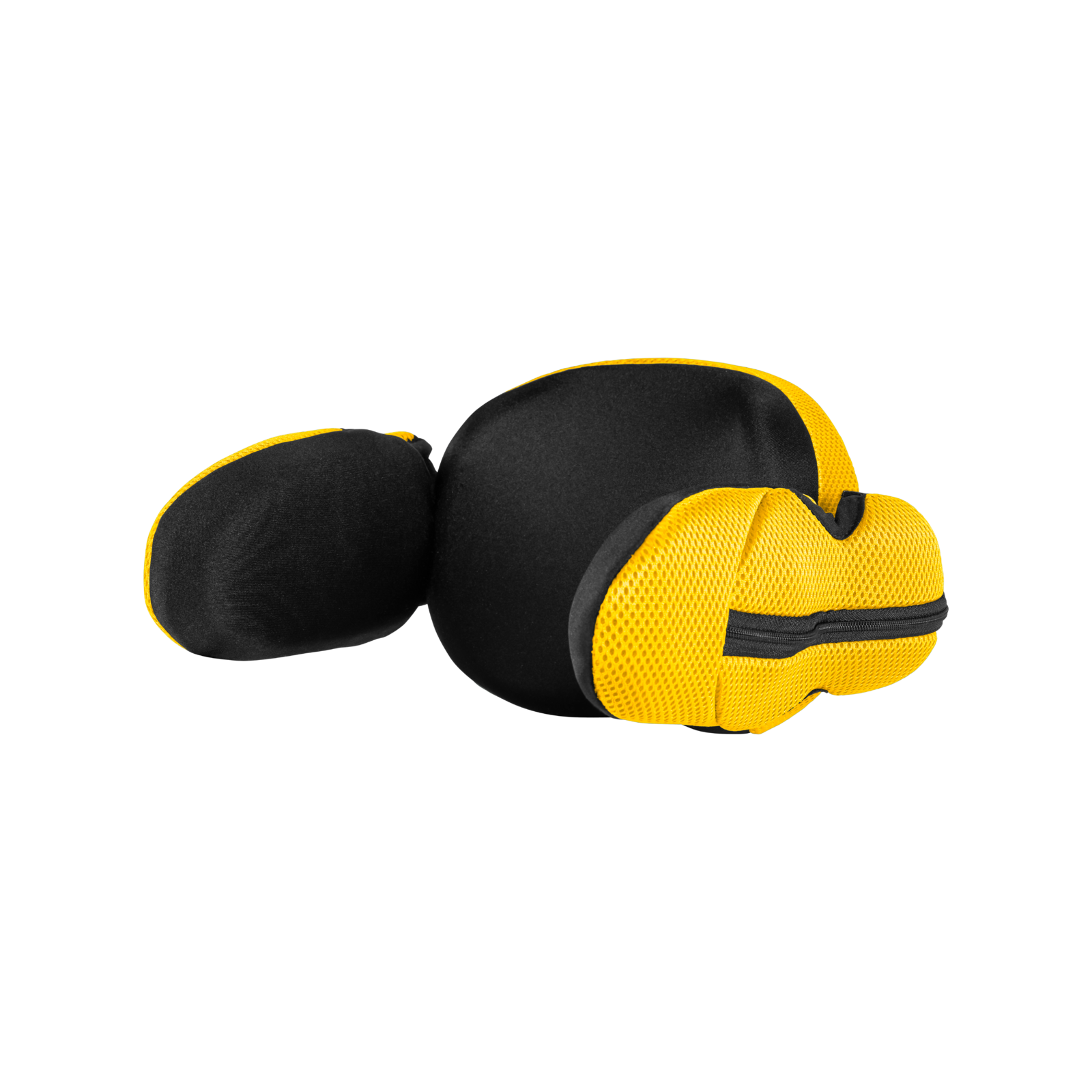

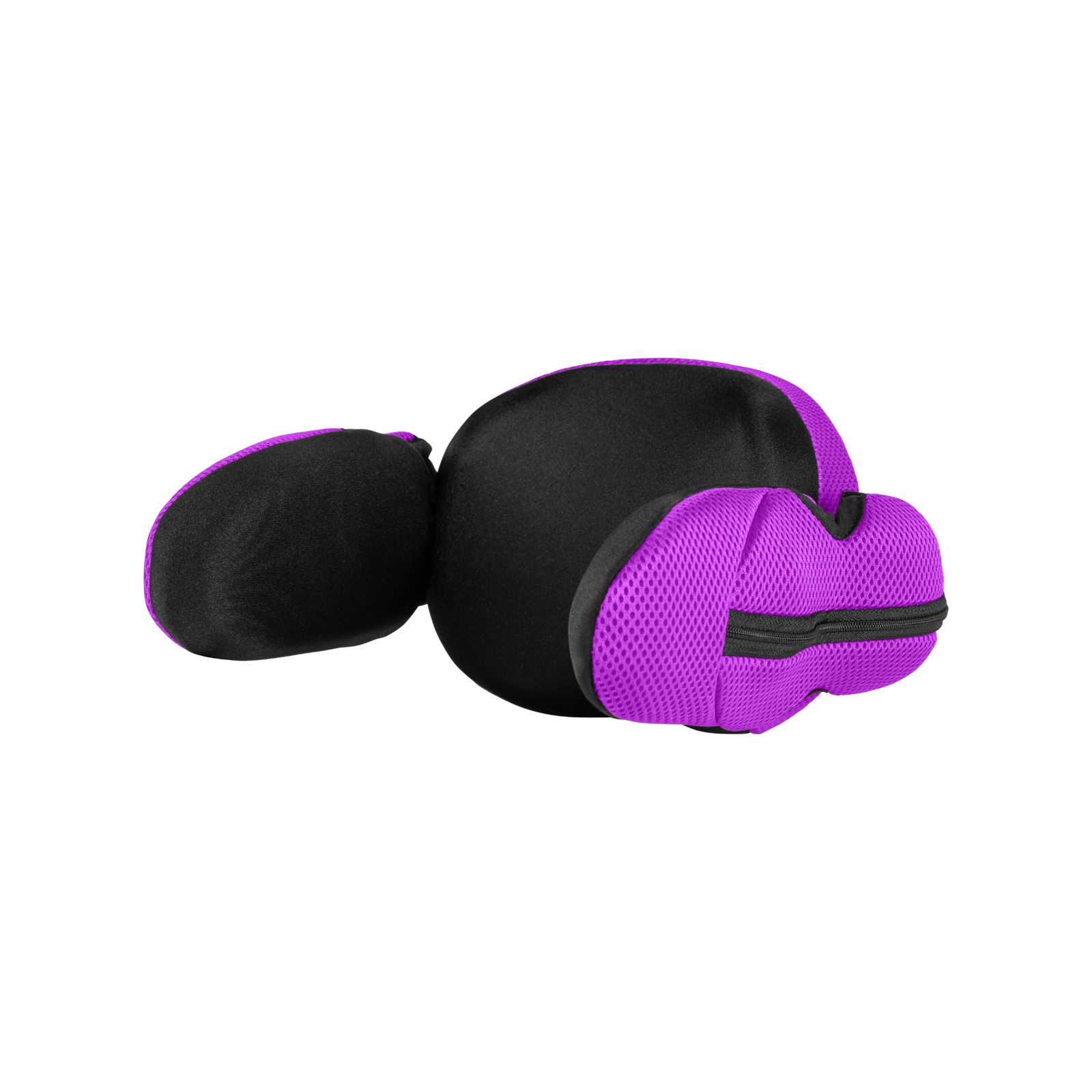

Available in two sizes Adjustable Lateral 150 and 250.
Stylo 130 Mechanism
The simplistic choice for basic head support needs
Stylo 130 is the most compact and simple option from the Stylo family, whilst still providing sufficient adjustment to meet basic head support requirements.
Stylo 160 Mechanism
For the simple, yet adjustable and adaptable head positioning solution
Stylo 160 mechanism is crafted to achieve the best of both worlds: simplicity and ease of adjustment, yet highly adjustable and versatile.
Available in standard or flip-away for ease of transfers.
Stylo 260 Mechanism
Infinite adjustability for the most complex situations!
Stylo 260 mechanism is engineered to offer ultimate and unparalleled adjustability to meet the most complex head positioning needs! With simple adjustment and intuitive design, it brings simplicity to the most complex of cases.
Available in standard or flip-away for ease of transfers.
Spex Stylo Slim Mount
Stylo mount solution in a smaller package, ideal for tight spaces
Compact head support mount for setups with limited space, particularly power wheelchairs – to be used in conjunction with the Spex Stylo head support.
The Stylo Slim Mount is a compact version of the standard Stylo Mounting Block which attaches to the wheelchair Back Support, and is suitable for use in situations where space is limited – particularly power wheelchair systems.
User-friendly in constrained spaces, the Slim Mount features a unique height-adjust mechanism which can be accessed from above. The result is a compact solution for situations where rear access to an adjustment lever is limited. Adjustments are made by simply using a 5mm Hex/Allen Key.
The Stylo Slim Mount provides a compact and lightweight solution for mounting head supports.
Stylo Heavy-Duty Compatibility Kit
The Stylo Heavy-Duty Compatibility Kit provides reinforcement at the shell connection and grub screws to improve the slip capacity at the ball connections.
Product Code:
1274-0000-HDK
The following weights do not include the Ball Mount or Stylo Mechanisms.
Style | Total Weight |
---|---|
Adjustable Lateral 150 | 955g |
Adjustable Lateral 250 | 1,160g |
Style | Adjustable Lateral 150 | Adjustable Lateral 250 |
---|---|---|
Code | 1275-0061-000 | 1275-0062-000 |
Width (A) | 175mm | 220mm |
Depth (B) | 220mm | 220mm |
Height (C) | 145mm | 145mm |
Bottom Thickness (D) | 45mm | 45mm |
Top Thickness (E) | 25mm | 25mm |
Edge Thickness (F) | 55mm | 55mm |
Lateral Wing Thickness (G) | 40mm | 40mm |
Lateral Wing Length (H) | 155mm | 155mm |
Stockcode: 1270-4149-300
Stockcode: 1272-4250-100
Stockcode: 1271-0019-000
Stockcode: 1271-0039-209
Stockcode: 1271-0039-219
Stockcode: 1271-0039-291
