Superior trunk positioning and pressure distribution

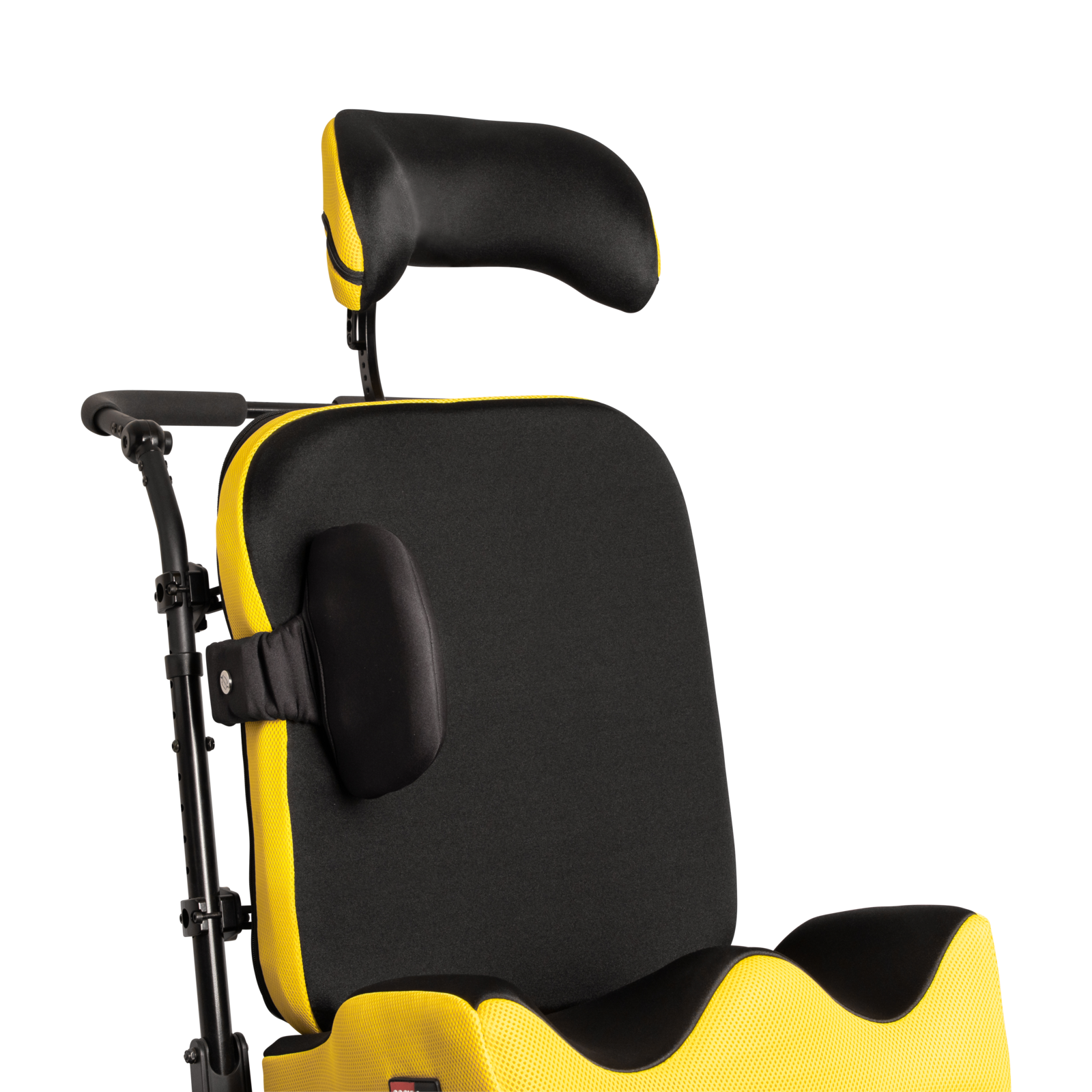

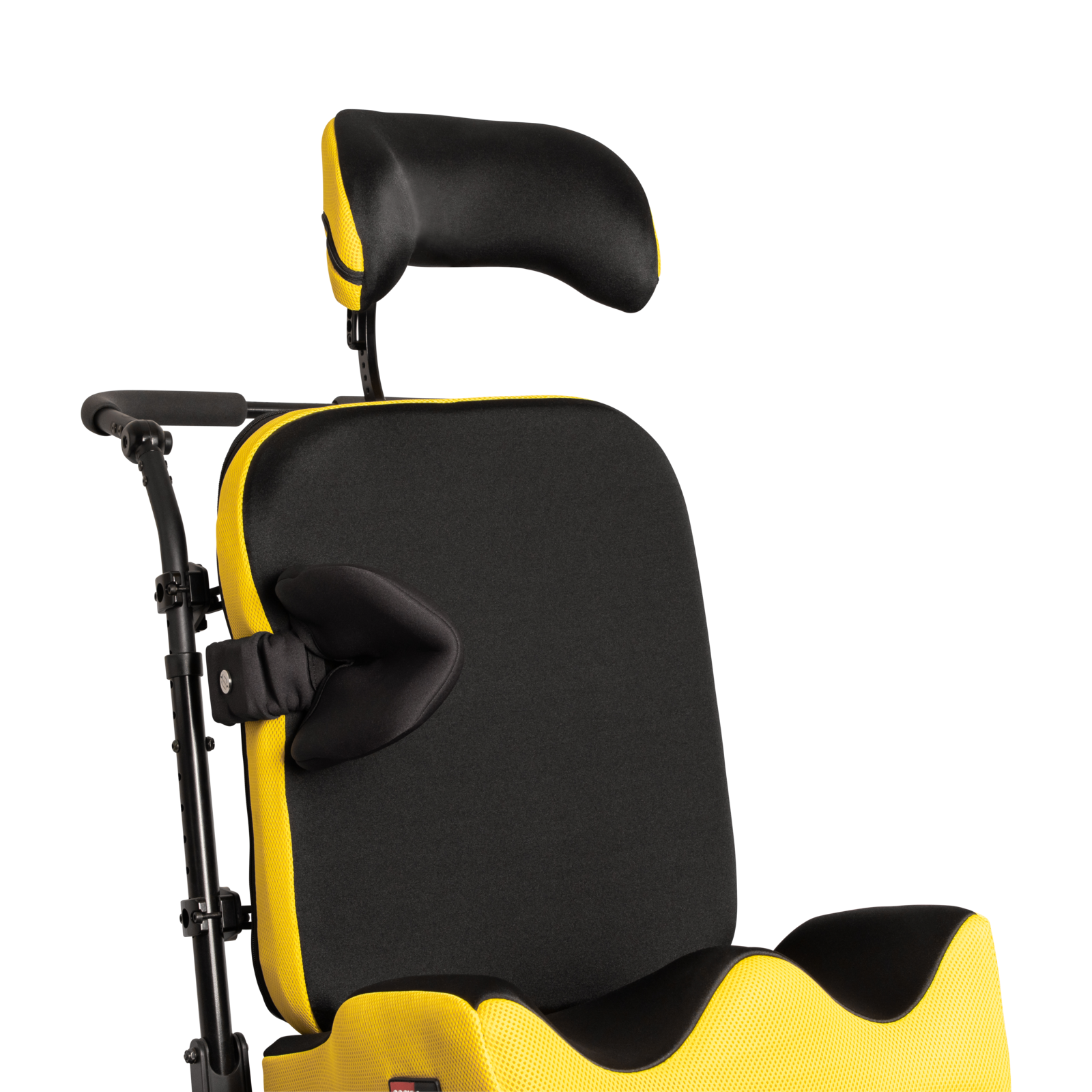

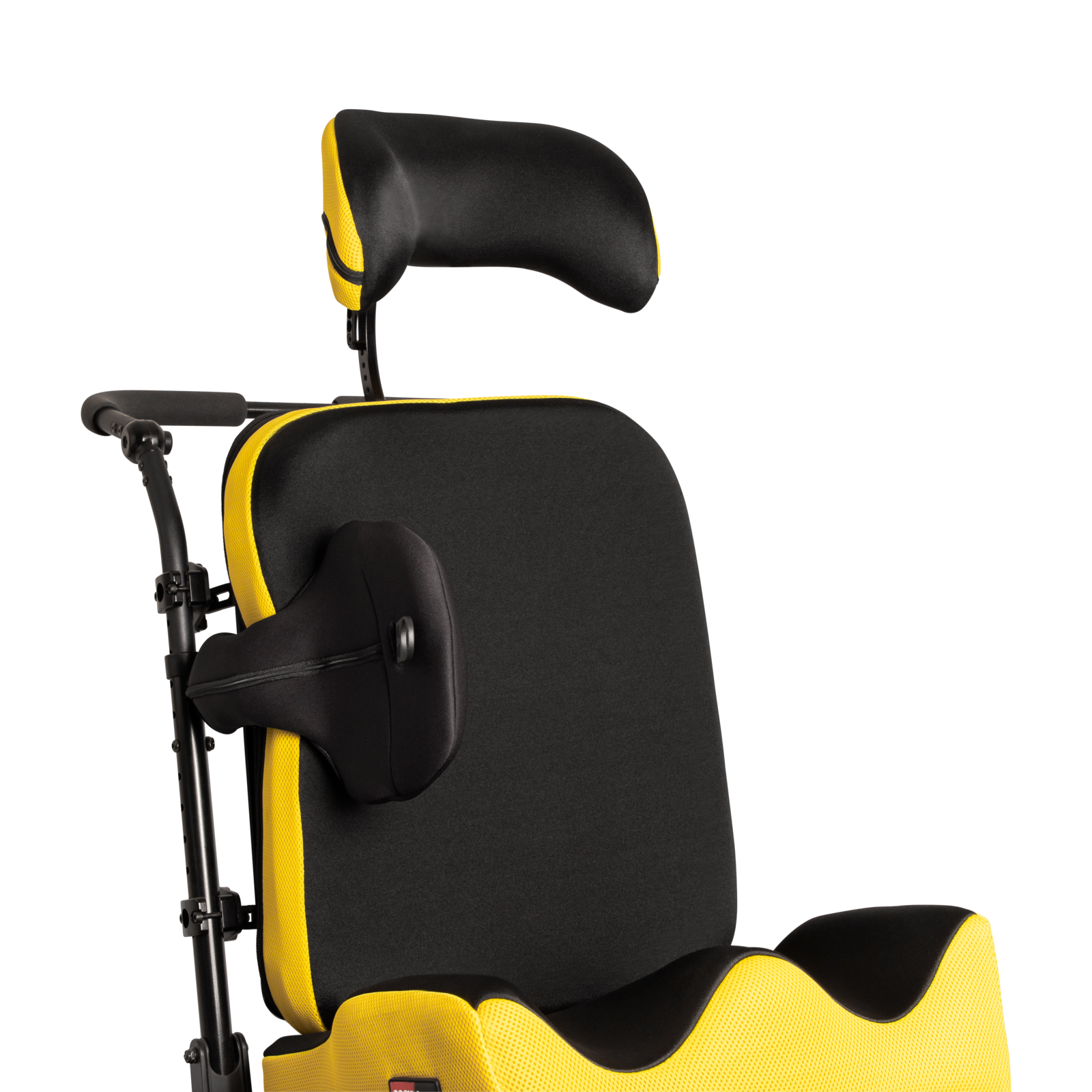

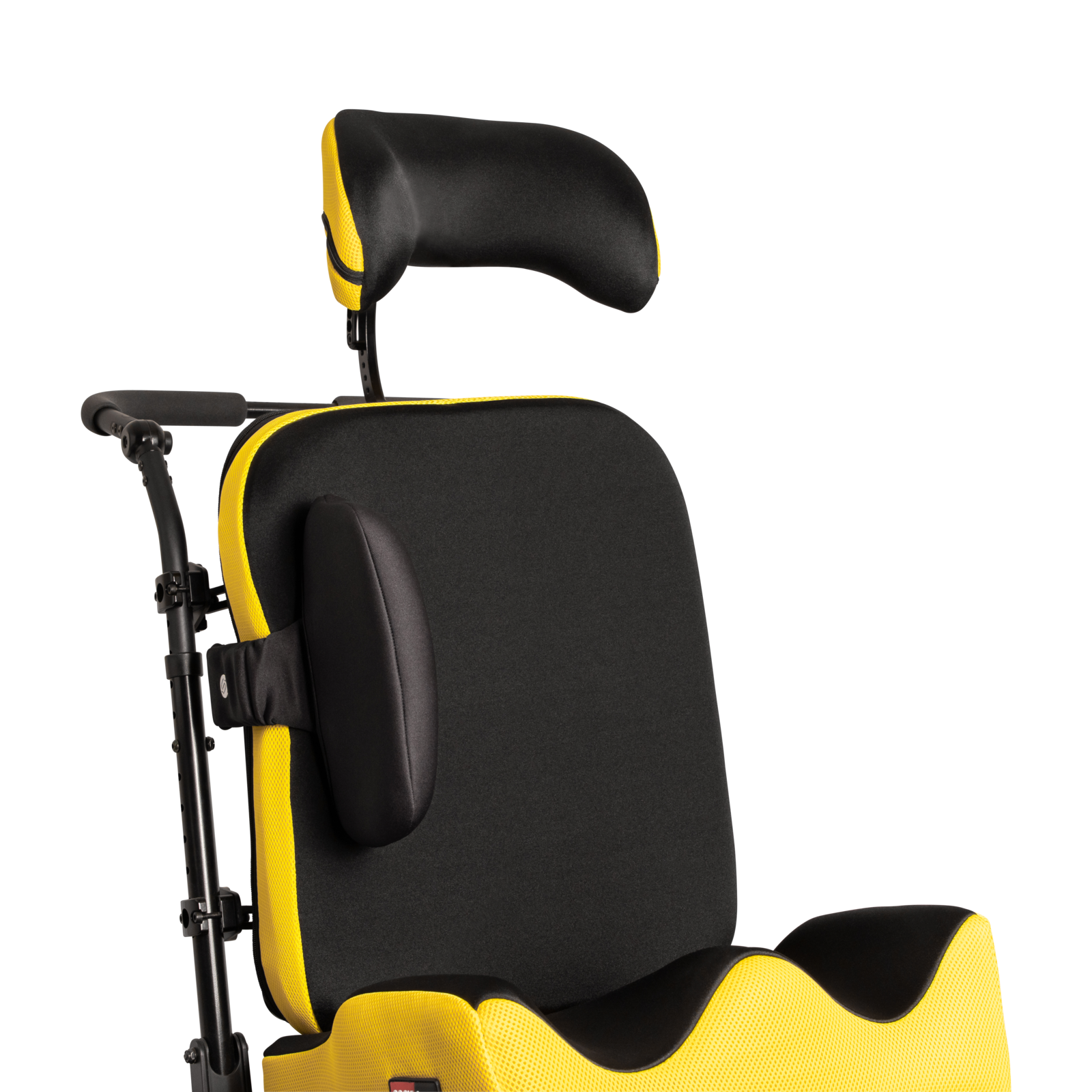

The Axial Biangular lateral trunk support has been designed to provide superior trunk positioning and improved pressure distribution for individuals who present with scoliosis and/or other complex trunk asymmetries observed on the frontal plane. Its system comprises a pivot-hinge within the lateral pads which allows for intricate positioning for both concave and convex deviations as it adjusts to different body presentations. Together with the Axial technology and superior foam padding finish, the Biangular lateral support ensures optimum fitting to address asymmetric body shapes, and provides excellent pressure distribution through a wider surface area to optimise comfort.
Designed for the individual who:
- Presents with scoliosis and/or other trunk asymmetries featuring increased lateral flexion of the trunk.
- Requires superior surface contact area and increased pressure distribution to accommodate lateral trunk deviations – for both concave and convex asymmetries
- Requires gradual correction of trunk asymmetries towards midline
- 90° angle adjustment from flat surface, providing a total of 180° angle range.

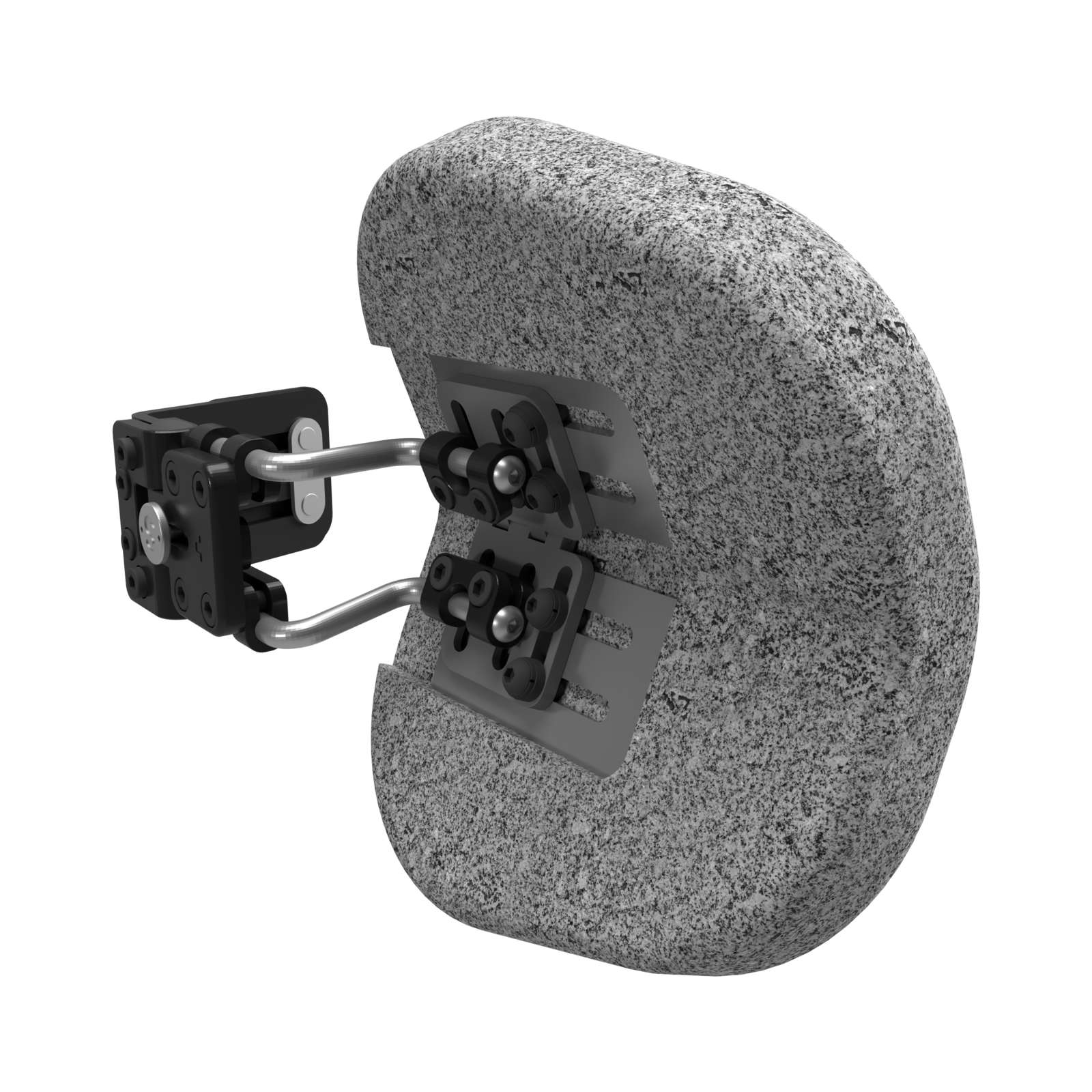

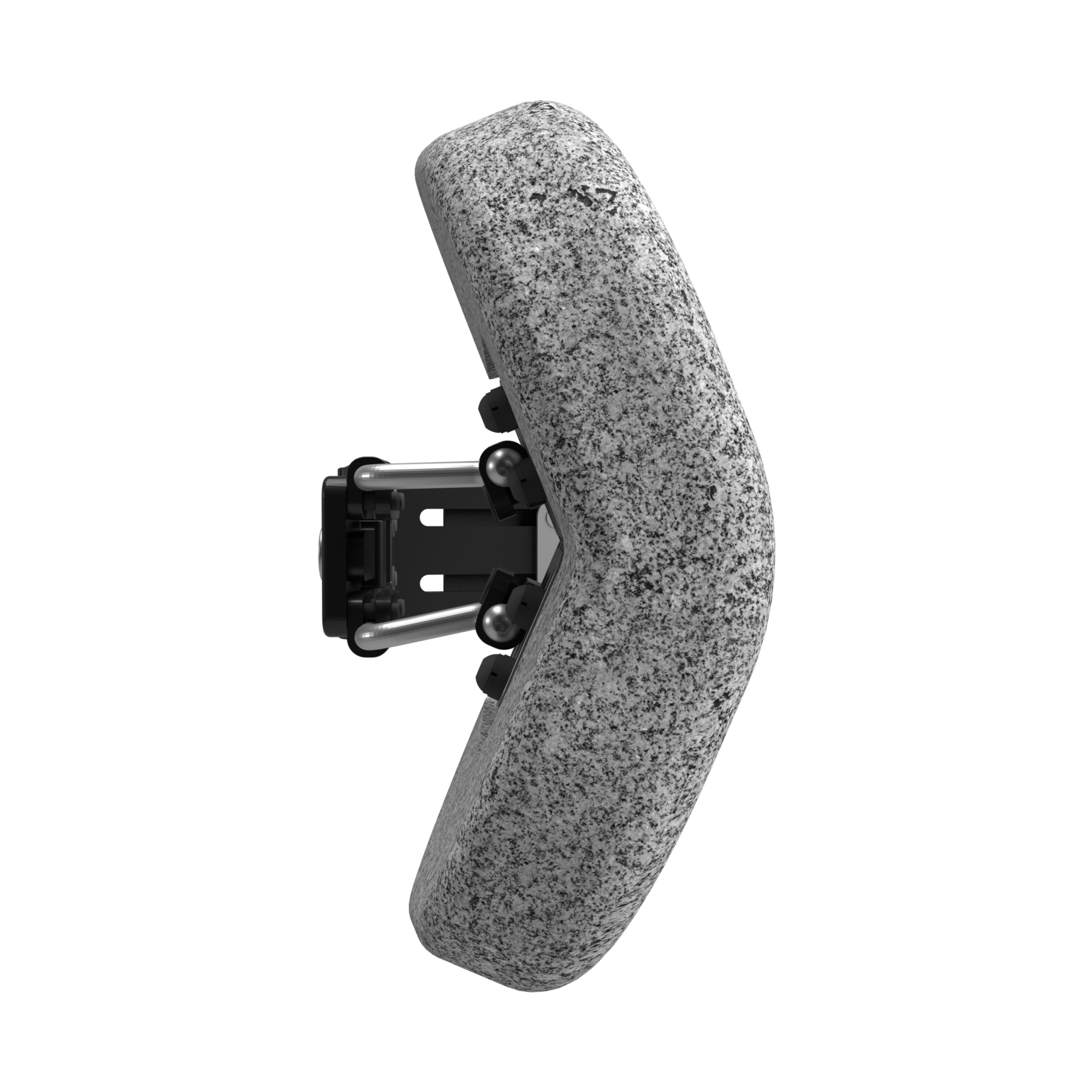

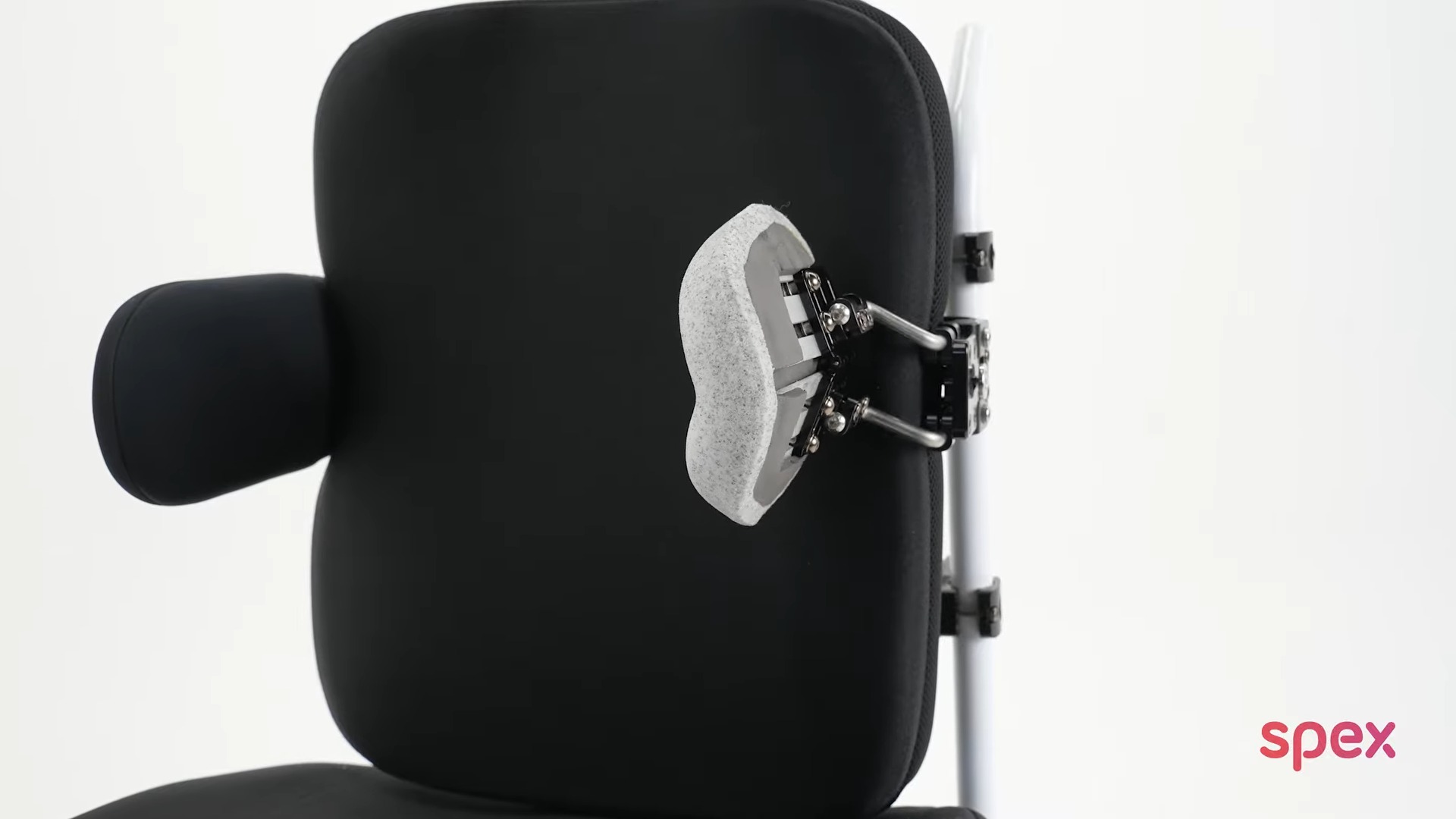

- The lateral trunk support allows for angle adjustment within the pad due to its patented pivot-link system – essential to graduate positioning and comfort.
- The Axial technology associated to this superior lateral trunk support permits positioning of the pad virtually anywhere
- Superior foam padding finish contains an extra layer of soft pressure-relieving foam which allows for greater surface contact area, superior pressure relief and overall comfort. Two padding styles are available, Standard and Pressure Reduction – with Pressure Reduction padding containing an additional layer of foam.
- Swing-away mechanism allows for ease of transfers.
- Supplied with removable and washable covers. Comfi-cover option has pull strap for ease of releasing lateral mechanism.

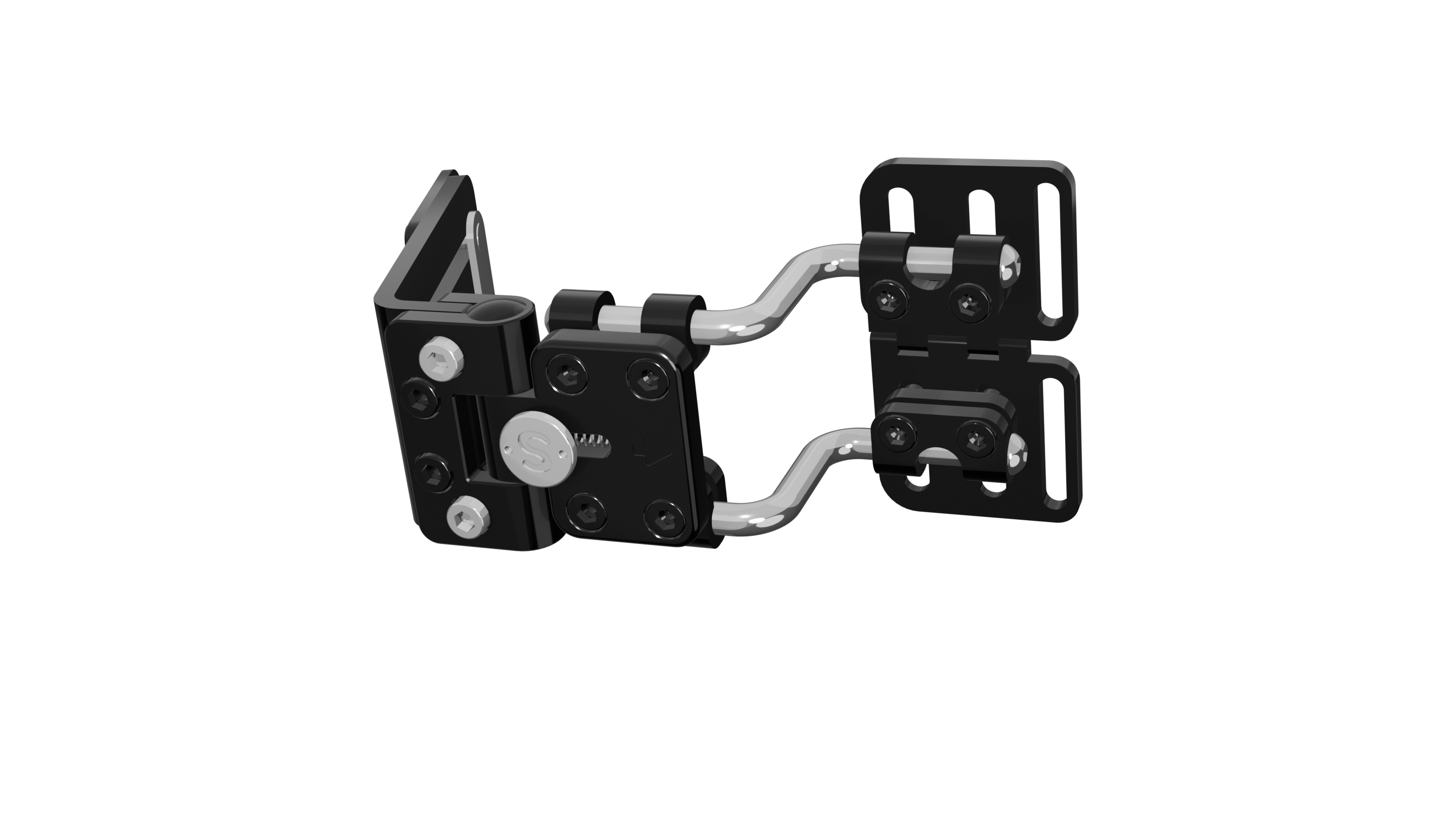

| Axial Biangular Bracket Code | 1266-2501-100 |
|---|
| Pad Size | Pad Style | Cover Style | Pad Height (mm) | Pad Depth (mm) | Angle Range | |
|---|---|---|---|---|---|---|
| Standard | Comfy | |||||
| 4 | 12mm Pressure Reduction | 1266-3044-400 | 1266-3044-800 | 165 | 175 | ±90° from flat |
| 24mm Pressure Reduction | 1266-3044-410 | 1266-3044-810 | ||||
| 6 | 12mm Pressure Reduction | 1266-3046-400 | 1266-3046-800 | 215 | 195 | |
| 24mm Pressure Reduction | 1266-3046-410 | 1266-3046-810 | ||||
| 8 | 12mm Pressure Reduction | 1266-3048-400 | 1266-3048-800 | 265 | 195 | |
| 24mm Pressure Reduction | 1266-3048-410 | 1266-3048-810 | ||||
Download a life-size support pad template here.
Pad Styles:
- 12mm Pressure Reduction (Overall pad thickness = 30 mm)
- 24mm Pressure Reduction (Overall pad thickness = 45mm)
Cover Styles:
Spex Lateral Trunk Supports are available with comfortable padded covers designed to protect the user from hard surfaces around the support pad.
The Axial Biangular lateral has the option of Standard and Comfy covers.
For enhanced protection and easier access to the swing-away release, the Spex Lateral Trunk Support Easy Pull Cover is also available. Its extended neoprene construction wraps around the lateral mechanism to help shield the user’s arms and skin from hardware. This is especially relevant for users with athetoid, involuntary or uncontrolled arm movements.
The integrated, length-adjustable pull strap has a large thumb or finger ring, making the lateral release easier to locate, grip and operate. Suitable users may be able to independently release and swing the lateral pad away before their own wheelchair transfers, reducing reliance on caregiver assistance. The feature can also be used by caregivers and clinical teams during transfers or seating adjustments.
The cover uses robust materials and construction to support durability, wear resistance and long-term performance under repeated use.
