Fixed-Angle
Arm Supports

Spex Fixed-Angle Arm Supports provide functional forearm and upper extremity support, and whilst the angle remains fixed, the height of the arm support can be adjusted to ensure the user has the precise support they require.

Like all Spex systems, the Fixed-Angle Arm Support has a modular approach, creating flexibility and takes into consideration the individual and unique needs of different clients. Available in either Quick-Release or Swing-Down, the Spex arm support system ensures that the user has easy access in and out of the chair for transfers.

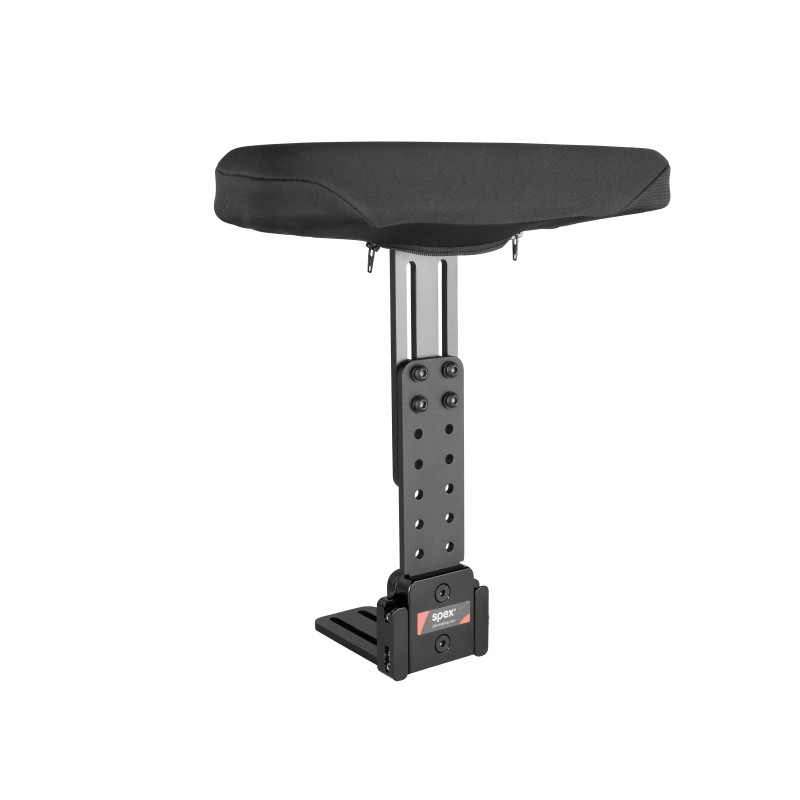

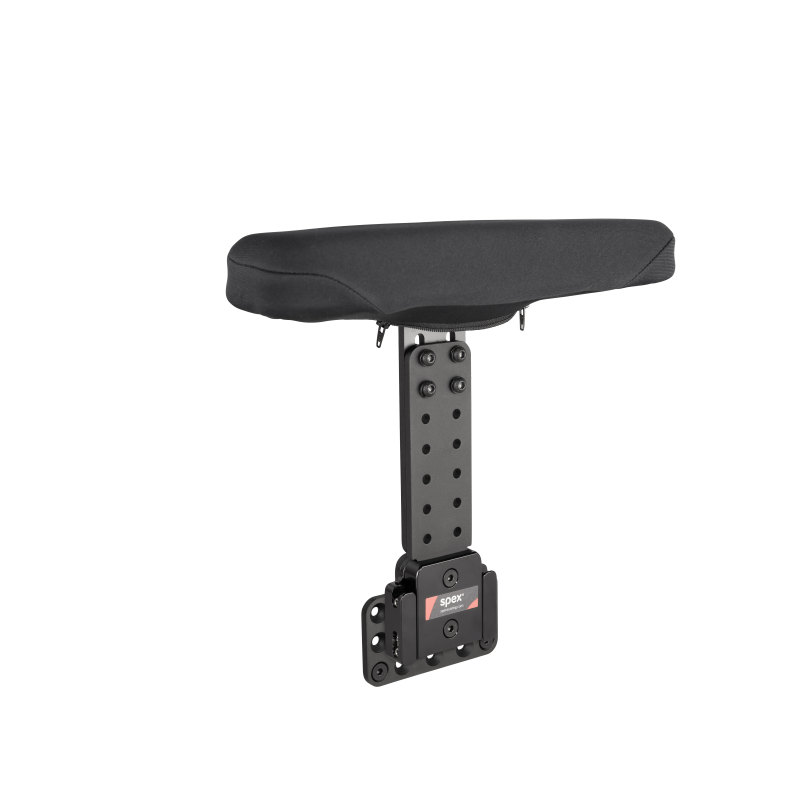

Spex is designed to mount on almost any chair and seating system, and the arm support systems are no different! The Fixed-Angle Arm Supports are available with either a Seat Base Mount to mount directly to the seat base of the wheelchair, or with a Rail Mount to attach directly to the chair’s seat rail.

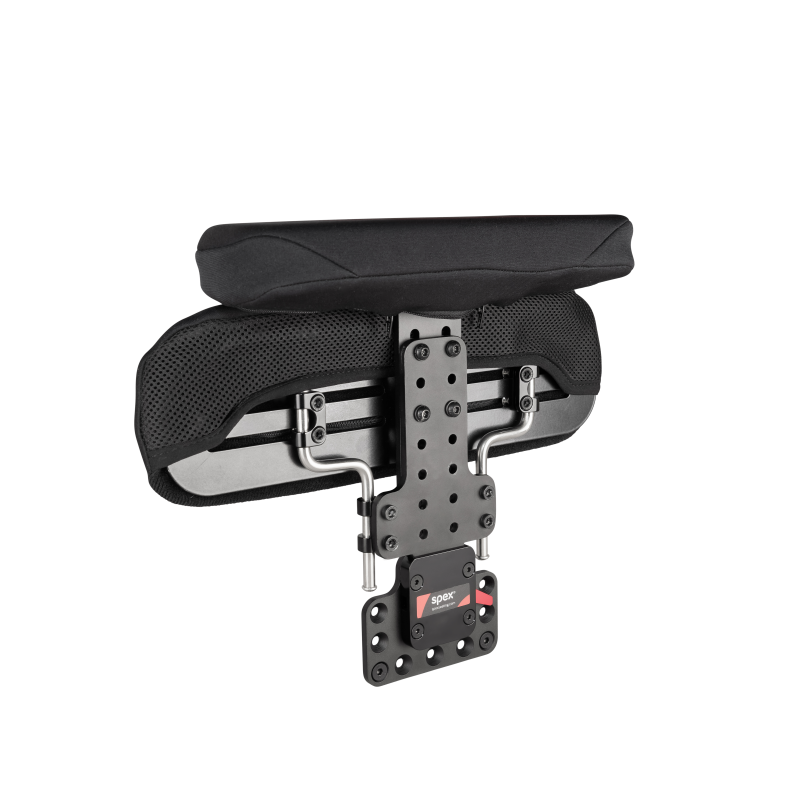

Couple your arm support with a Spex Lateral Thigh Support! We offer Arm and Thigh Support Combos where the arm and thigh support share the same mounting mechanism for a sleek and tidy “all-in-one” solution. These are available in all the same mechanism options (Quick-Release or Swing-Down) and mounting hardware (Seat Base or Seat Rail mounts).
LEARN MORE

Gallery
Functional
Benefits

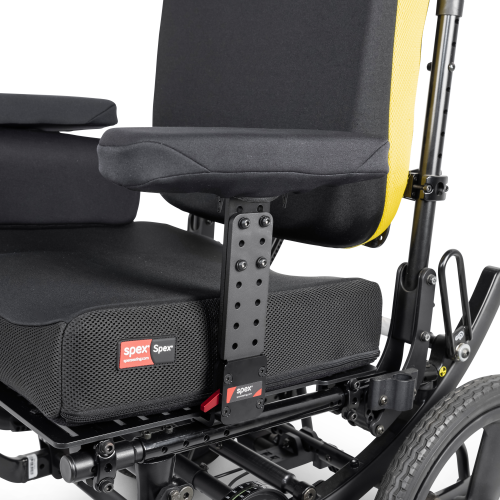

Rigid Support for Optimum Trunk Alignment
By having arm supports in the correct position and bearing normal weight on the arm pads, will provide better trunk alignment and support, stabilise the shoulder girdle, and improve overall posture. Arm supports also assist pelvic and trunk stability to reduce or redirect forces that can lead to pressure sores.
The Perfect Position!

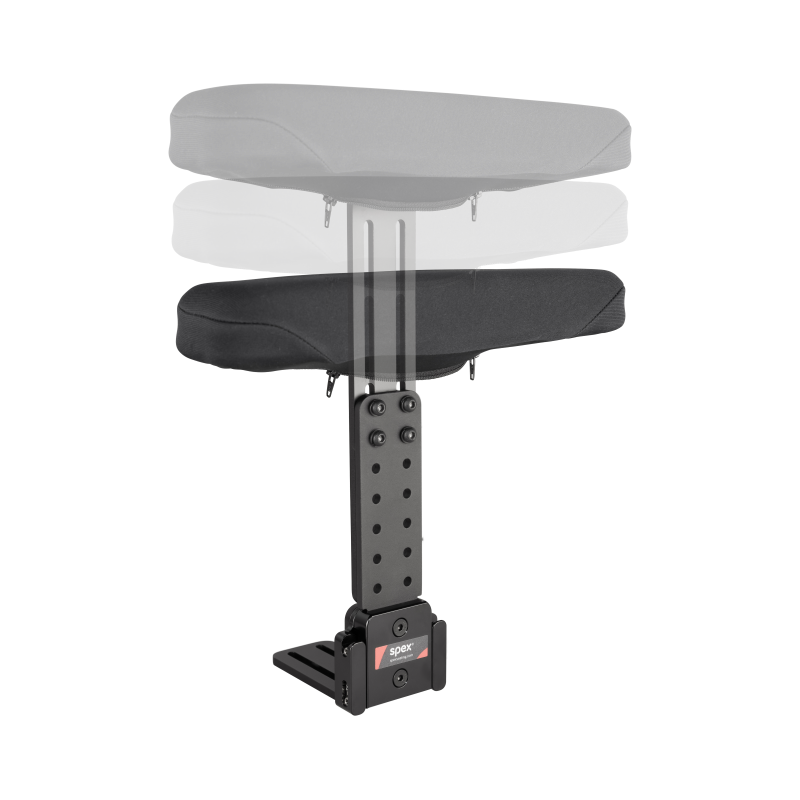

Accurate arm placement of the user is made possible through the stepless height range.
Couple with a Spex Lateral Thigh Support!
We offer Arm and Thigh Support Combos where the arm and thigh support share the same mounting mechanism for a sleek and tidy "all-in-one" solution. These are available in all the same mechanism options (Quick-Release or Swing-Down) and mounting hardware (Seat Base or Seat Rail mounts).
A Hardware Option for Every Situation
A variety of different hardware options allow specific functions tailored for the user. It enables precise positioning of the arm support pads to ensure the user gains the correct positioning for the most function.
Pressure-Relieving Comfi Arm Support Pad
The Comfi Arm Support Pad provides superior comfort for the user through its combination of both its rigid wooden backing board and firmer foam layer, and a pressure-reducing foam overlay. Covered with a premium neoprene removable cover, ensures the user's arms are always comfortable!
Easy Attachment of Accessories
With the arm support hardware, it is easy to attach accessories and add-ons such as powerchair drive controllers.
Combine with a Tray Table for Increased Function
In combination with a tray table, arm supports assist and improve upper body stability that is essential in accomplishing day-to-day tasks.
Resources
Spex Arm Thigh Supports Flyer 0.33 MB
User Manuals
Spex Arm/Thigh Supports User Manual 0.77 MB
Specifications

Height Range

These measurements are taken from the top of the seat base to the top of the support pad, including the 40mm thick support pad.

Min Max
Adult 285mm 390mm
Paediatric 230mm 290mm

Hardware Codes

Angle-Adjust Arm Support: Seat Pan Codes (Horizontal mounting to the wheelchair seat pan)

Quick-Release Hardware Swing-Down Hardware
Fixed-Angle 1156-0100-110 1156-0100-120
Paediatric Fixed-Angle 1156-0200-110 1156-0200-120

Angle-Adjust Arm Support: Seat Rail Hardware Options (Vertical mounting to the wheelchair seat rail)

Quick-Release Hardware Swing-Down Hardware
Fixed-Angle 1156-0100-210 1156-0100-220
Paediatric Fixed-Angle 1156-0200-210 1156-0200-220

Comfi Arm Support Pad Codes

Arm Support Pads Only (please select Hardware also)

Code SIze Type Width Length Thickness
1156-5811-410 Small Slim 40mm 250mm 40mm
1156-5812-410 Medium Slim 50mm 300mm 40mm
1156-5813-410 Large Slim 60mm 350mm 40mm
1156-5821-410 Small Wide 70mm 250mm 40mm
1156-5822-410 Medium Wide 80mm 300mm 40mm
1156-5823-410 Large Wide 90mm 350mm 40mm
