Carer-friendly and growth-adjustable seat base for ultimate positioning
Solid aluminium seat base for effective placement of cushion and auxiliary postural supports with Fixed Mount or Quick-Release hardware options.
Give your wheelchair an enhanced postural support foundation with the Spex Seat Base.
This aluminium seat base with 4 points of fixation gives you the flexibility to complement your seating system with other Spex auxiliary postural supports.

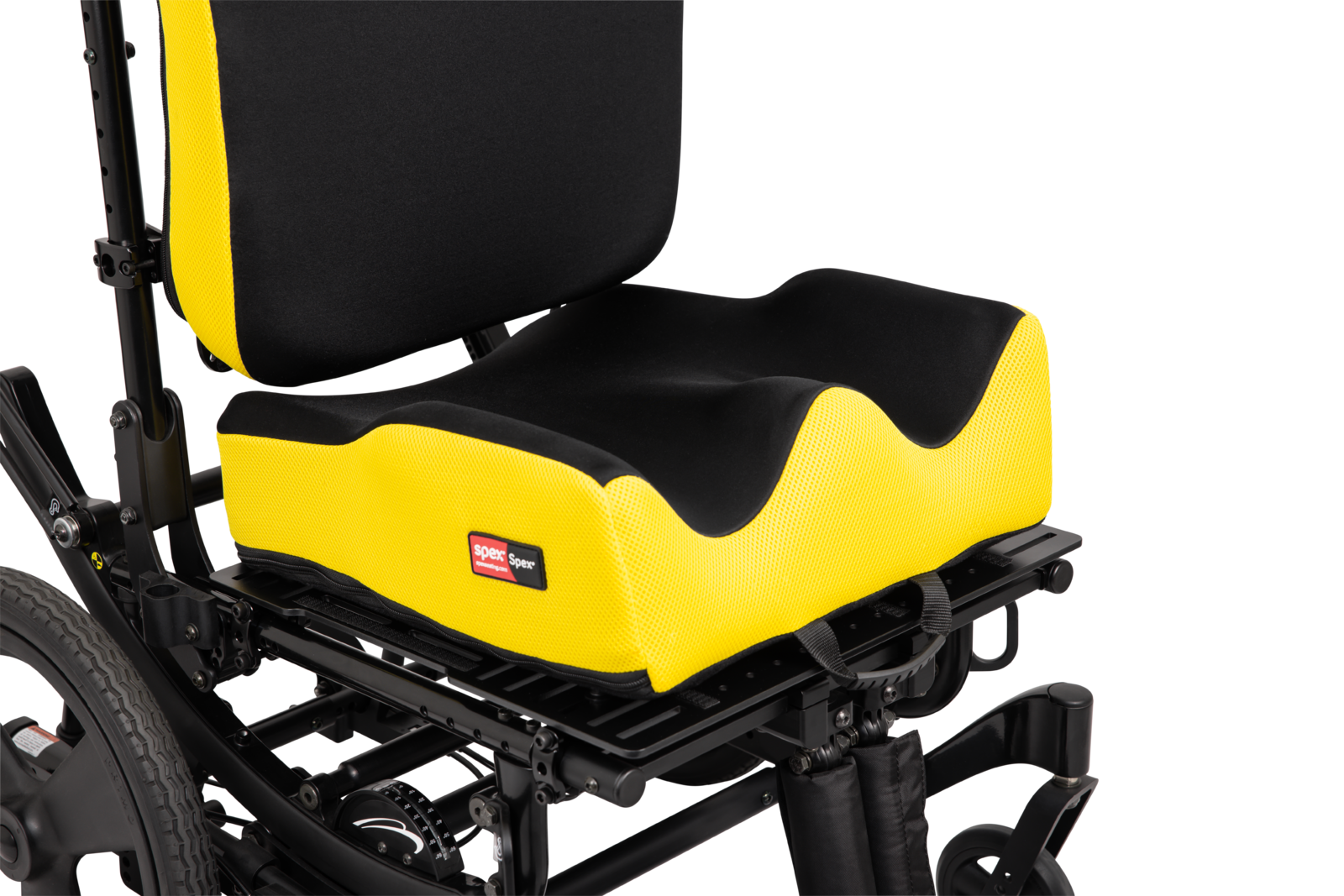

The Seat Base provides stability and a solid foundation for the cushion to keep its integrity and ensure no sag develops over time. This will also allow for an even pressure distribution across the entire surface.
Two hardware mounting options are available:

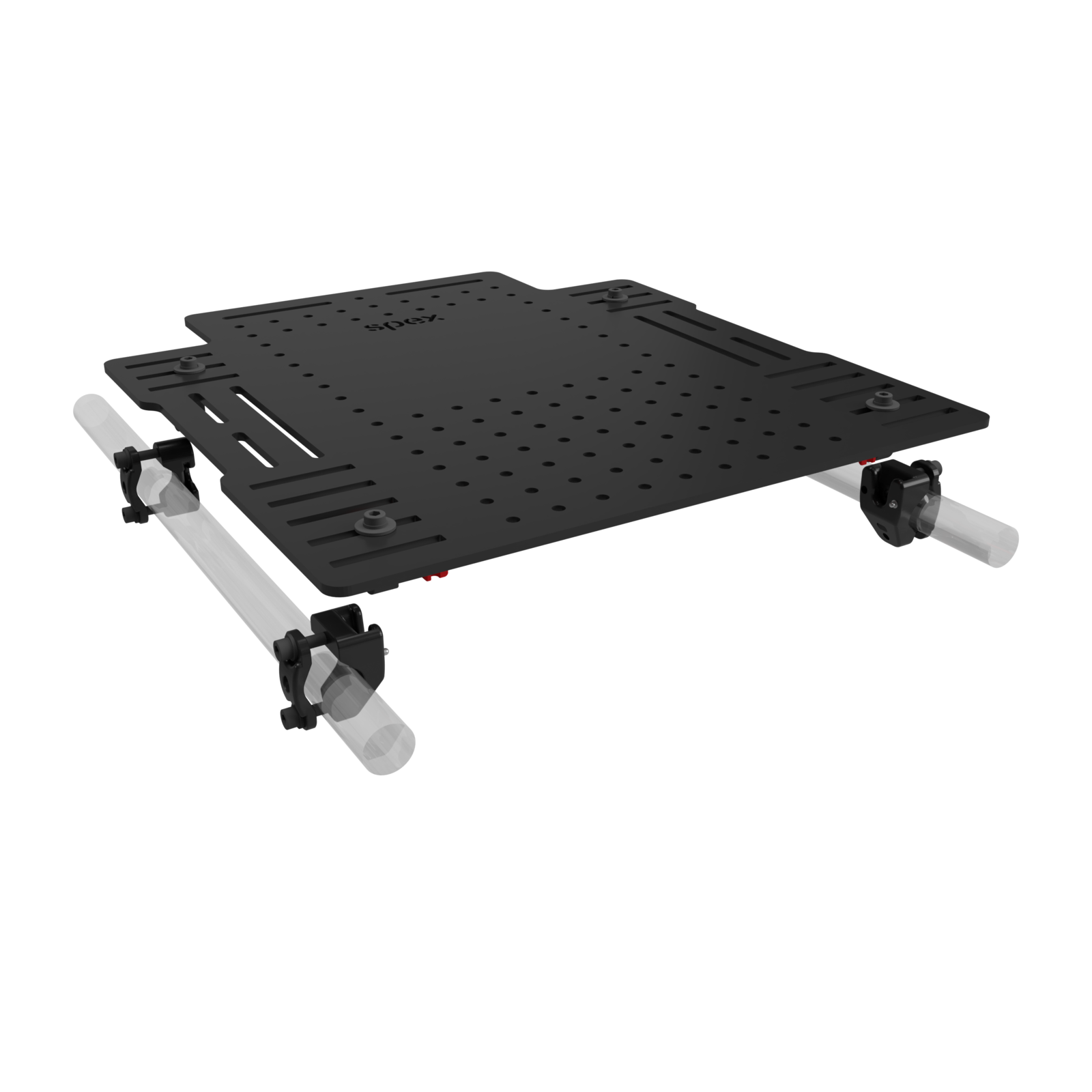

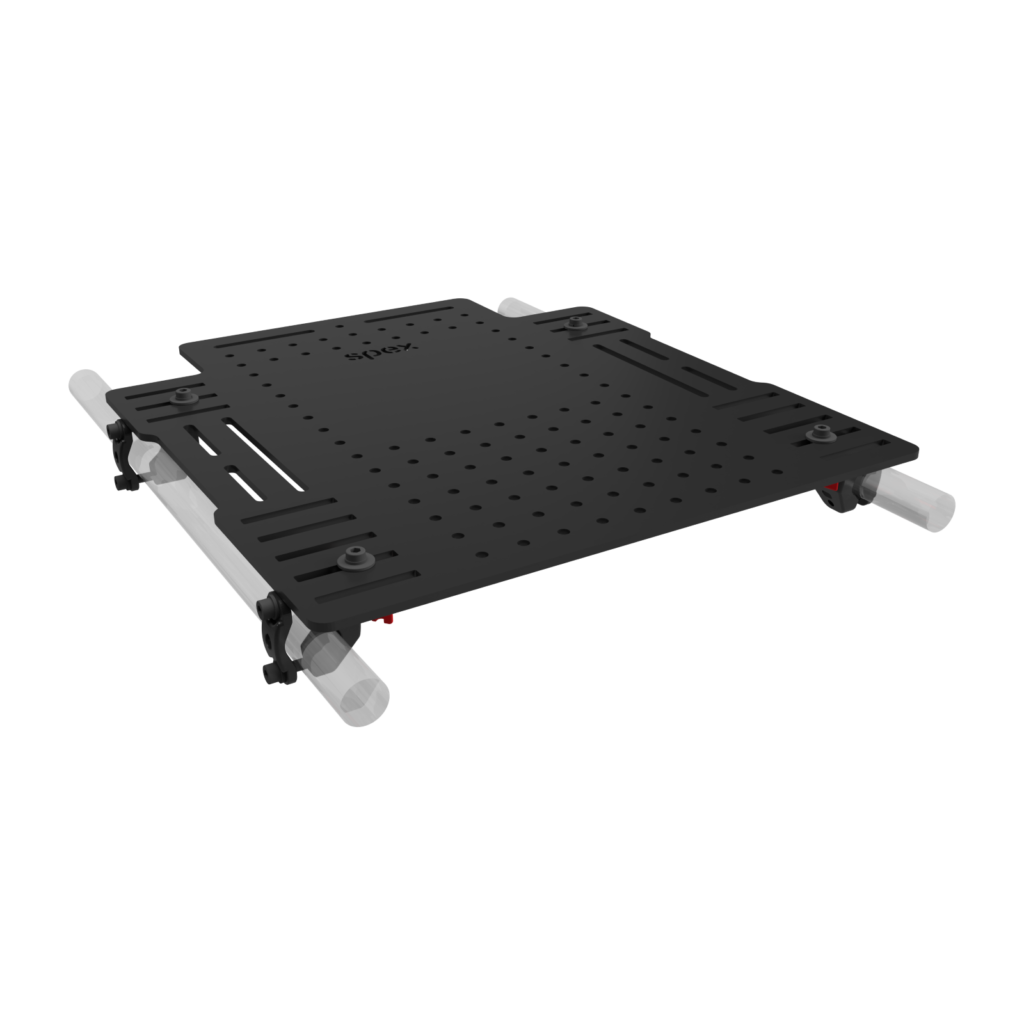

- Quick-Release for folding frames and ease of use

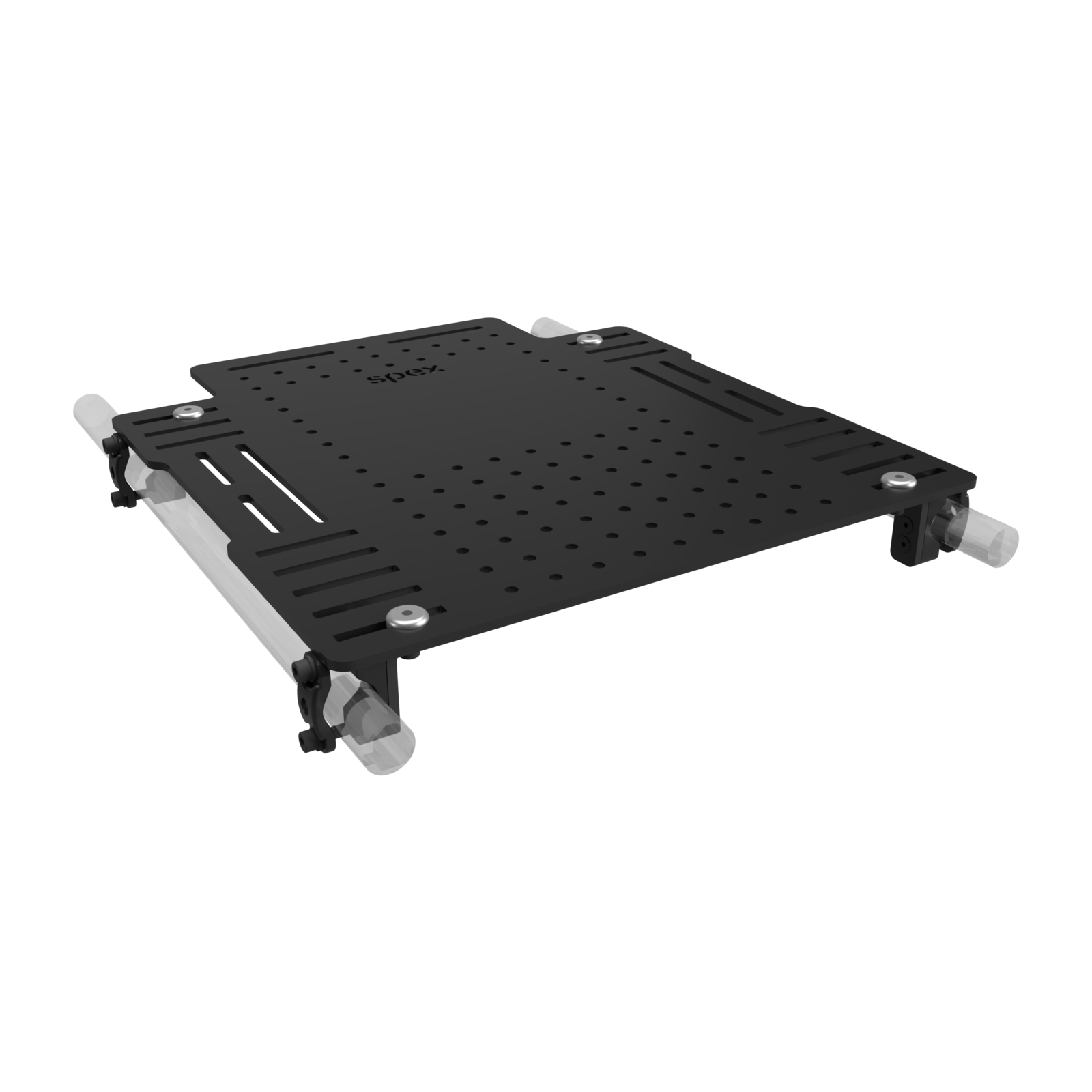

- Fixed Mount cost-effective and lightweight

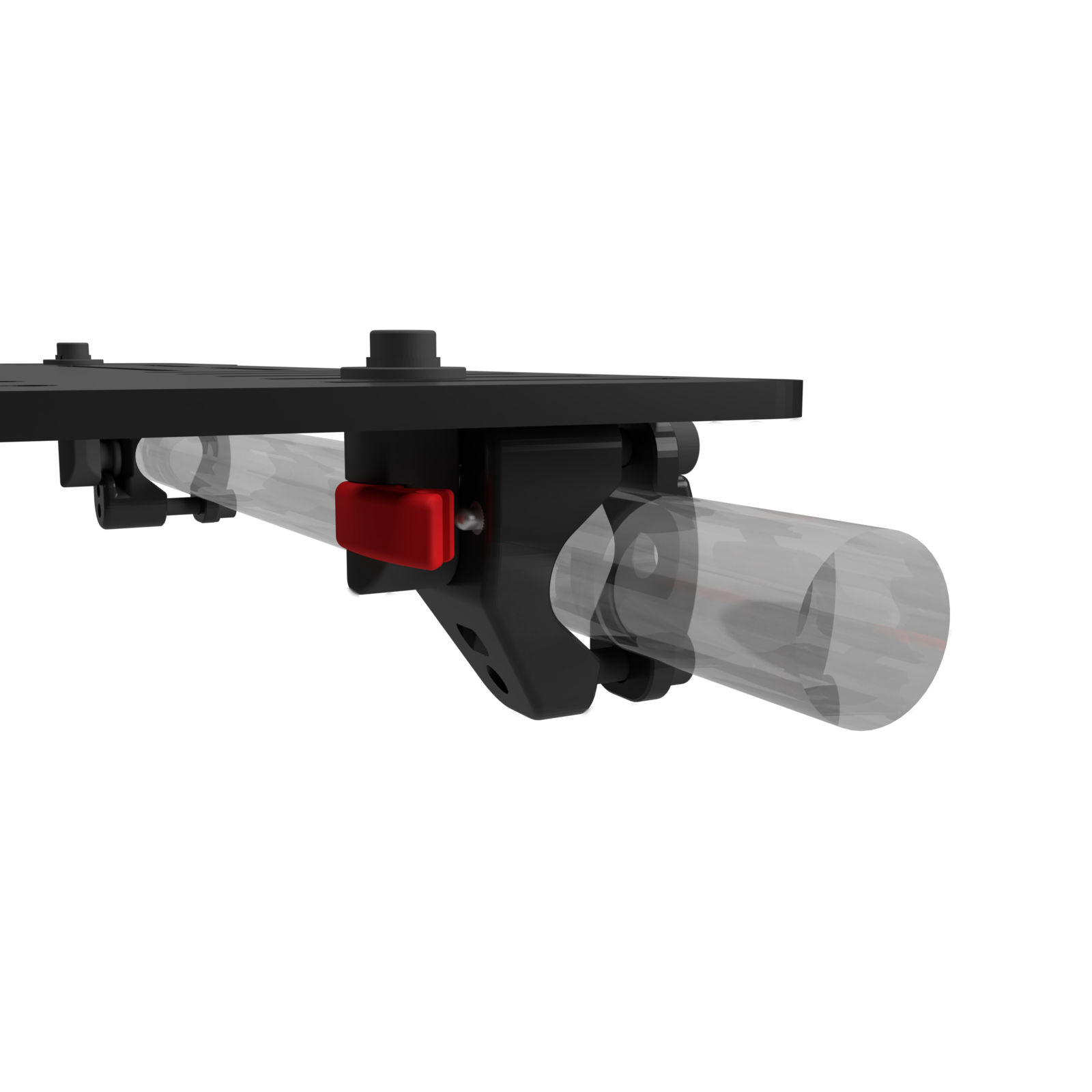

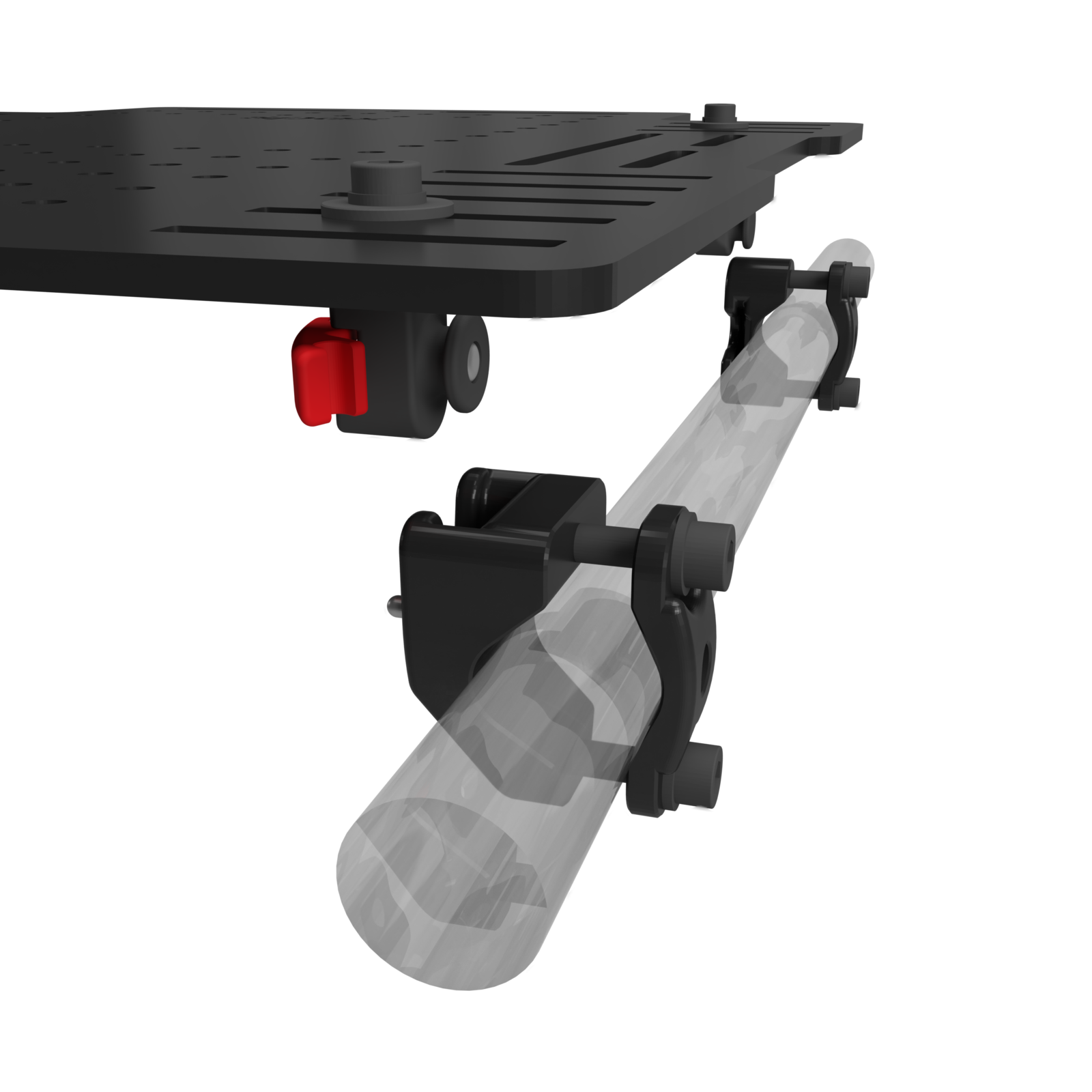

Enjoy the new and innovative Quick-Release hardware. It’s versatile and multifunctional hardware allows installation to a range of wheelchair frames incorporating tubular canes from 19-30mm in diameter.
Additional retainer brackets

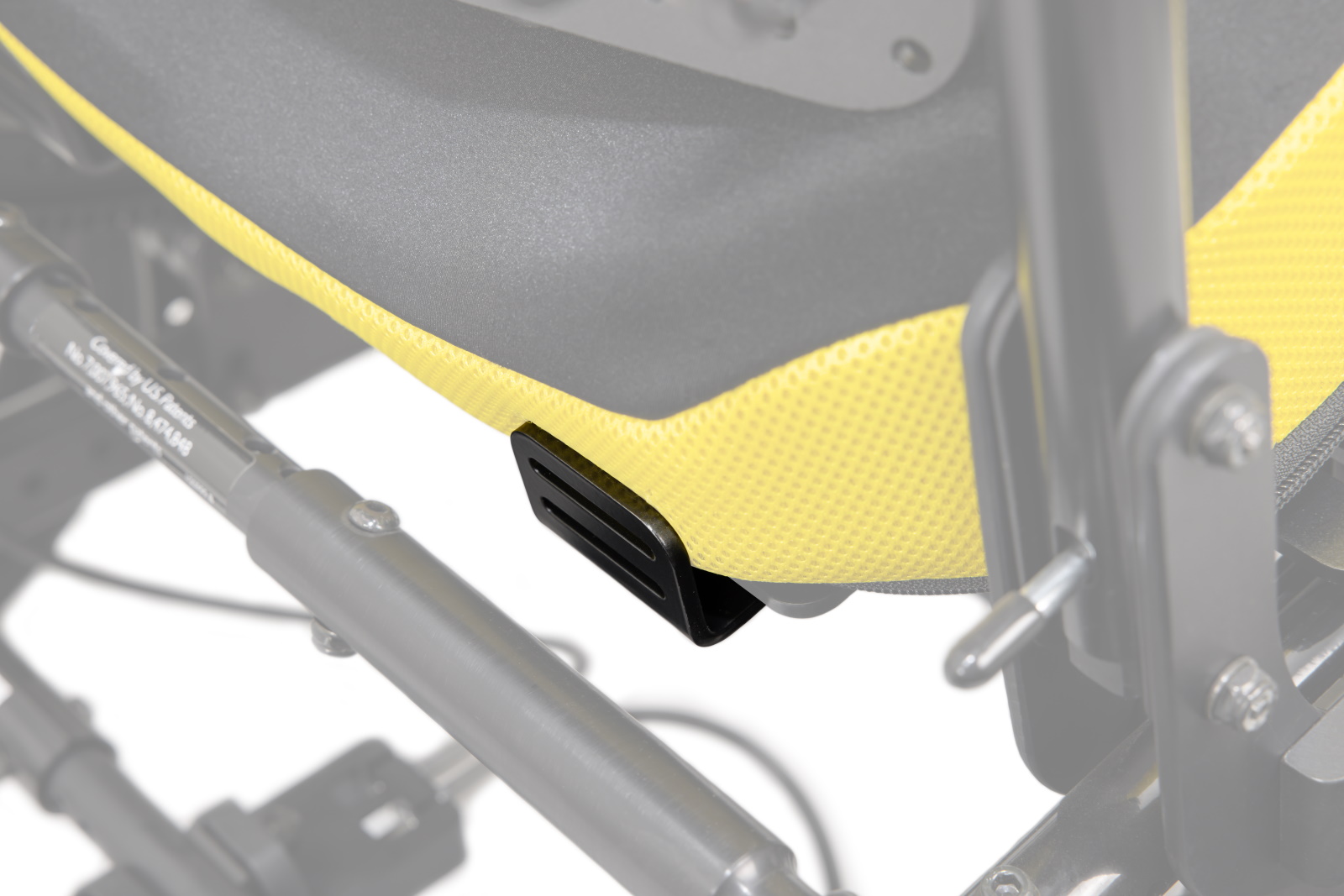

Cushion retainer brackets: If you do need to remove the cushion, unique retainer brackets create a stop for the cushion so that everyone knows where to position the cushion back in place. Install an additional pair for ease of hip belt placement in precise Seat Base locations.

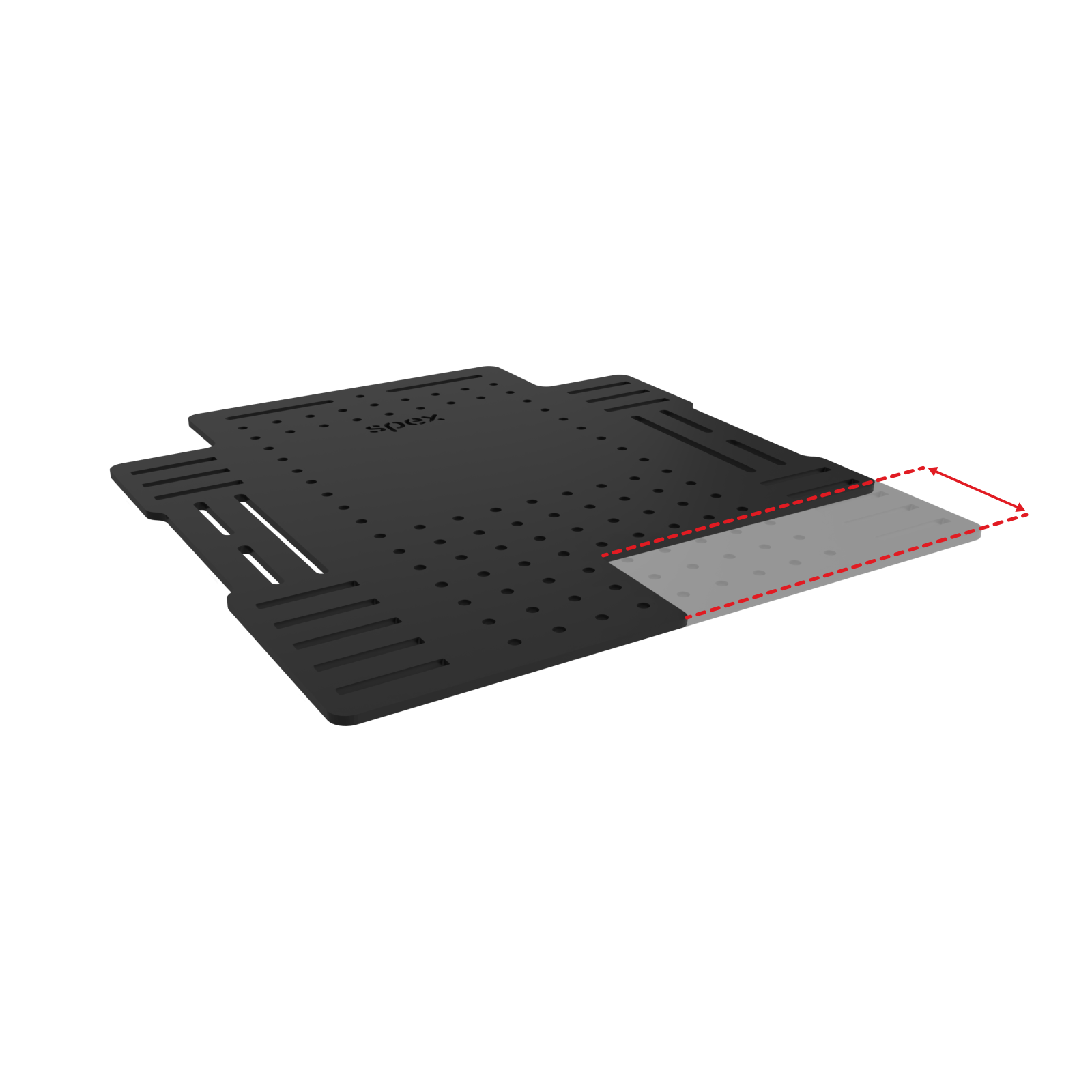

Leg length discrepancy cut-out
Available in 1-inch increments.

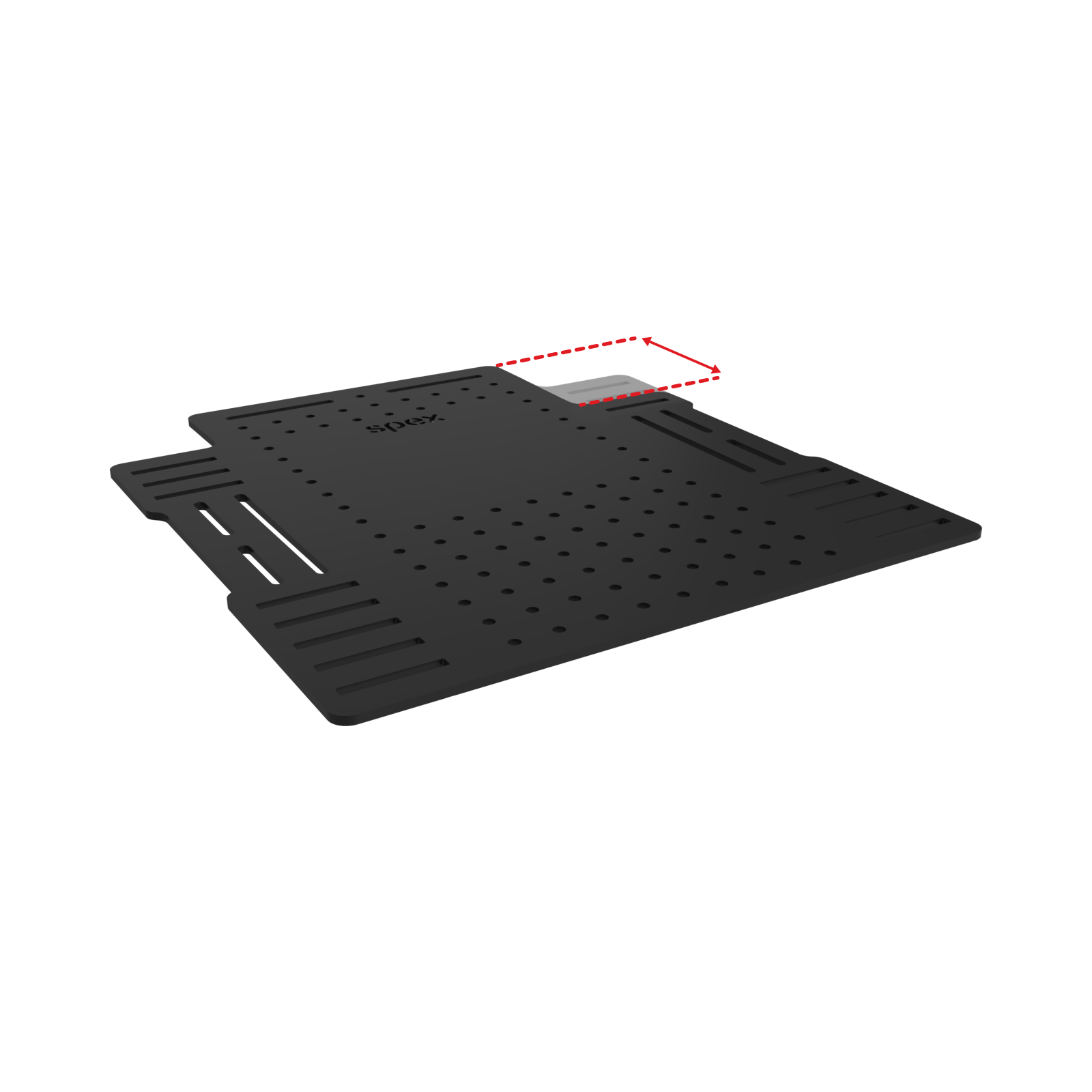

Custom cane depth cut-outs
Standard cane cut-outs are 3 inches by 3 inches. Additional depth cut-out of 2 inches is available in 1-inch increments, to accommodate non-standard cane sizes.

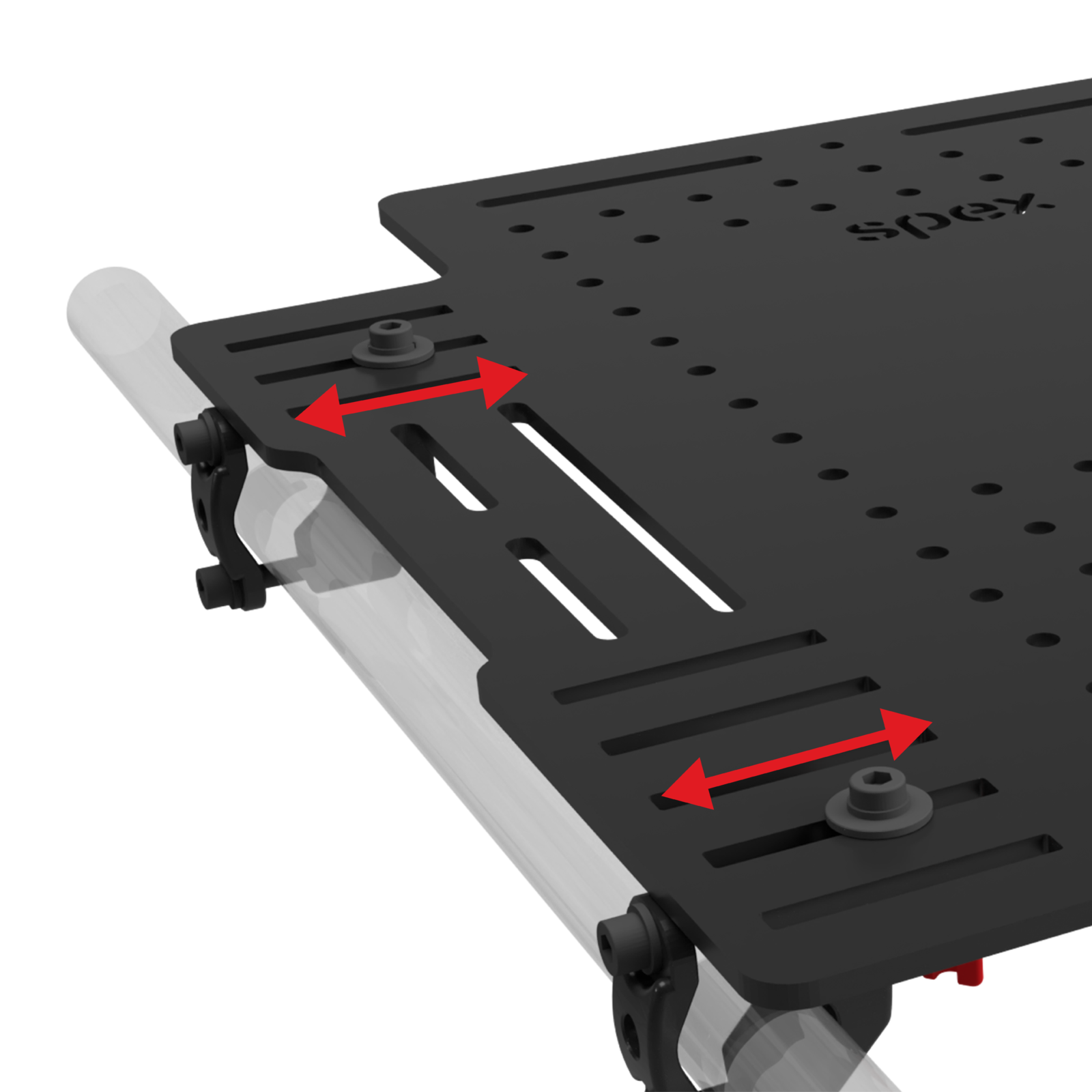

|Width (10″ – 20″)
|Width (21″ +)
|-0″ to + 2″
|-0″ to +1″
|-1 to + 2″
|-1 to +1″
Allows installation to a range of wheelchair frames incorporating tubular canes from 19-30mm in diameter.
|Fixed Mount Hardware
|Seat Base Size
|Maximum User Weight
Seat Base Weight (16×18″/ 40x45cm)
|Seat Base Weight
