Supporting complex postures through adaptive Profile Curvature System.

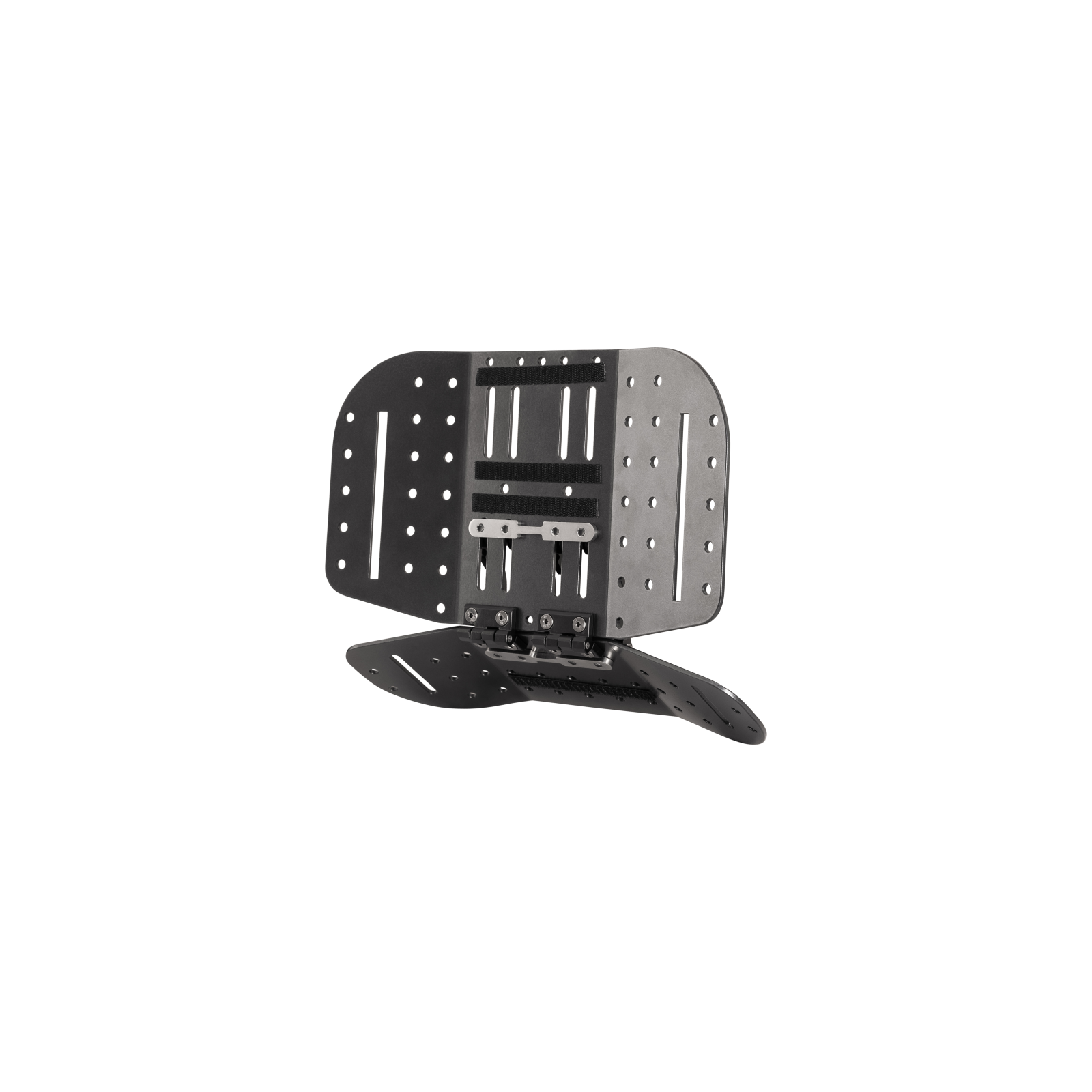

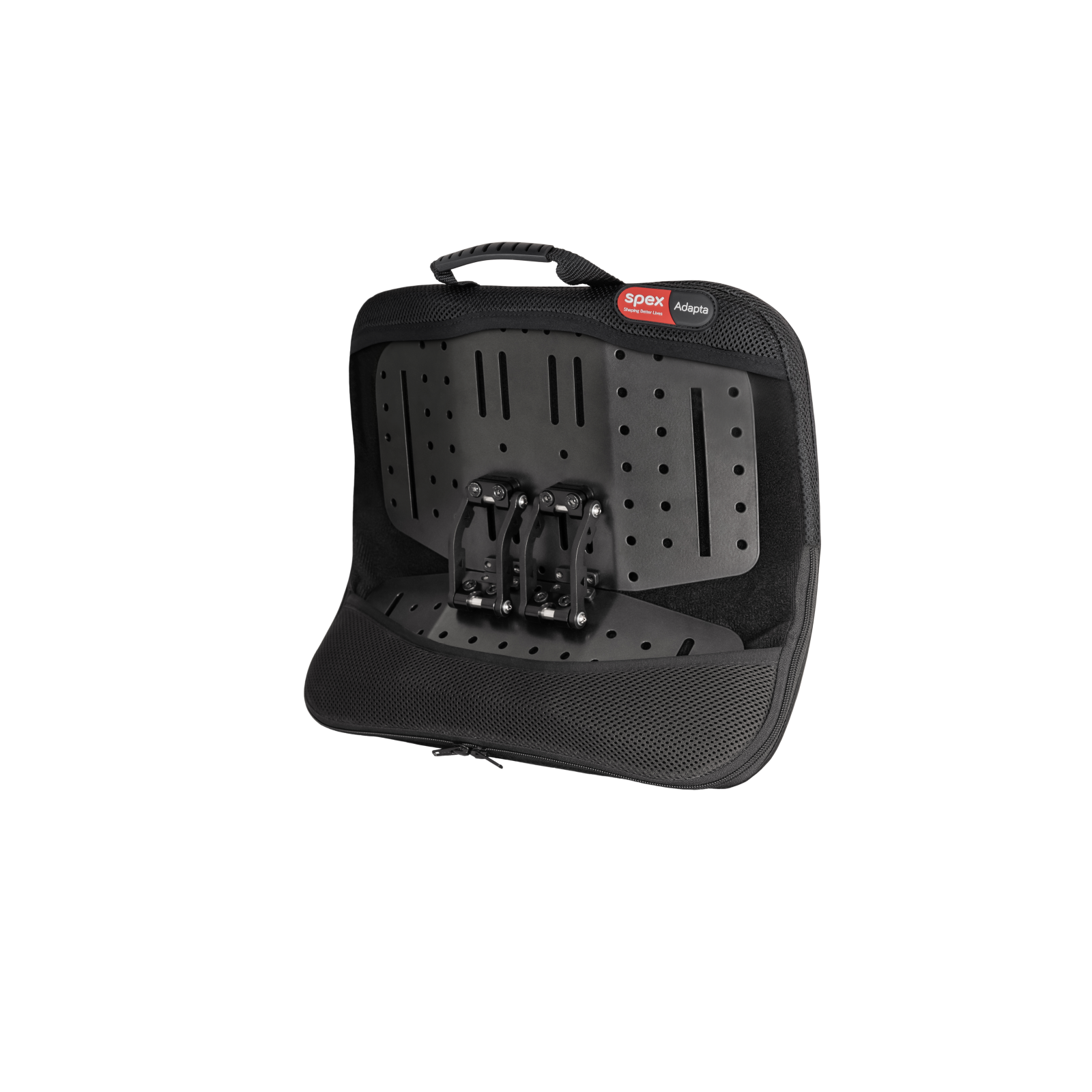

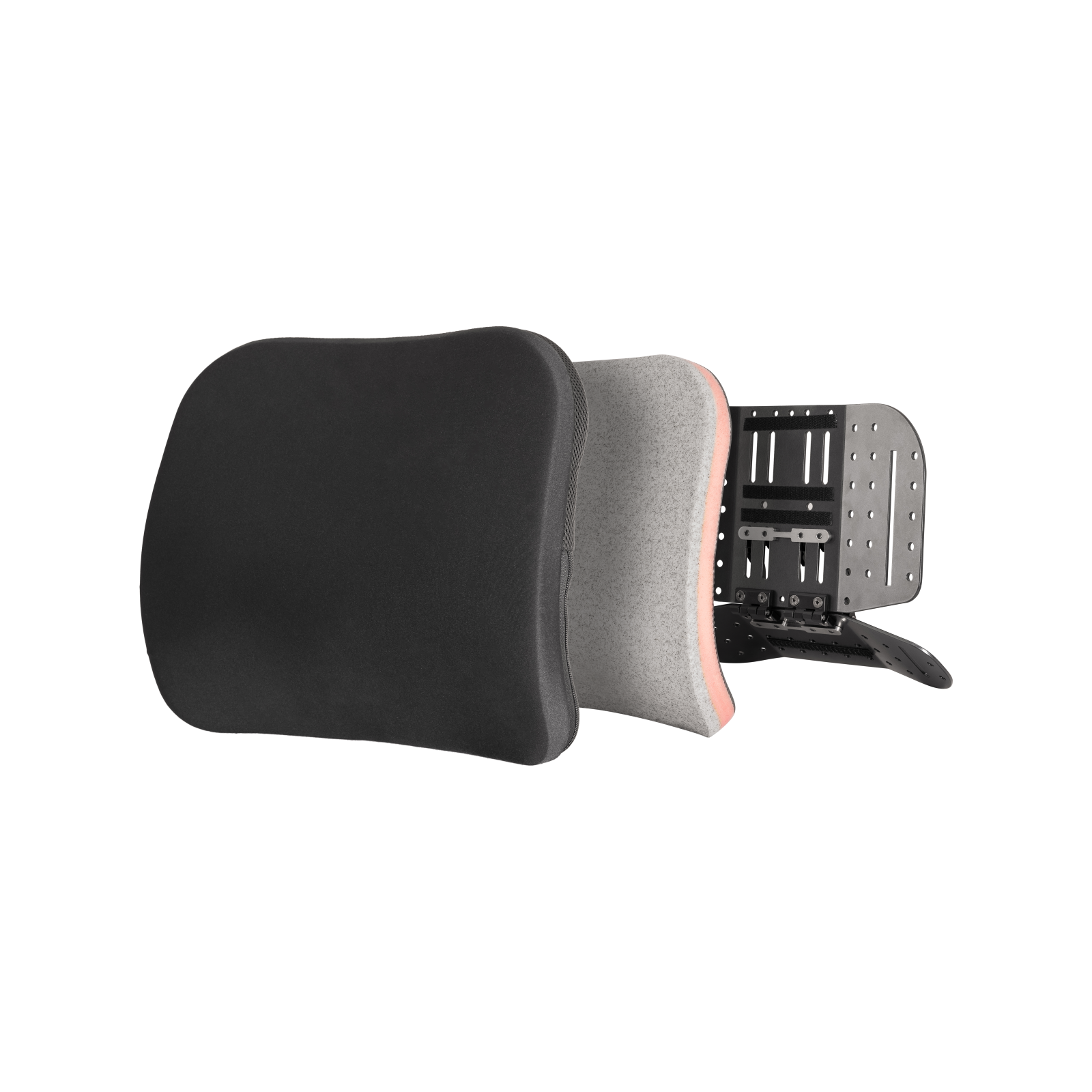

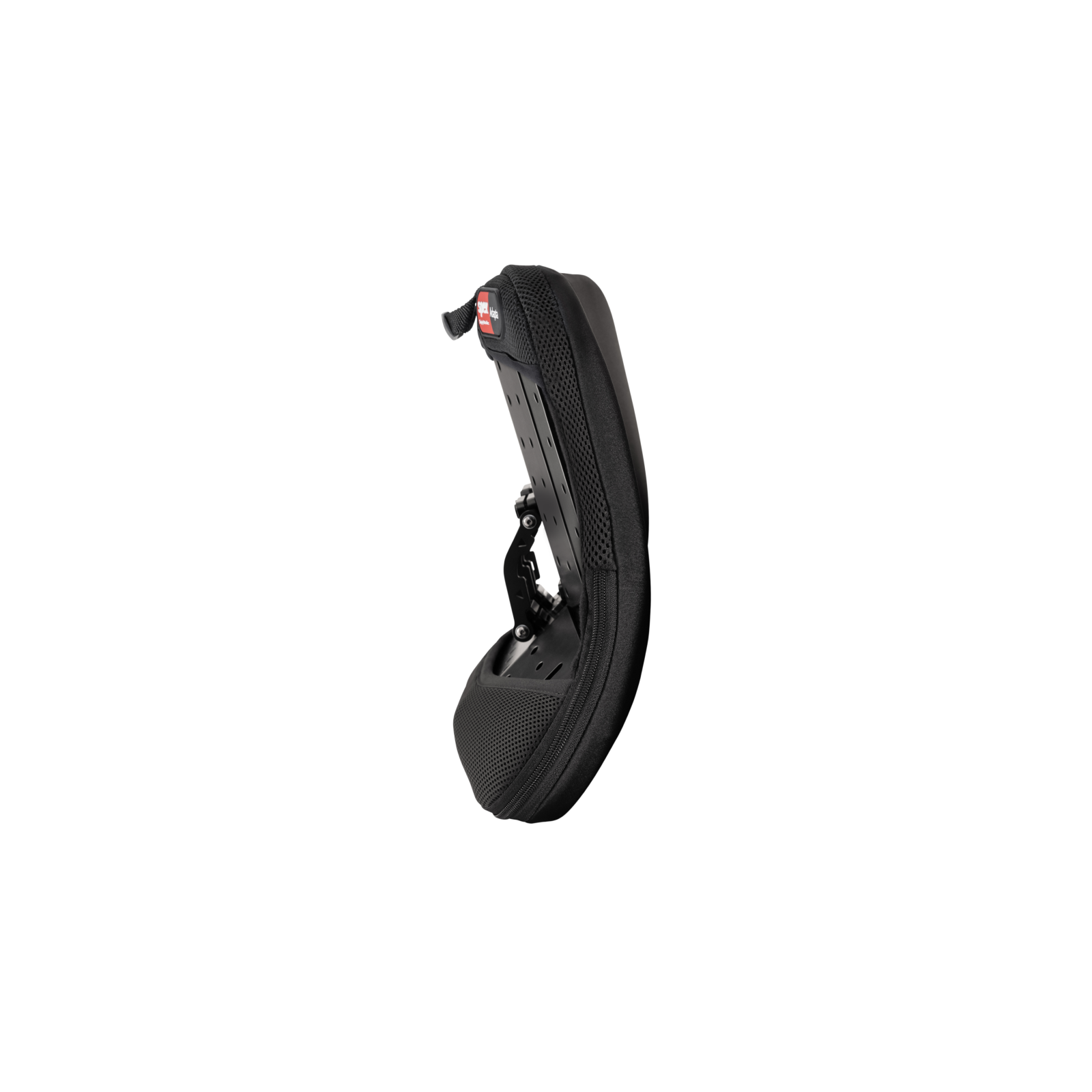

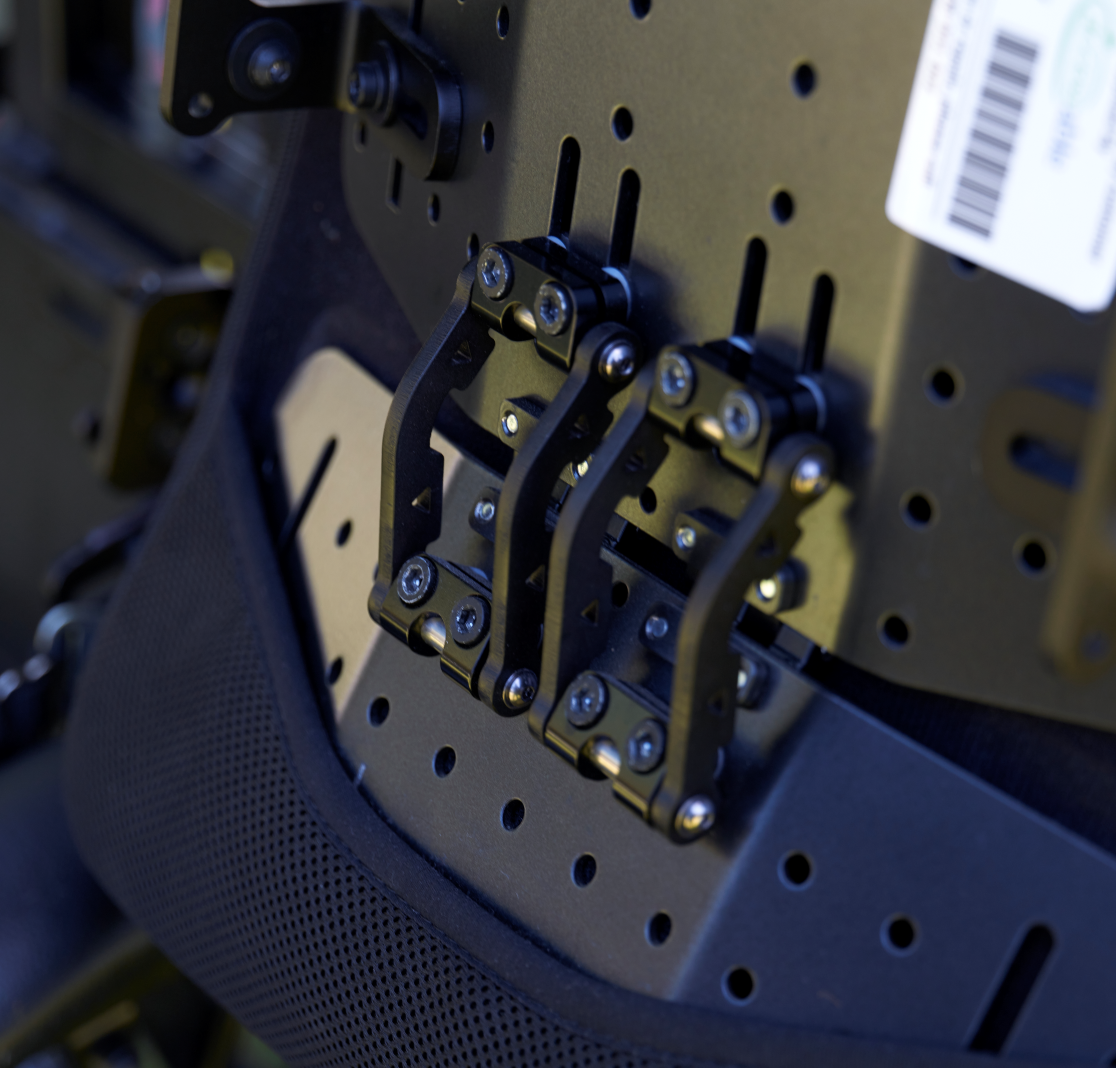

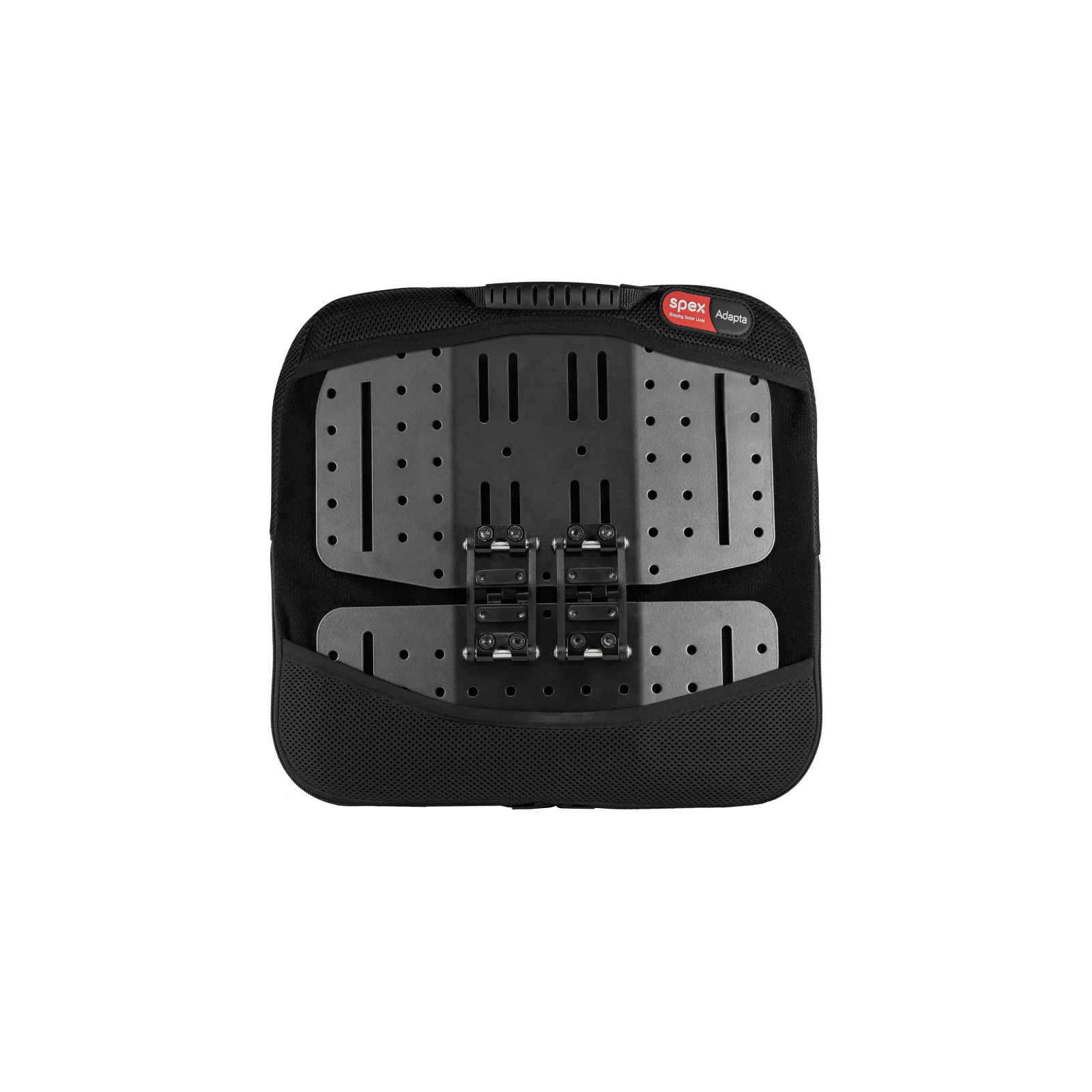

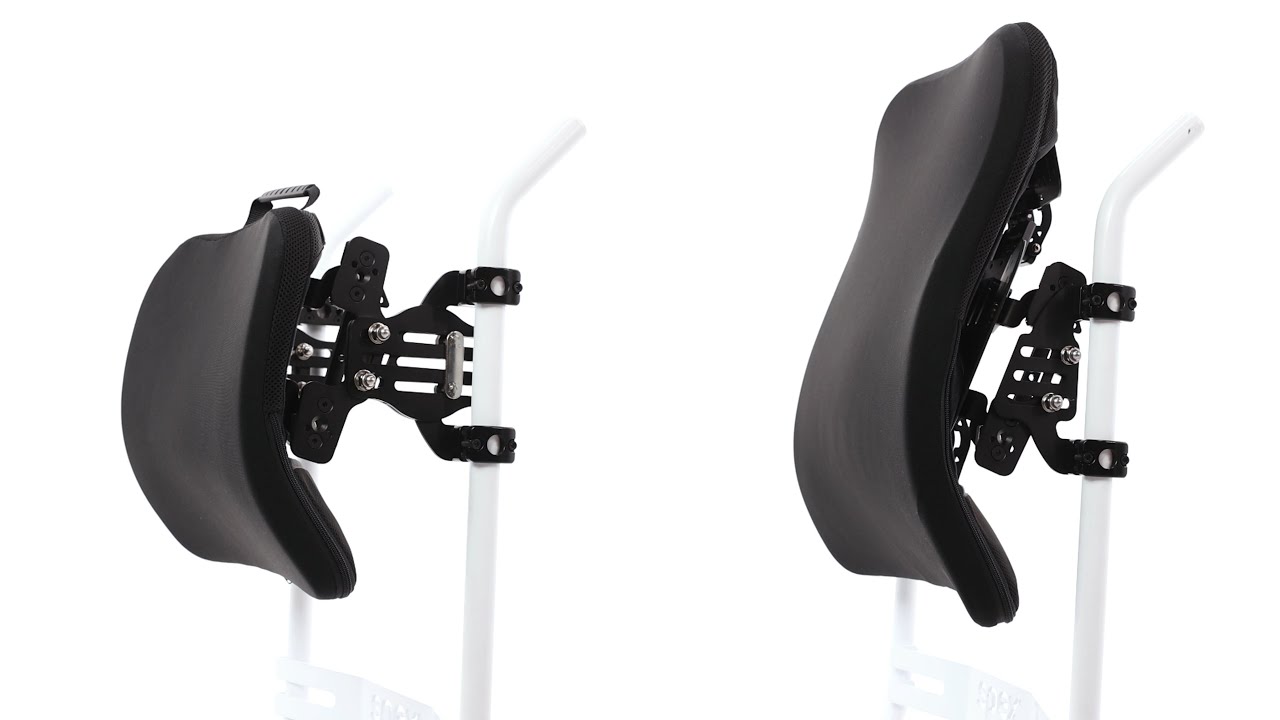

The Adapta² Back Support meets the needs of wheelchair users with complex postural presentations including lordosis, anterior pelvic tilt, and prominent gluteal shelf. The back support splits the rigid aluminium shell into two different sections that can be adjusted to achieve a natural contour to position and support the pelvis and spine. The Adapta² Back Support can provide the shape needed to support the user by contouring the rigid aluminium shell, rather than the foam padding.
Spex Seating currently supply rigid back supports with contour-adjustable padding to support users with complex postural support needs. The new Adapta² Back Support is designed for users who require a back support surface with profile curvature adjustment to accommodate their trunk contour. These needs can be accommodated without excessive foam padding, making it easier to manage temperature and other related issues. The contoured surface remains supportive and holds its shape when the seating system is tilted or adjusted.
Adapta2 Back Support is designed for the individual who:

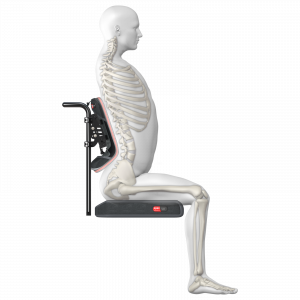

- Presents with Lordosis and Anterior Pelvic Tilt and require extra support on the lumbar spine.

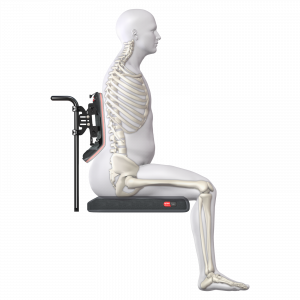

- Requires greater lumbar support with specific pressure relieving to accommodate a gluteal shelf.
- Requires specific contouring to accommodate lumbar & thoracic spine.

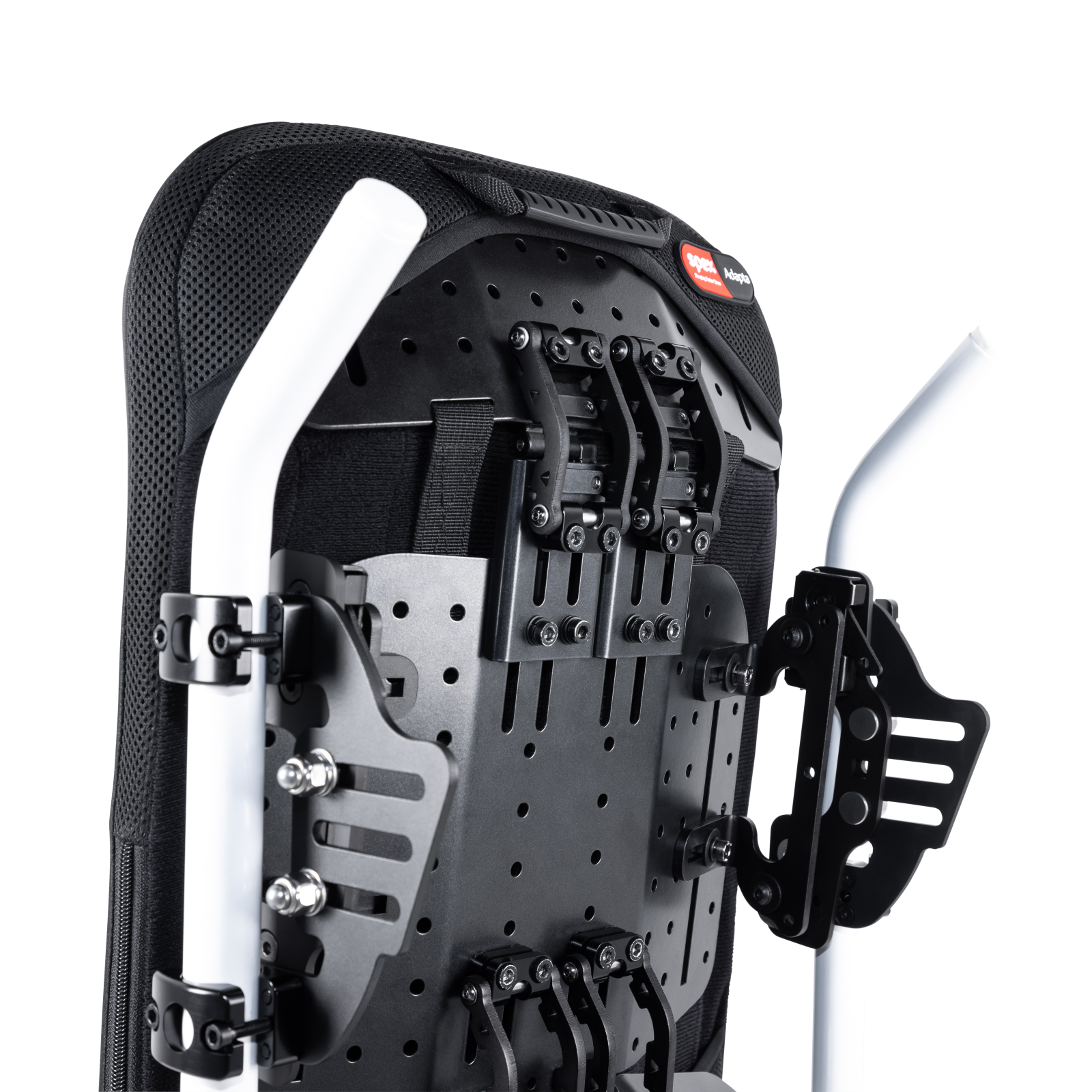

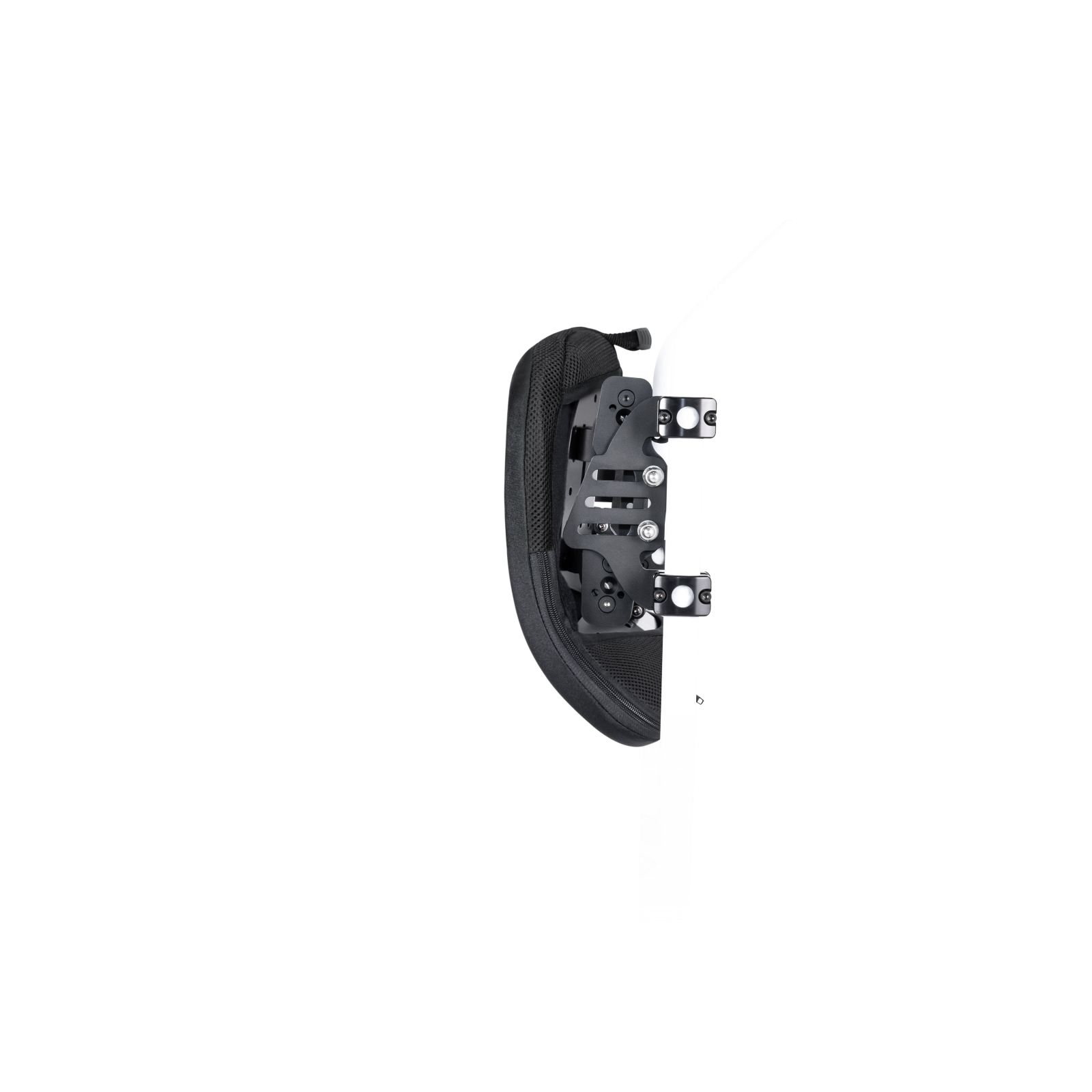

Configurable mounting hardware options:

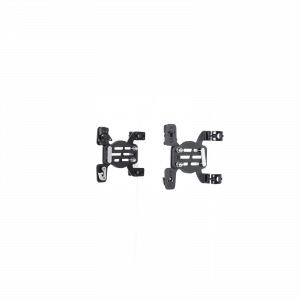

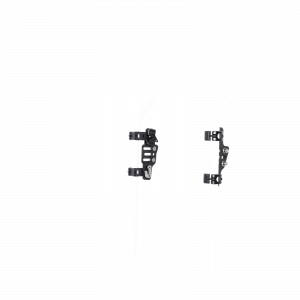

|Dual Mount||Forward Dual Mount||Forward Extended Dual Mount||Single Mount|
Spex Shoulder Strap Guides
Recommended for any harness choice to prevent shoulder straps from falling off shoulders.
The Spex Harness Guides are height adjustable and fit both 1″ and 1.5″ straps. Package includes
a pair of 5mm aluminium strap guides and attachment hardware.

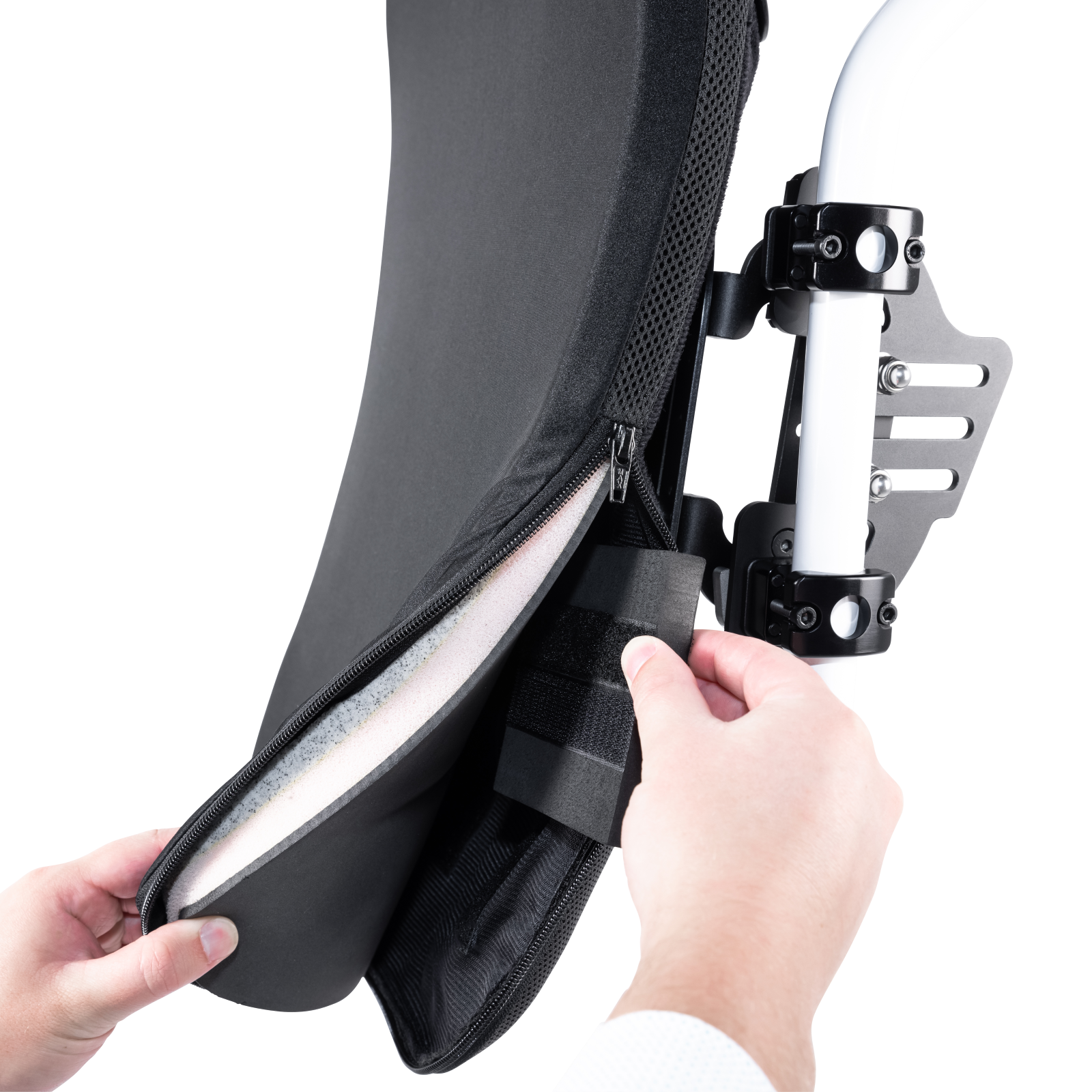

TSS Lite Kit
Contouring and positioning kit for use behind Zygo upholstery. Includes selection of TSS
shape elements and foam wedges.
|Adapta Style||Adapta2 Back Support|
|Weight (without hardware, 16″ back)||1.6kg|
|Angle Adjustment Capability – Top||N/A|
|Angle Adjustment Capability – Bottom||40° Anterior & 60° Posterior|
|Overall Thickness (Including Cover)||35mm|
|Flip-Back Version Code||N/A|

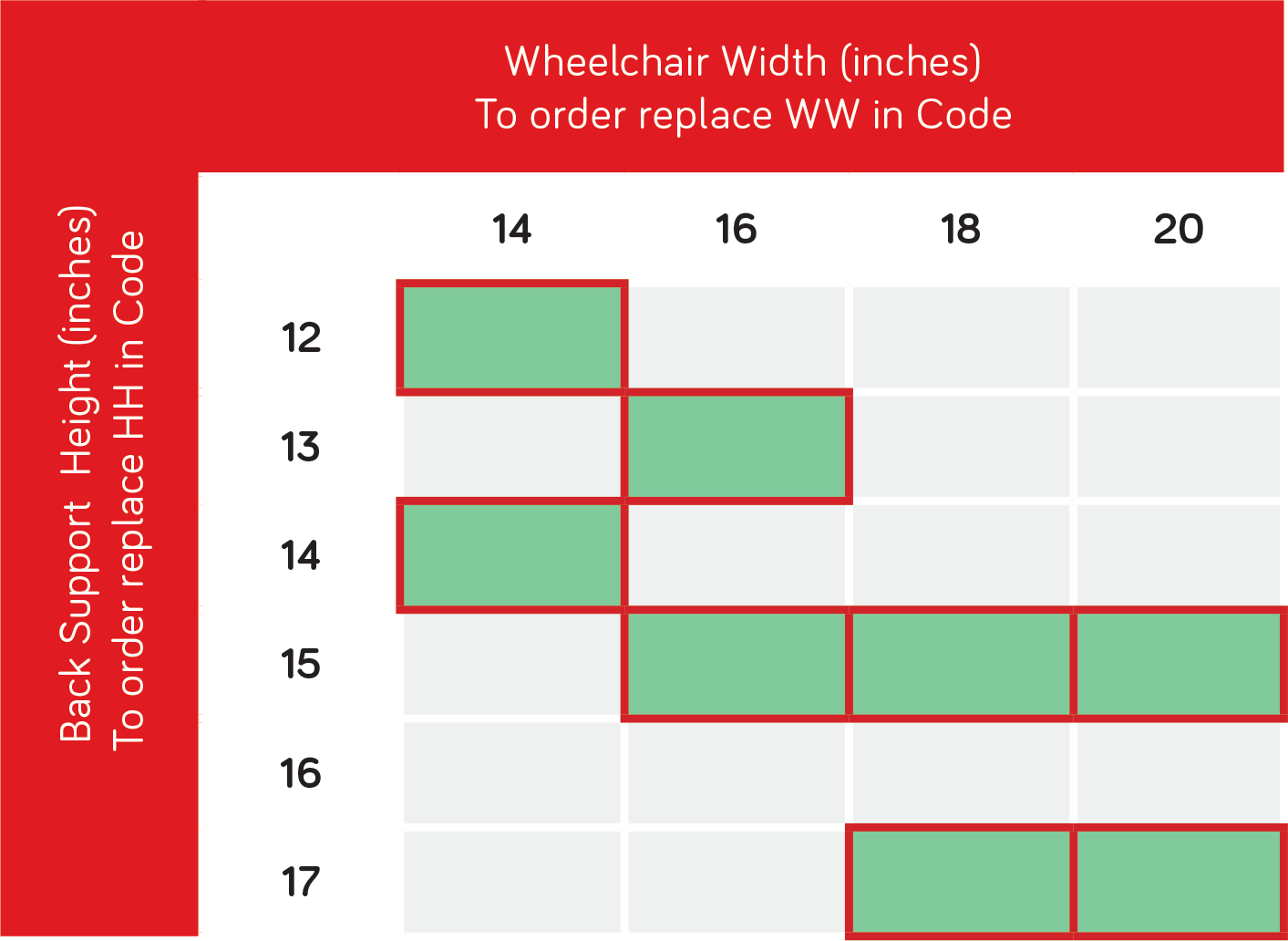

Adapta2 Sizing Chart
To order, replace the HH and WW in the code, with the appropriate size required.
Transport Certified All Adapta Back Supports and hardware configurations are suitable for transport in a vehicle when mounted on an appropriate wheelchair frame.
