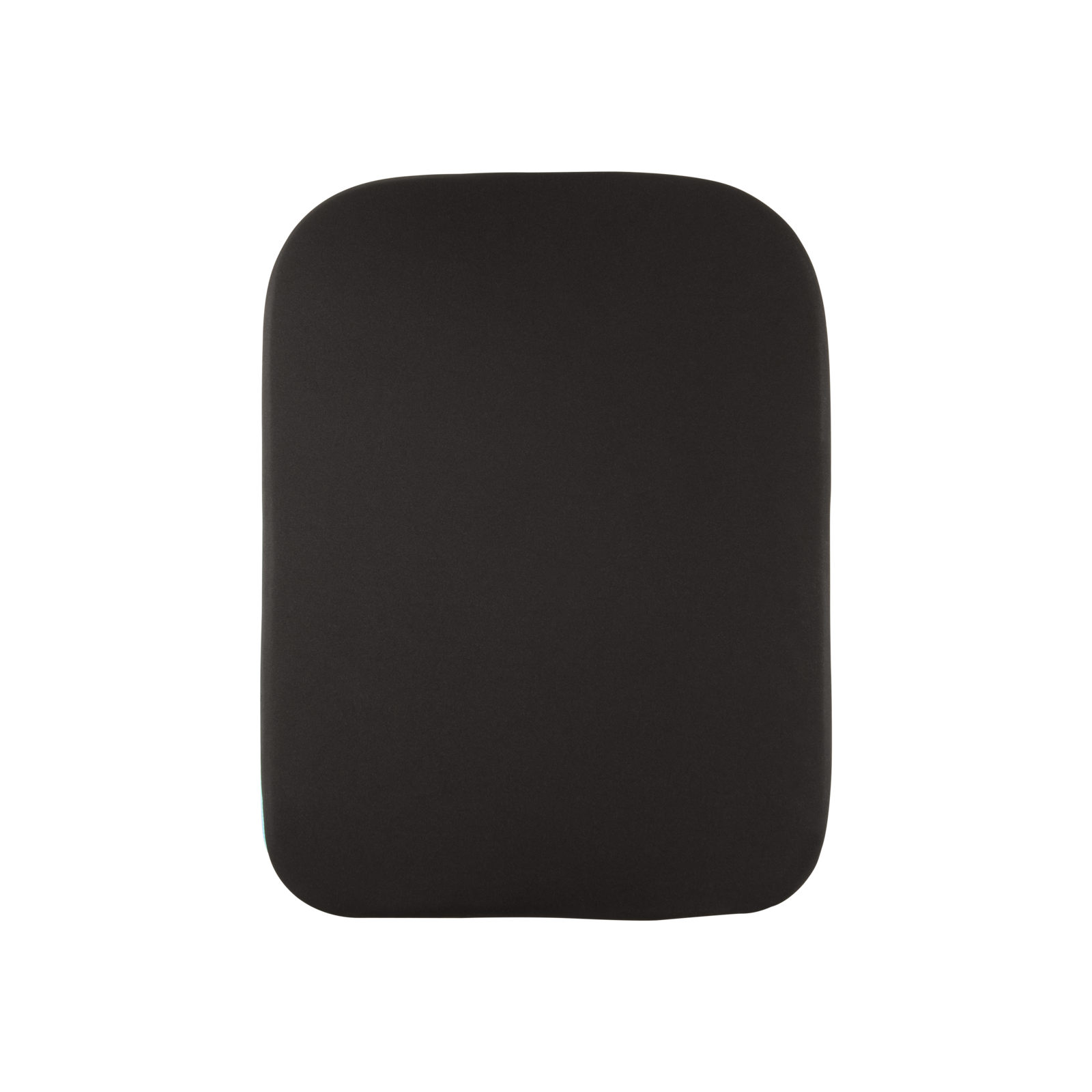

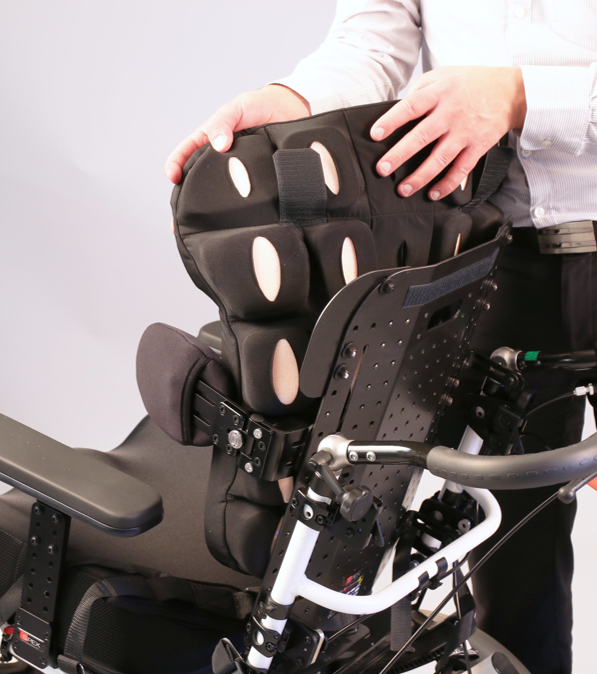

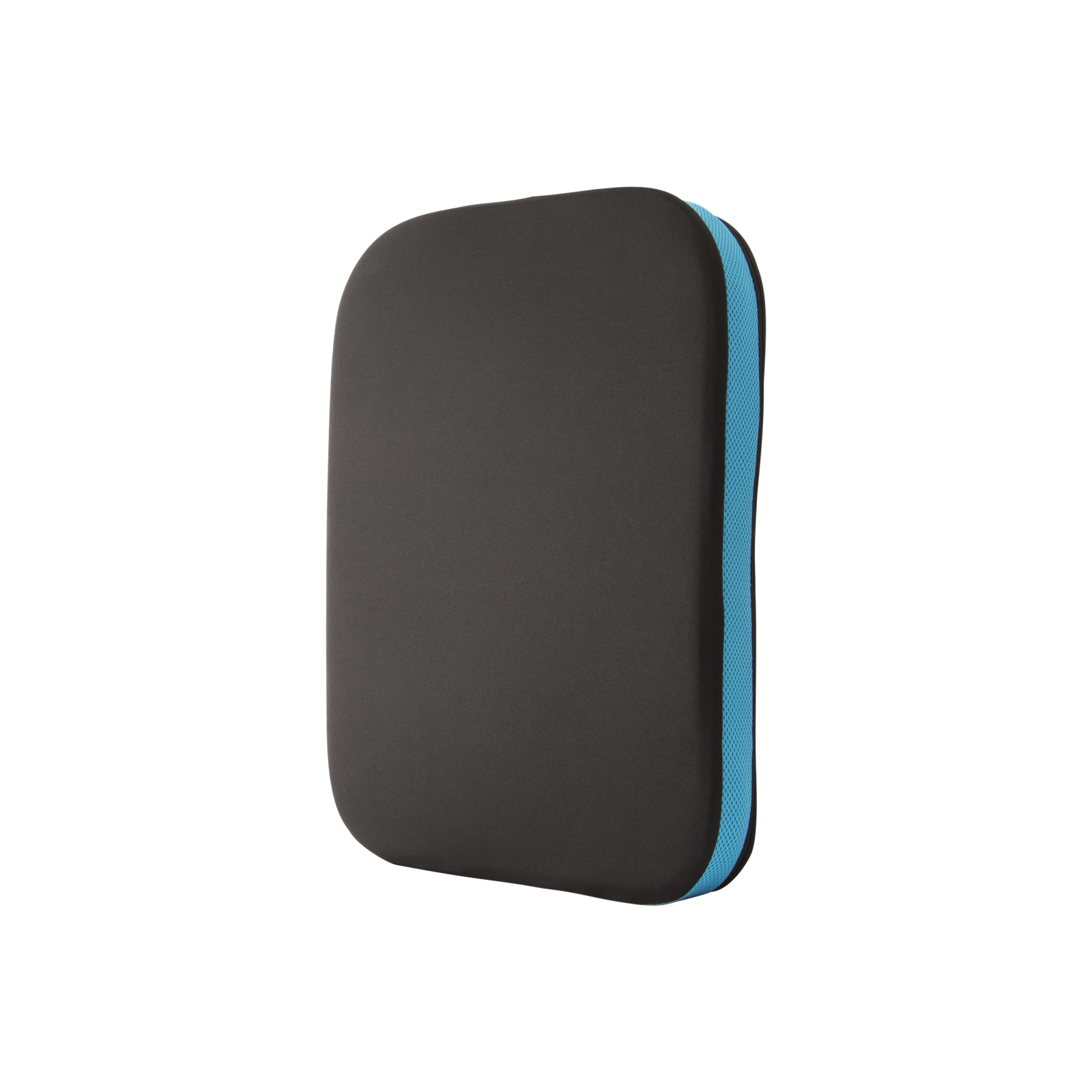

Easily solve upper torso needs for most wheelchair users with the Spex Classic Back Support. The Classic Back Support incorporates the popular Spex contouring cube system to allow on-the-spot customisations for torso comfort and asymmetry needs.
- Effortless customisations
- On-the-spot adaptions for changing postural needs
- Instant results
- Cubes can be removed and added at any time

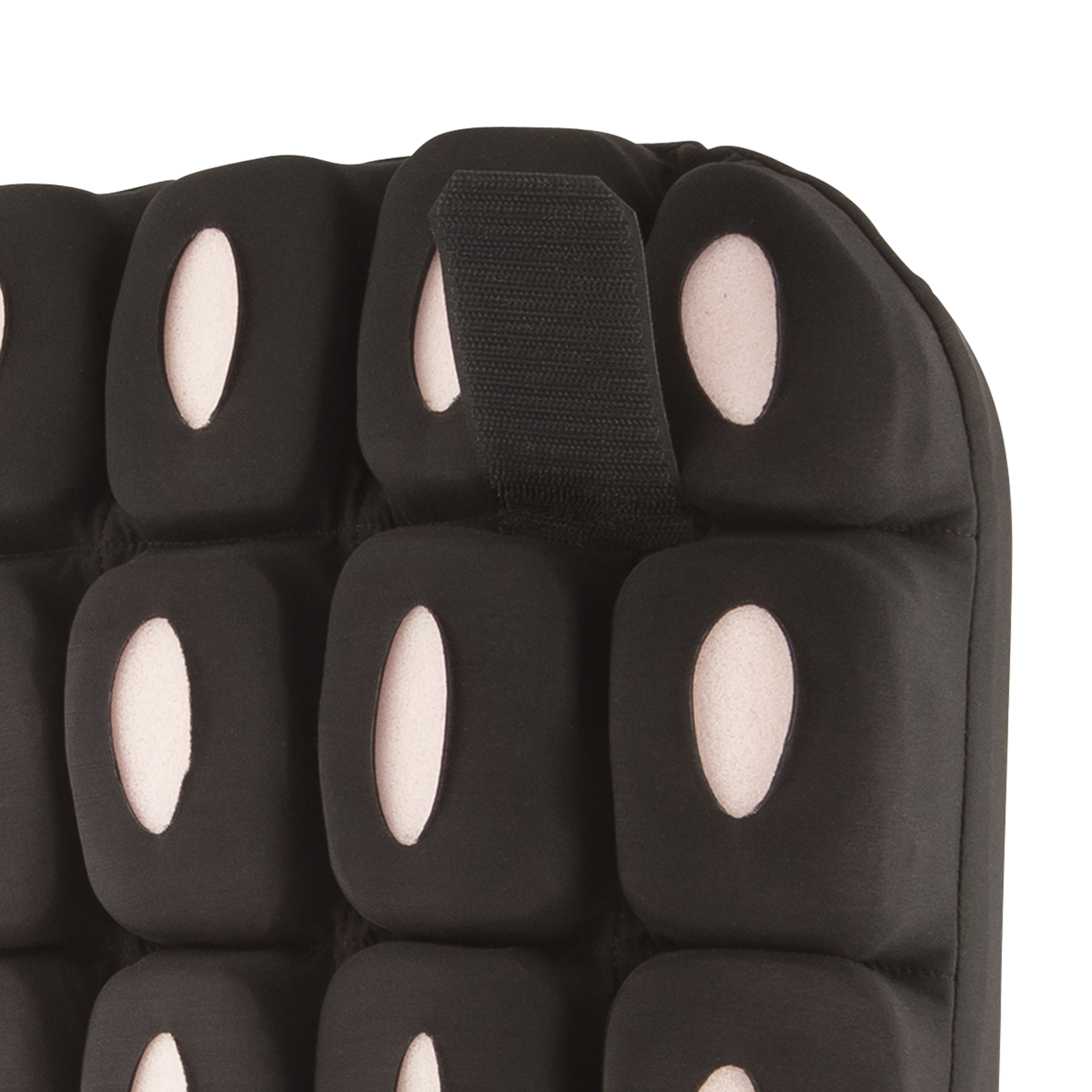

- Contouring doesn’t move or slip out of adjustment
- Additional contouring support wedges can be used to further enhance the degree of contouring.
The Classic Back Support, with its rectangle shape, fits between the wheelchair canes, while the T Shape Classic Back Support and the Surface Classic Back Support sit in front of the wheelchair canes due to the additional shoulder and pelvic support components.




Designed for the individual who:
- Requires a comfortable back support to reduce torso pain
- Requires spinal alignment and support
- Has skin breakdown/pressure care needs
- Has bony or protruding skeletal prominences
- Have changing postural needs
- Pertains a maladaptive or asymmetric posture
For Mild Bony Prominences | For Immersion | For Asymmetry |
---|---|---|
![]() |
![]() |
![]() |
Without even adjusting the cube system, the Spex back support has slight contouring and integrates a comfortable pressure reducing foam surface layer to absorb mild bony prominences and asymmetries for uniform torso contact. | For individuals that require immersion into the back support, simply adjust the cube contouring cell system to configure for a perfect fit and shape for the user’s back. | For asymmetrical or maladaptive postures, the contour can be arranged to provide the matching shape required to support the user’s torso profile. |

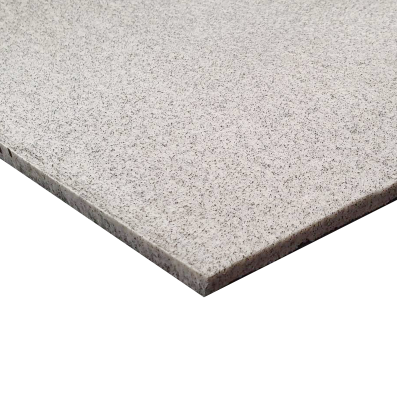

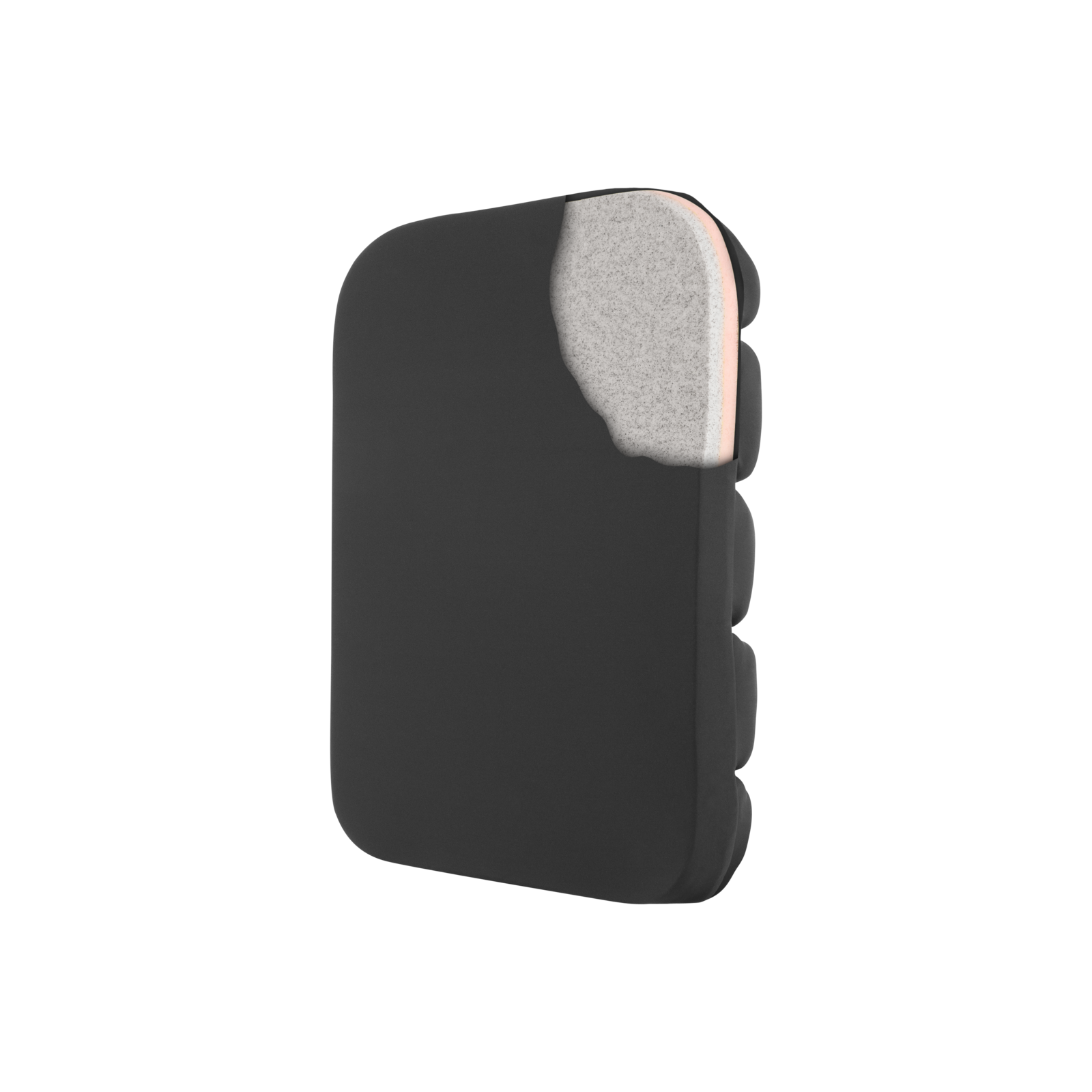

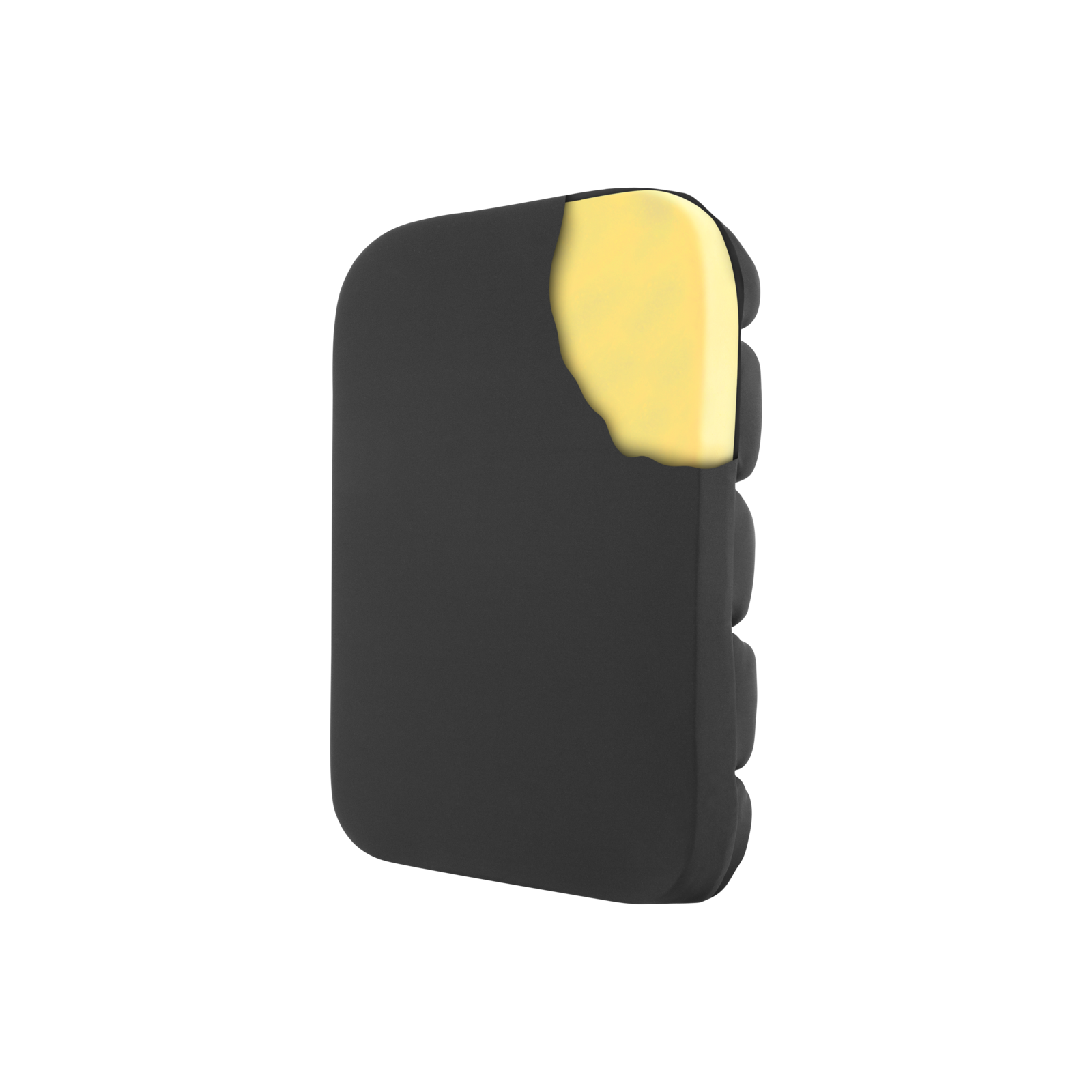

- Comfortable pressure reducing foam surface layer to absorb bony prominences.

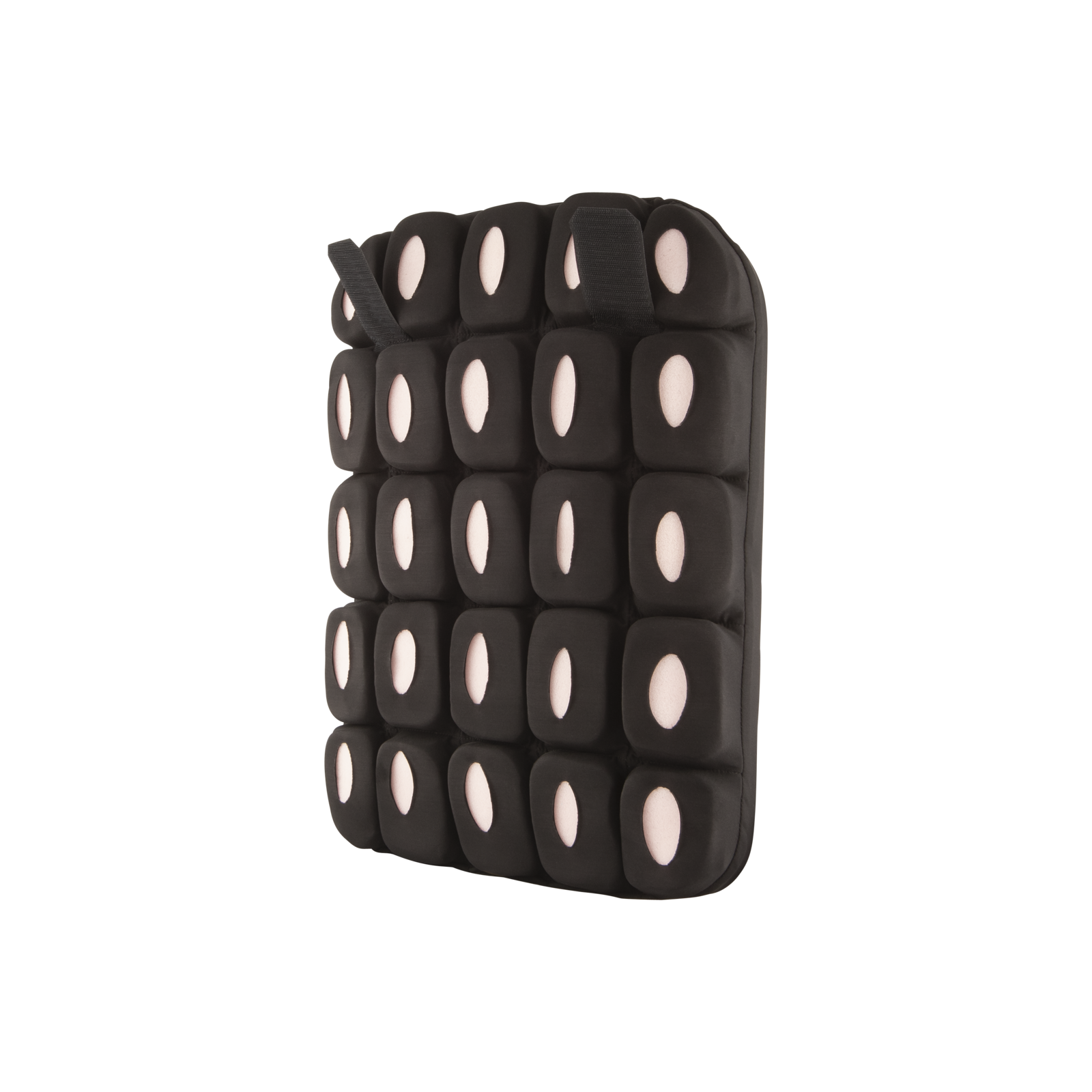

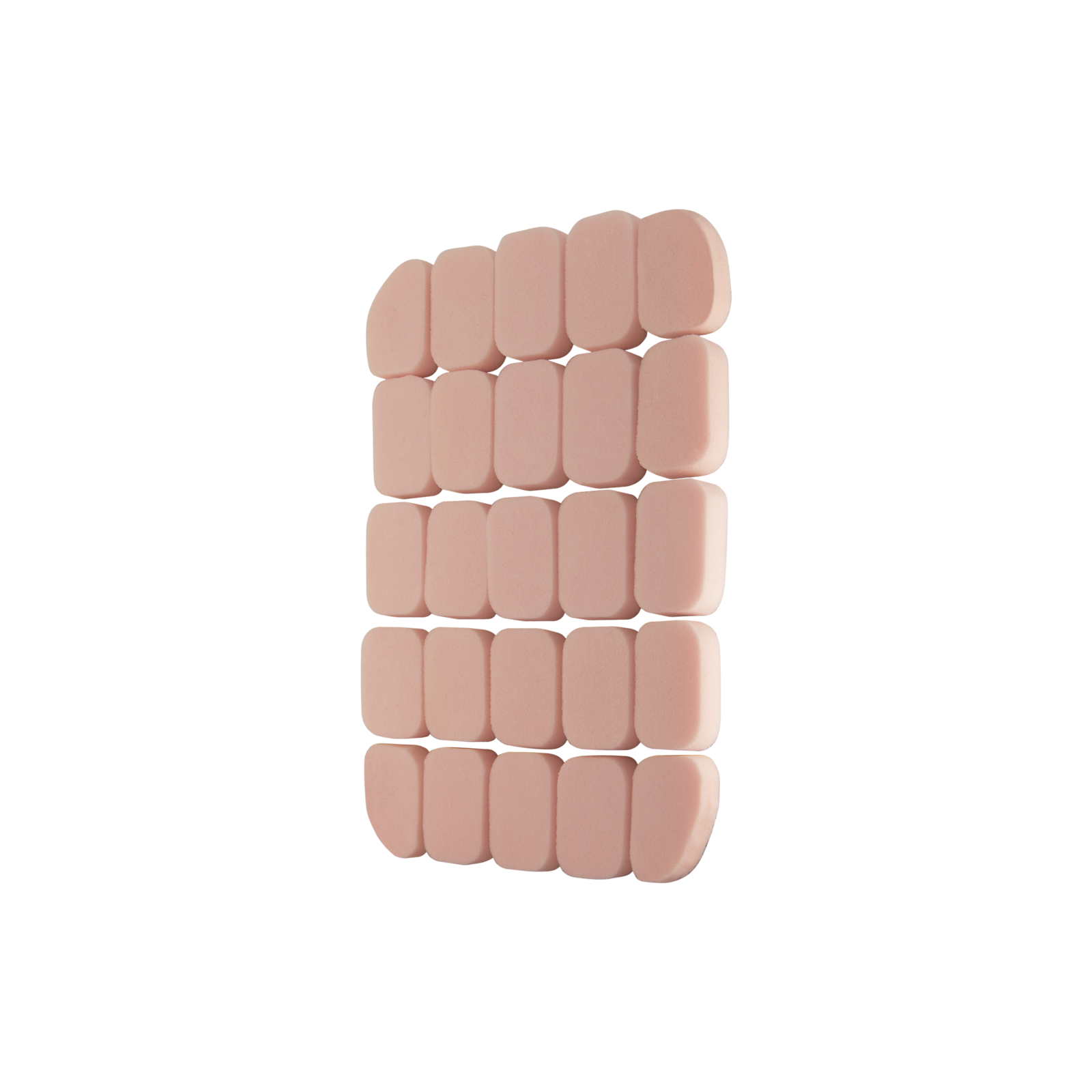

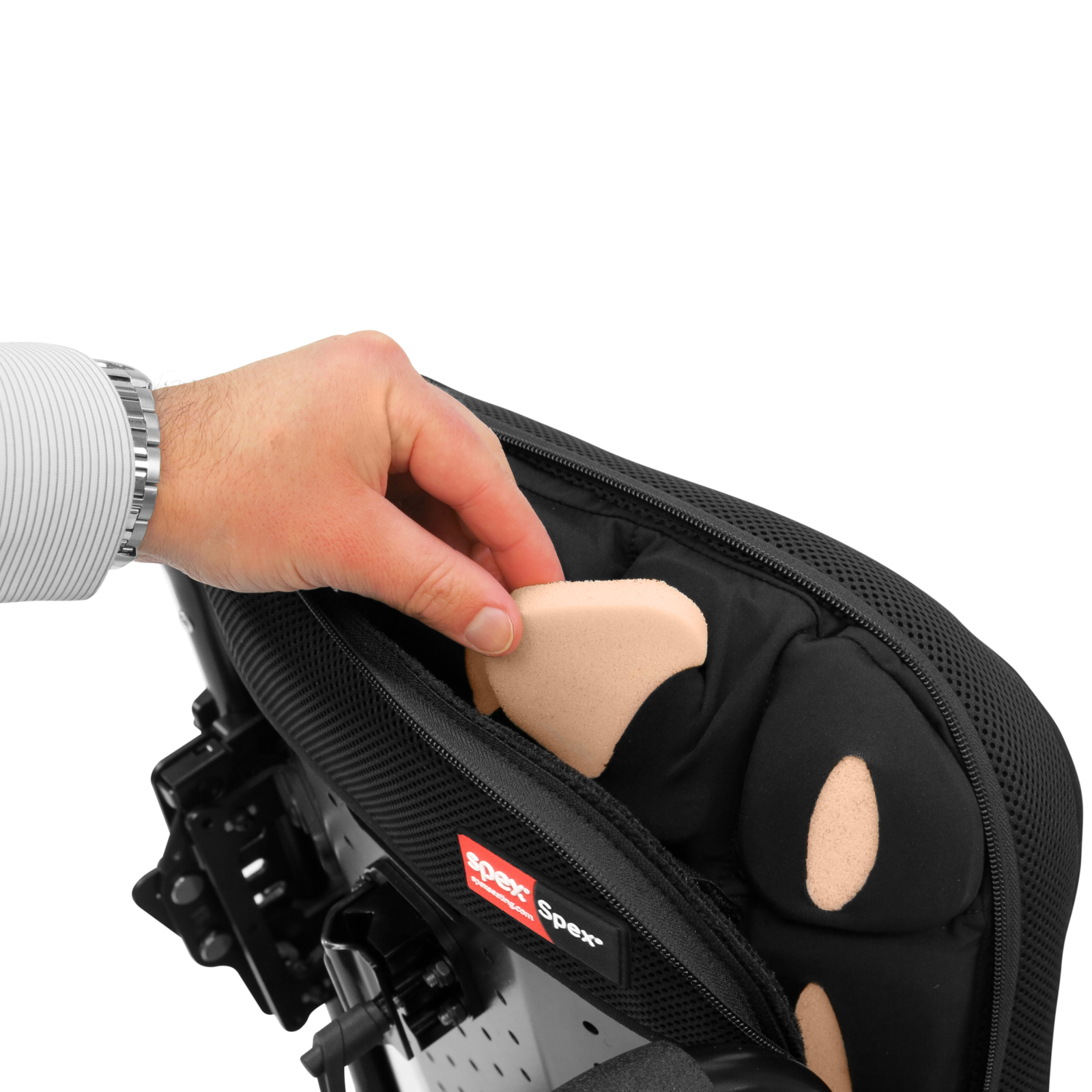

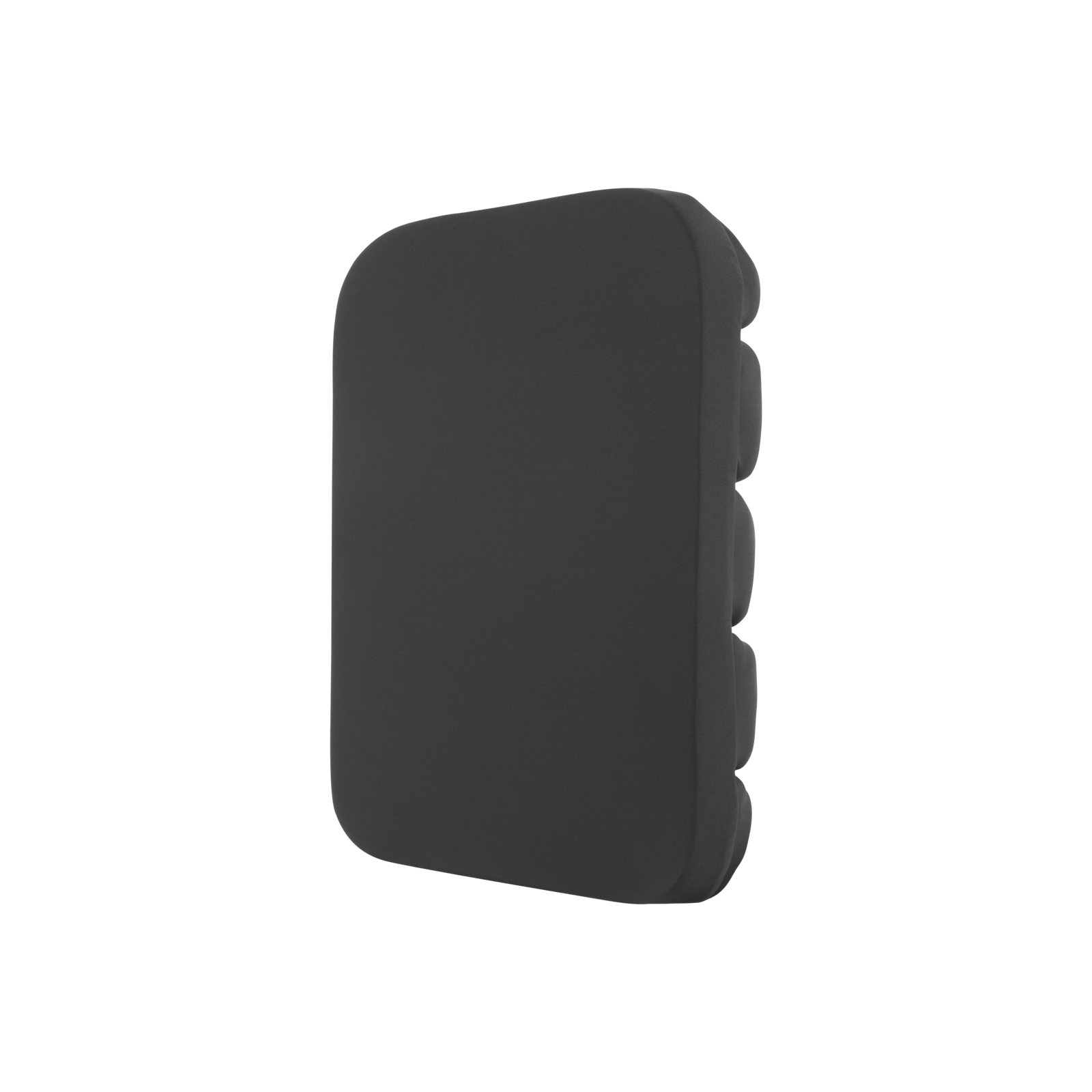

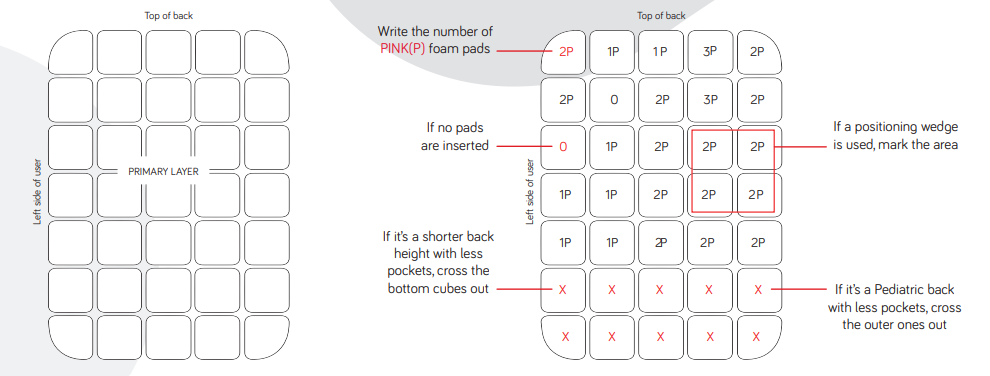

- Cube contouring cell system provides configurations for a perfect fit and shape for the client.
- Customisation to contouring are performed on-the-spot.
- Created as the solution-solver for asymmetrical back postures.
- Modular componentry means you can ‘mix and match’ with different lateral pad options and positioning supports.
- Offers exceptional back/shoulder contact.
- Sustainable choice for issuing to other users

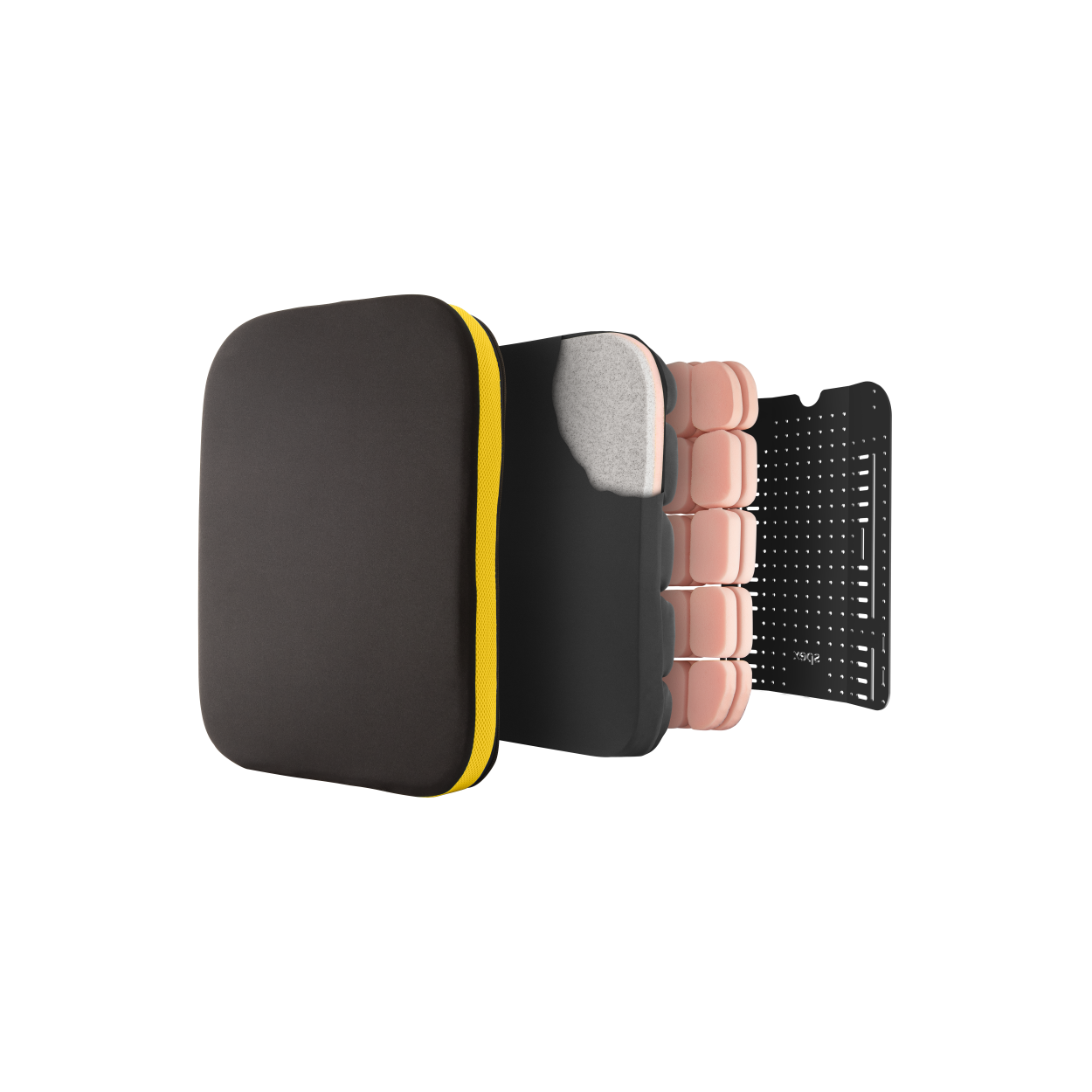

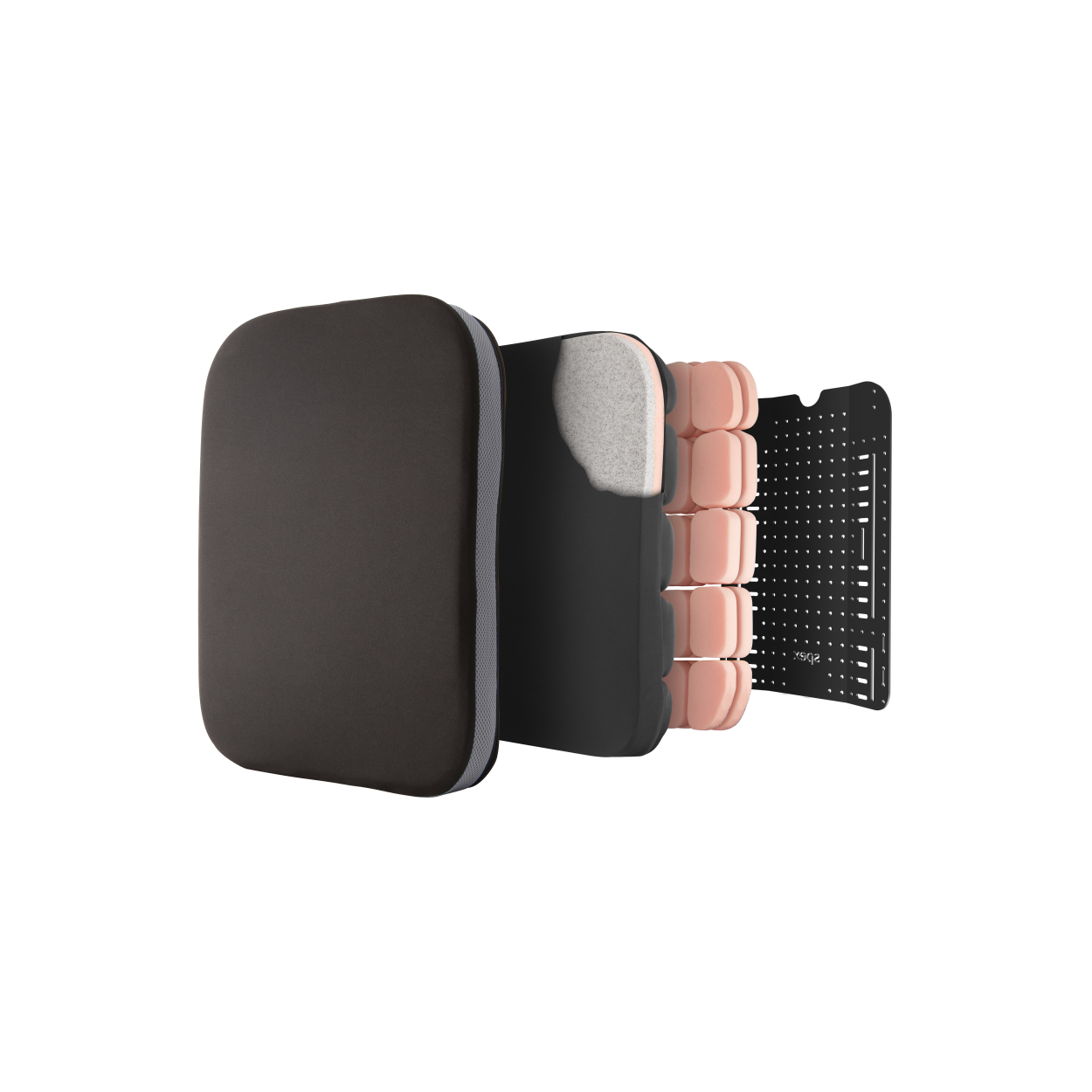

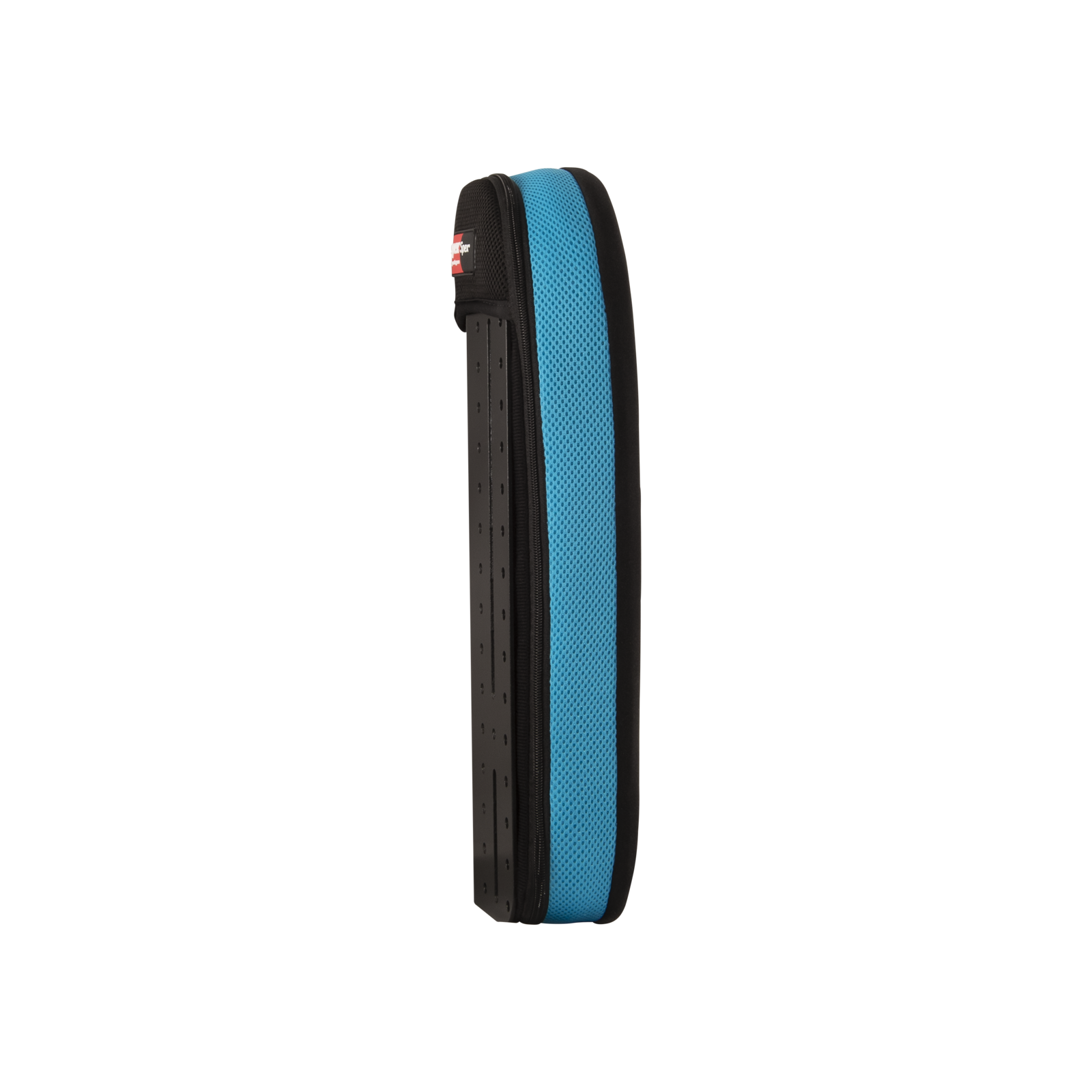

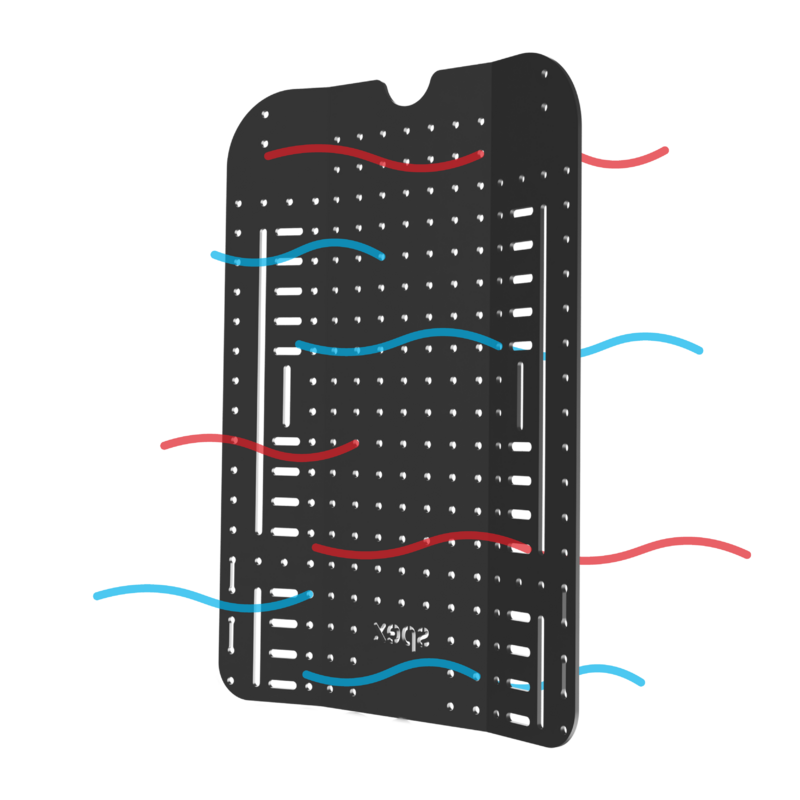

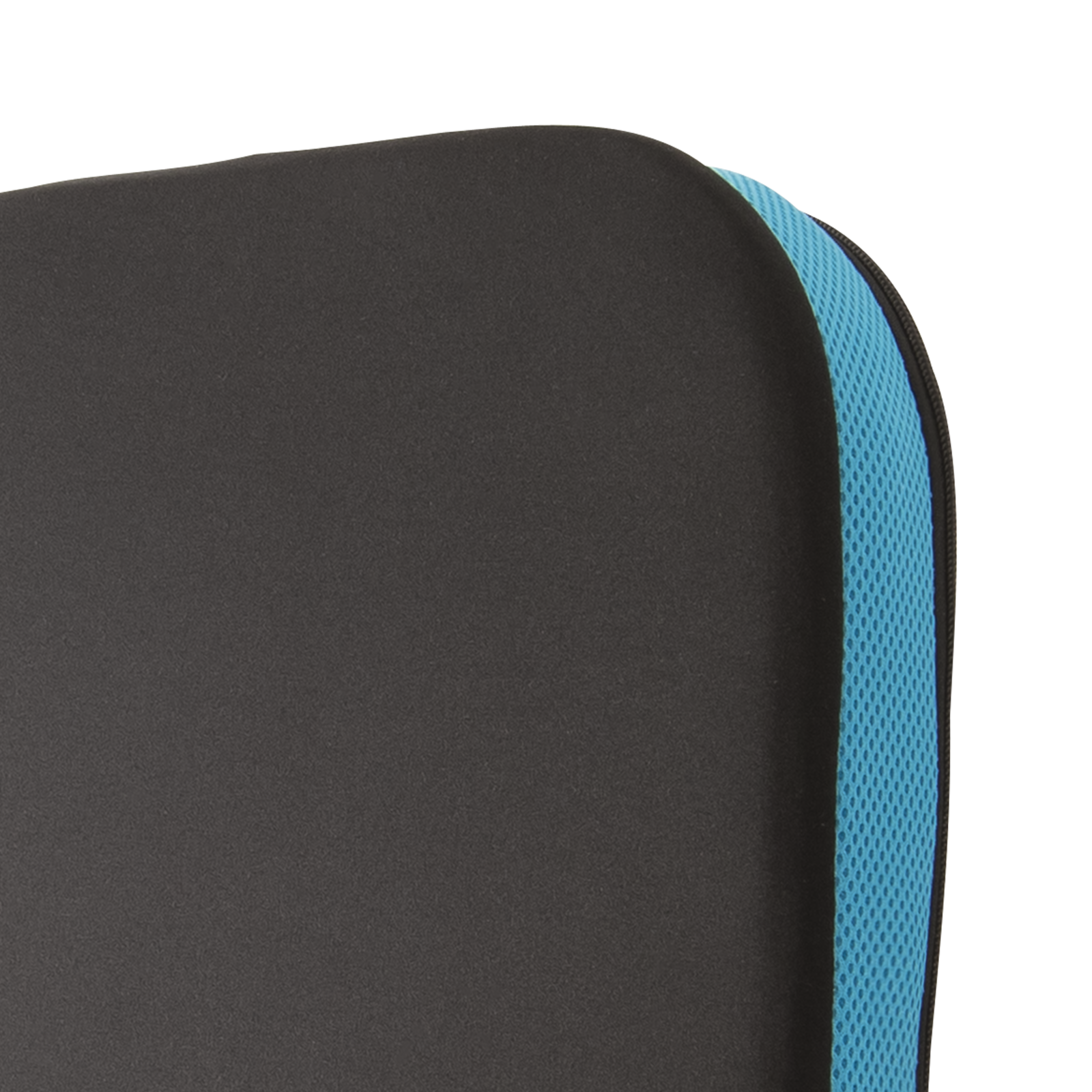

- Dual-layer cover reduces shear forces, and breathable air-mesh on back support sides counters moisture and temperature

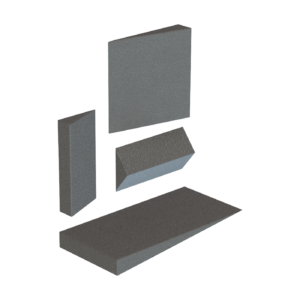

Asymmetric Contour Wedge Kit
Contains four foam wedges to provide greater contouring.
Dimensions:
- 20 x 20 x 4cm
- 20 x 10 x 4cm
- 20 x 10 x 4cm
- 4 x 20 x 40cm
1209-2720-300
Spex Lateral Trunk Supports

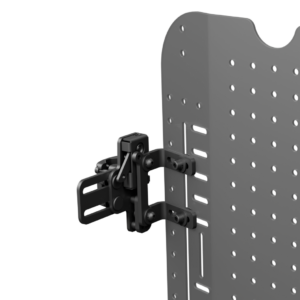

Select Hardware
- Fixed Bracket
- Standard Swing-Away Bracket
- Axial Swing-Away Bracket
Select Bracket Upgrade
- Cane Mount
- DeepContour backrest bracket
- Extension for DeepContour (commonly used with SuperShape Backrest
Select Comfy-Cover
- Extended padding over mechanism to protect arms from metal hardware
- Clever release strap for operating the swing away movement
- Easy release for users who have limited hand function and need independent use to open the laterals for transfers
Spex Head Supports
Circle | Comfort | Contour |
![]() |
![]() |
![]() |
Unique minimal head support providing direct posterior support for users with good head control.
Available in two sizes: Circle 150 and Circle 250. |
General use head support pad suited for transit and travel.
Available in two sizes: Comfort 250 and Comfort 350. |
Contoured shaped pad for superior occipital and suboccipital support.
Available in two sizes: Contour 250 and Contour 350. |
Standard Lateral | Extended Lateral | Adjustable Lateral |
![]() |
![]() |
![]() |
One-piece lateral head support solution for moderate head positioning needs.
Available in two sizes: Paediatric and Adult. |
One-piece lateral head support solution for complex head positioning needs.
Available in two sizes: Paediatric and Adult. |
A superior adjustable lateral head control system with individualised ‘tuning’.
Available in two sizes: Adjustable Lateral 150 and Adjustable Lateral 250. |
Custom head supports are available – please contact us for more information.
Back Support Size | 10″-15″ (25.4-38 cm) | 16″-20″ (41-51 cm) | 21″+ (53 cm+) |
---|---|---|---|
Maximum Occupant Weight | 200 lb (90 kg) | 300 lb (136 kg) | Must use Heavy-Duty brackets 400 lb (180 kg) |
Maximum Occupant Weight with Heavy-Duty brackets | 300 lb (136 kg) | 400 lb (180 kg) |
Thickness of the back support is 7cm. The Spex Classic Back Support is designed to be contoured and this measurement only reflects the thickness without any of this contouring. Therefore the back support thickness will likely be less than 7cm in some sections and more in others.

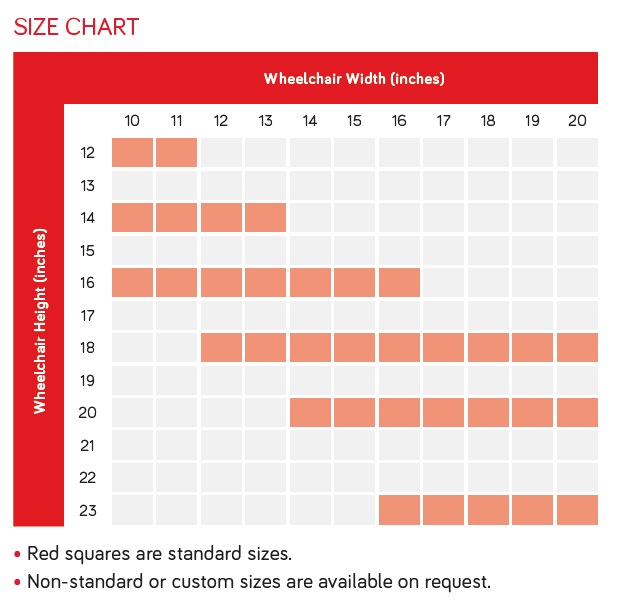

- Red squares are standard sizes
- Non-standard or custom sizes are available on request.

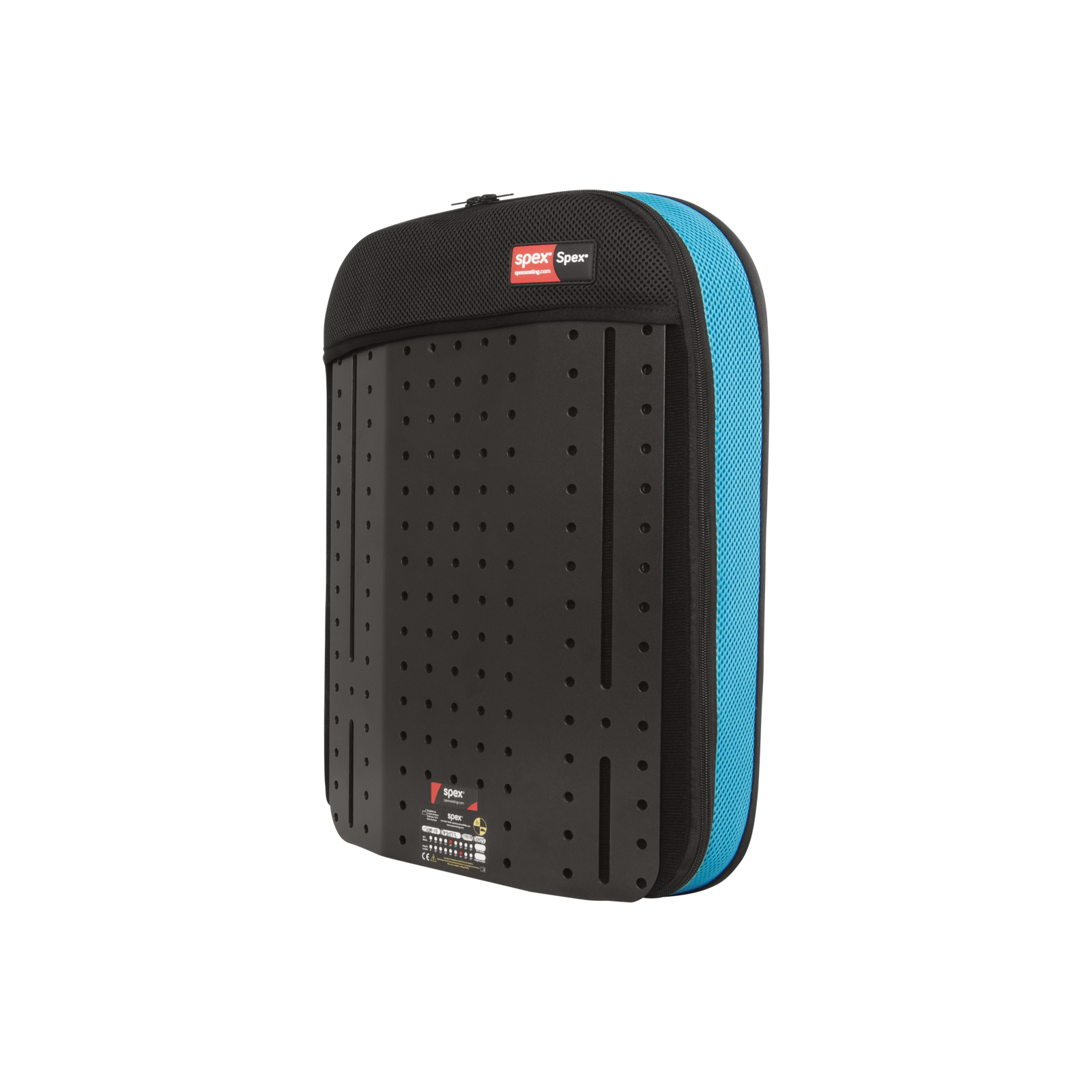

Spex Classic Back Support fits between wheelchair canes.
Width | Height | Rectangle Shape Code |
---|---|---|
10″ | 12″ | 1255-1012-0SS |
14″ | 1255-1014-0SS | |
16″ | 1255-1016-0SS | |
11″ | 12″ | 1255-1112-0SS |
14″ | 1255-1114-0SS | |
16″ | 1255-1116-0SS | |
12″ | 14″ | 1255-1214-0SS |
16″ | 1255-1216-0SS | |
18″ | 1255-1218-0SS | |
13″ | 14″ | 1255-1314-0SS |
16″ | 1255-1316-0SS | |
18″ | 1255-1318-0SS | |
14″ | 16″ | 1255-1416-0SS |
18″ | 1255-1418-0SS | |
20″ | 1255-1420-0SS | |
15″ | 16″ | 1255-1516-0SS |
18″ | 1255-1518-0SS | |
20″ | 1255-1520-0SS | |
16″ | 18″ | 1255-1618-0SS |
20″ | 1255-1620-0SS | |
23″ | 1255-1623-0SS | |
17″ | 18″ | 1255-1718-0SS |
20″ | 1255-1720-0SS | |
23″ | 1255-1723-0SS | |
18″ | 18″ | 1255-1818-0SS |
20″ | 1255-1820-0SS | |
23″ | 1255-1823-0SS | |
19″ | 18″ | 1255-1918-0SS |
20″ | 1255-1920-0SS | |
23″ | 1255-1923-0SS | |
20″ | 18″ | 1255-2018-0SS |
20″ | 1255-2020-0SS | |
23″ | 1255-2023-0SS |


1208-2949-219 Spextex. Knitted side, fabric finish
1208-2949-099 Air mesh Spacer fabric

Stockcode: 1208-2952-300
