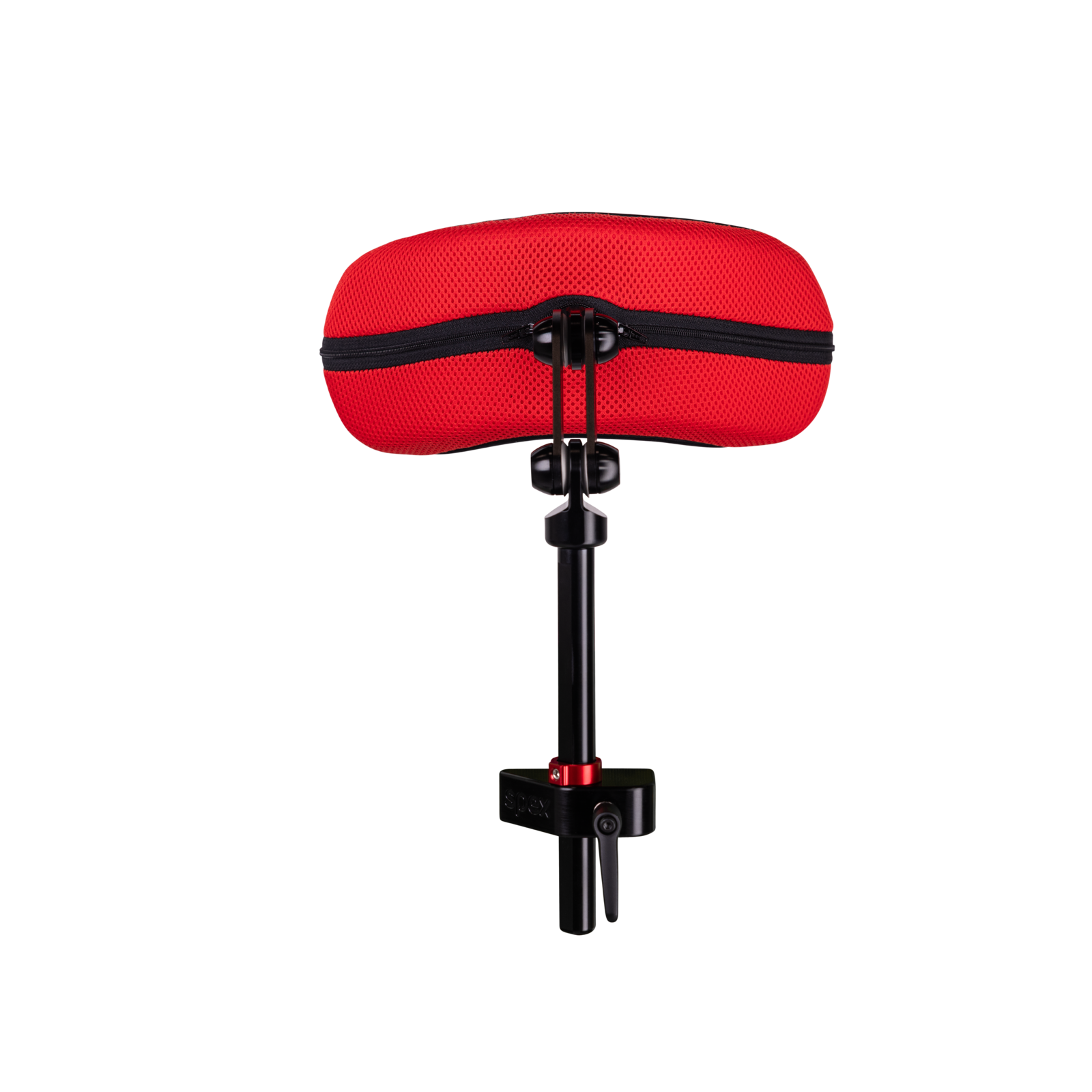

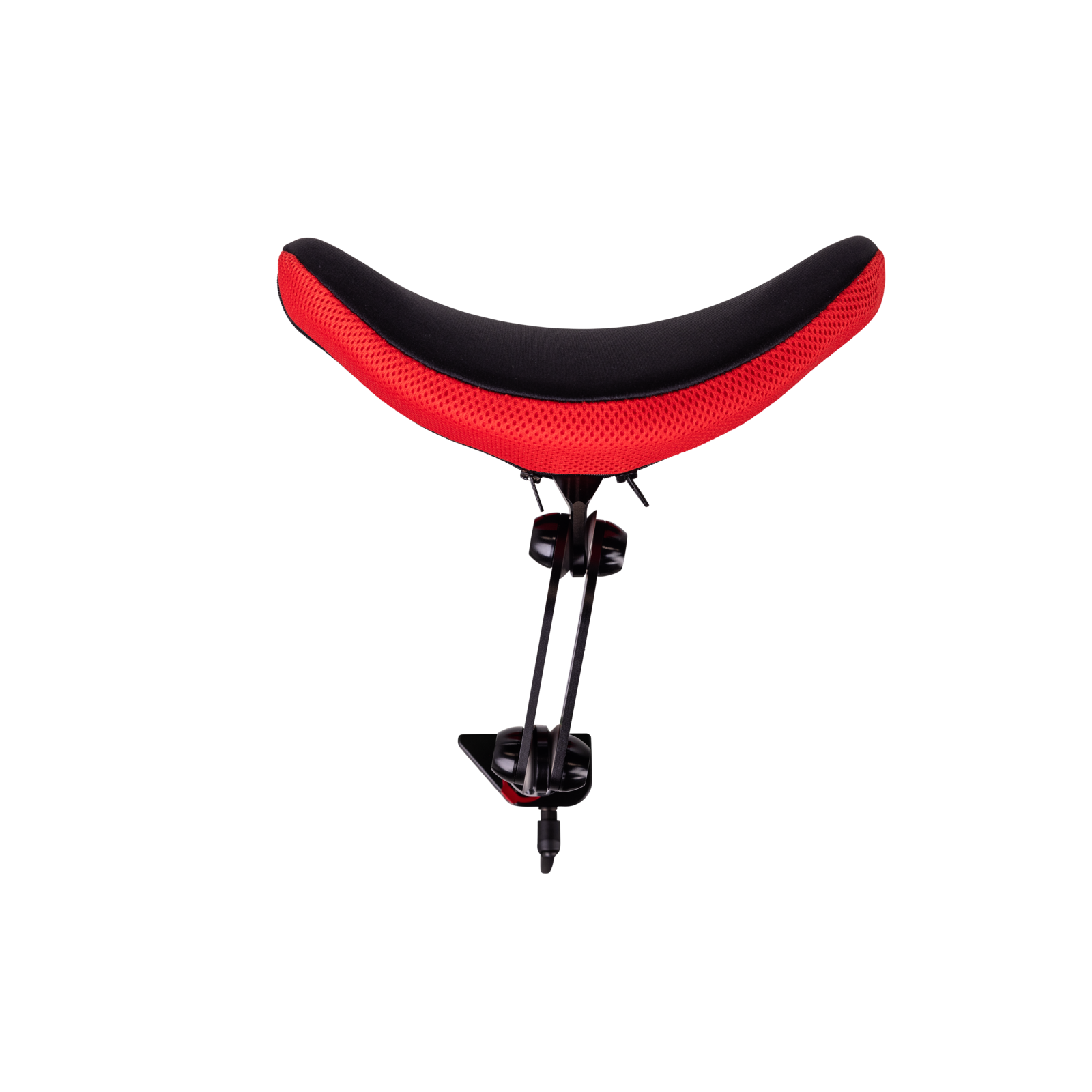

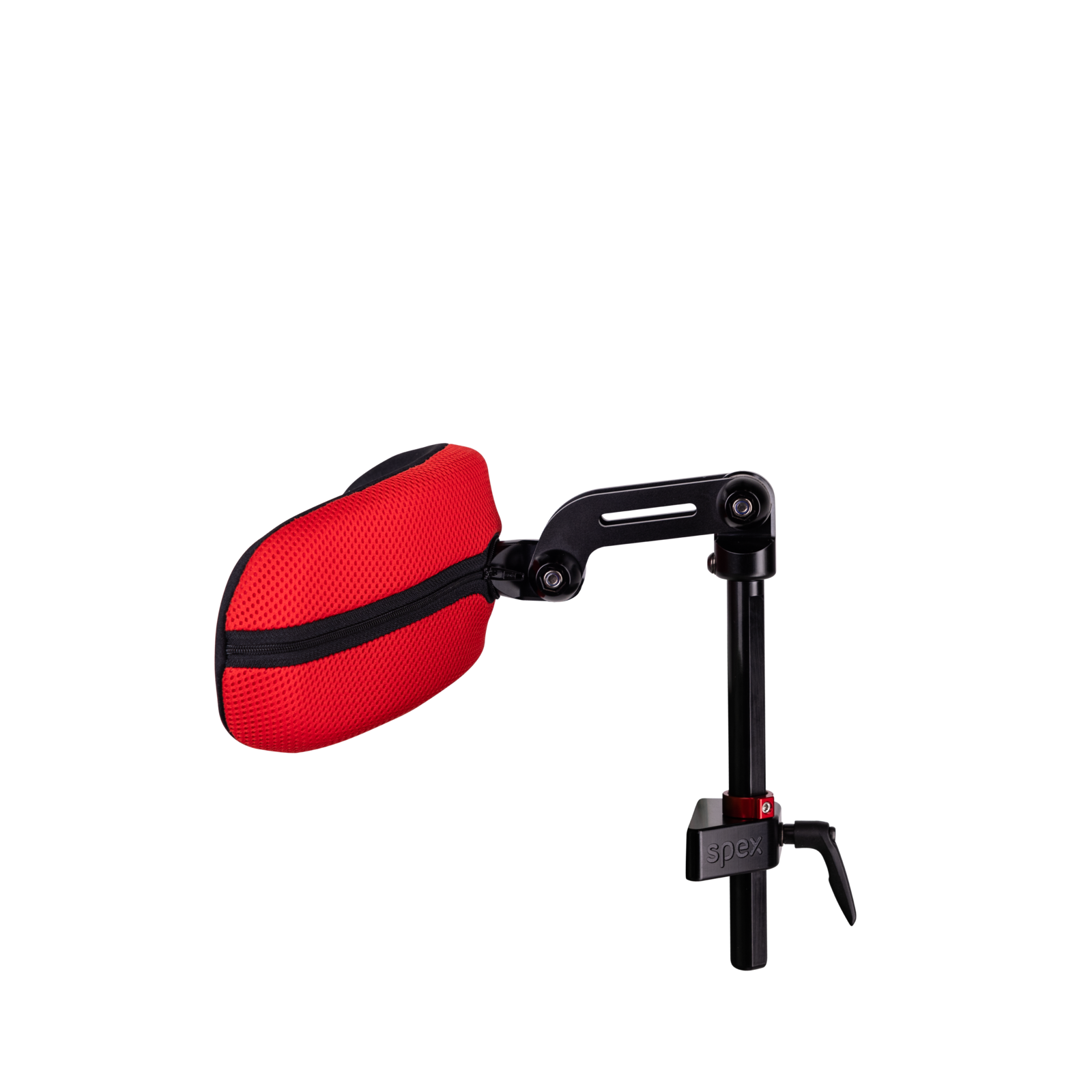

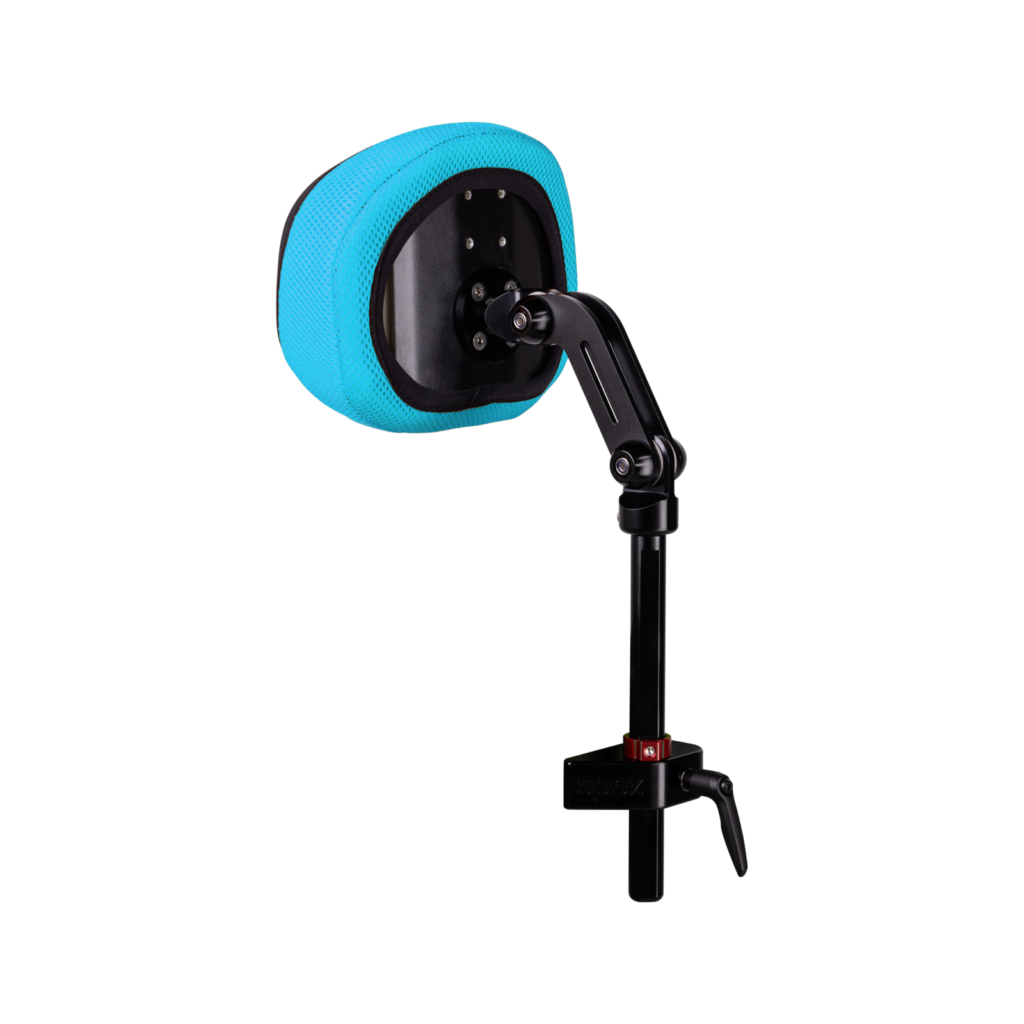

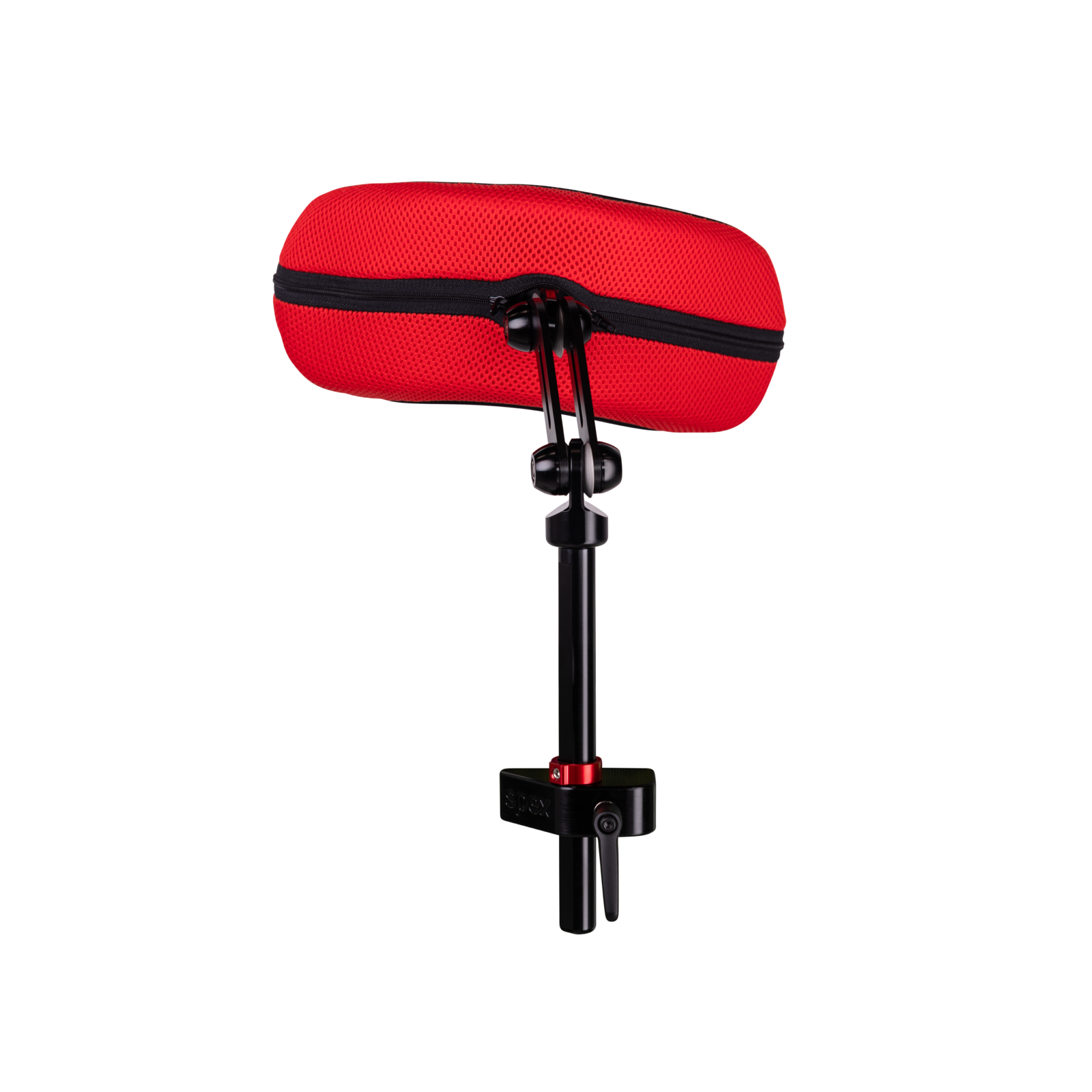

Spex Stylo 130

Head Support

The simplistic choice for basic head support needs

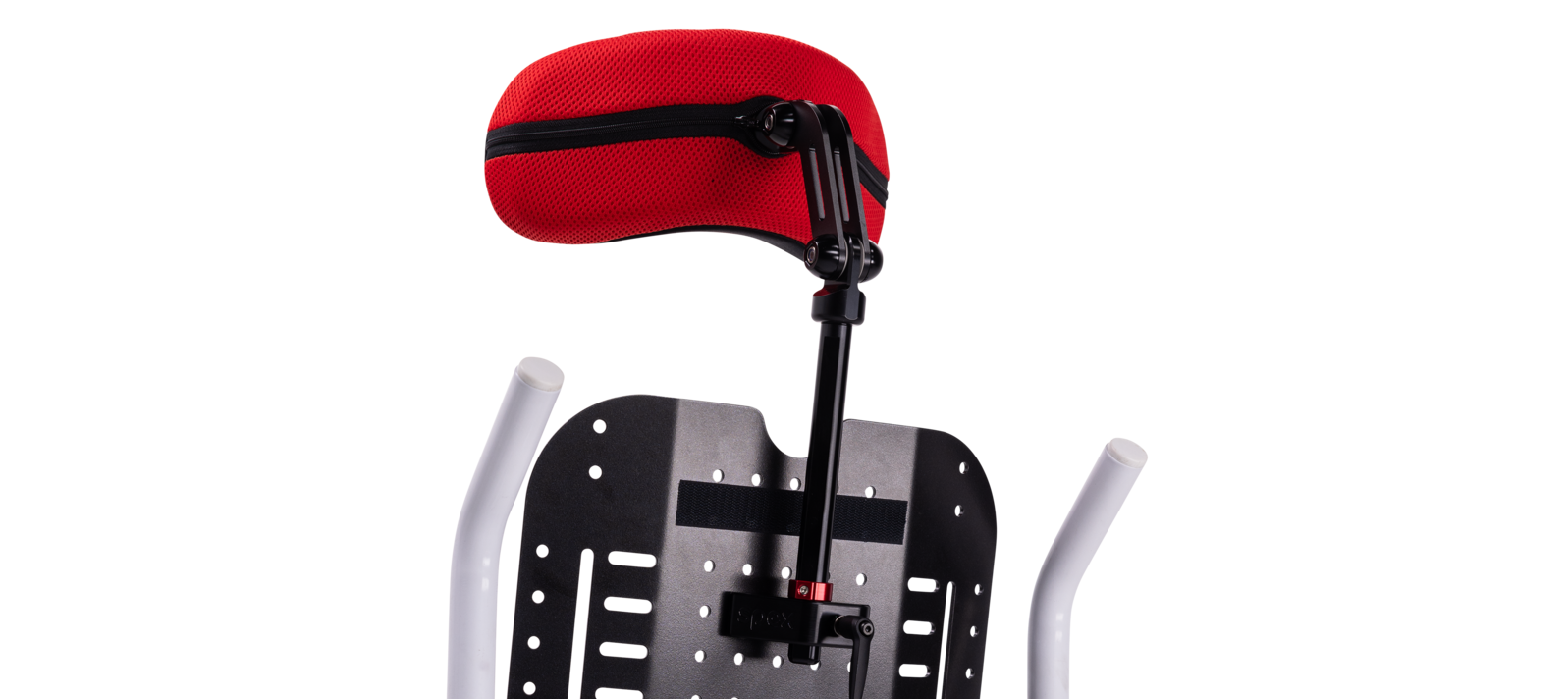

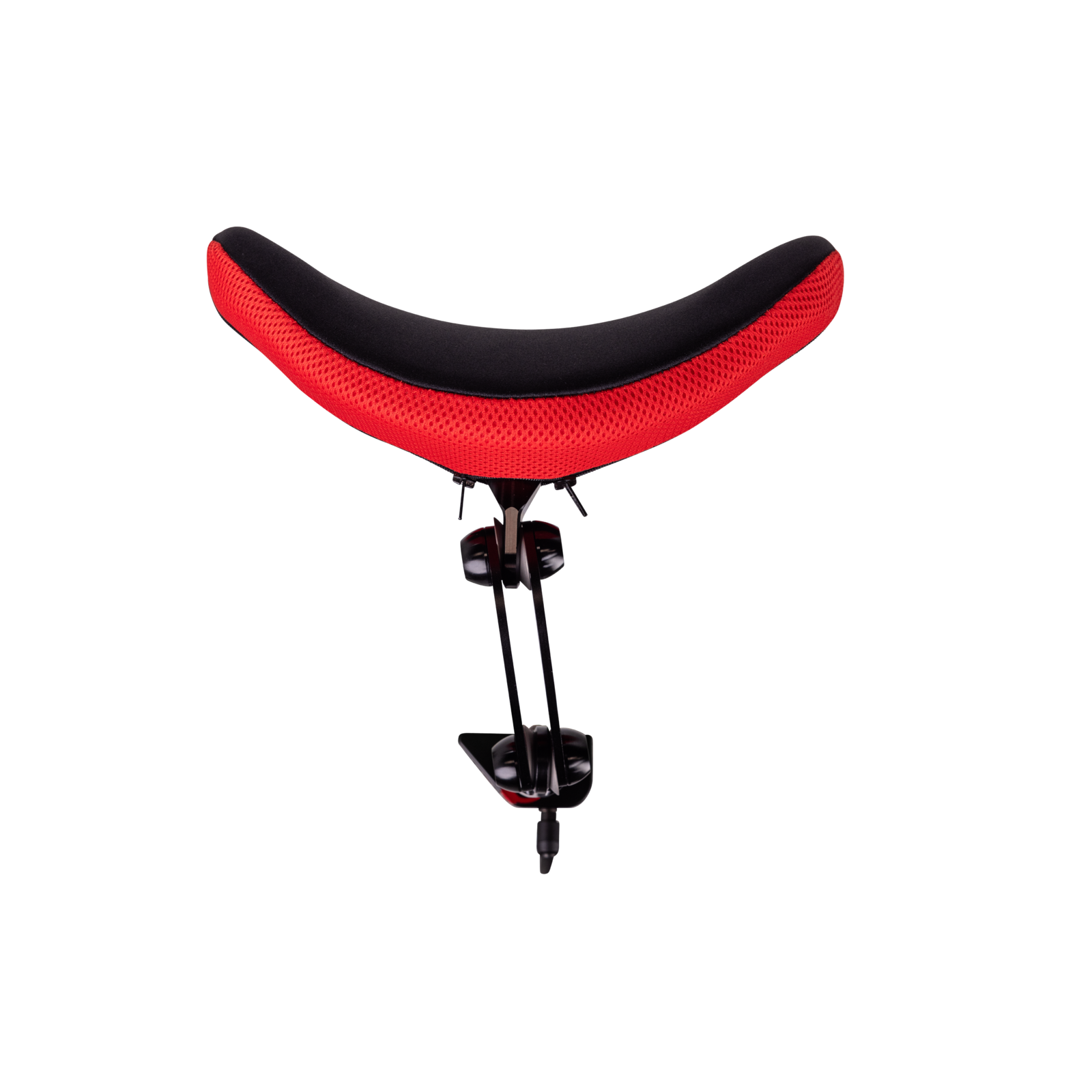

Stylo 130 is the most compact and simple option from the Stylo family, whilst still providing sufficient adjustment to meet basic head support requirements.

Simplicity and ease of adjustment are achieved with an easy setup design. The patent pending spherical hinge joints allow the head pad to be positioned forwards, backwards, rotated, and angled with only two bolts, providing the optimal support where it’s required.

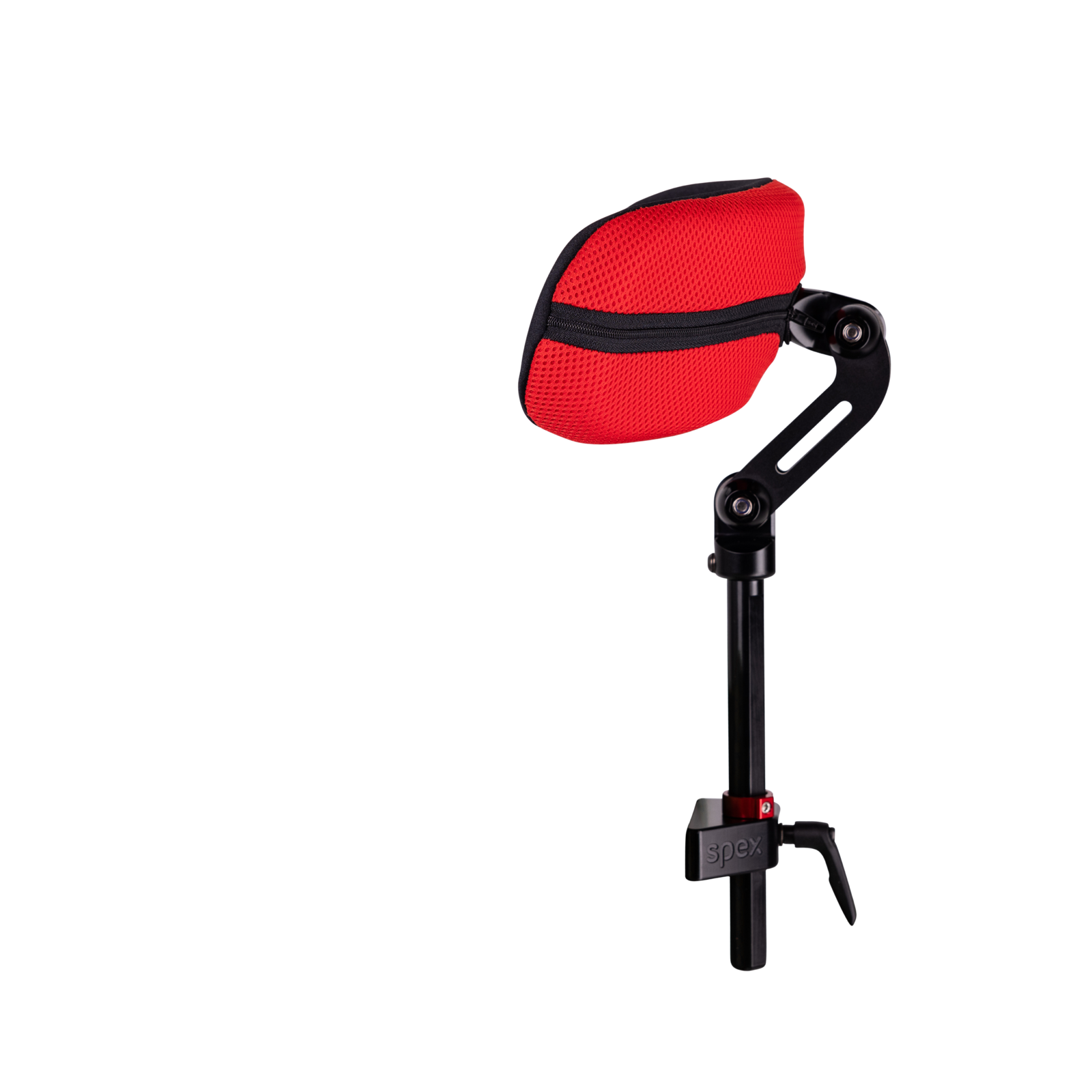

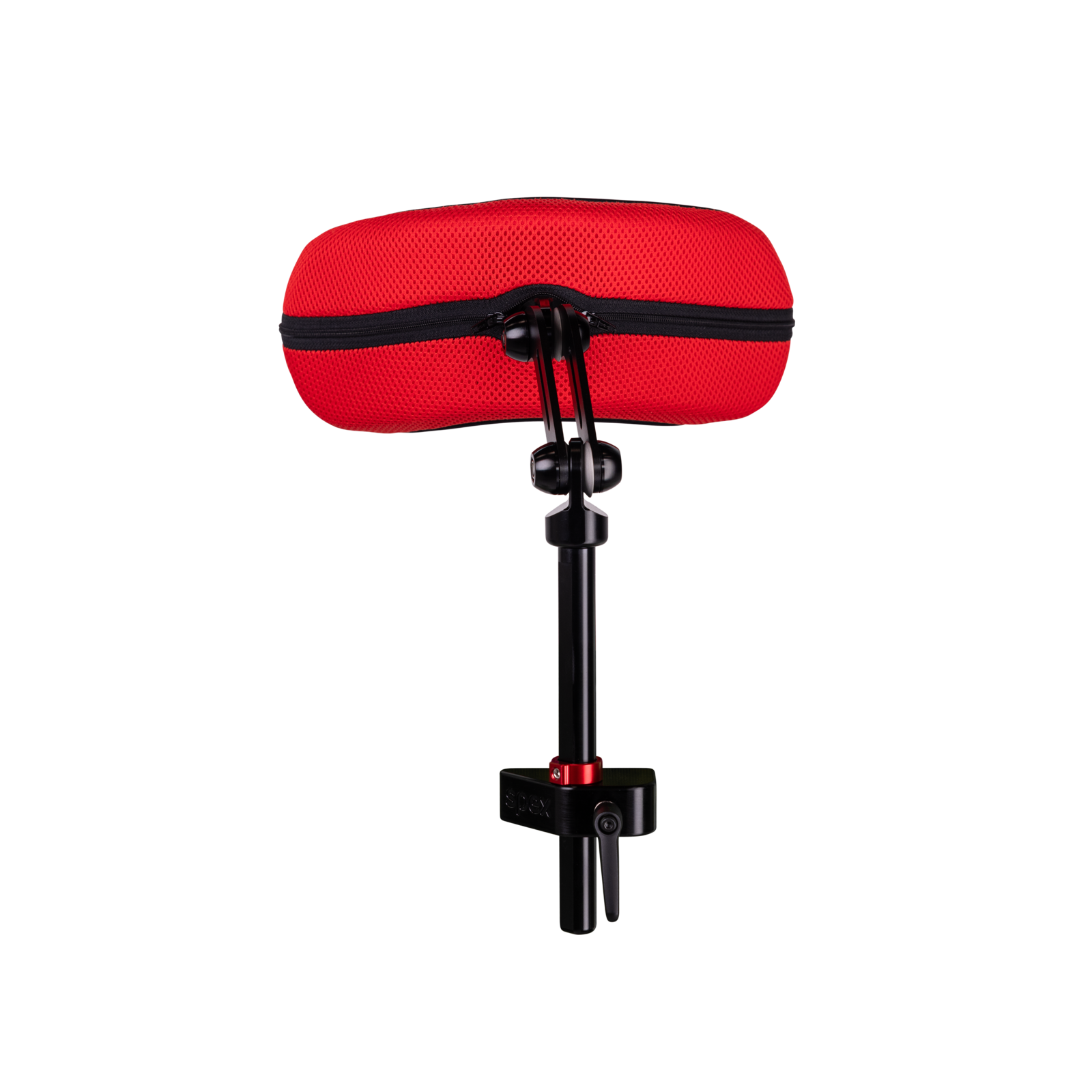

Featuring the quick-release Stylo mount, the mechanism can be quickly removed or installed. The finished product… a simplistic yet effective design that allows a range of adjustment of the pad position, creating a solution that is lightweight and adaptable for the user.

The Stylo 130 Head Support is transport certified.

Media

Stylo 130: A simplistic choice for basic head support needs

Watch

Gallery

Functional

Benefits

Simplistic Positioning, Less Effort

Achieve effective head positioning with less effort. A simple mechanism with fewer bolts and less moving parts results in quicker head positioning and fluid adjustment.

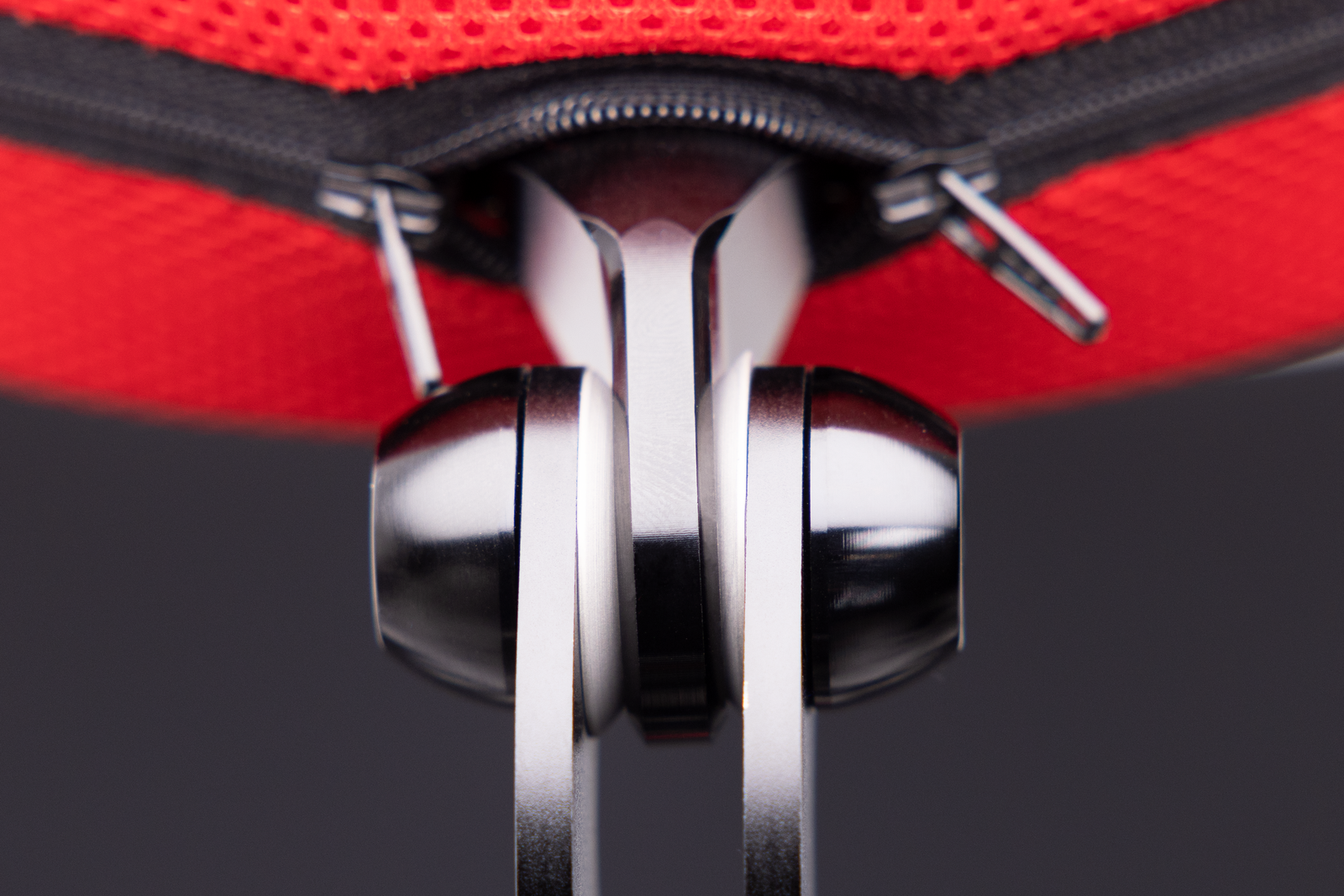

Compact Design with Patent Pending Spherical Hinge Joint

The Stylo 130 features a compact unobtrusive design, with patent pending spherical hinge joints, which enable side-to-side adjustment within the mechanism, providing some of the adjustment of a ball joint, with the simplicity of a hinge joint. Its low-profile design makes this a perfect solution for paediatric seating systems, or those desiring a minimalist look.

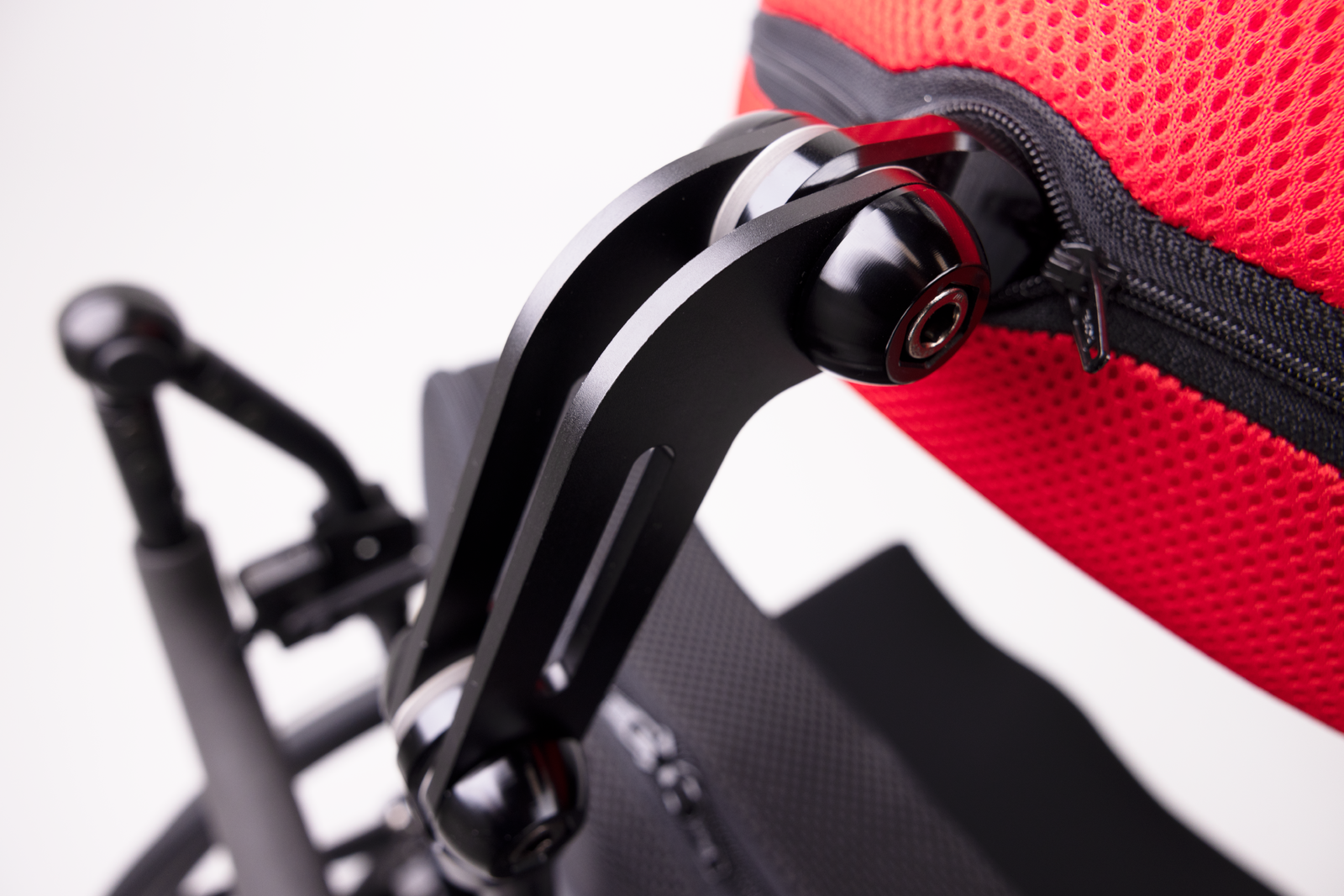

Lightweight with Uncompromised Durability and Strength

Stylo 130 is 33% lighter than the other Stylo mechanisms weighing a mere 570g, but without compromising on strength and safety, providing a user weight limit of 136kg.

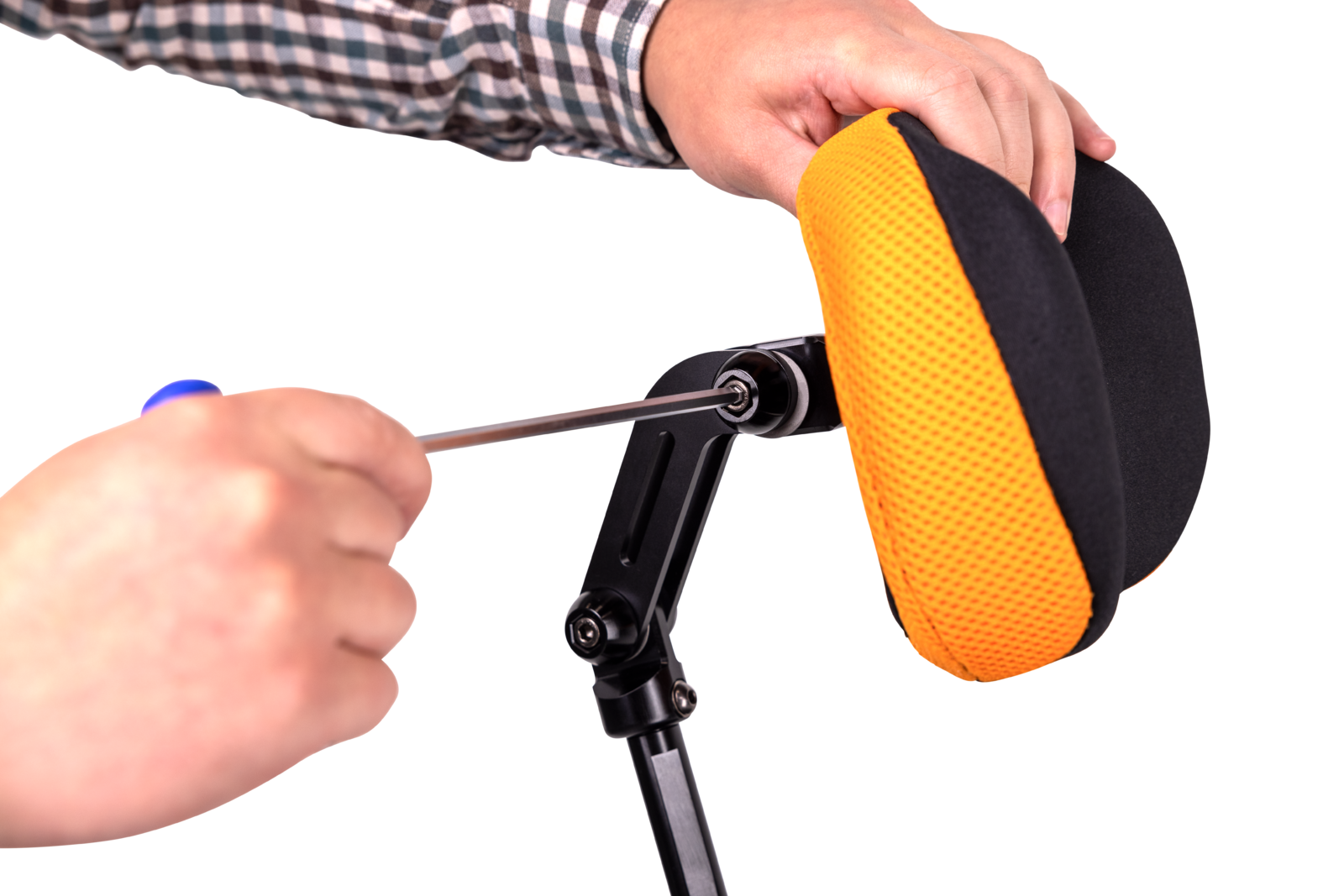

Quick Installation with One Tool for All Adjustments

For ease of Stylo adjustment and fine-tuning to the correct position there are only two bolts that require one tool - a 5mm Hex/Allen Key. Once installed use the quick release handle to instantly remove or install the mechanism from the mount.

Clinical

The Stylo 130 is the perfect solution for:

Users with mostly midline neck and head positioning
Some children
Those who only require head support for transportation
Clients who have basic sitting needs but require recline or tilt-in-space throughout the day and need a head support to facilitate this position

Resources

Spex Head Support Technology Flyer 6.06 MB Spex Stylo Head Support Script Form 0.96 MB Spex Head Support Fitting Guide 2.46 MB Spex Head Support User Manual 1.14 MB

Accessories

Spex Circle Head Support Pad

Spex Comfort Head Support Pad

Spex Contour Head Support Pad

Spex Standard Lateral Head Support Pad

Spex Extended Lateral Head Support Pad

Stylo Heavy-Duty Compatibility Kit

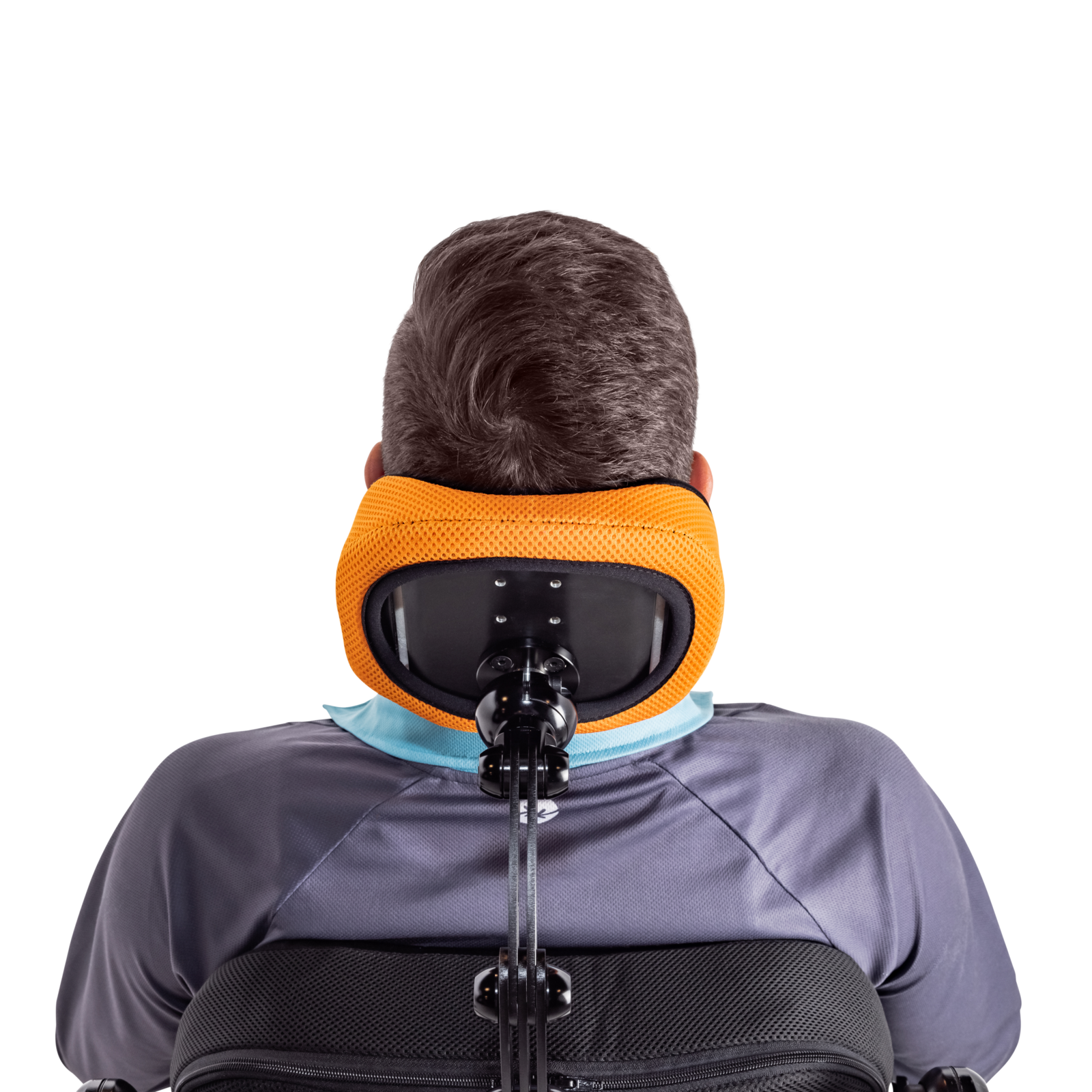

Circle Head Support Pad

Unique minimal head support providing direct posterior support for users with good head control.

Style	Circle 150	Circle 250
Code	1275-0011-000	1275-0012-00

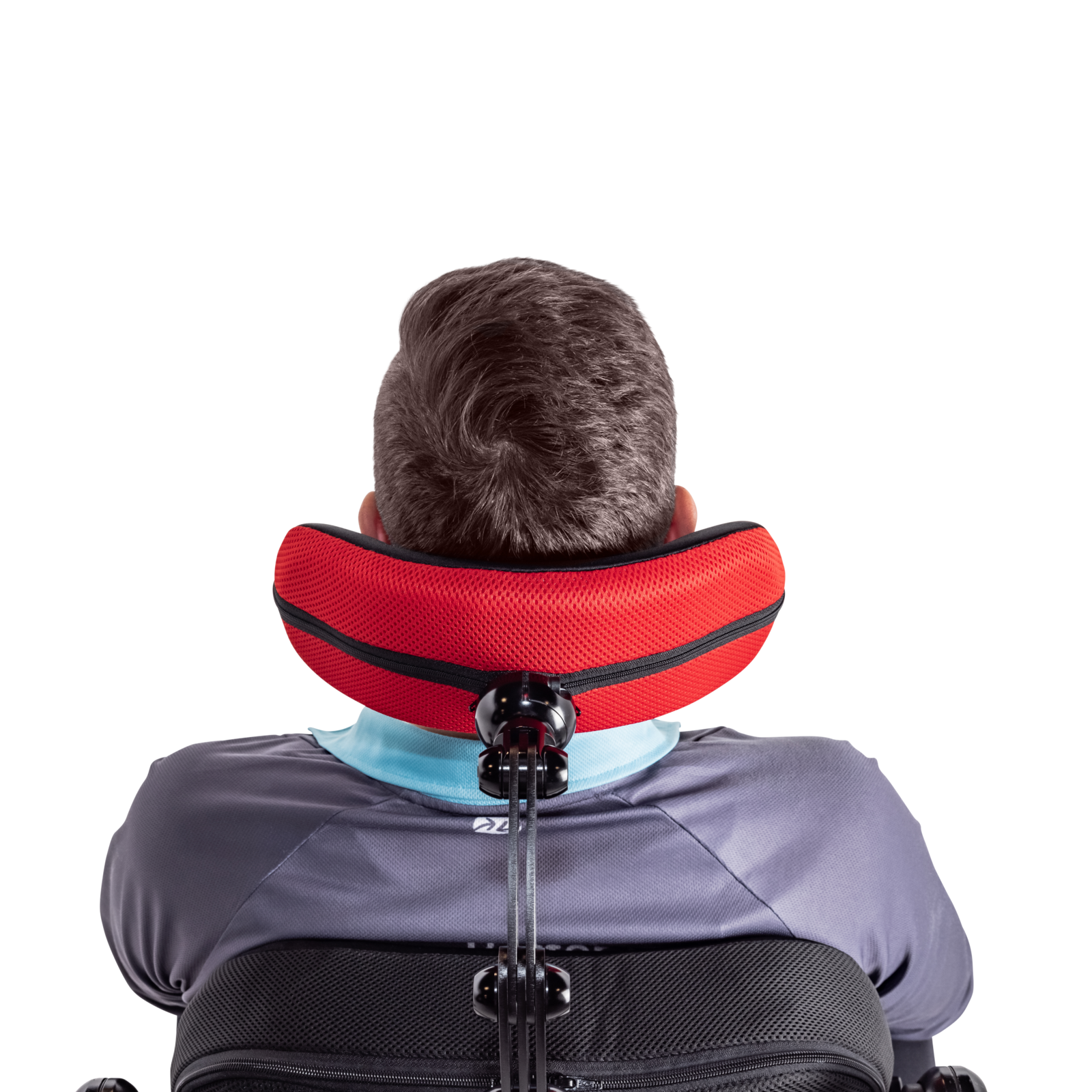

Comfort Head Support Pad

General use head support pad suited for transit and travel.

Style	Comfort 250	Comfort 350
Code	1275-0031-000	1275-0032-000

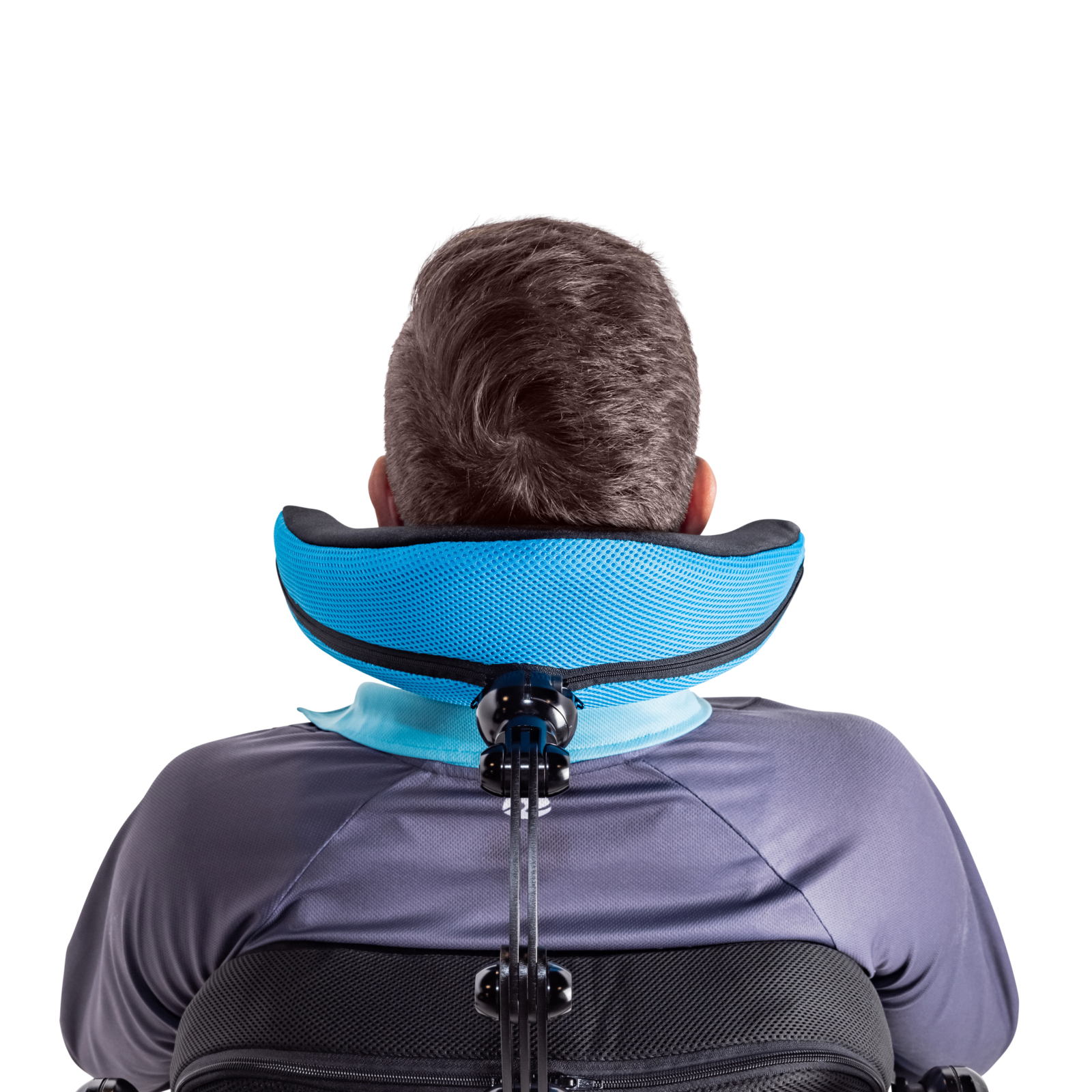

Contour Head Support Pad

Contoured shaped pad for superior occipital and suboccipital support.

Style	Contour 250	Contour 350
Code	1275-0021-000	1275-0022-000

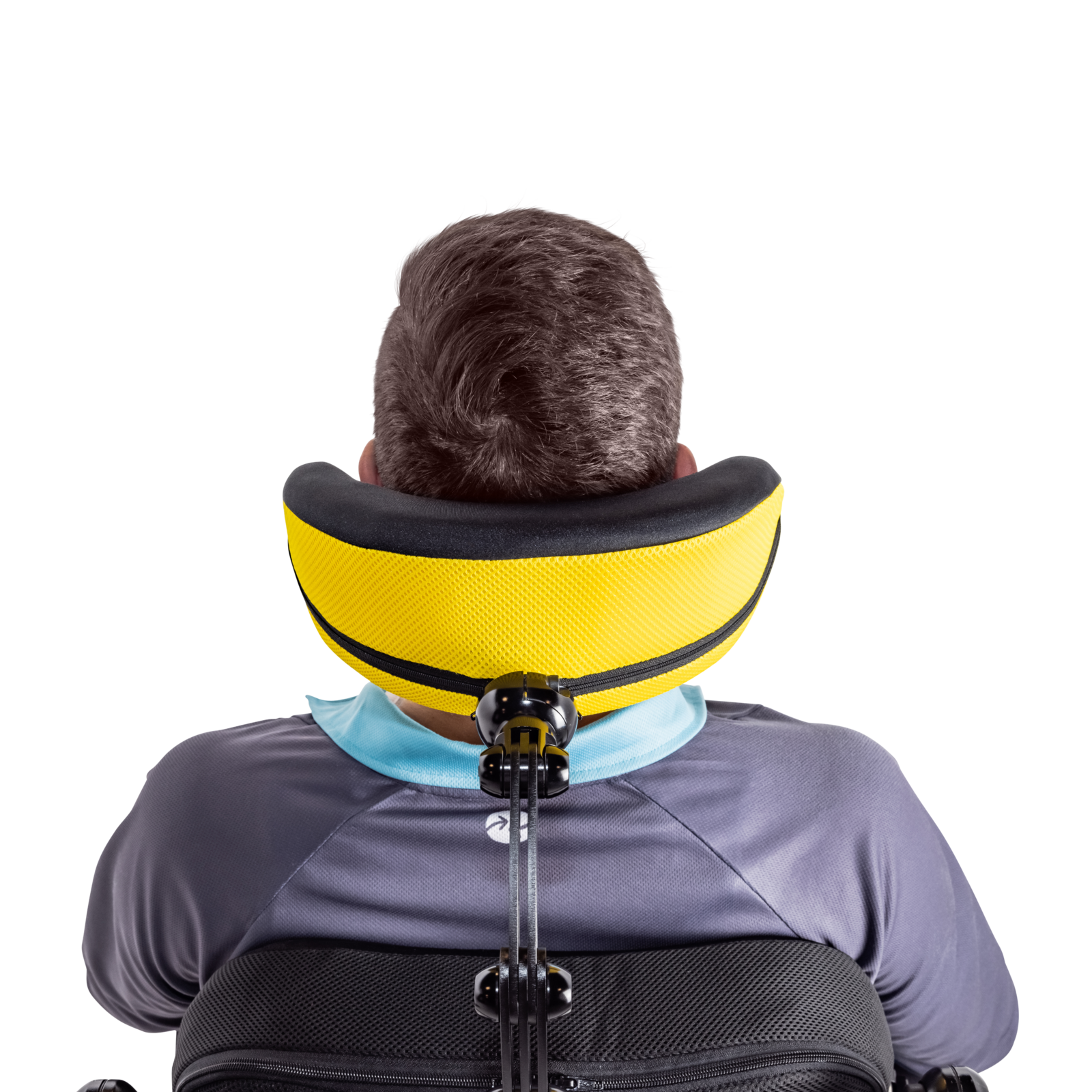

Standard Lateral Head Support Pad

One-piece lateral head support solution for moderate head positioning needs.

Style	Paediatric Standard	Standard
Code	1275-0041-000	1275-0043-000

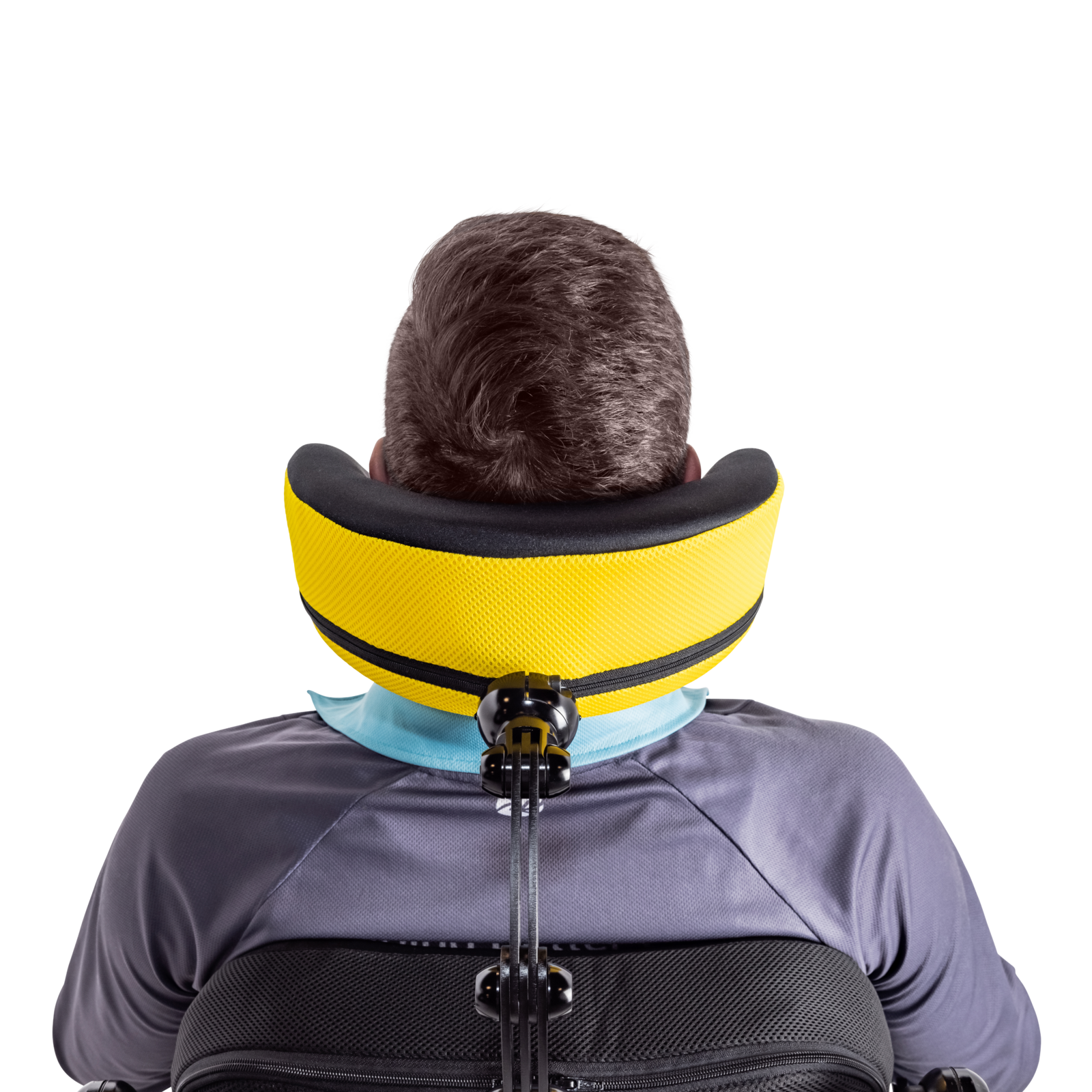

Extended Lateral Head Support Pad

One-piece lateral head support solution for complex head positioning needs.

Style	Paediatric Extended	Extended
Code	1275-0042-000	1275-0044-000

Stylo Heavy-Duty Compatibility Kit

The Stylo Heavy-Duty Compatibility Kit provides reinforcement at the shell connection and grub screws to improve the slip capacity at the ball connections.

Product Code:

1274-0000-HDK

Specifications

Weight

Dimensions

Measurements

Product Code

Stylo 130 Weight

Weight

570 grams (excluding head pad)
Weight Capacity of 136kg


Horizontal Forwards Adjustment 130mm	Vertical Adjustment 135mm (145mm in stem)	Sideways Adjustment* 30mm

Frontal Angle Adjustment 20°	Sagittal Angle Adjustment 180° top hinge 180° bottom hinge	Transverse Angle Adjustment 20°
