Spex Tessellated

Positioning Kit

Applying tessellation method to create contours for seating and positioning

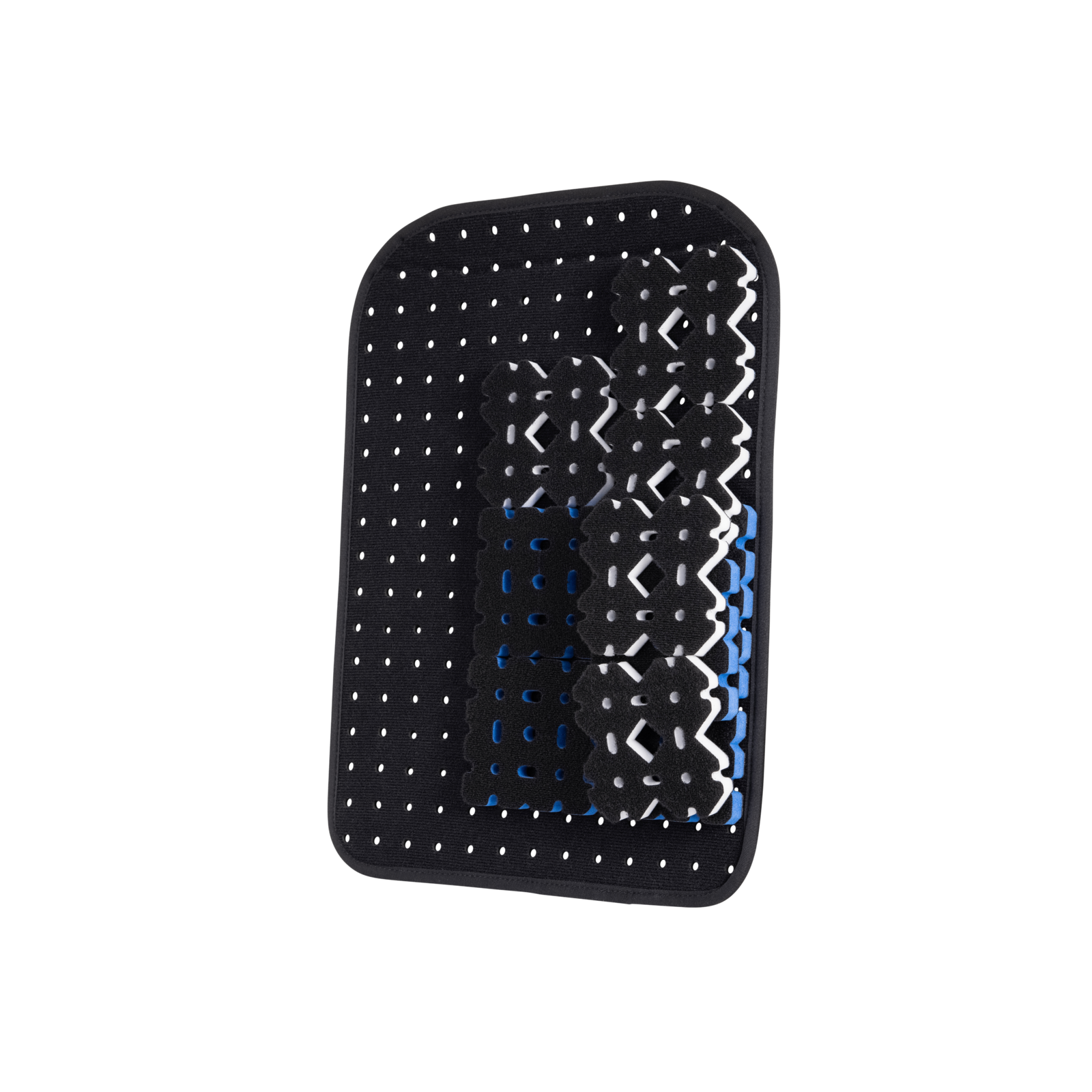

Spex has taken the concept of a tessellation, and applied this method to create contours for seating and positioning.

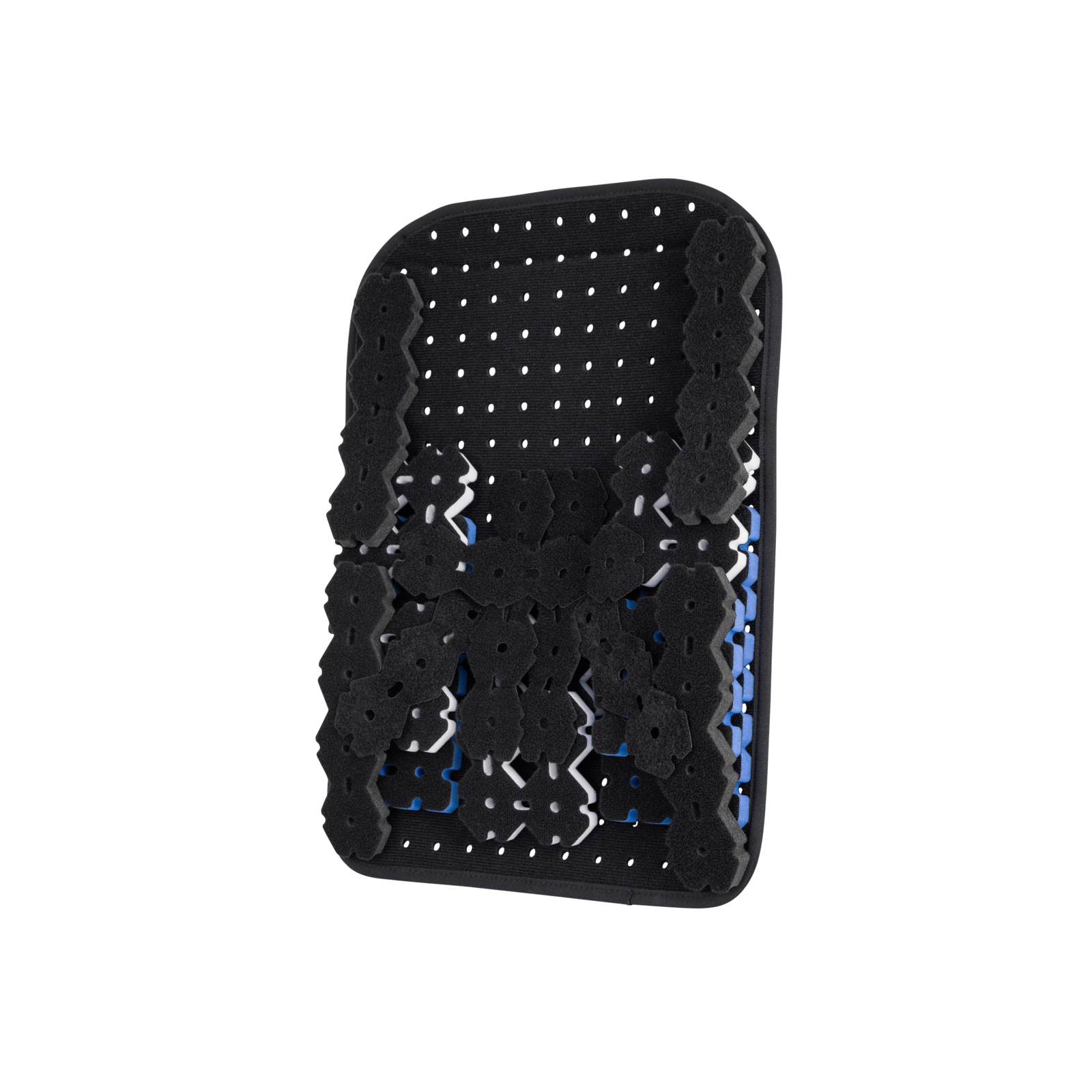

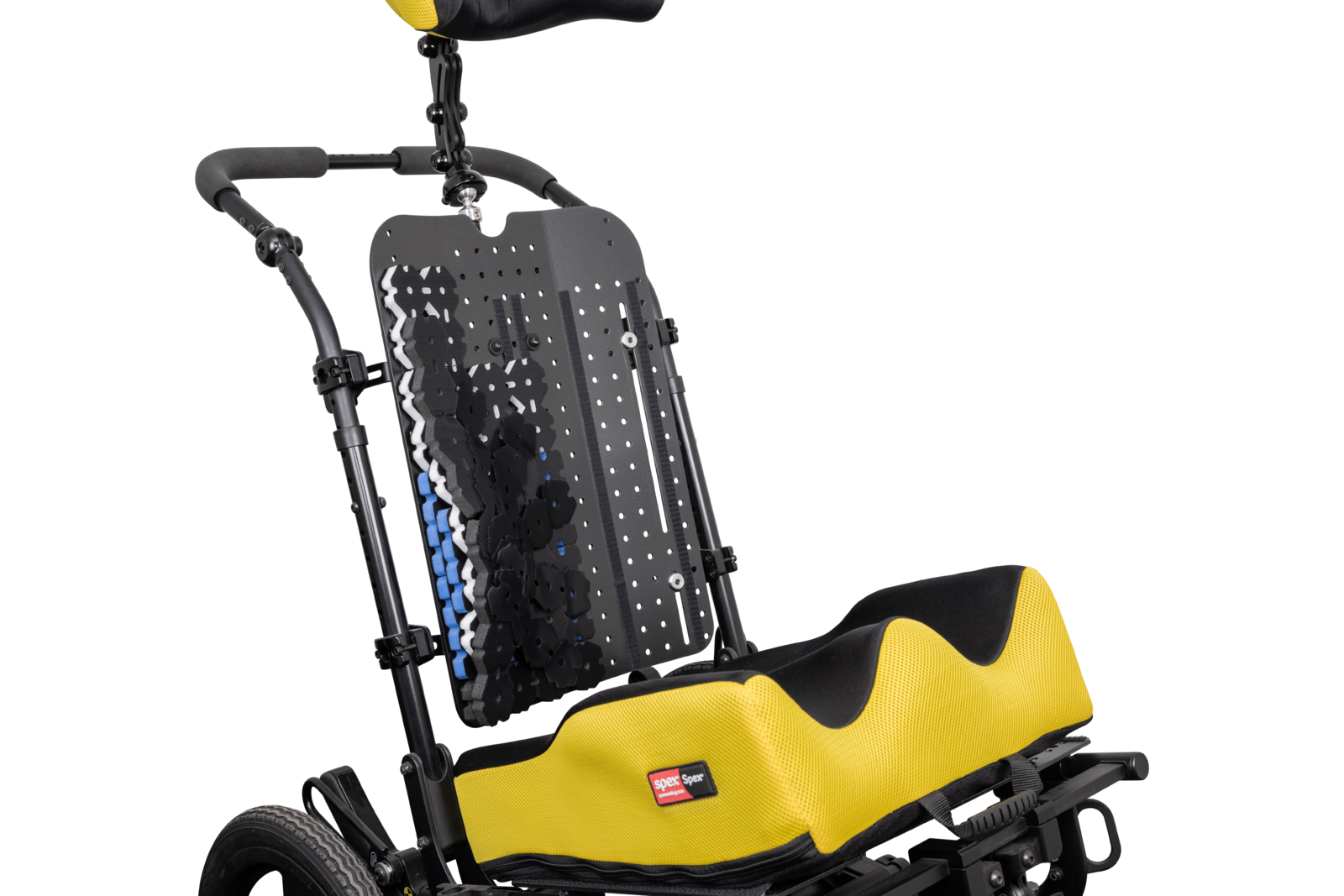

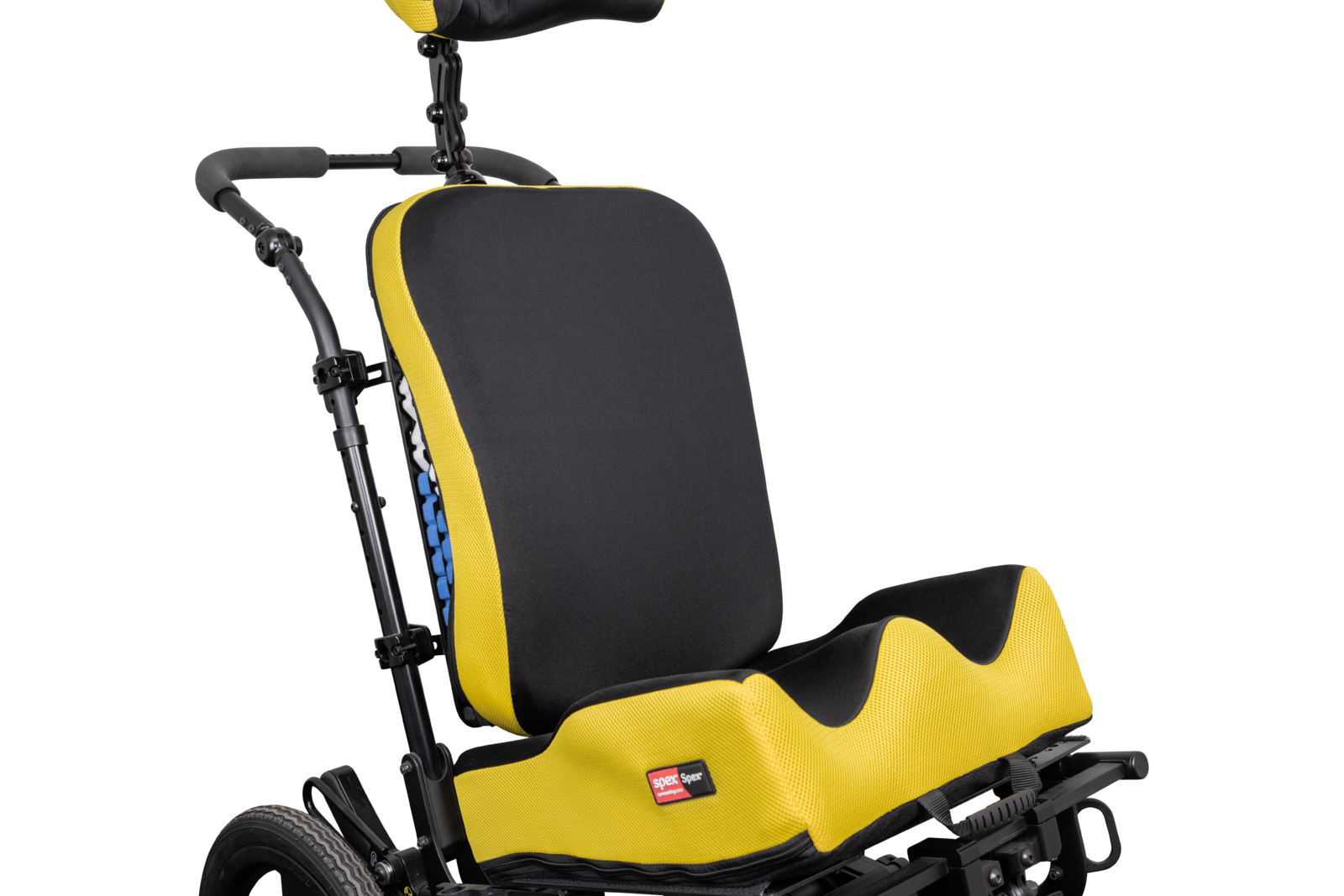

This system can be added to any back support from the Spex range for additional contouring behind the existing upholstery padding.

Gallery

Functional

Benefits

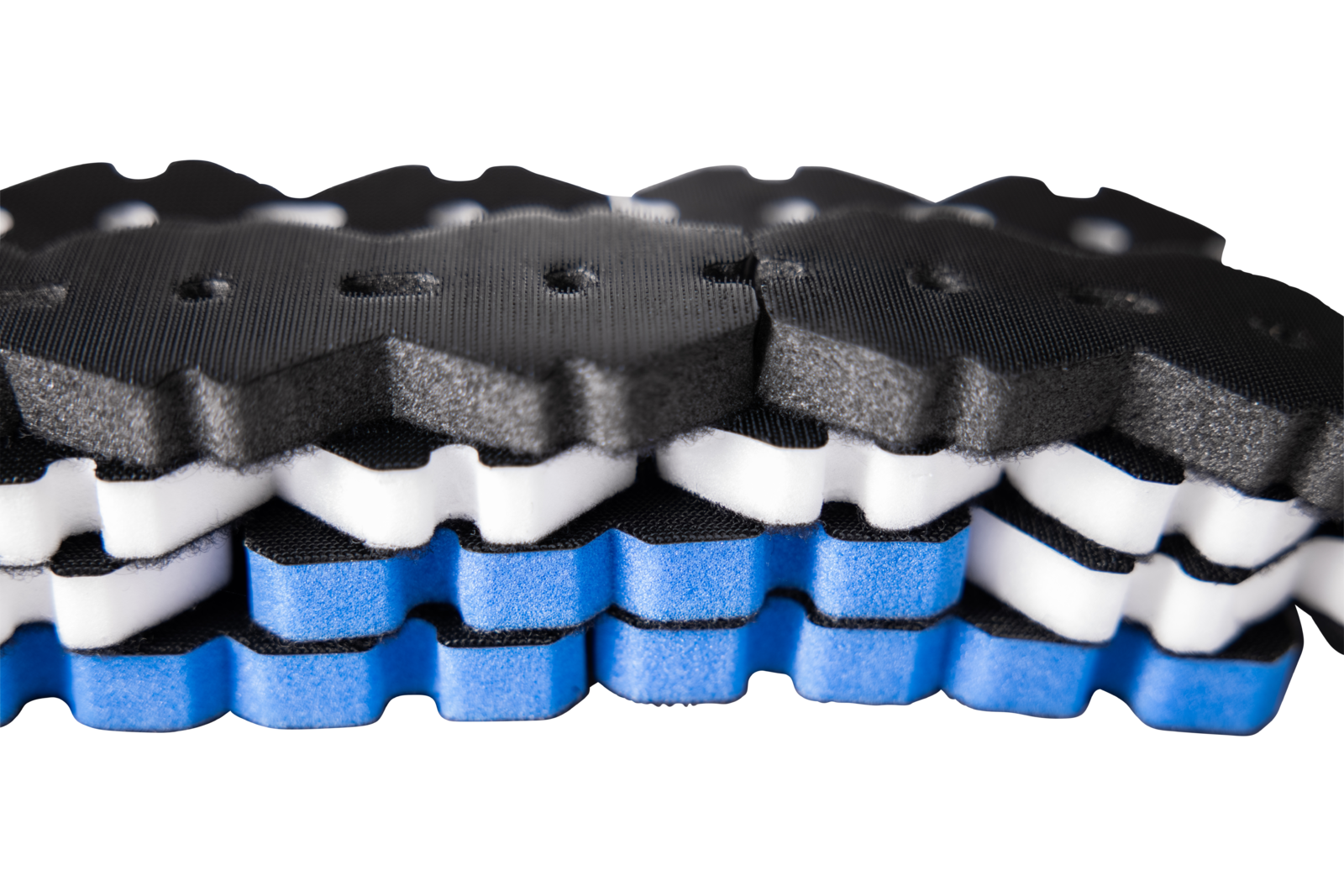

Varying foam densities

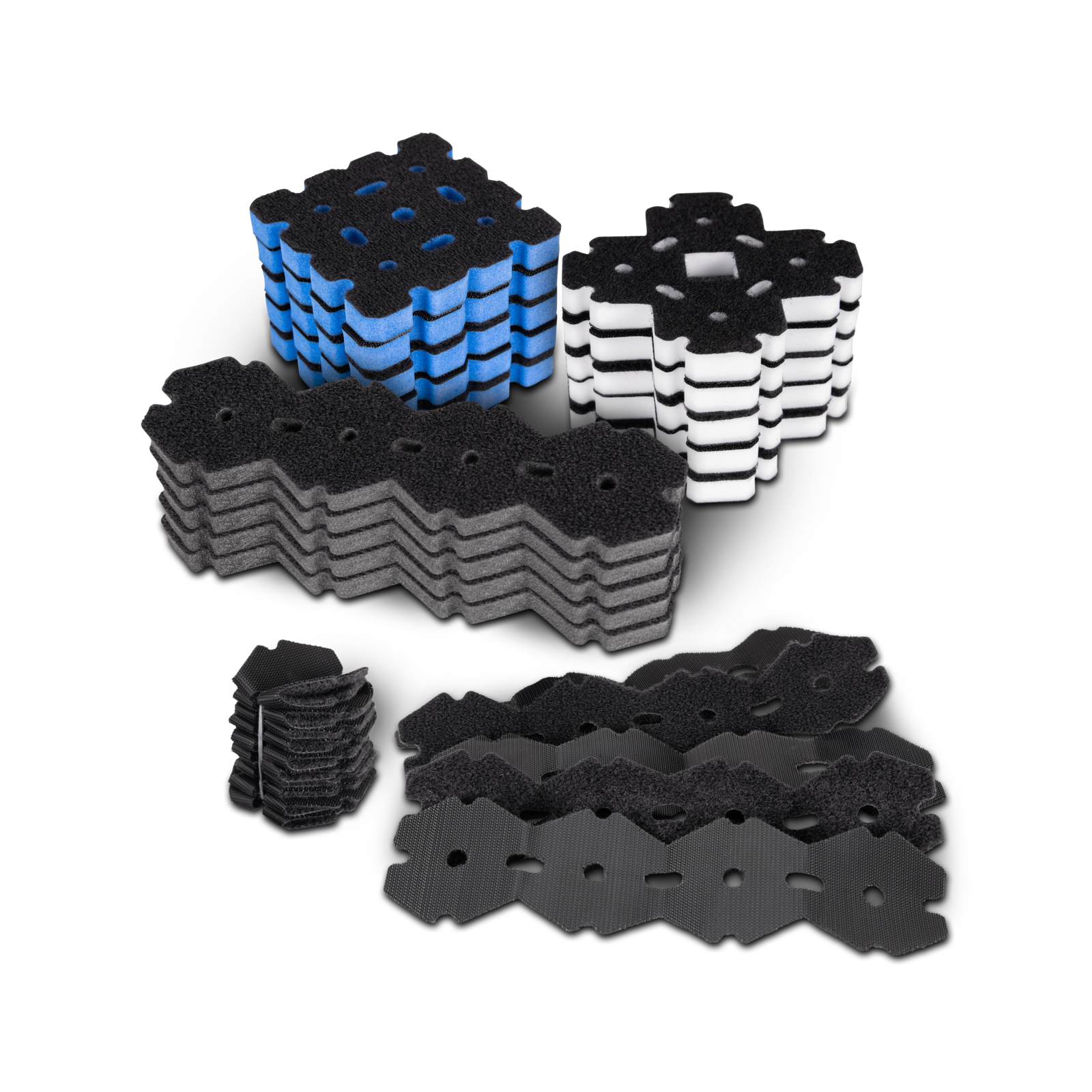

Positioning pack includes a number of different tessellations in varying foam densities.

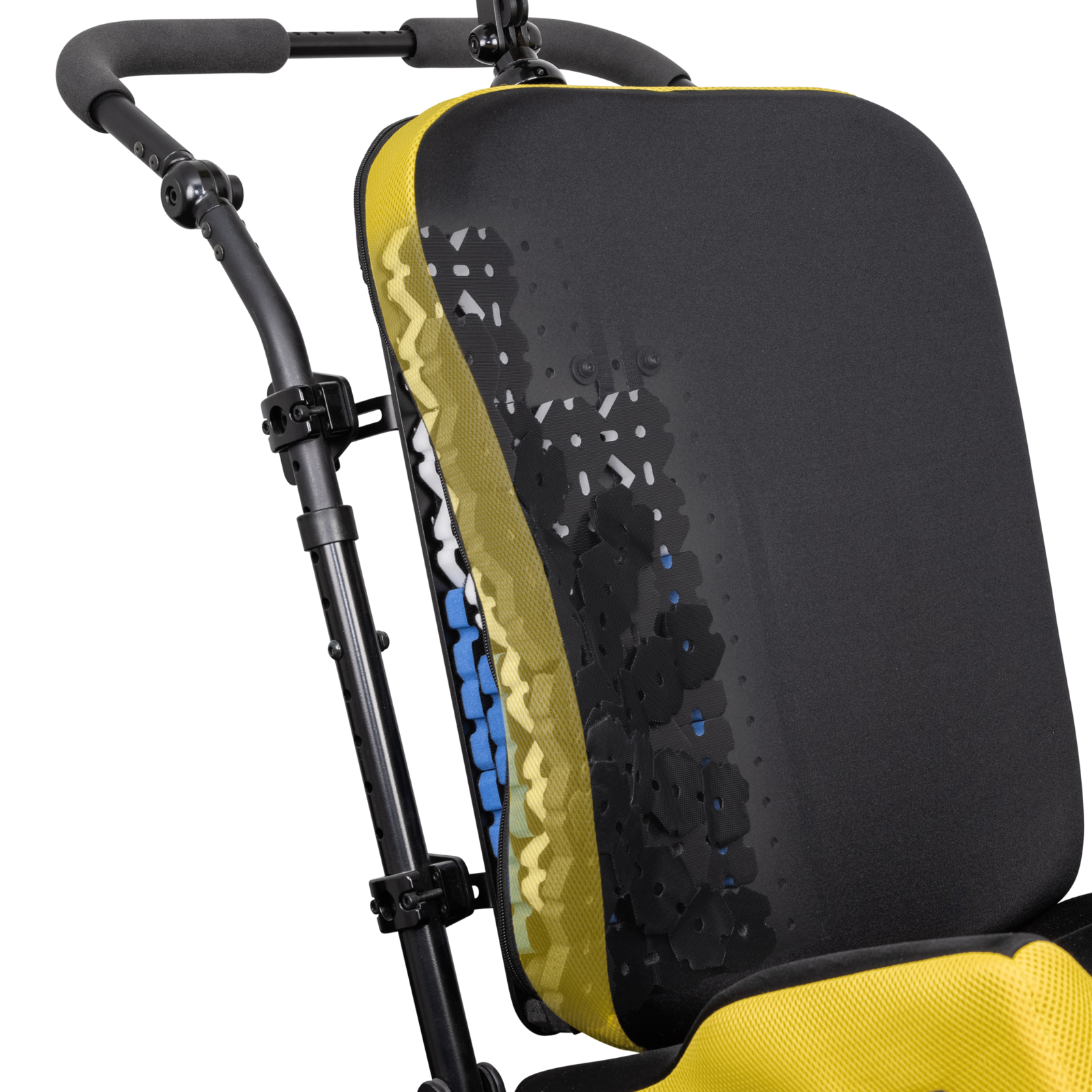

Slots behind back support squab

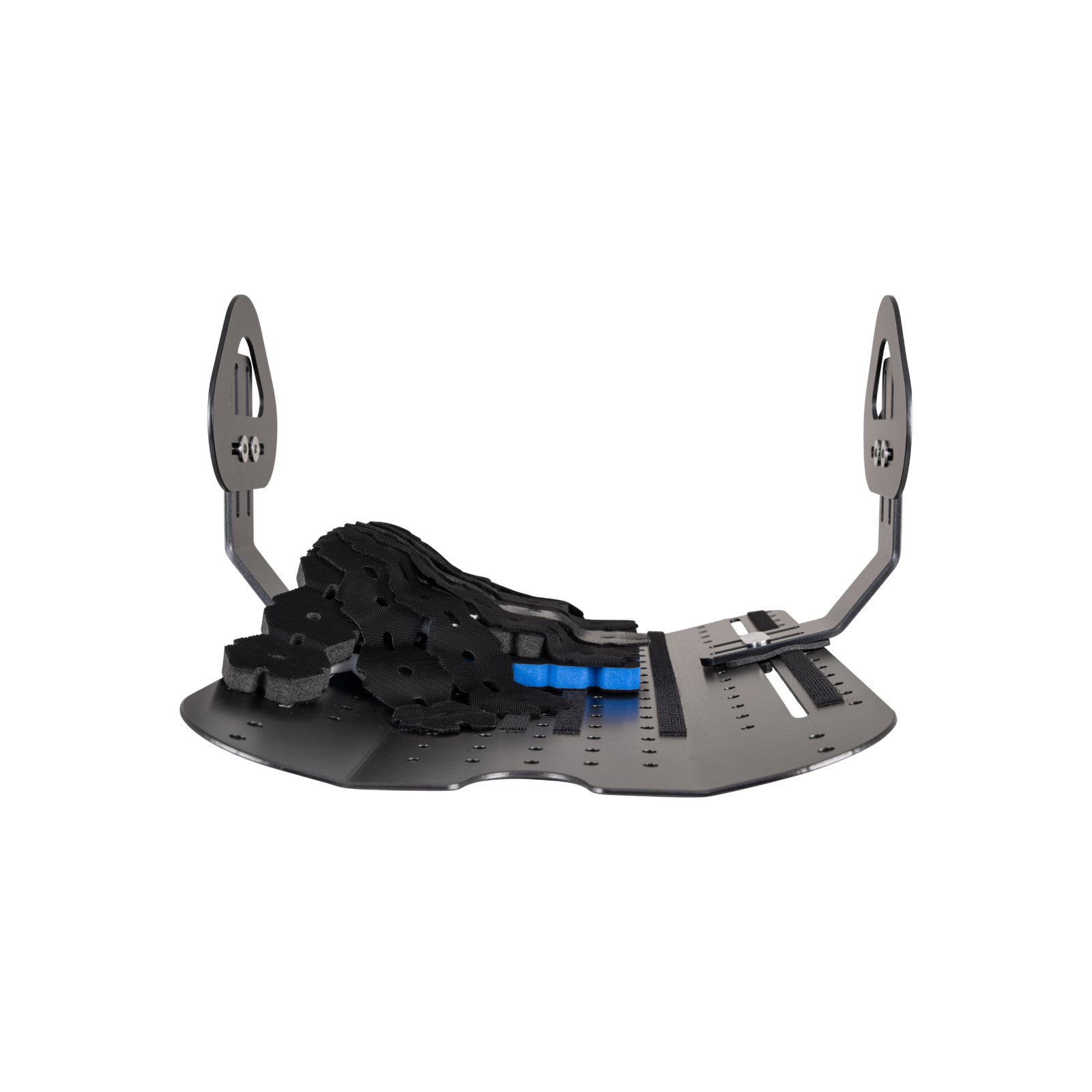

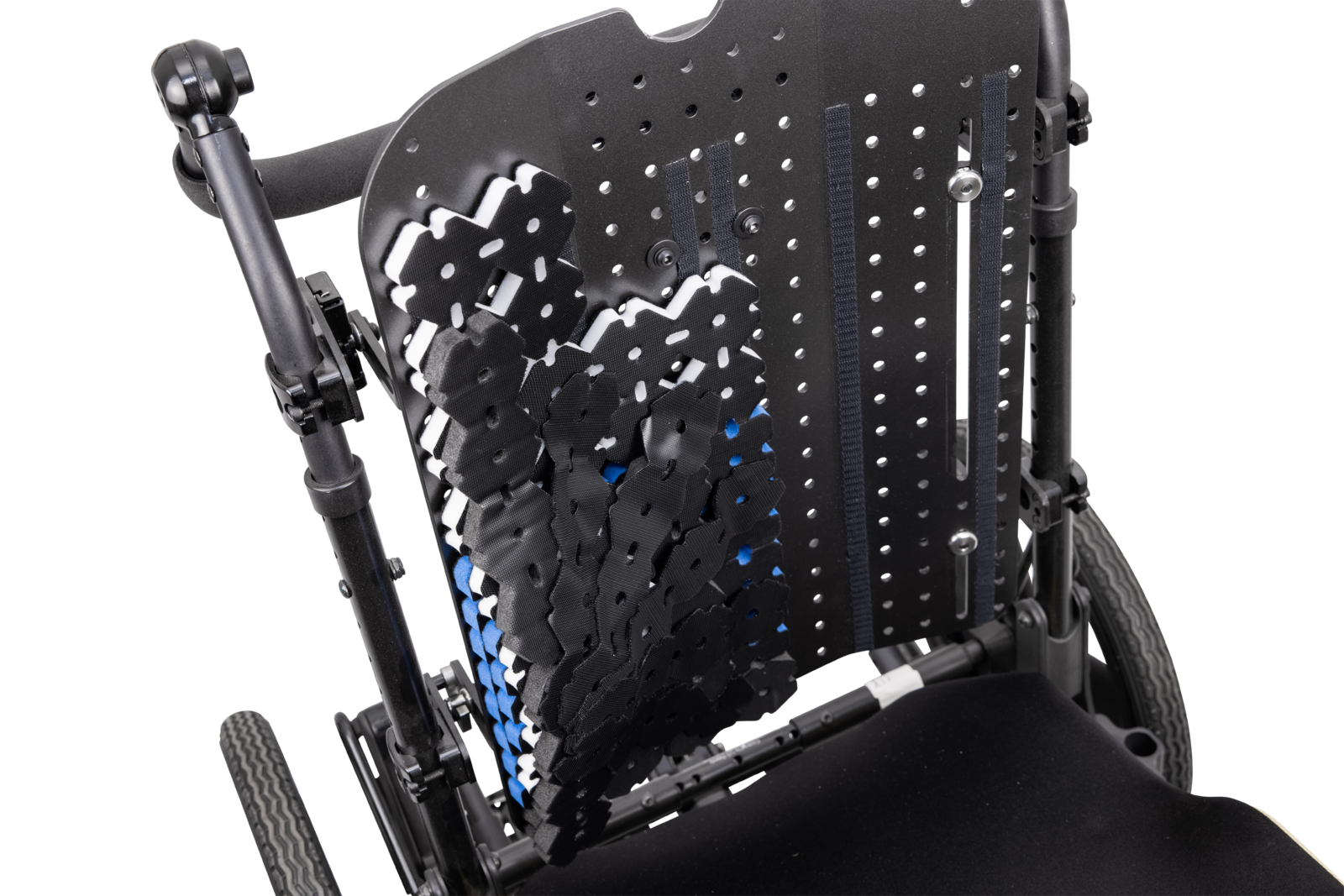

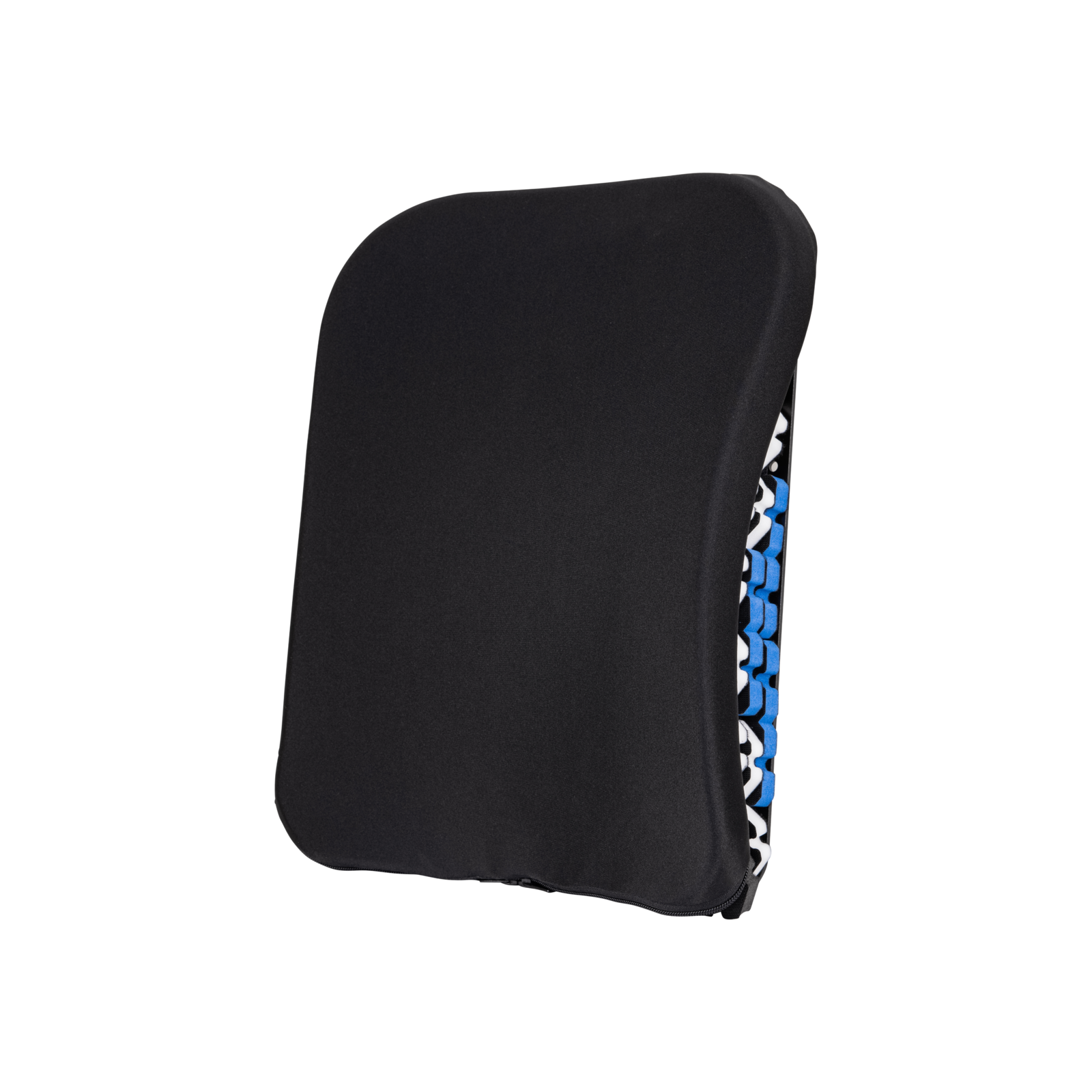

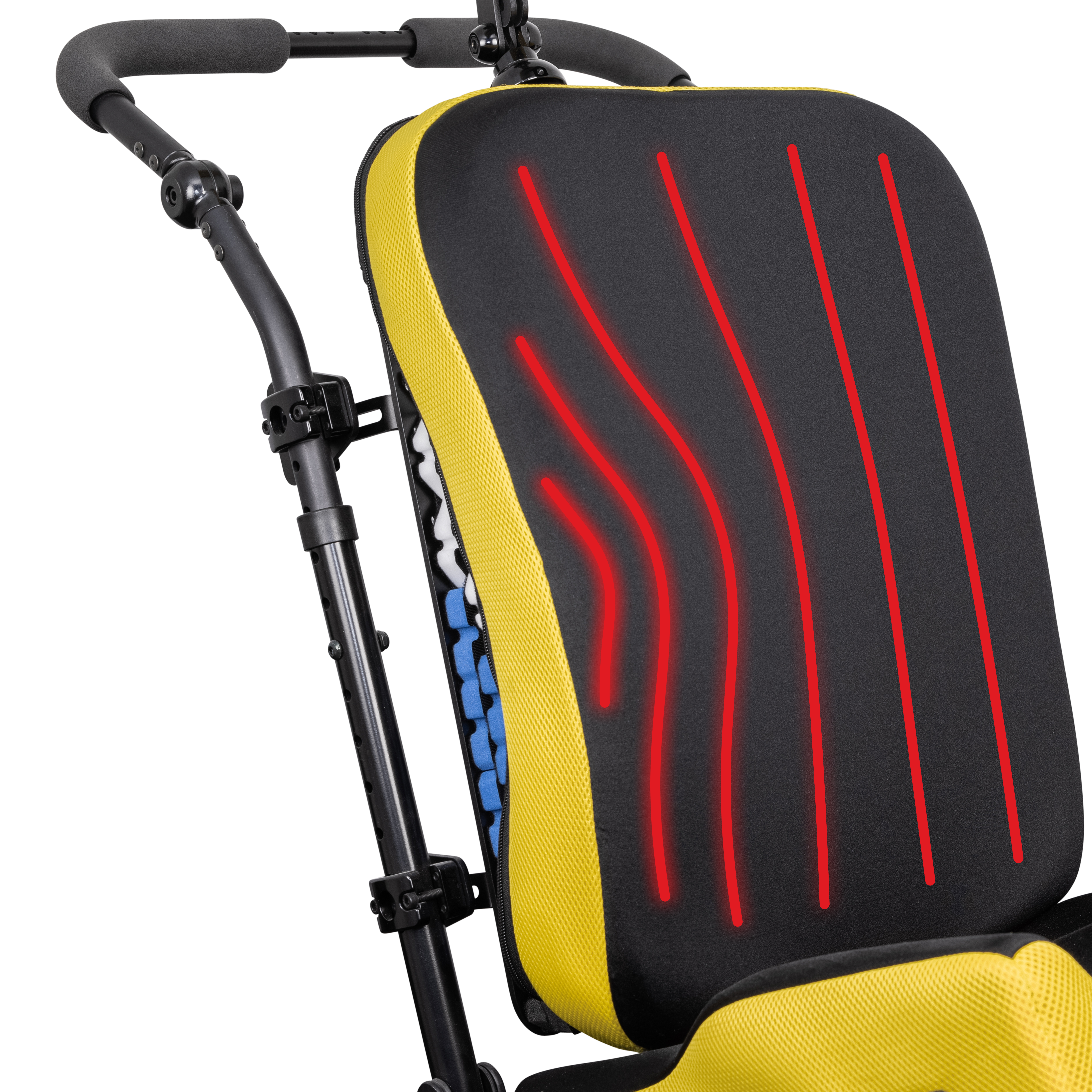

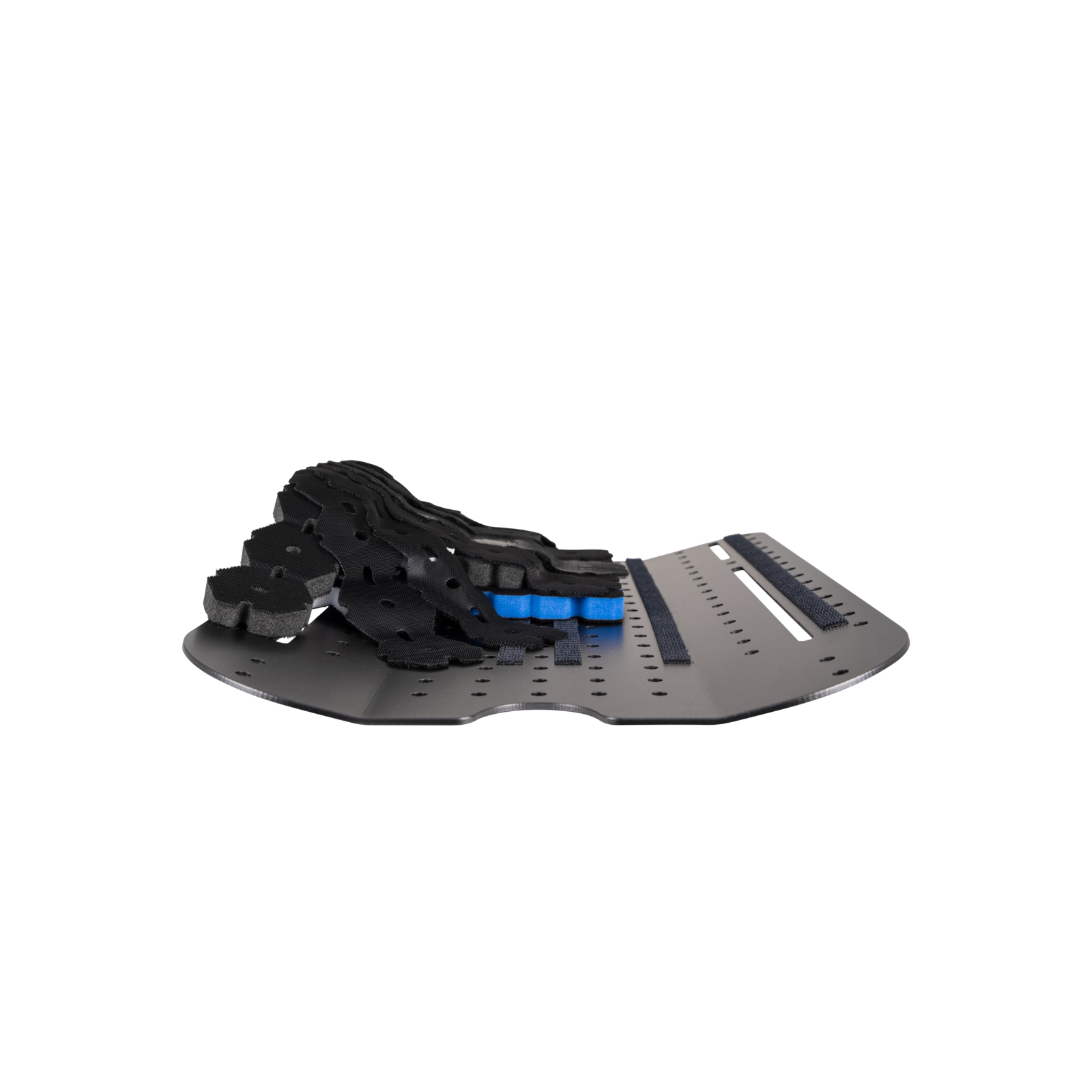

Developed to be placed behind the back support squab (in front of the seat shell).

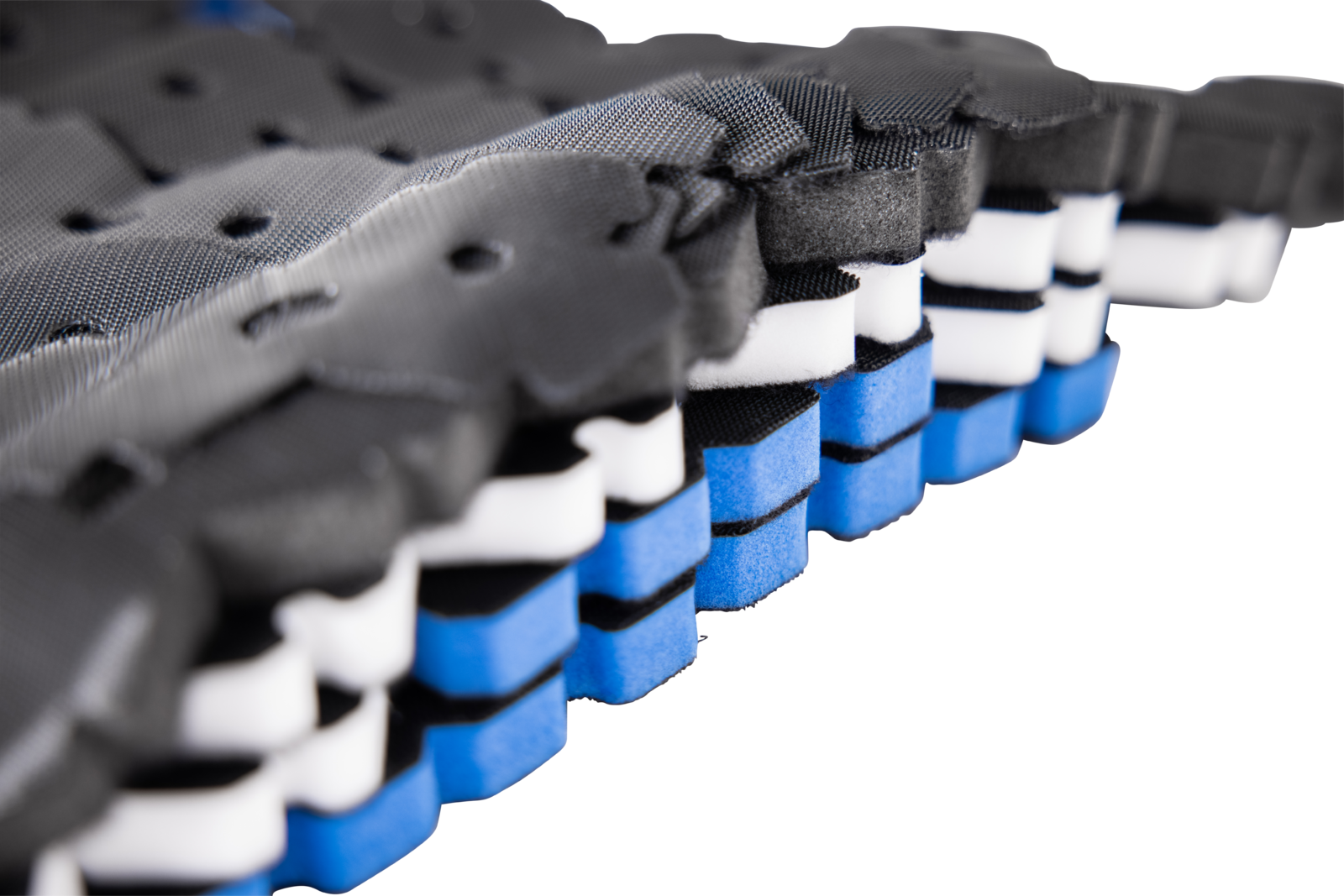

Shape to fit

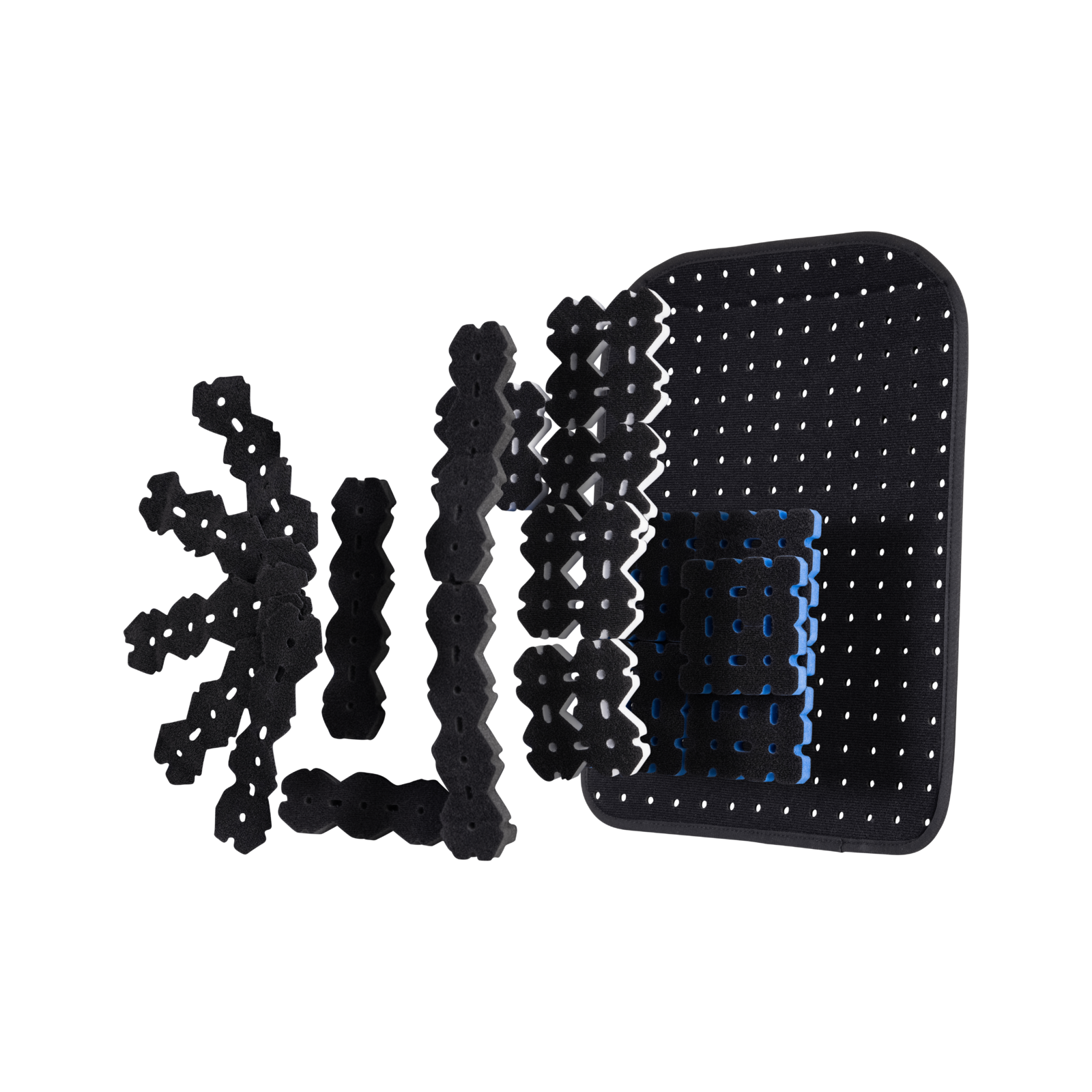

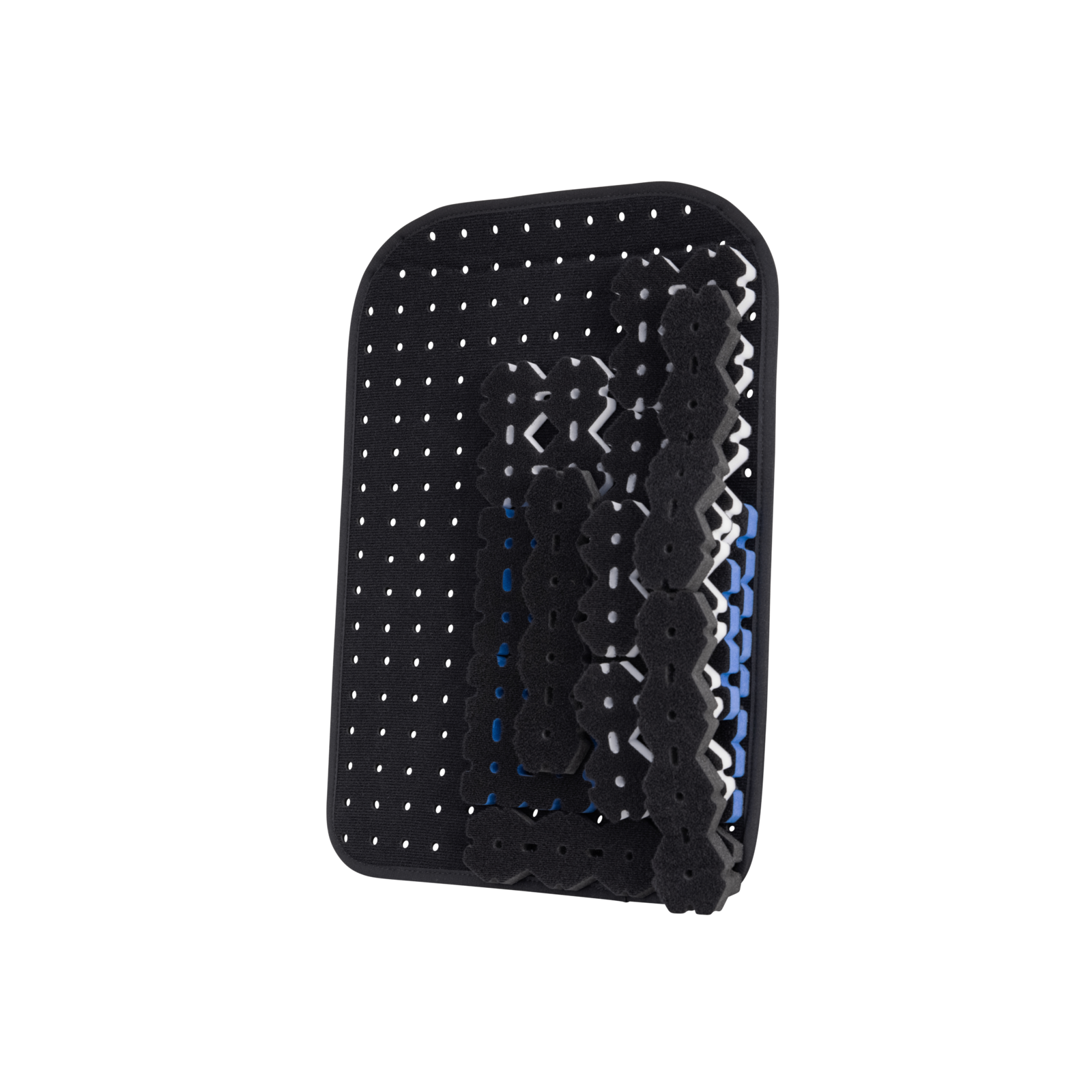

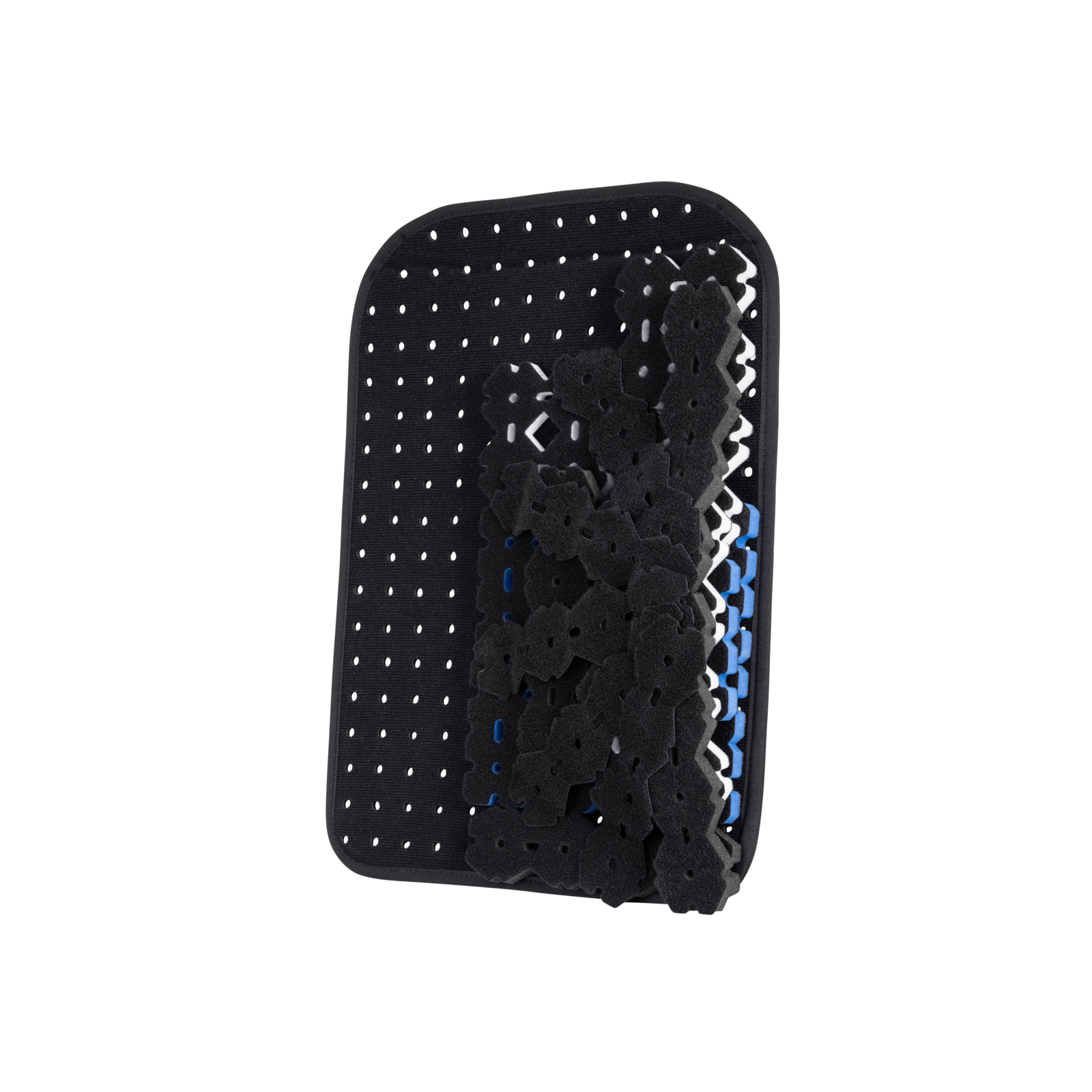

Stack and configure the shapes according to the user's needs.

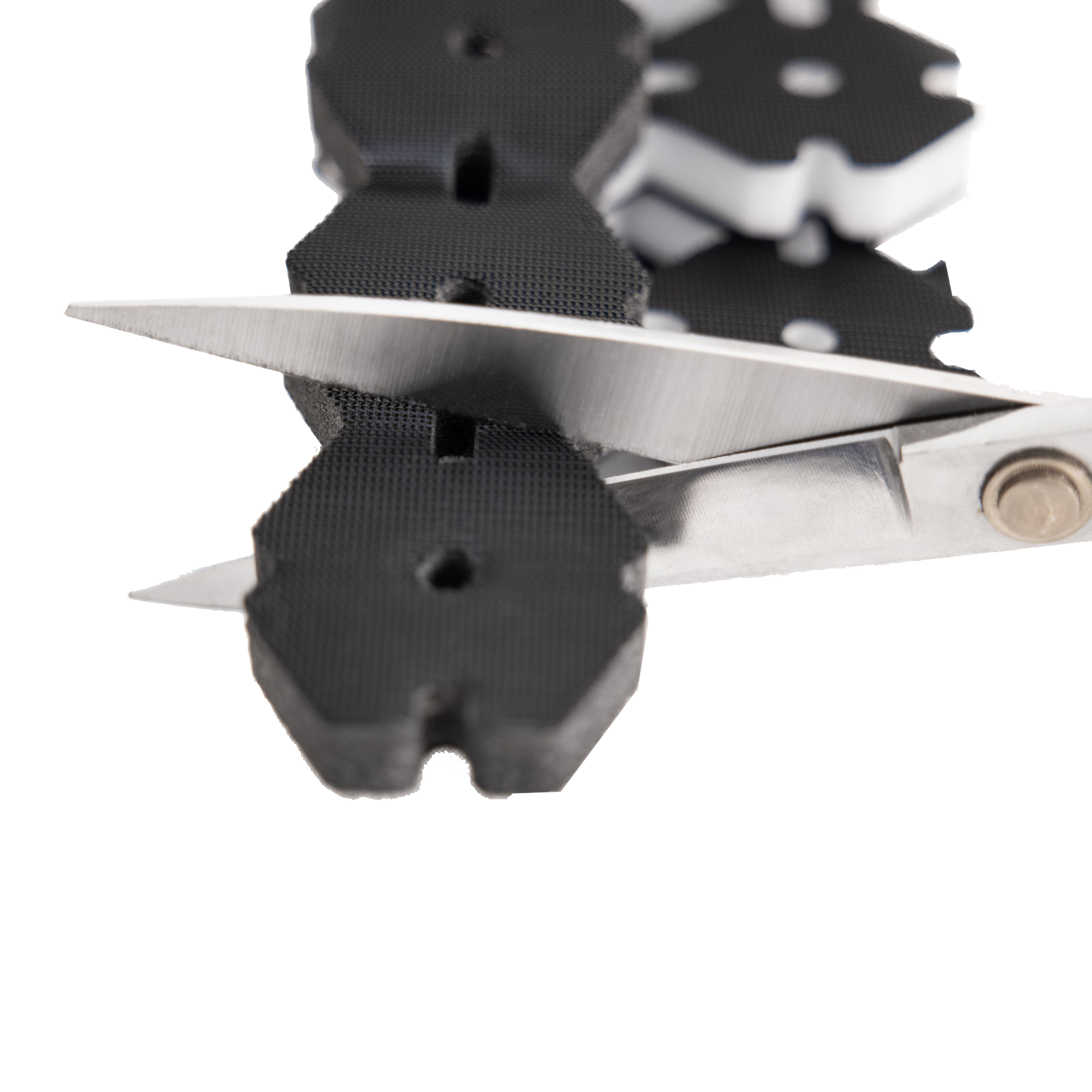

Cut to suit

The separate elements of the TSS can be cut and modified to achieve the desired configuration, making it a versatile solution to easy and effective back support contouring.

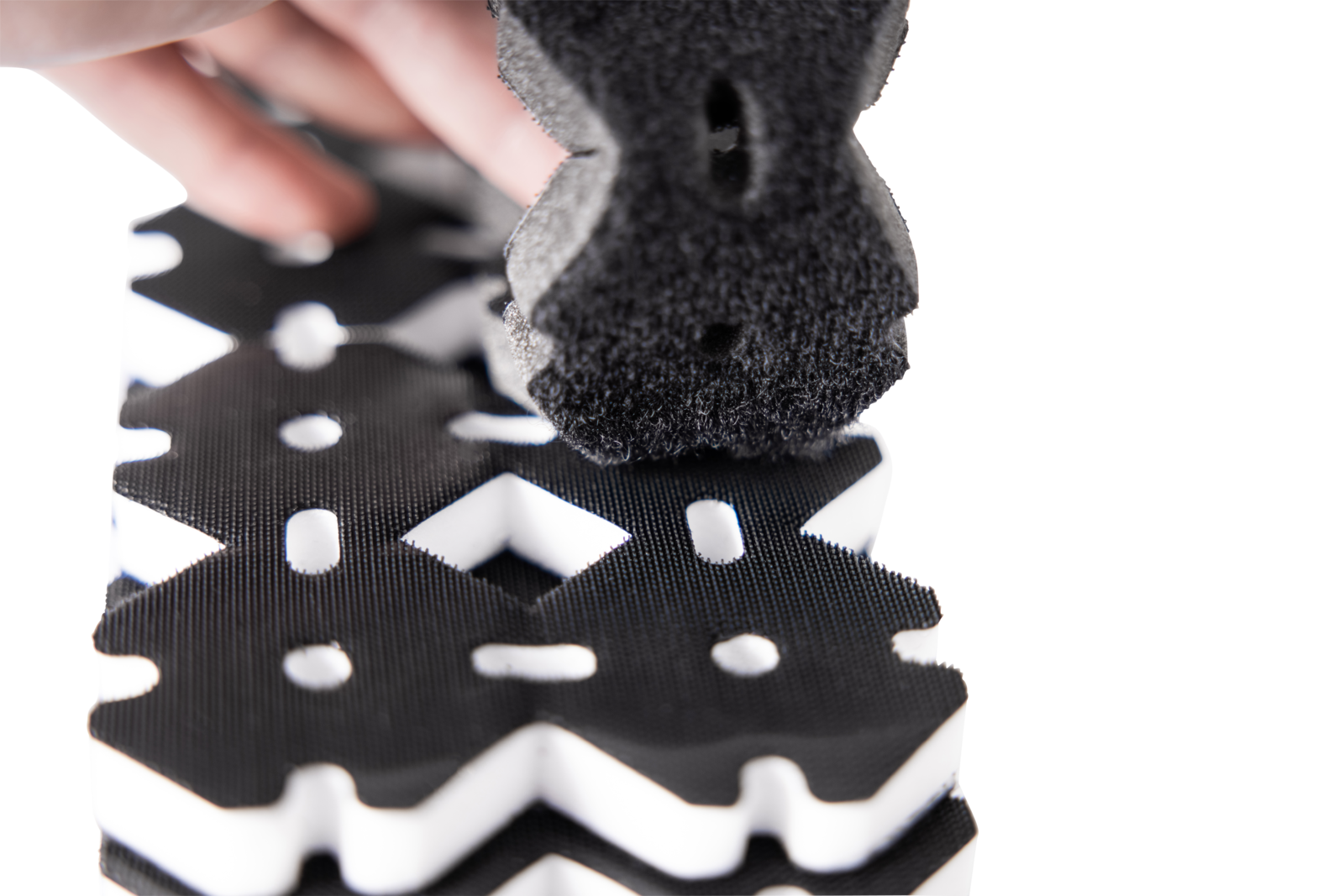

Strong velcro backing

The different elements of the TSS are backed with a strong Velcro surface.

Description

Clinical

Functional

Tessellated upgrade system can be used:

To assist clients with mild postural needs when using a standard back support with flat padding
In all situations where a supportive build-up foundation may be beneficial to assist positioning and comfort
To improve sitting posture and enhance function (e.g. Creating sacral/lumbar supports)

Functional

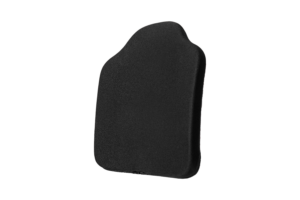

Upgrade Vigour, Manta or Spex back supports in order to maximise stability, positioning and seating tolerance.
Different densities are colour coded for easy application.

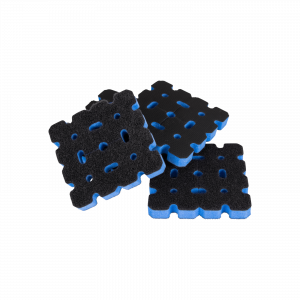

	Base Building Block	Firm density shape is used to build a firm foundation for the contouring.

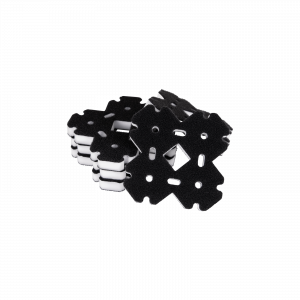

	Intermediate Building Block	Medium density shape is used to build up shapes where positioning is required.

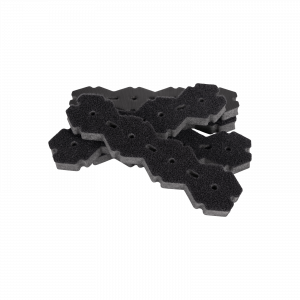

	Overlay Block	Softer density shape is used for creating softer overlay over the previous blocks.

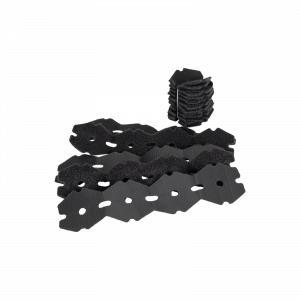

	Velcro fastening strips	These are used to smooth over the contours and also to hold it all together.

The colours of the foam have recently changed. Previously the Blue elements were the softest, Grey elements were medium density, and the black elements were firmest density.

Videos &

Downloads

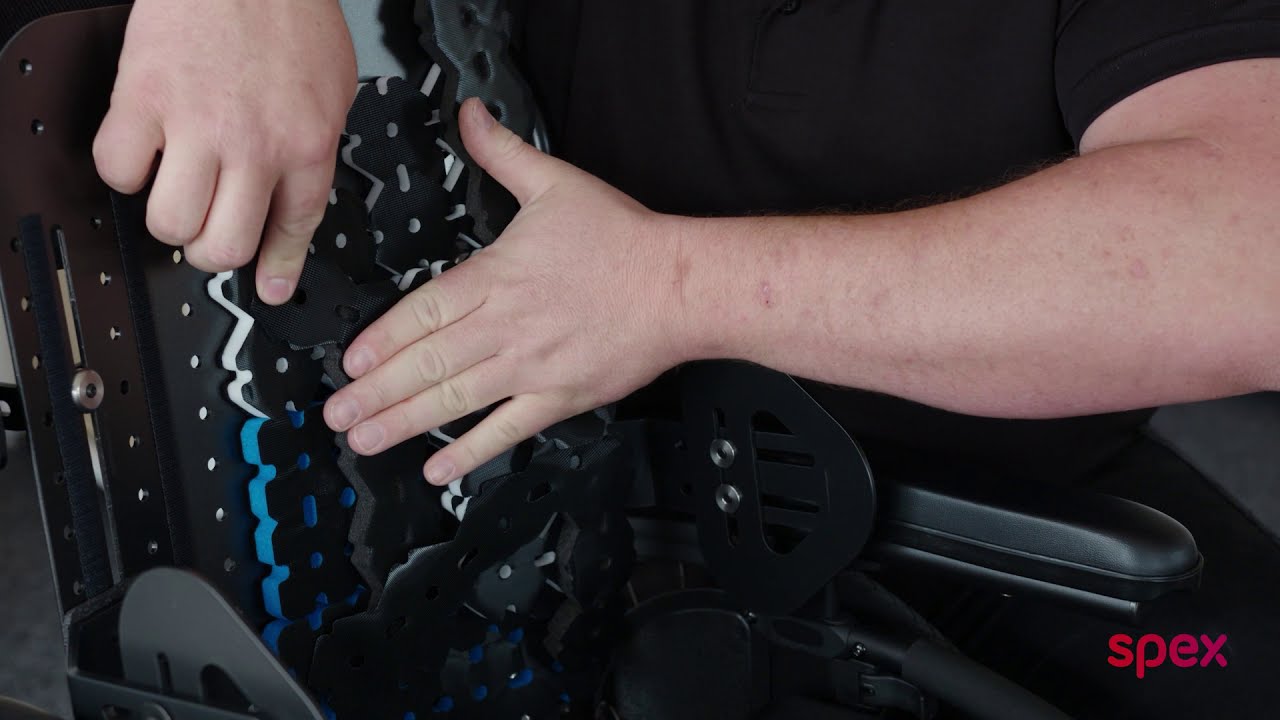

Spex Tessellated Shape System

Watch video

Resources

Spex-TSS-Splash-Flyer-20230703_EN_v1-WEB 2.87 MB Spex Back Support User Manual 2.08 MB

Specifications

Standard Kit

Codes

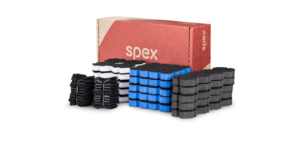

Elements Base Building Kit

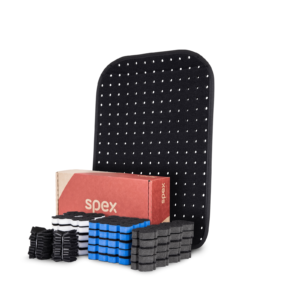

Standard Tessellated Shape System Kit

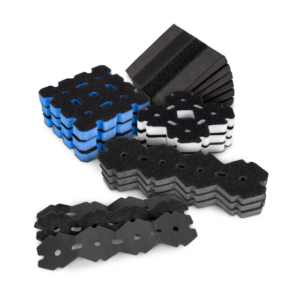

Whats included:

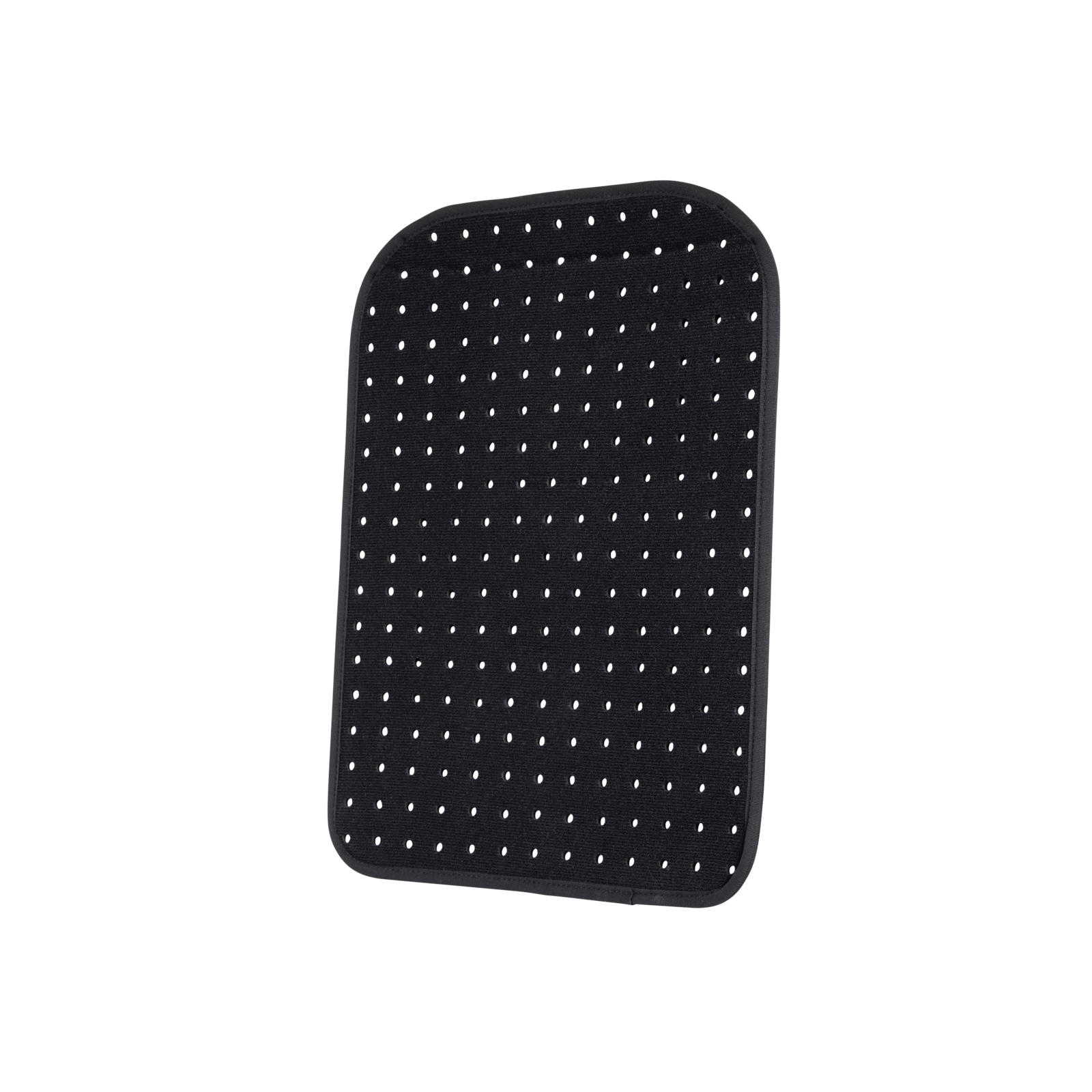

1 x Velcro Backing Board
5 x Blue Base Building Blocks
5 x White Intermediate Building Blocks
5 x Charcoal Overlay Blocks
10 x Velcro Fastening Strips

W/C WIDTH	HEIGHT	STANDARD TESSELLATED KIT CODE
10″	12″	1250-1012-000
10″	14″	1250-1014-000
10″	16″	1250-1016-000
12″	14″	1250-1214-000
12″	16″	1250-1216-000
12″	18″	1250-1218-000
14″	16″	1250-1416-000
14″	18″	1250-1418-000
14″	20″	1250-1420-000
16″	18″	1250-1618-000
16″	20″	1250-1620-000
16″	23″	1250-1623-000
17″	18″	1250-1718-000
17″	20″	1250-1720-000
17″	23″	1250-1723-000
18″	18″	1250-1818-000
18″	20″	1250-1820-000
18″	23″	1250-1823-000
20″	18″	1250-2018-000
20″	20″	1250-2020-000
20″	23″	1250-2023-000
