Spex Quick-Release Lateral Trunk Support

Make an enquiry

Quick-Release

Lateral Support

Easily removable lateral support for transfers and other temporary removal situations such as sport.

The latest design in Spex lateral support hardware features a Quick-Release mechanism, ideal for users who wish to easily remove their lateral support for transfers and other situations where laterals temporarily require removal from the wheelchair. Simple lever mechanism can be released by either user or carer. Available in a range of depth sizes to fit varying back support upholstery thicknesses, the Quick-Release hardware can be fitted to any of the Spex lateral trunk support pads. A locking pin provided for use in transport and to prevent unintentional release of the support.

Gallery

Functional

Benefits

Lateral support when you need it

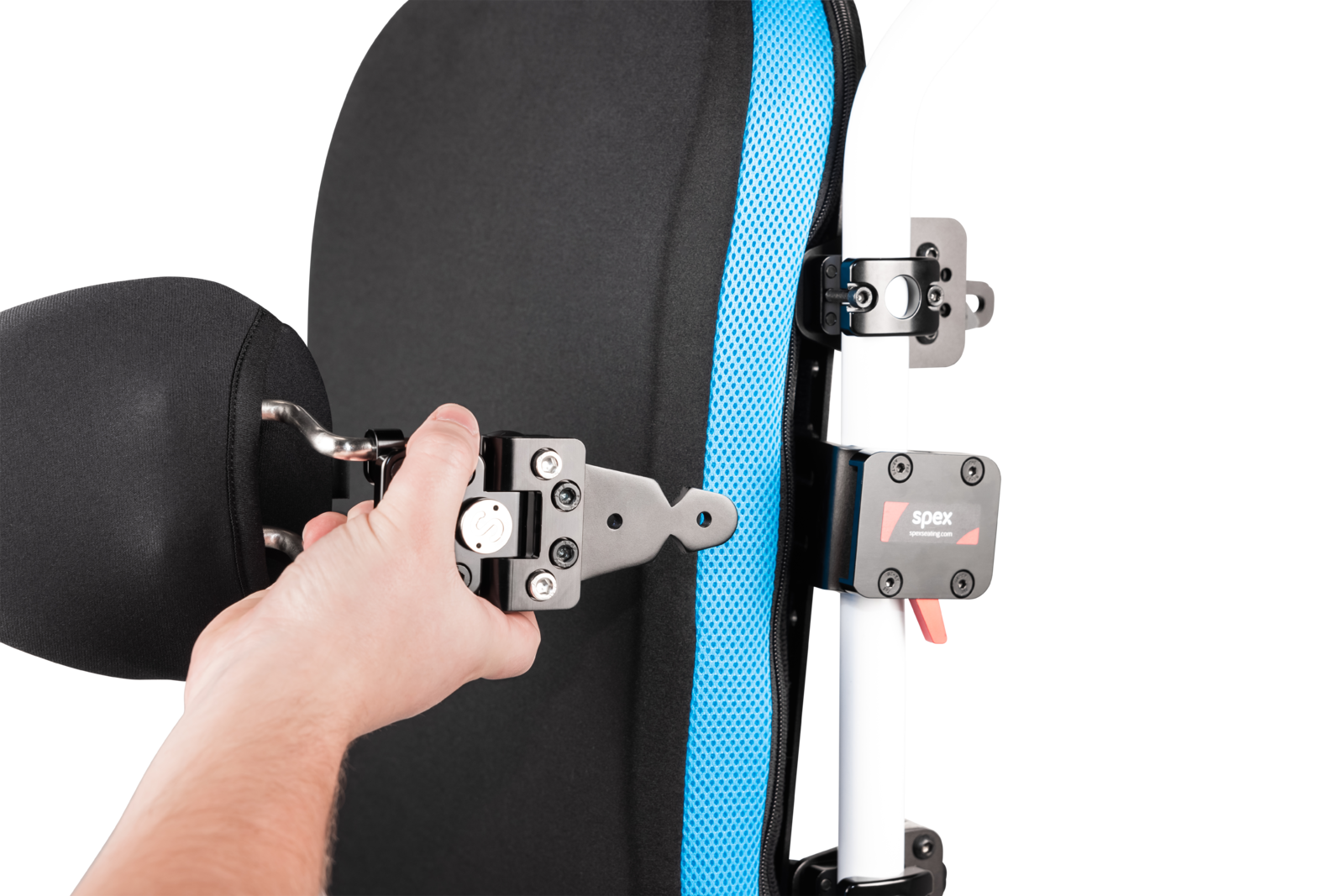

- Easily removed: for transfers and other situations where laterals temporarily require removal from the wheelchair, such as sports involving arm movement.
- Easily installed: for extra support in situations such as driving or other transport, when a lateral support is not normally used on the wheelchair.

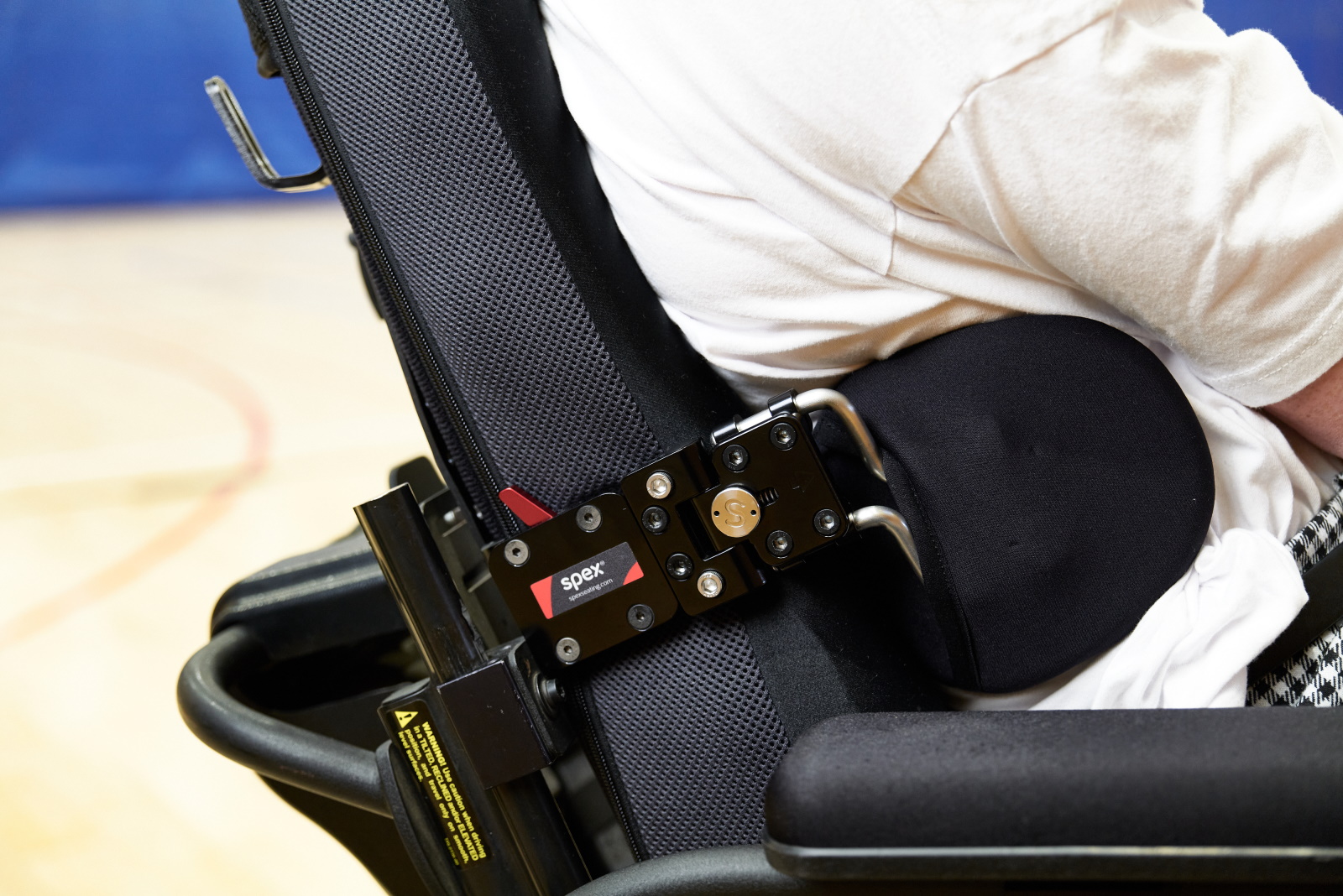

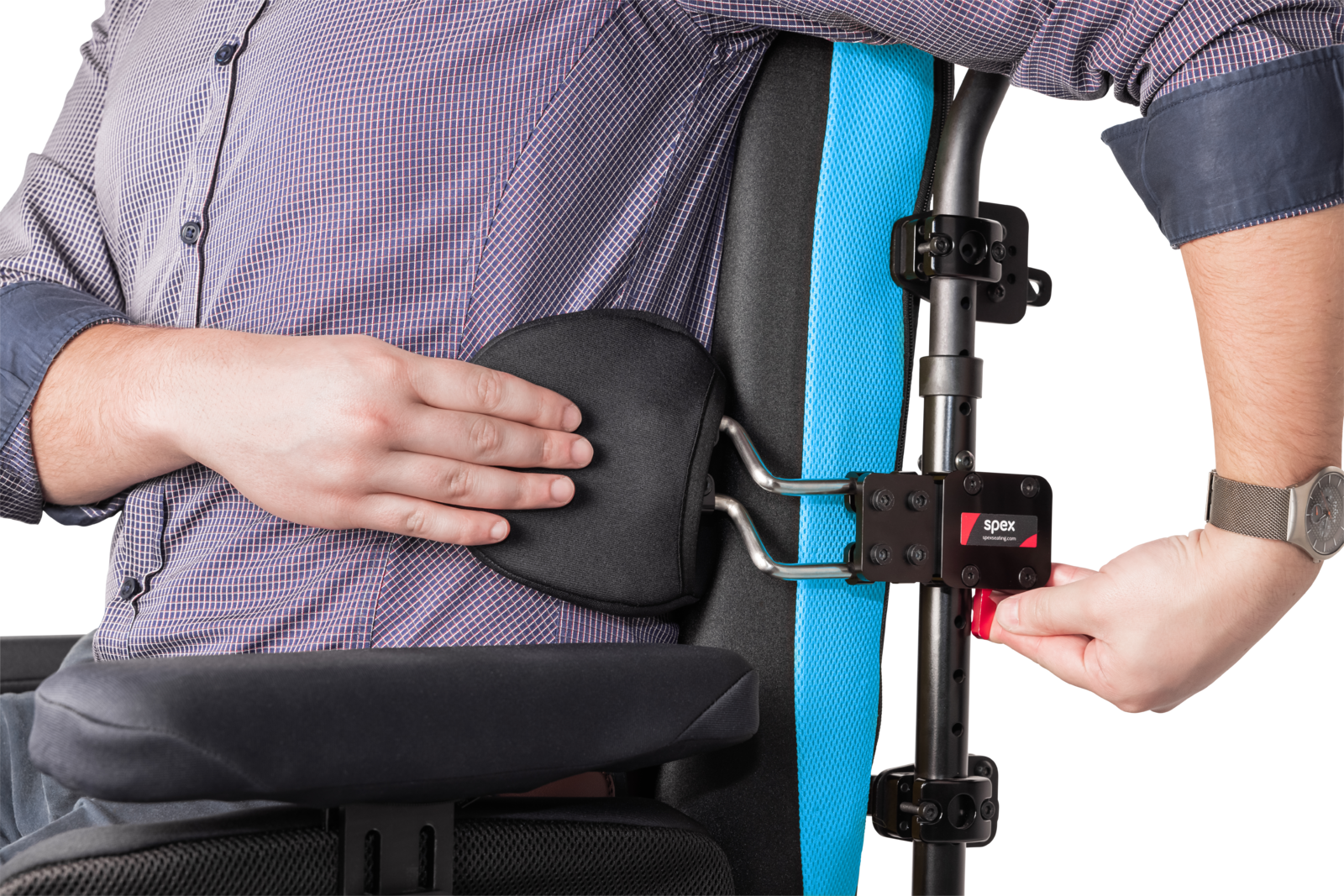

Easy release mechanism

Simple lever mechanism can be released by either user or carer. Quick-Release Lateral Supports are available in left-handed and right-handed configurations, so the lever can be positioned in the best spot for releasing.

Mounts to either the wheelchair back or cane

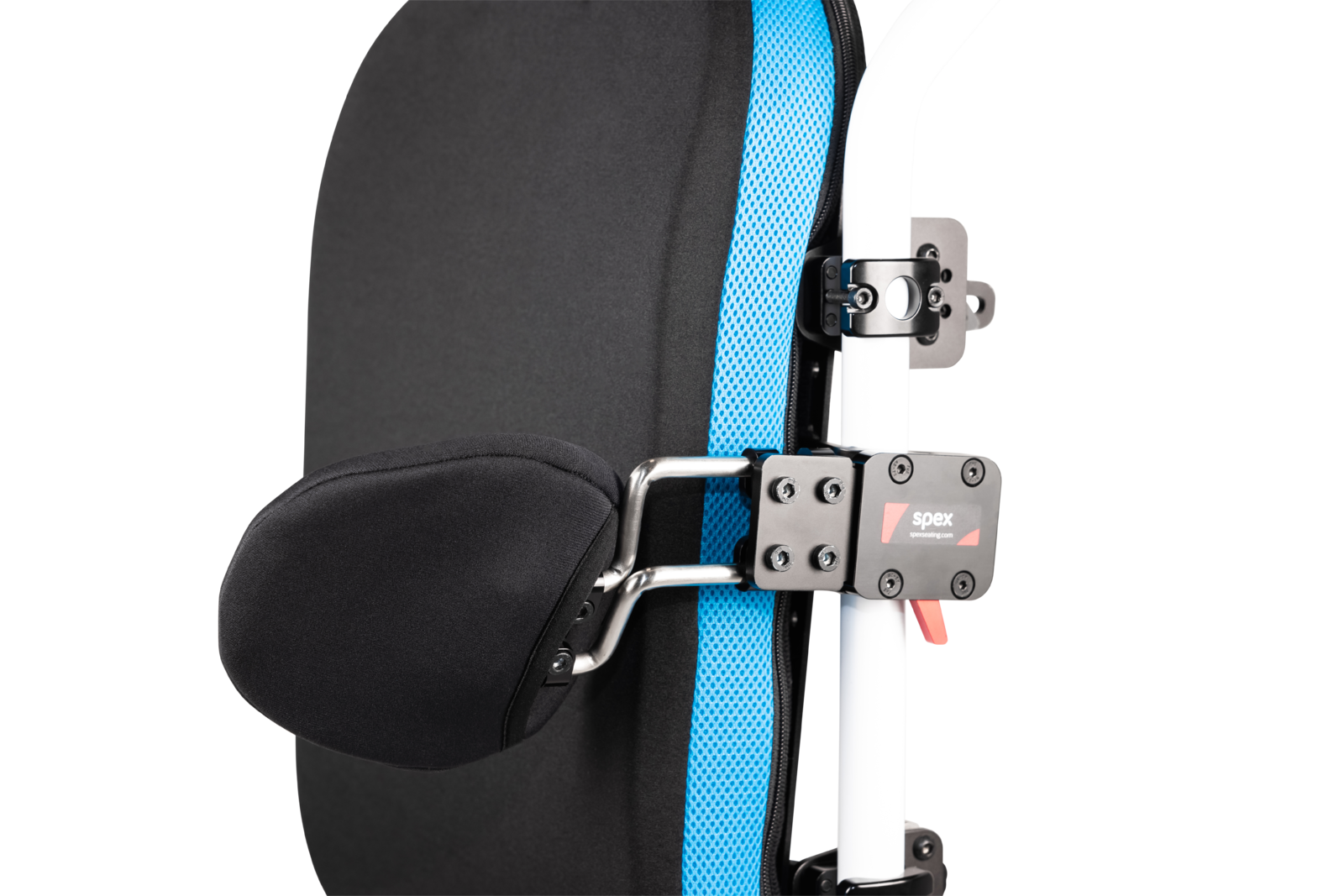

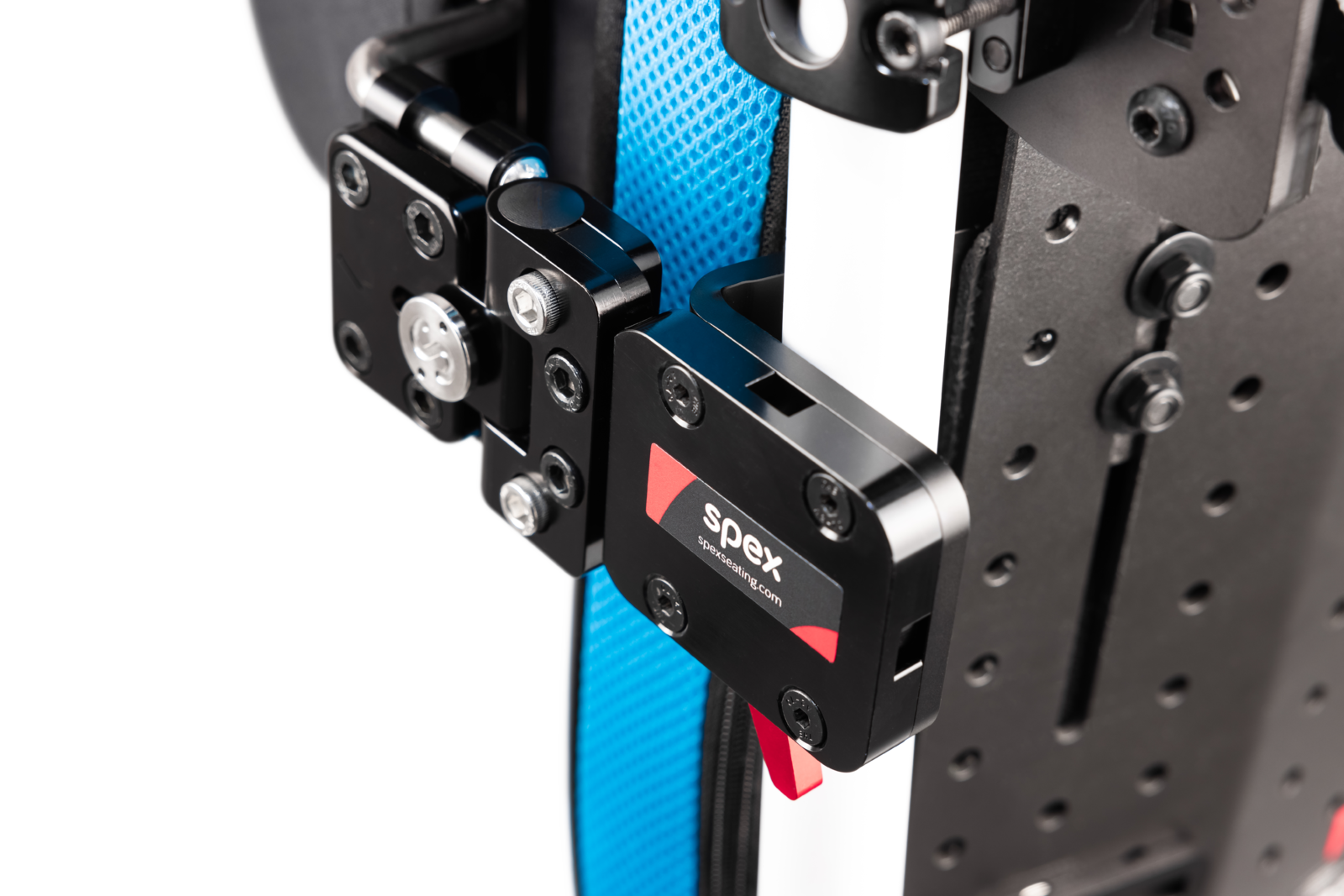

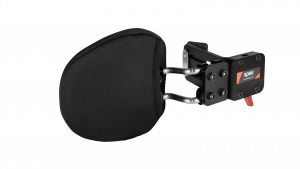

- Back mounted brackets: suitable for installing the lateral directly to Spex back supports and an added width adjustment capability.

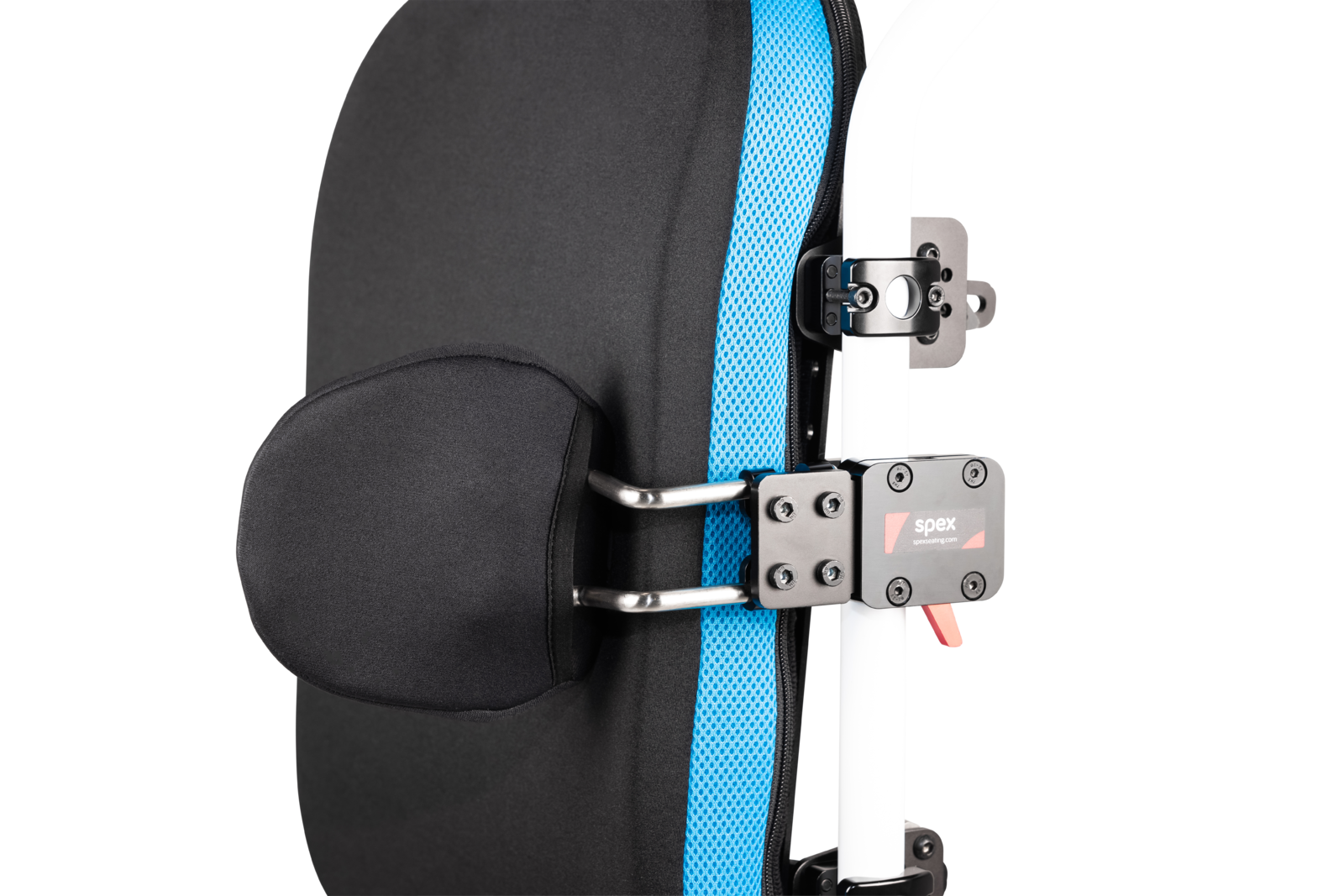

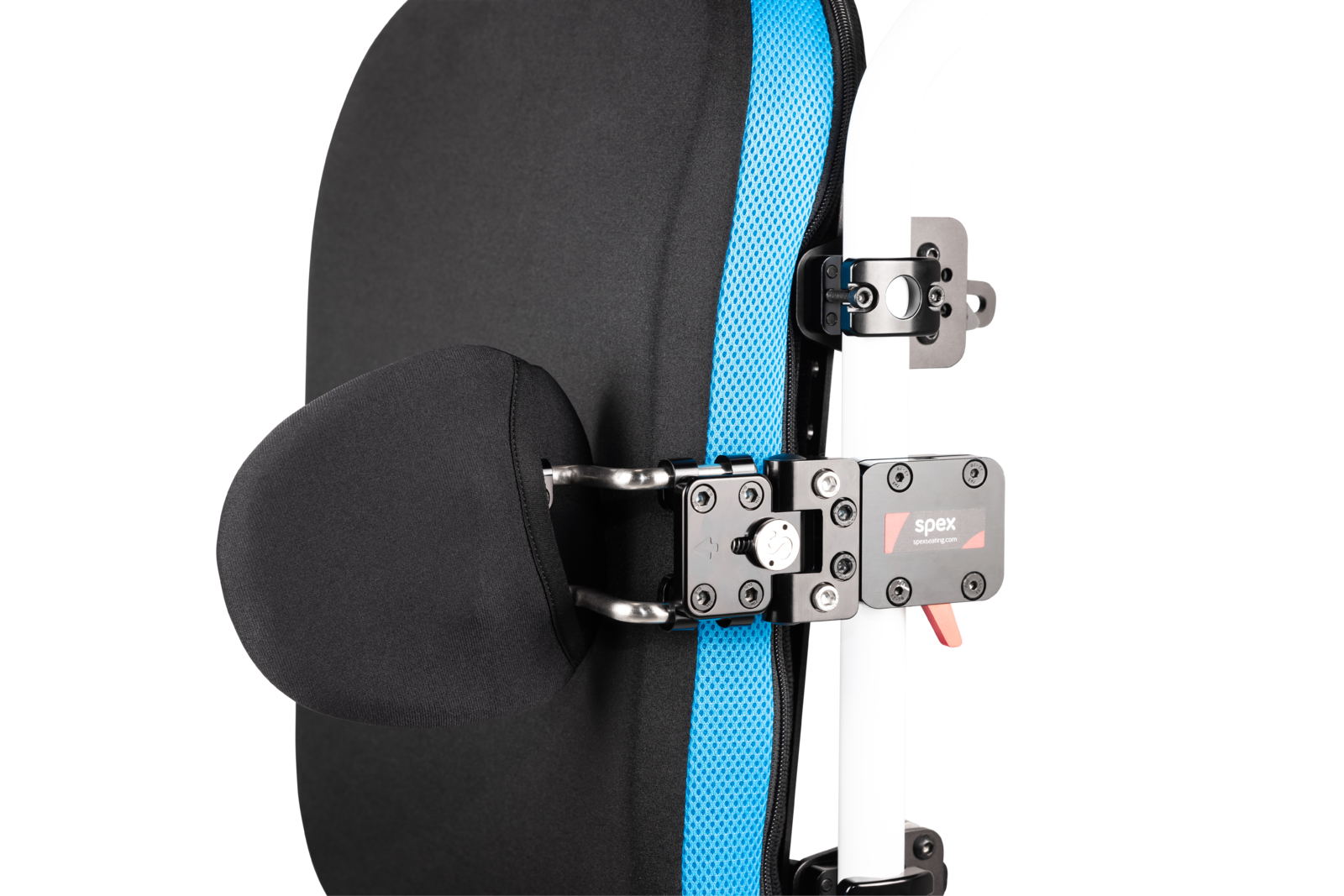

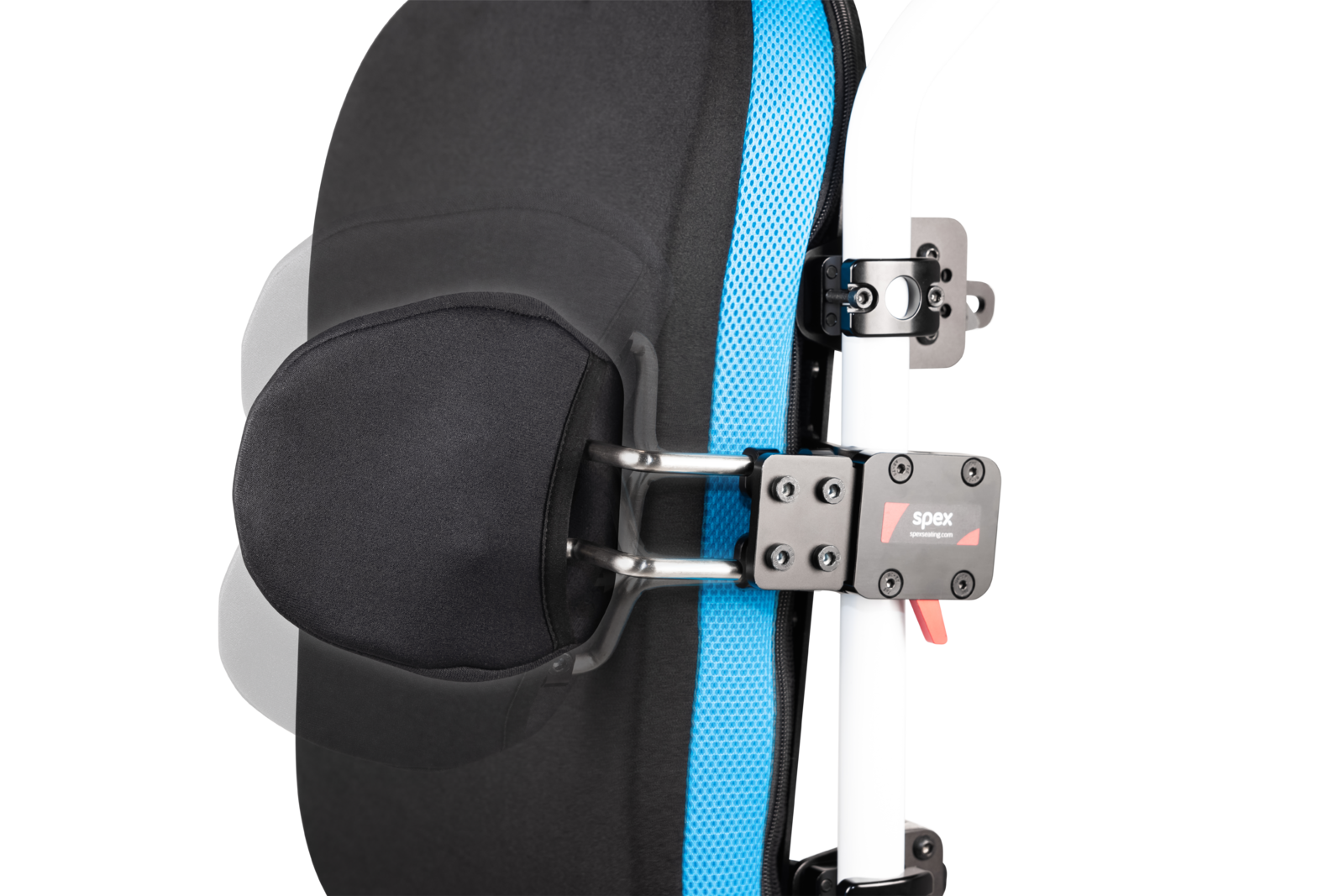

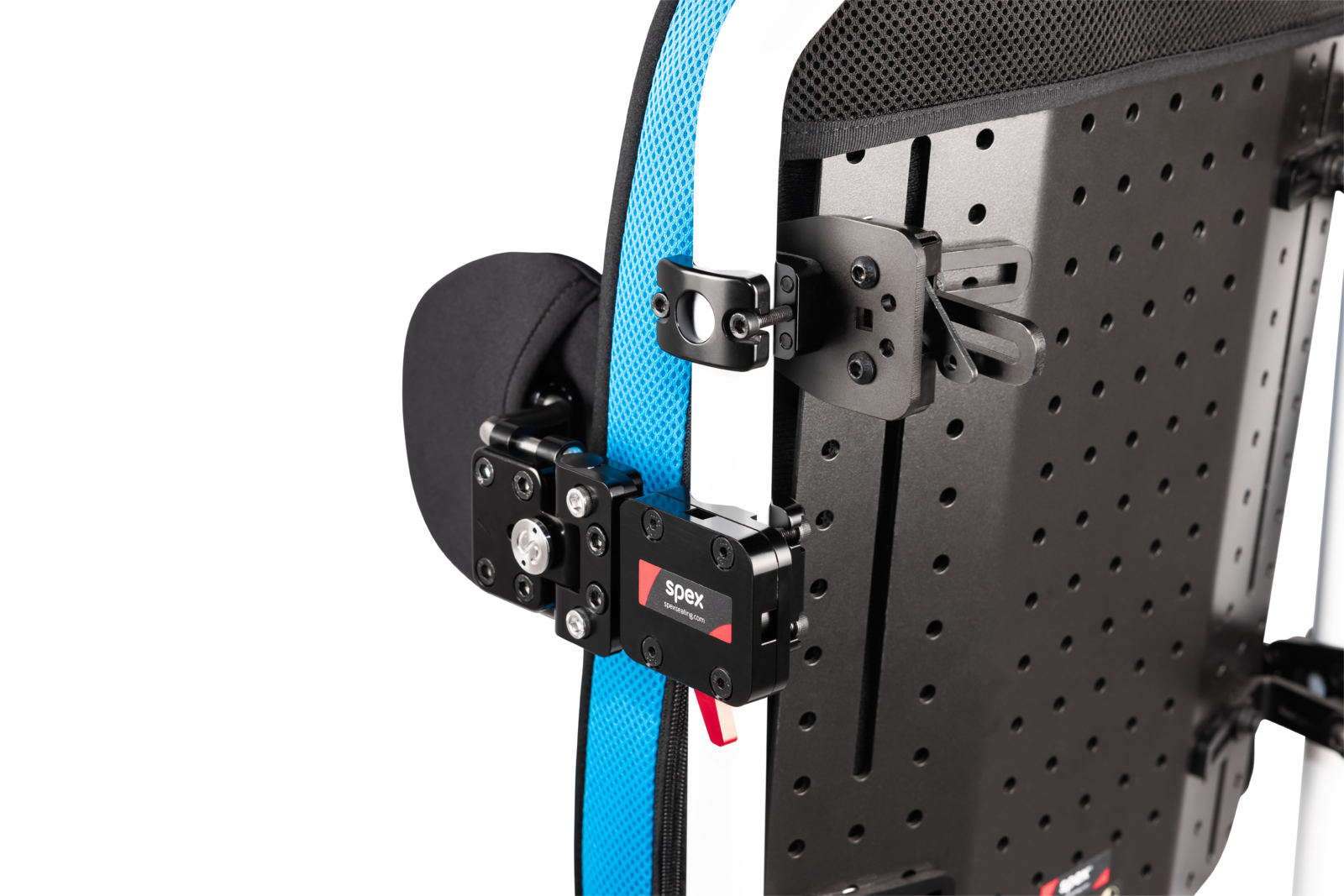

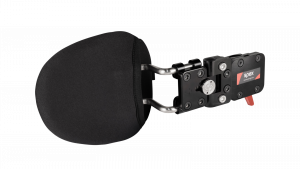

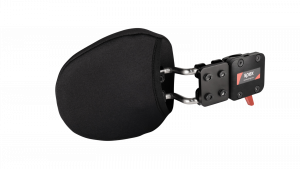

- Cane mounted brackets: option to mount the lateral off the wheelchair canes gives greater flexibility with installation and allows a greater variety of mounting positions. Although the cane mount can be angled slightly, it is dependent on the back support and wheelchair size.

Options available

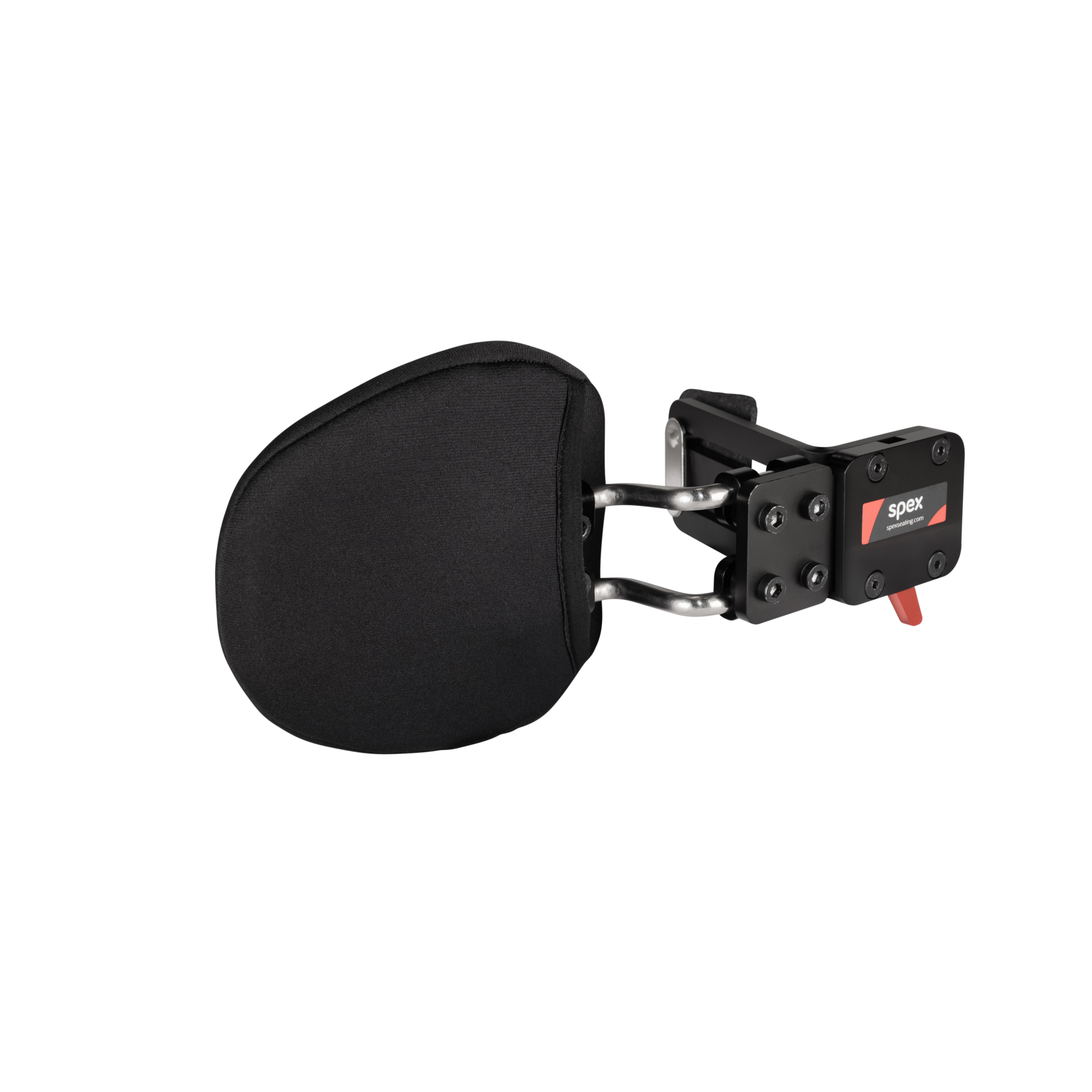

- Axial Fixed Angle: suitable for all back support models and includes extended bars to fit to a variety of back support foam thicknesses.

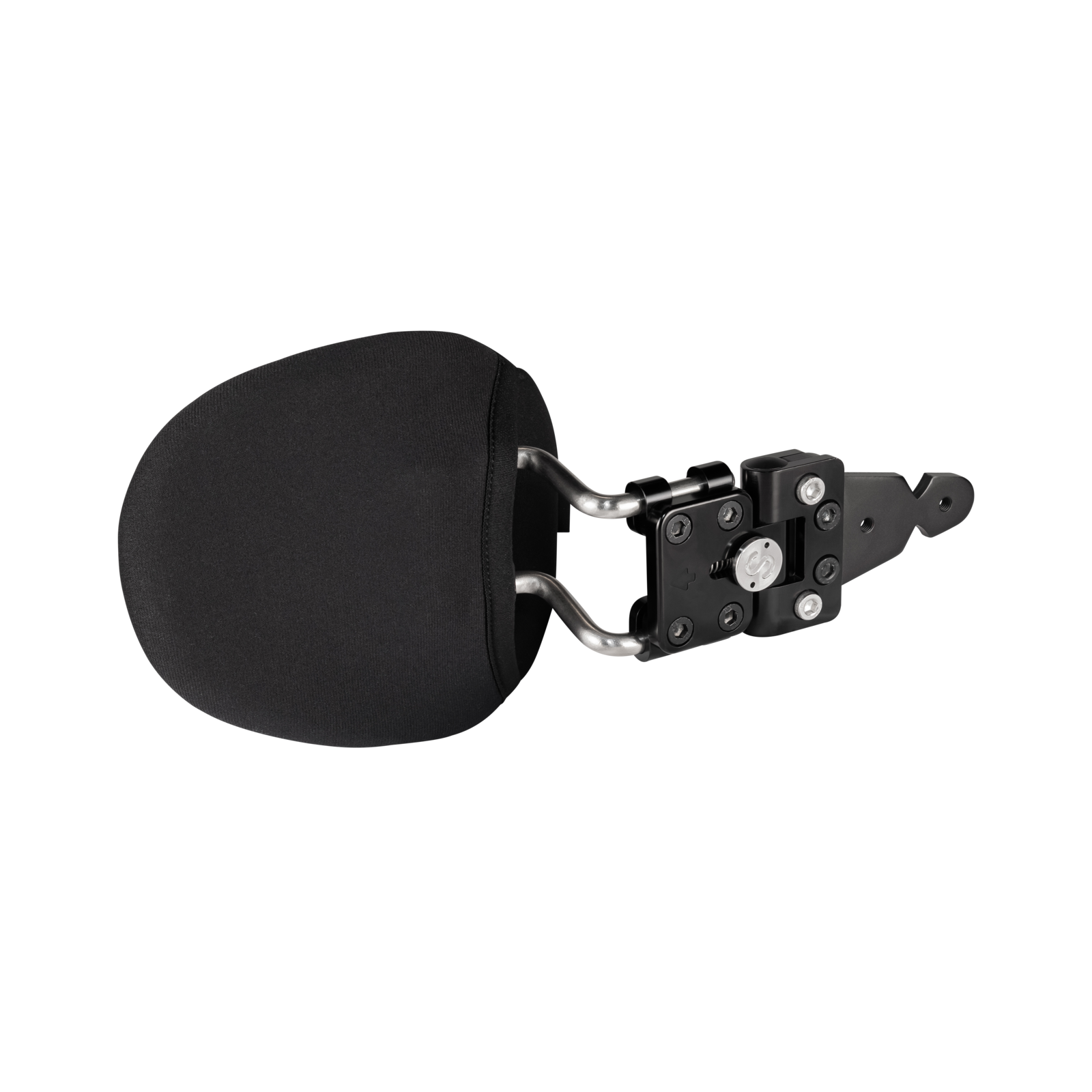

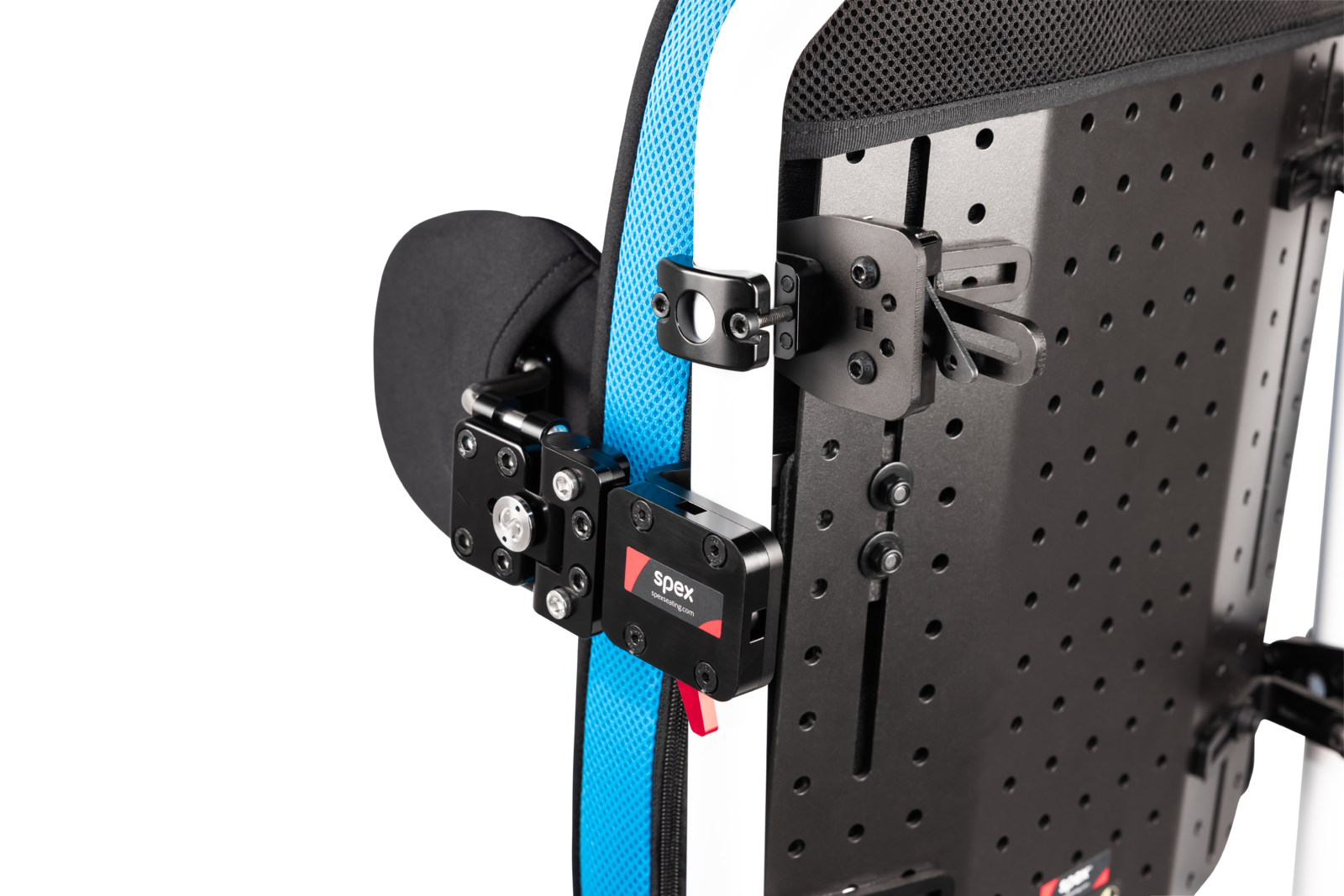

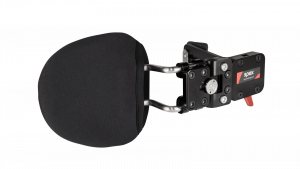

- Axial Swing-Away: also includes angle adjustment as well as swing away function. Suitable for fitting to Spex Classic, Comfi and SuperShape Back Supports.

Client

Gallery

Media

Spex Quick Release

How to Script Spex Lateral Trunk Supports

Watch video

Resources

Spex Quick-Release Lateral Support Flyer 1.92 MB Spex User Manual - Lateral - English 1.57 MB Spex Spare Parts Script Form 6.24 MB Spex Lateral Trunk Support System Clinical Guide GLOBAL 2.62 MB

Accessories

Lateral Reinforcement Plate

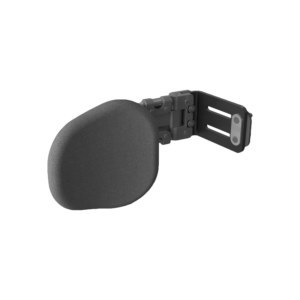

Broad Lateral Support Pad

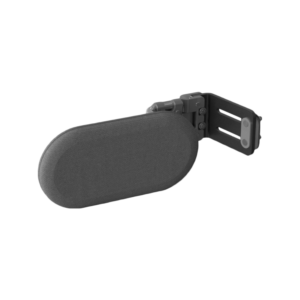

Narrow Straight Lateral Support Pad

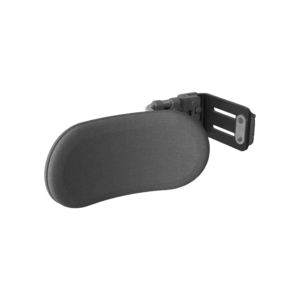

Spex Lateral Trunk Support Pads with narrow curved design, offering customised lateral support for improved seating stability.

Narrow Curved Lateral Support Pad

Lateral Reinforcement Plate

Recommended for clients with forceful side leaning or who weigh over 100kg.

Product Code:

1266-2450-100

Spex Lateral Trunk Support Pads with narrow curved design, offering customised lateral support for improved seating stability.

Narrow Curved Lateral Support Pad

Anterior support: For increased comfort and spinal extension.

Size 1	Size 2	Size 3	Size 4
1267-3321-300	1267-3322-300	1267-3323-300	1267-3324-300

Specifications

	Axial Fixed Angle	Axial Swing-Away
Back Mount

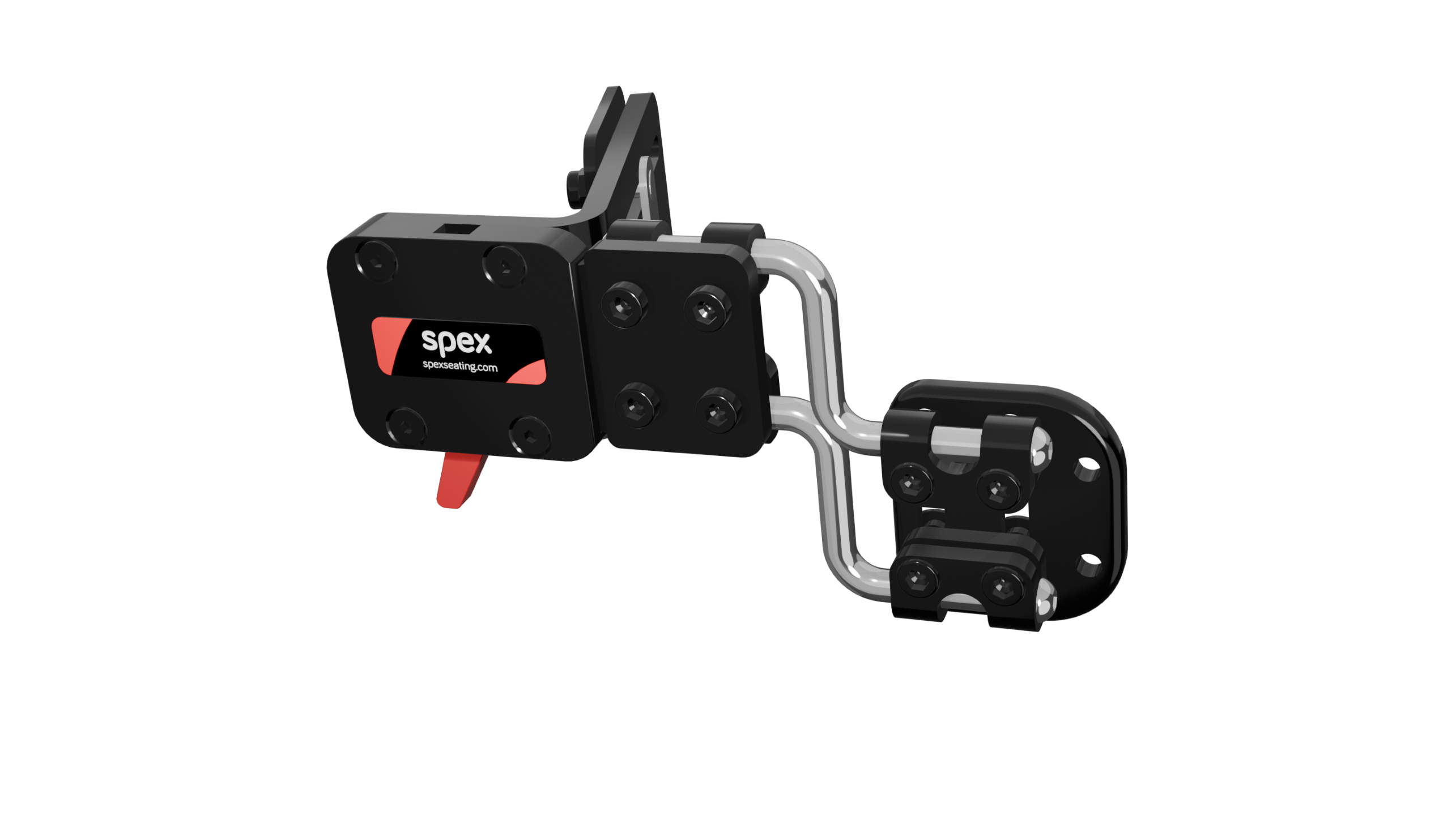

Back Mount	1266-2601-100-X	1266-2621-100-X
Cane Mount
Cane Mount	1266-2601-200-X	1266-2621-200-X
Bracket Weight	0.25kg-0.5kg

For left-hand (L) and right-hand (R) Quick-Release Lateral Trunk Support codes replace X with L or R.

Measurements

Quick-Release Lateral Dimensions

Axial Lateral Adjustments

Extended Z Bars

Demonstrating the difference in depth between the Axial Fixed Angle and Axial Swing-Away options.


Axial Fixed Angle (Back Mount)	Axial Swing-Away (Back Mount)

Range of adjustment available within the Axial lateral hardware.

The longer bars offer an extra 35mm extension suitable for mounting on thicker backrests. The Extended Z Bars are standard with the Axial Fixed Angle Laterals but not with the Axial Swing-Away Laterals, as these are 40mm longer in length.
