Enabling freedom without compromising posture and comfort, Zygo is a back support with inbuilt laterals designed for full-time self-propelling wheelchair users.
Active wheelchair users don’t want to be held back – they want the freedom to go places and do amazing things.
Zygo back support systems are lightweight, easily adjustable, easy to install and remove, more breathable and more personalised.
Zygo back support systems give you more comfort, flexibility, personalisation, and freedom to move – enabling you to go places, achieve more, and be whoever you want to be.
The back support is an integral wheelchair component for appropriate seating position and trunk support. It plays an important role in increasing comfort and function for wheelchair users.
Sitting over extended periods of time can cause discomfort and accelerate the development of spinal deformities. Manual wheelchairs are usually supplied with sling-style back supports which do not provide appropriate postural support, nor adequate pressure relief, for some full-time wheelchair users. Rigid back supports are recommended for improved postural support and comfort.
Spex Seating aimed to design the Zygo back supports with suitable shapes and sizes for most active users, without any major adjustments or customisations.

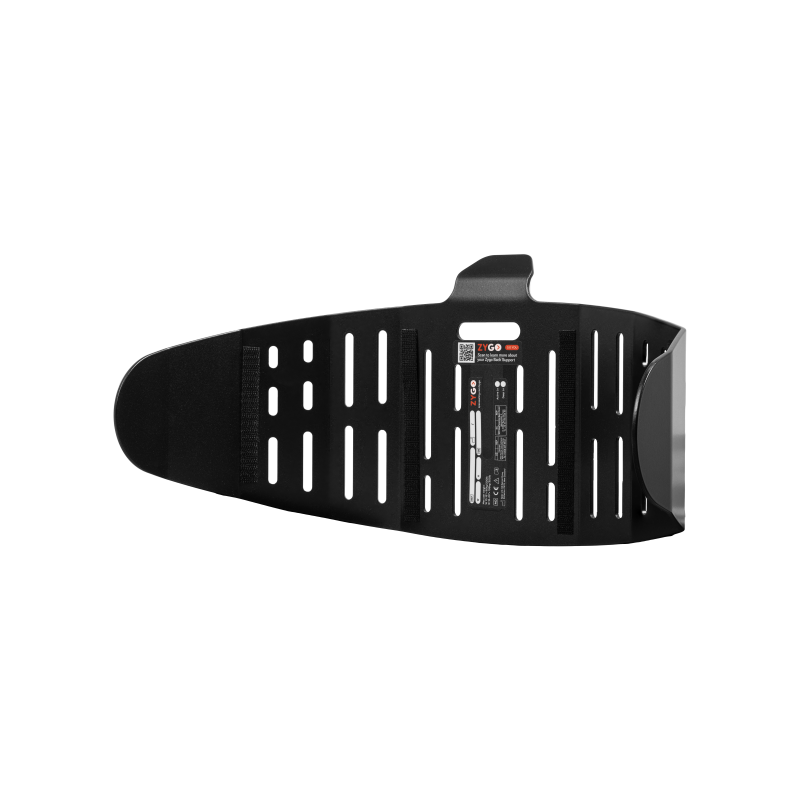

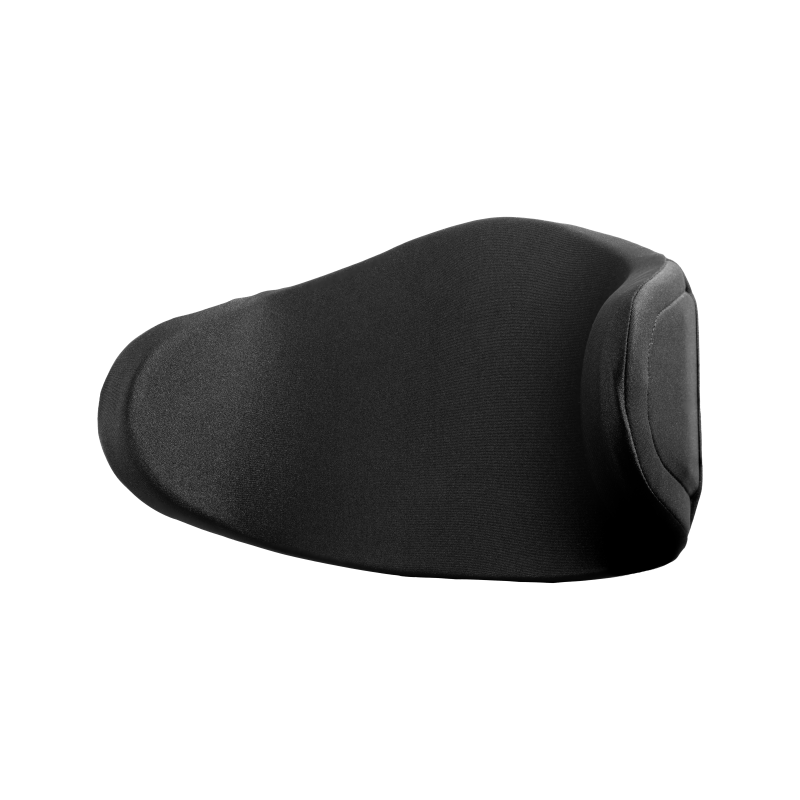

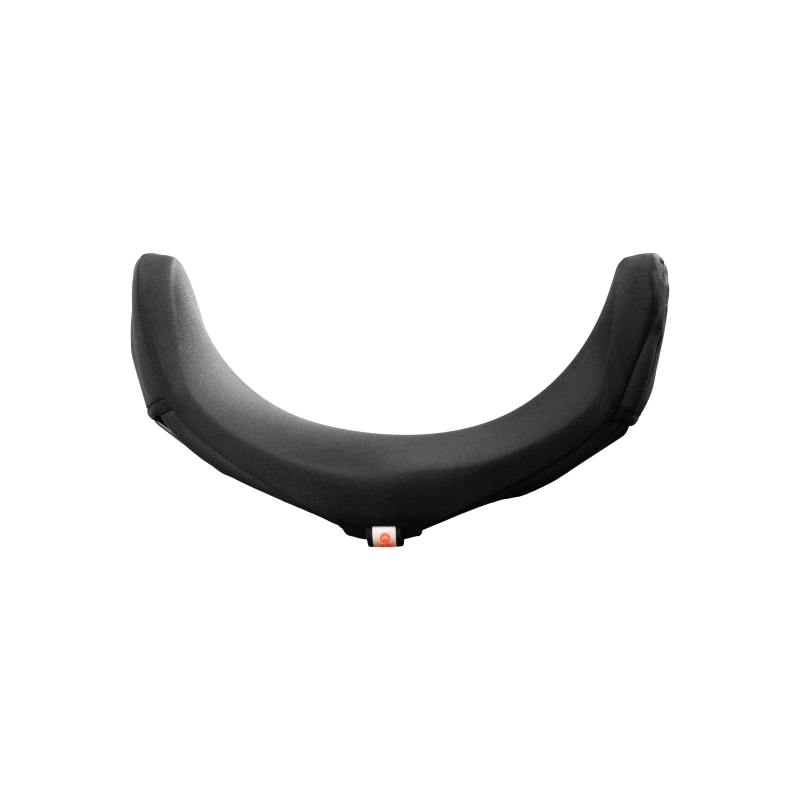

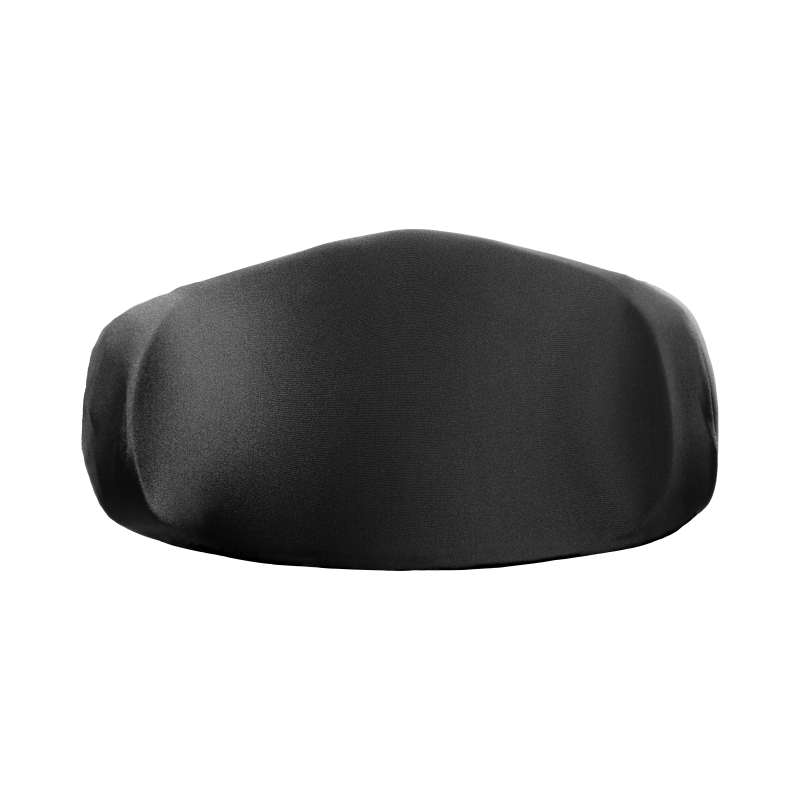

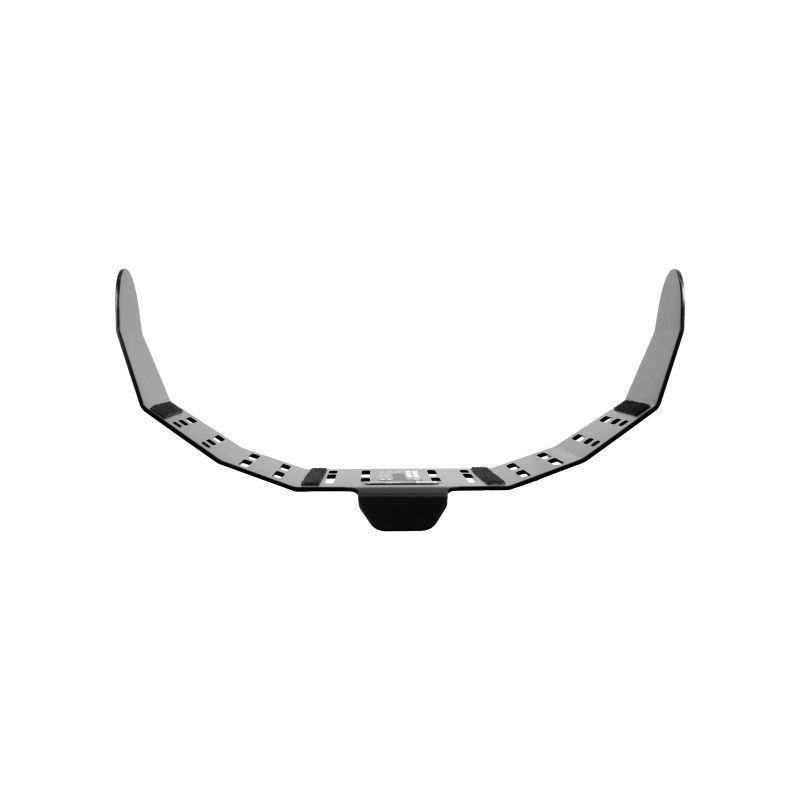

A low height shell with a supportive deep contour provides…
- Support for the pelvis and lumbar spine
- Deep contour suitable for users with moderate trunk mobility and strength
- Features a round, padded top relief to support and protect the spine

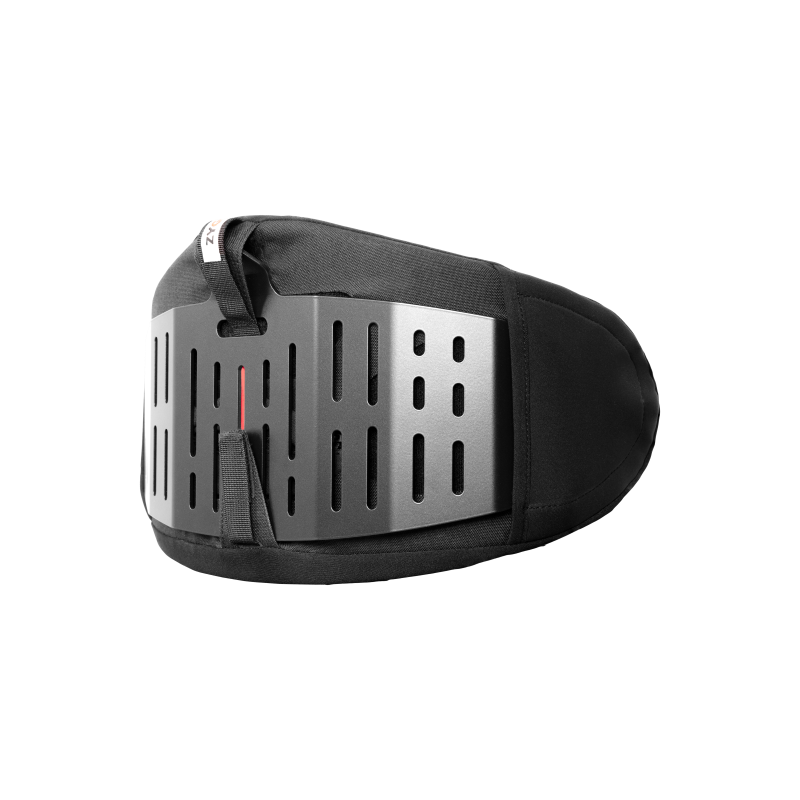

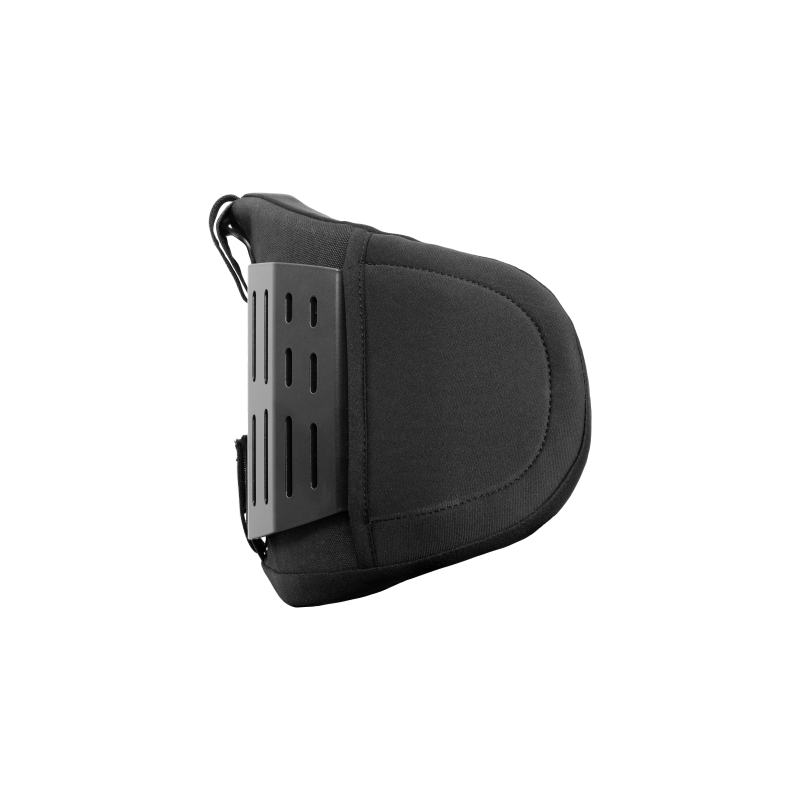

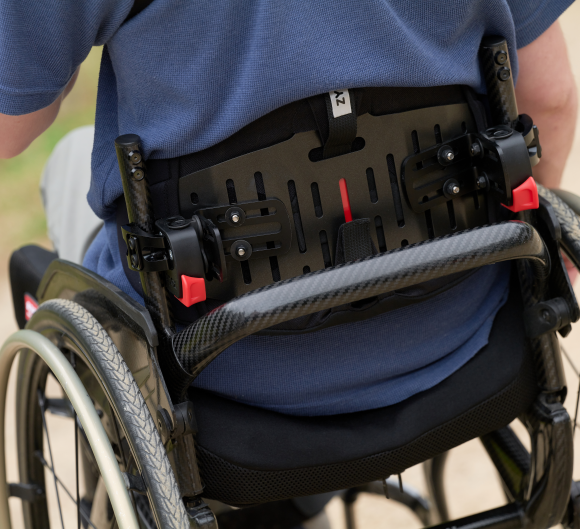

The lightweight Drop Mount hardware self-locks into place and is simple to operate with a single combined clamp and mechanism unit. The release mechanism is simple to operate, and suitable for single-handed use, and those with limited hand function. The hardware gives plenty of adjustability and rigidity and can be used on a wide range of wheelchair frames.
Developed using a composite material the Drop Mount Hardware is lightweight (600-800g) without compromising on durability.
Available in four sizes, ensures the visual footprint of the hardware is paired perfectly to the back support size. The hardware fits 10” to 20” wide backs which are between 7” to 18” tall.
|Size||Code||Width Adjustment||Depth Adjustment||Wheelchair Compatibility: When used with Zygo Back Supports||Wheelchair Compatibility: When used with Spex Back Supports||Weight|
|Paediatric||1259-1400-00P||1″||2||+2″ to -2″||+2″ to -0″||600g|
|Small||1259-1400-00S||1.7||1.5||+2″ to -2″||+3″ to -0″||600g|
|Medium||1259-1400-00M||1.7||2||+2″ to -2″||+3″ to -0″||700g|
|Large||1259-1400-00L||2.3||3||+2″ to -2″||+4″ to -2″||800g|
|Zygo Deep Lo||16″ x 9″||0.9kg|
Maximum Occupant Weight: 136kg
The Zygo Back Support Family implements a unique “user-focused” scripting process where the size is determined by the user size, not the wheelchair width, thereby ensuring a tailored fit to the torso. See our Zygo fitting guide.
|Deep Lo – Sizing Table|
|Zygo Size||Outer Width||Inner Width||Height||Depth||Lateral Height||Code|
|12″ x 7″||10.5″||8.5″||7″||3.5″||6.2″||1251-1207-0DL|
|14″ x 8″||12.5″||10.5″||8.2″||4.5″||7.4″||1251-1408-0DL|
|16″ x 9″||14.7″||12.5″||8.8″||5.8″||7.8″||1251-1609-0DL|
|18″ x 9″||16.7″||14.5″||9.4″||6.3″||8″||1251-1809-0DL|
|20″ x 11″||18.7″||16.5″||10.6″||6.3″||8.5″||1251-2011-0DL|

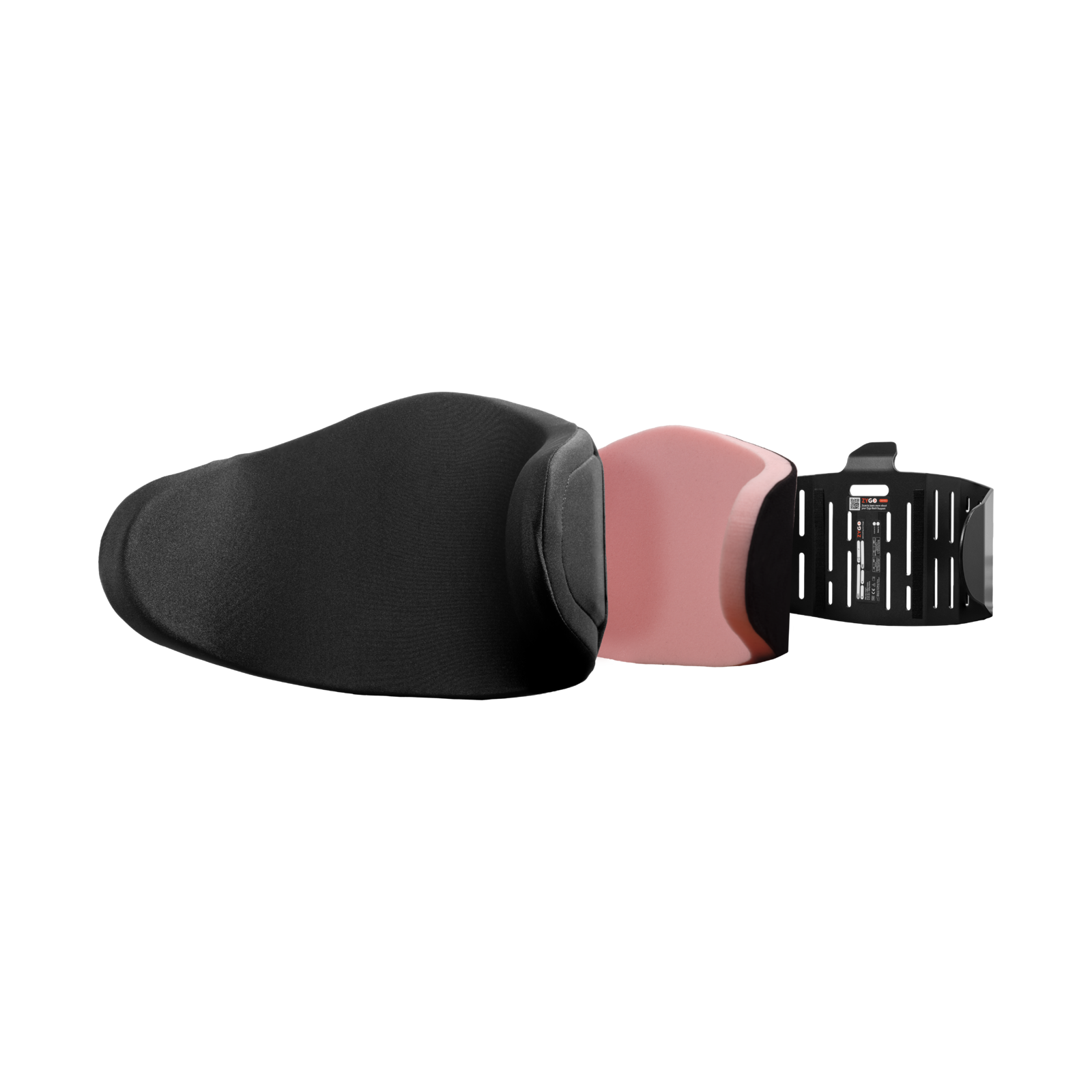

|Zygo Style||Width||Supportive Pink PU Foam||Velcro Grey Contouring Layer||Overall Thickness (Including Cover)|
|Zygo Lo||12″ to 14″||20mm||6mm EVA||30mm|
|Zygo Lo||16″to 20″||25mm||6mm EVA||35mm|
Crash tested and transport certified to ISO 16840-4:2009
